Infinity Tools Tablesaw Router Table Packages w/ Triton TRA001 Router
Stop Wasting Valuable Shop Space!
Most woodworkers would love to have a stand-alone router table system in their shop but until now, not everyone has had the space. Our exclusive Table Saw Router Table Packages give you a full-featured router station without taking up another square inch of your shop! While using the existing footprint of your table saw, you'll sacrifice nothing in functionality or quality, and you'll be giving your workspace a major upgrade.
Available in 2 sizes; 27” x 47” (TSRTP-047) or 27” x 29” (TSRTP-029), they'll fit almost any table saw with a standard 27” depth. Our Table Saw Router Table Packages use the same quality components that you’ve come to know and love in our stand-alone systems. The tabletop is made from 1” thick, quality multi-layer plywood that is practically impervious to moisture. It features a super-slick Micro-Dot laminate coating so your workpiece glides effortlessly and it's guaranteed to never twist, warp or bow. It remains fully supported and level to your shop floor with the included Leg Set and leveling feet (TSRT-LEGS) and comes pre- drilled to accept our optional Mini Power Feeder (MPF-001).

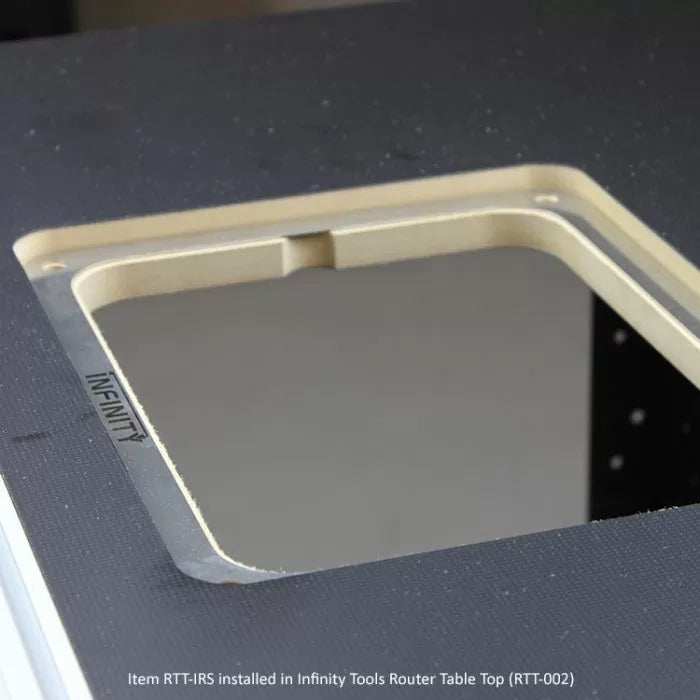

Also included is the Infinity Tools Router Table Insert Plate (RTI-INF1) and our stainless-steel Router Plate Insert Ring (RTT-IRS). These work together with the included Triton 3-1/4 HP plunge router’s built-in lift mechanism to raise and lower your router for precise height adjustments and easy router bit changes. With our system you won’t need to purchase a separate router lift or plate, that’s a huge advantage and saves you money!

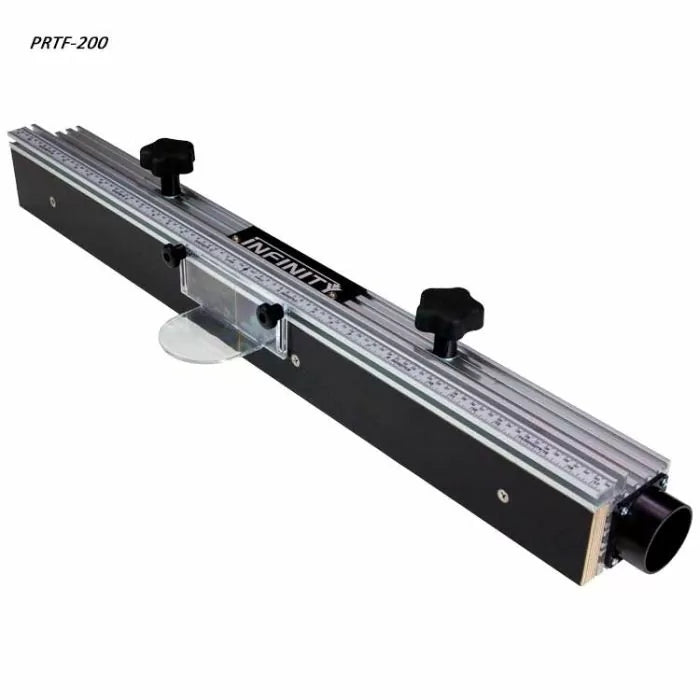

The PRTF-200 Infinity Pro Router Table Fence is made of heavy walled extruded aluminum. Our completely reengineered fence is based around a single robust 3-3/16” X 3-3/16” square extrusion. This design innovation improves stability, squareness to the table and workpiece, and above the table dust collection capability. The cut out in the middle of the extrusion is large enough for even the widest router bits. In conjunction with the oversize cutout, the replaceable fence faces can be repositioned along the length of the fence to best accommodate your bit diameter. Unlike inferior MDF fence faces found on competitor products, our fence is fitted with ¾” thick, Micro-Dot Plycore material. The extra lubricity of our Micro-Dot covered faces allow your workpiece to glide effortlessly and the stability and flatness of the plywood core combine for years of trouble-free service. The top rail extrusion comes with two (2) 17.5” metric and imperial scale rules and has a built-in ¼" x 20 t-track that works with any compatible fixture or hold-down. Positioned to the end of the fence, and integrated as part of the hollow center of the fence extrusion, the new dust collection port keeps your dust collection hose out of the way and improves suction by creating a stronger vacuum in the empty cavity. The tall and comfortable rubberized locking knobs make busted knuckles a thing of the past.
Items Included w/ TSRP-029

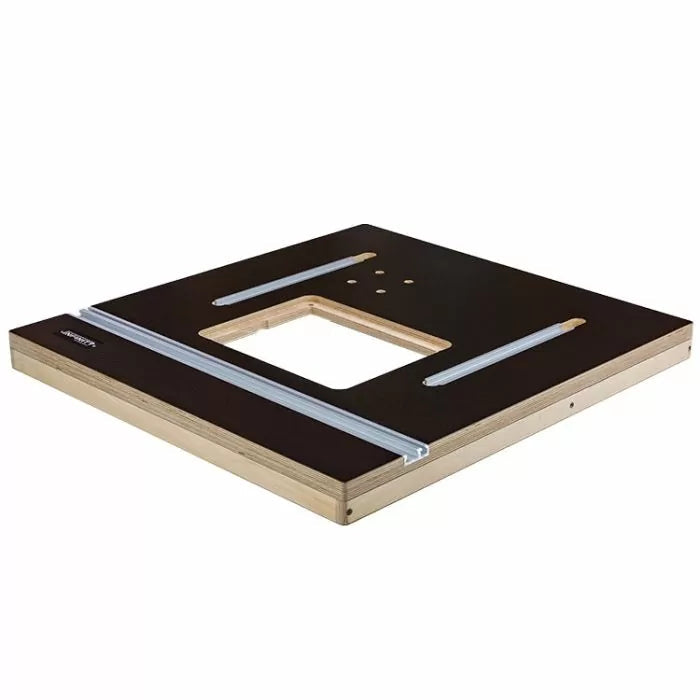

(RTT-029) Infinity Tools Table Saw Router Table Top

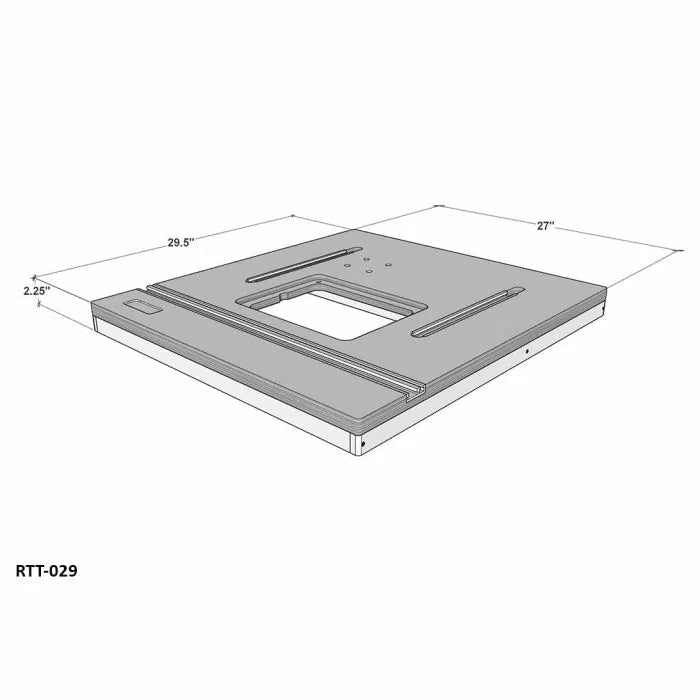

New Improved Infinity Tools Router Table Top with 18 Ply Birch Plywood core Microdot Slick Surface. Features a large 27" x 29" work surface with built-in Miter + Mini combo t-track. It is pre-drilled with threaded inserts to accept our optional Mini-Power Feeder (MPF-001)
Items Included w/ TSRP-047

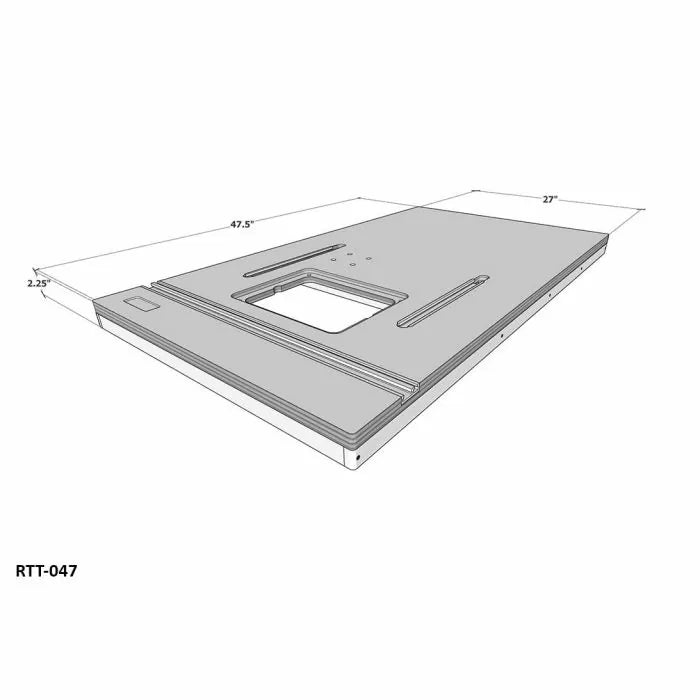

(RTT-047) Infinity Tools Table Saw Router Table Top
New Improved Infinity Tools Router Table Top with 18 Ply Birch Plywood core Microdot Slick Surface. Features a large 27" x 47" work surface with built-in Miter + Mini combo t-track. It is pre-drilled with threaded inserts to accept our optional Mini-Power Feeder (MPF-001)
All Items Below Included with Both Packages:
(116-270) Triton 3-1/4 HP Plunge Router
The Triton TRA001 Dual Mode Plunge Router features a powerful 2400W (3-1/4 hp) electronically controlled motor with soft start technology and is perfect for both table-mounted and hand held use.

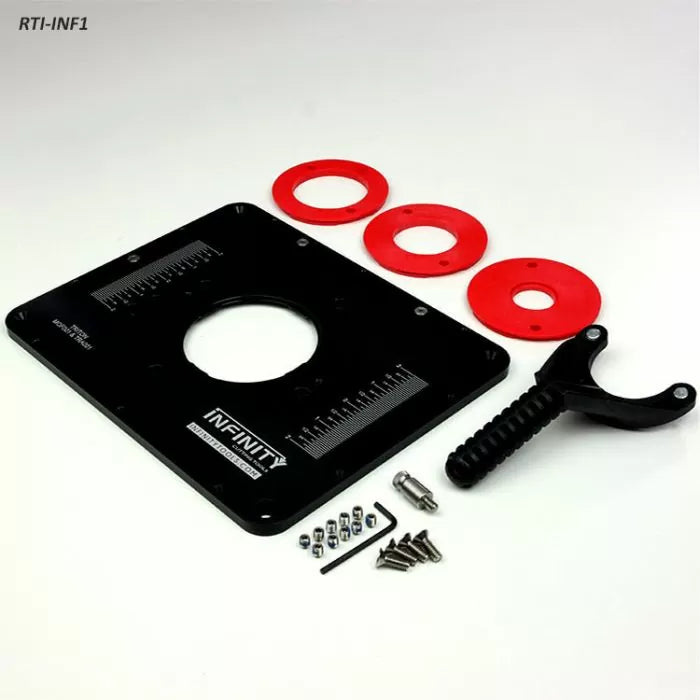

(RTI-INF1) Infinity Tools Aluminum Router Table Insert Plate
This plate has been pre-drilled to accept both the Triton MOF001 and TRA001 routers

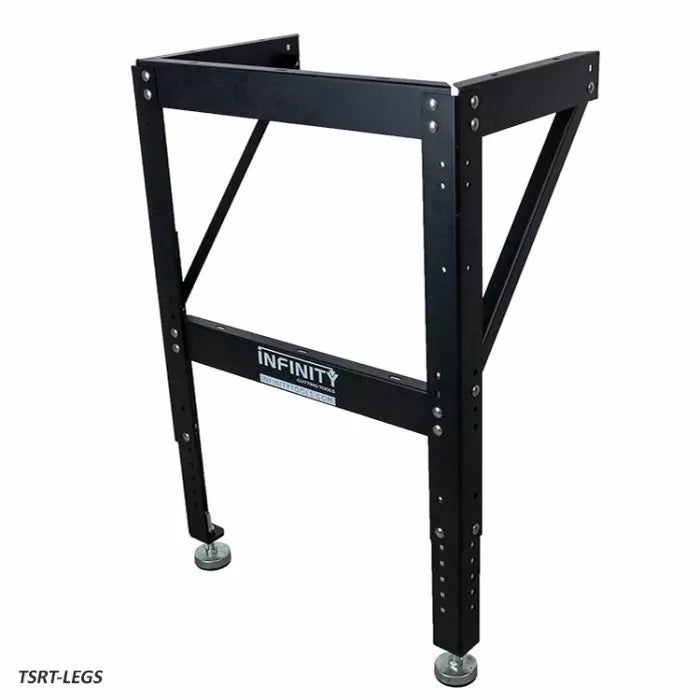

Infinity Tools Table Saw Router Table Legs (TSRT-LEGS)
Infinity Tools Professional Router Table Fence (SKU: PRTF-200)
Infinity Tools Aluminum Router Table Insert Plate, 9-1/4" x 11-3/4" (SKU: RTI-INF1)
Triton 3-1/4 HP Dual Mode Precision Plunge Router Instruction Manual TRA001 (SKU: 116-270)

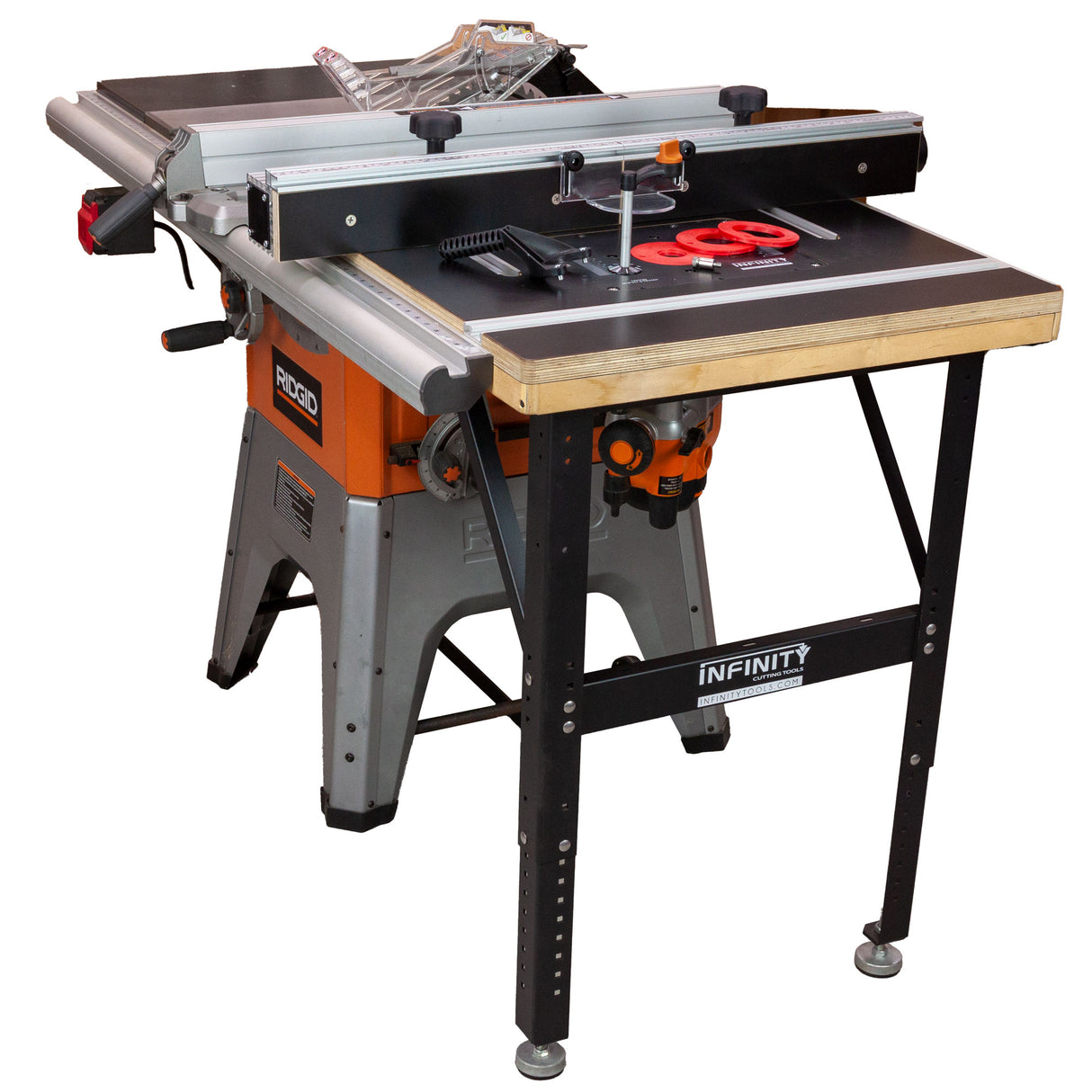

Table Saw Router Table Packages
As woodworkers, one of the biggest challenges we face is having limited shop space. It doesn't matter if your shop is a garden shed, 1 or 2 car garage, or a corner in an industrial complex. Having room for the tools you need and space to work is a challenge. The table saw is typically the cornerstone of the workshop, but it's also one of the biggest space hogs with an extension table, that for many, becomes the Bermuda triangle for scraps, coffee cups, and tools. But we're not taking this one lying down. Rather than accept that this space is wasted, we've created an extension table that turns this underused space into a full-featured router table!

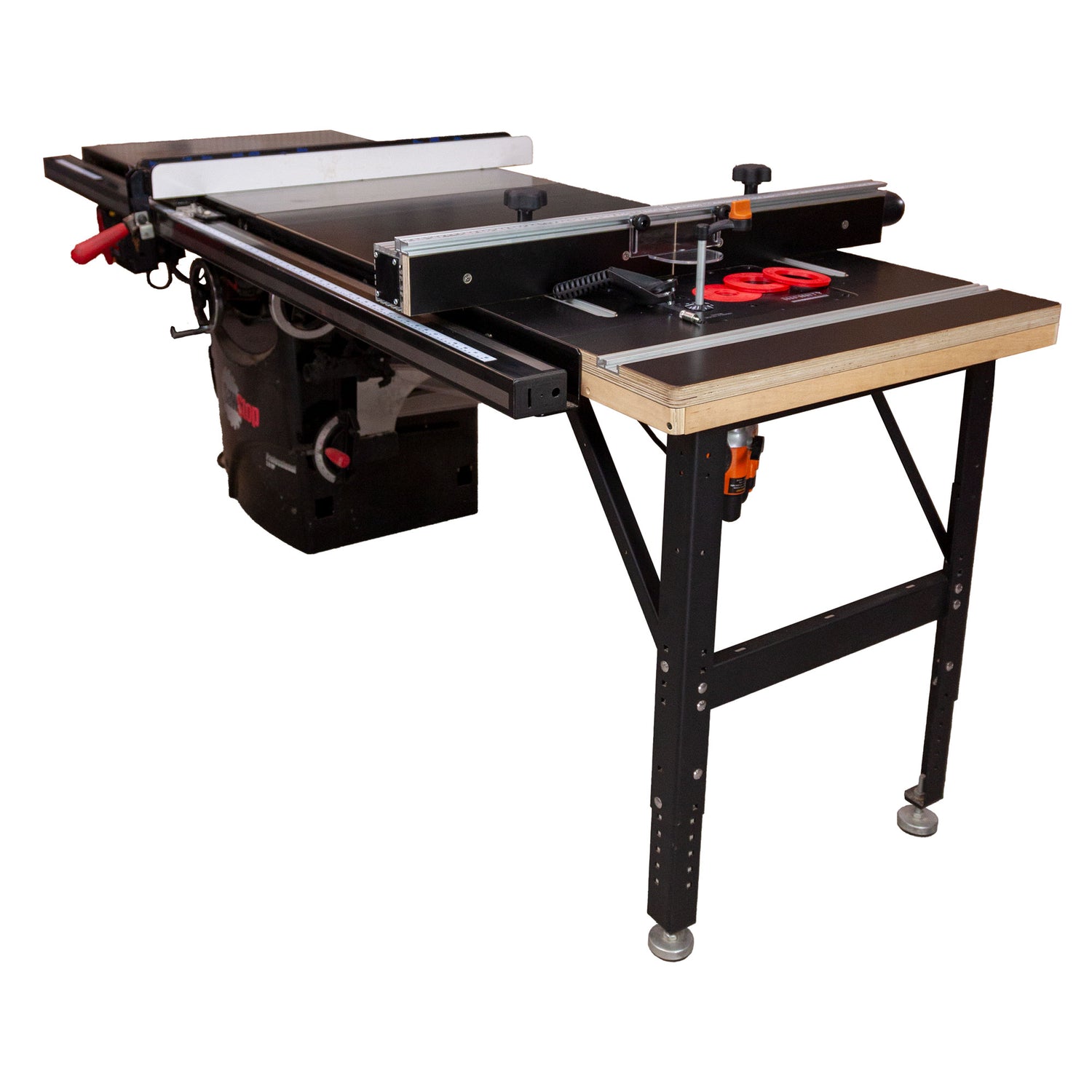

The Infinity Table Saw Router Table is available in two different lengths: one for saws with a 36" fence (TSRT-029) and one for saws with a 50" or 52" fence (TSRT-047). Both of these tables are 27" wide and will fit pretty much any table saw that has a 27" deep table, including most contractor style, hybrid, and cabinet style table saws.
No MDF here, both of these tables are made from 1" thick premium plywood with Microdot laminated surface. This is the same material we use to make our Professional Router Table Top (RTT-002). The router opening is a standard 9-1/4" x 11-3/4" and will accept any router lift or router table insert plate with the same measurements.
Each top has a pair of 3/4" x 3/8" T-tracks for mounting the Infinity Professional Router Table Fence, and also has mounting holes so you can bolt on an Infinity Mini Power Feeder (MPF-001). That's right, we weren't kidding when we said this was a full feature option for your shop.
The Table Saw Router Table Packages have support frames that allow the top to mount in the same way that most stock extension tables mount. Because there are so many different fence systems, we decided to keep things simple. Mounting is easy, position the table and drill the necessary mounting holes. In most cases, you can even use the factory hardware to bolt your new extension in place. If your saw didn't come from the factory with an extension table, mounting may require a little more creativity. Not to fear, mounting can almost always be accomplished with a little planning and some hardware from the local home center.

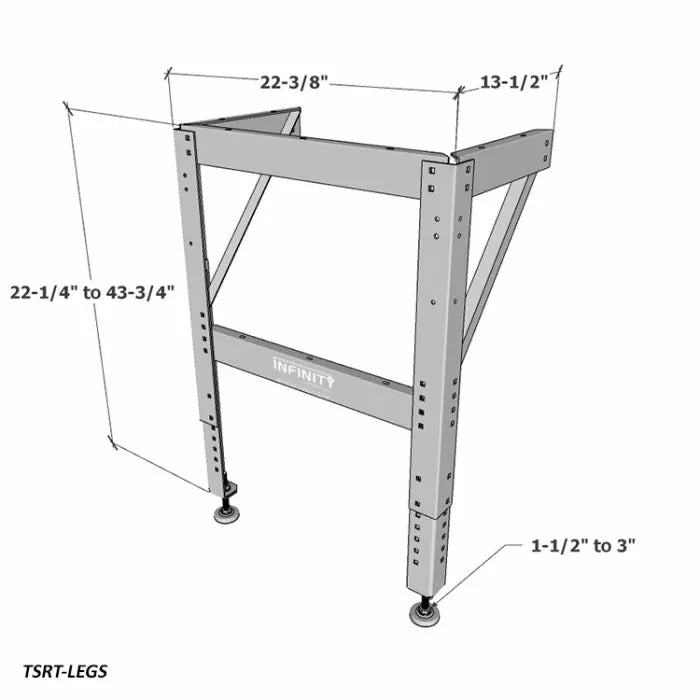

While we do offer these tables separately, we also offer them in complete packages. These packages include everything you need to start routing, including a 3-1/4 hp Triton Router (116-270), Infinity Router Table Insert Plate (RTI-INF1), Router Table Top Stainless Insert Ring (RTT-IRS), and Infinity Professional Router Table Fence (PRTF-200). We also include a pair of Infinity Table Saw Router Table Legs (TSRT-LEGS) that help support the table and are fully height adjustable to match any contractor, hybrid, or cabinet style table saw. In fact, they can be adjusted from under 24" to over 44" with the included leveling feet.
We like mounting the table directly to the fence rails because it allows the use of most mobile bases and typically lets you reuse the factory table hardware. You can also mount it directly to your saw's table and use the leveling feet to get both surfaces perfectly aligned. This is a great option for stationary saws.
The perfect addition to an Infinity Table Saw Router Table Extension Package is the Router Table Accessory Package (RTAP-116) This accessory pack includes a Triton Router Dust Collection Kit (115-117), Power Tool Safety Switch (115-052), Z-Bracket for Router Power Switch (115-054), and a flip stop for the Infinity Professional Router Table Fence (FSS-RTF).
If you want a full-featured routing station in your shop but don't have the space for a stand-alone system, our Table Saw Router Packages are a great option. They give you all the features of a dedicated router table without taking up another square inch of your valuable shop space.
Available in Three Different Package Options
Unlock your woodworking potential with our space saving table saw router packages, available in three expertly designed configurations! Choose the ultimate setup that meets your needs today!
