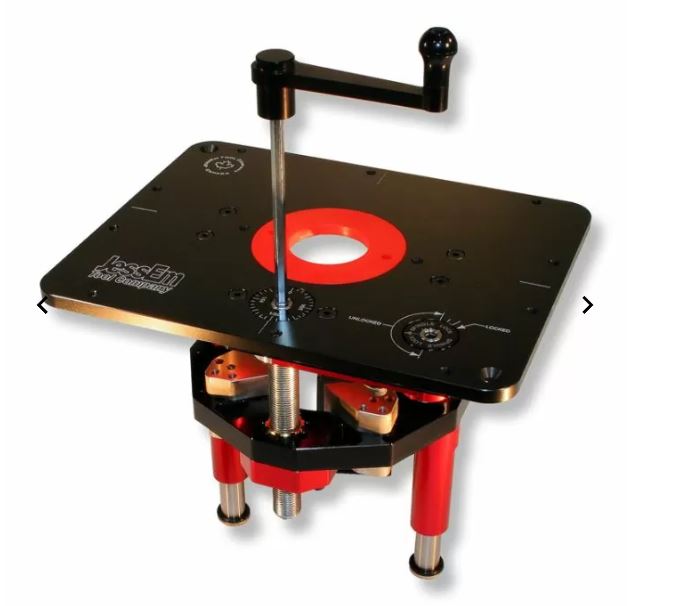

Infinity Tools Tablesaw Router Table Packages w/ JessEm Mast-R-Lift II (02120)

As woodworkers, one of the biggest challenges we face is having limited shop space. It doesn't matter if your shop is a garden shed, 1 or 2 car garage, or a corner in an industrial complex. Having room for the tools you need and space to work is a challenge. The table saw is typically the cornerstone of the workshop, but it's also one of the biggest space hogs with an extension table, that for many, becomes the Bermuda triangle for scraps, coffee cups, and tools. But we're not taking this one lying down. Rather than accept that this space is wasted, we've created an extension table that turns this underused space into a full-featured router table!

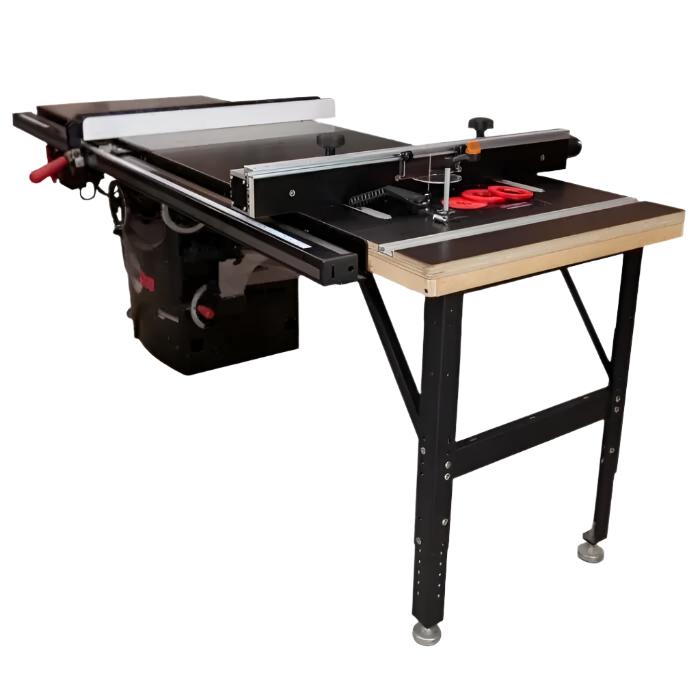

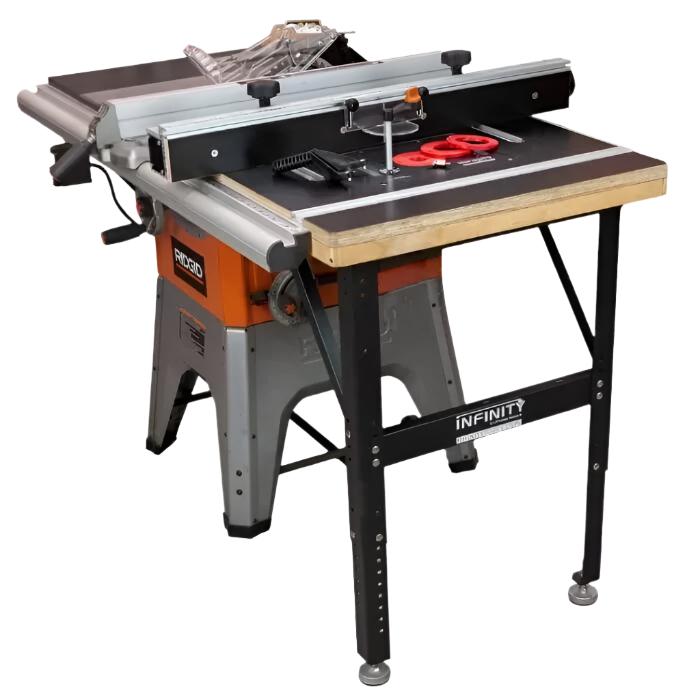

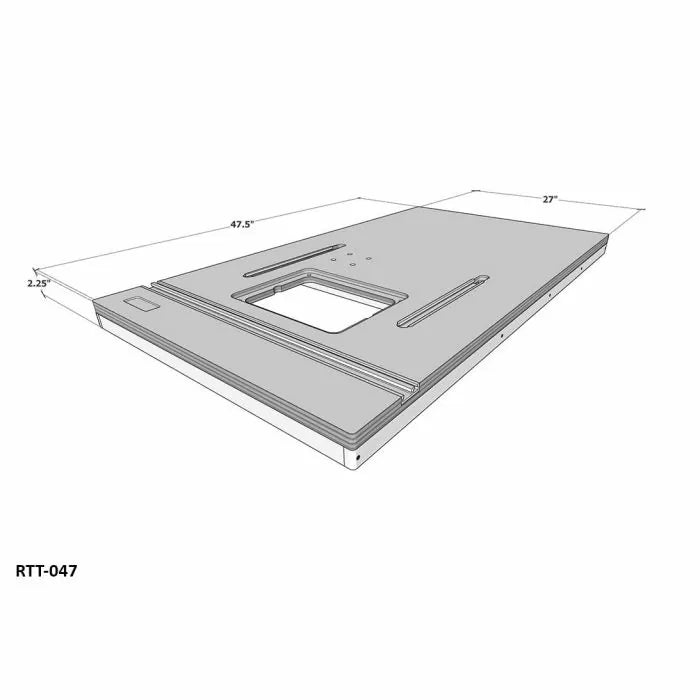

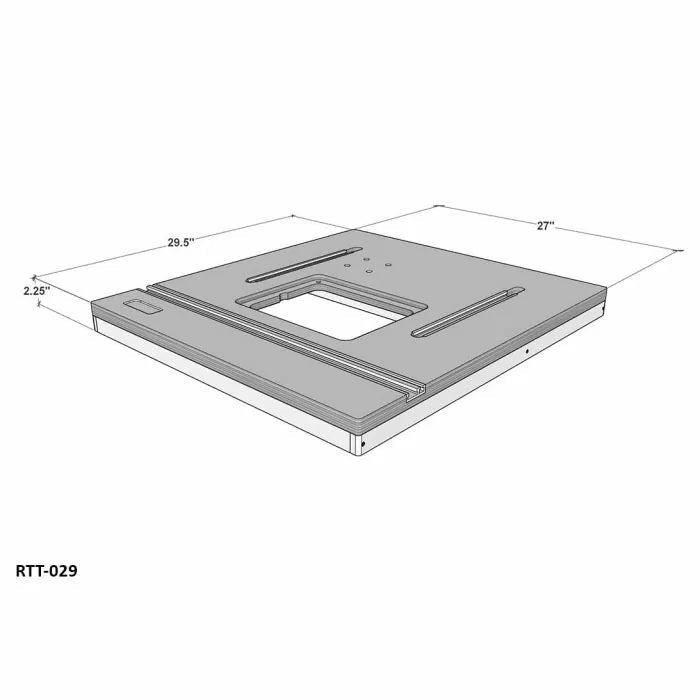

The Infinity Table Saw Router Table is available in two different lengths: one for saws with a 36" fence (TSRT-029) and one for saws with a 50" or 52" fence (TSRT-047). Both of these tables are 27" wide and will fit pretty much any table saw that has a 27" deep table, including most contractor style, hybrid, and cabinet style table saws.

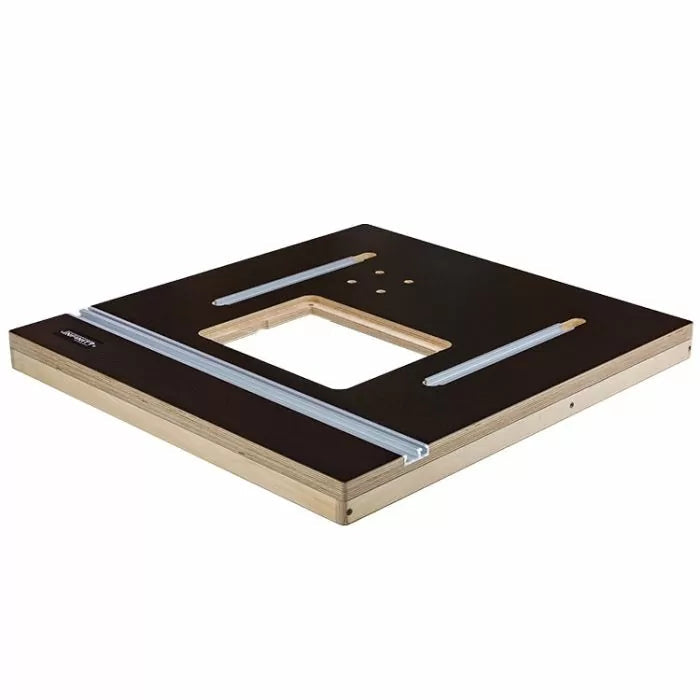

No MDF here, both of these tables are made from 1" thick premium plywood with Microdot laminated surface. This is the same material we use to make our Professional Router Table Top (RTT-002). The router opening is a standard 9-1/4" x 11-3/4" and will accept any router lift or router table insert plate with the same measurements.

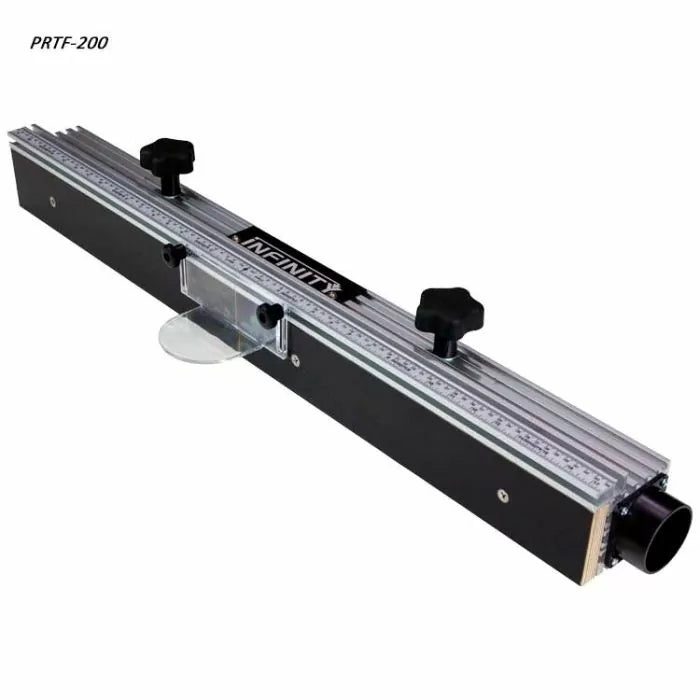

Each top has a pair of 3/4" x 3/8" T-tracks for mounting the Infinity Professional Router Table Fence, and also has mounting holes so you can bolt on an Infinity Mini Power Feeder (MPF-001). That's right, we weren't kidding when we said this was a full feature option for your shop.

The Table Saw Router Table Packages have support frames that allow the top to mount in the same way that most stock extension tables mount. Because there are so many different fence systems, we decided to keep things simple. Mounting is easy, position the table and drill the necessary mounting holes. In most cases, you can even use the factory hardware to bolt your new extension in place. If your saw didn't come from the factory with an extension table, mounting may require a little more creativity. Not to fear, mounting can almost always be accomplished with a little planning and some hardware from the local home center.

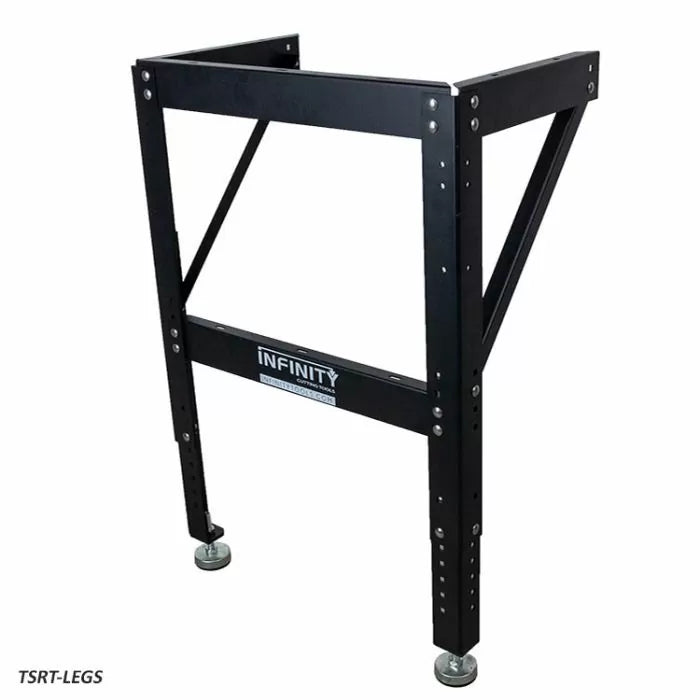

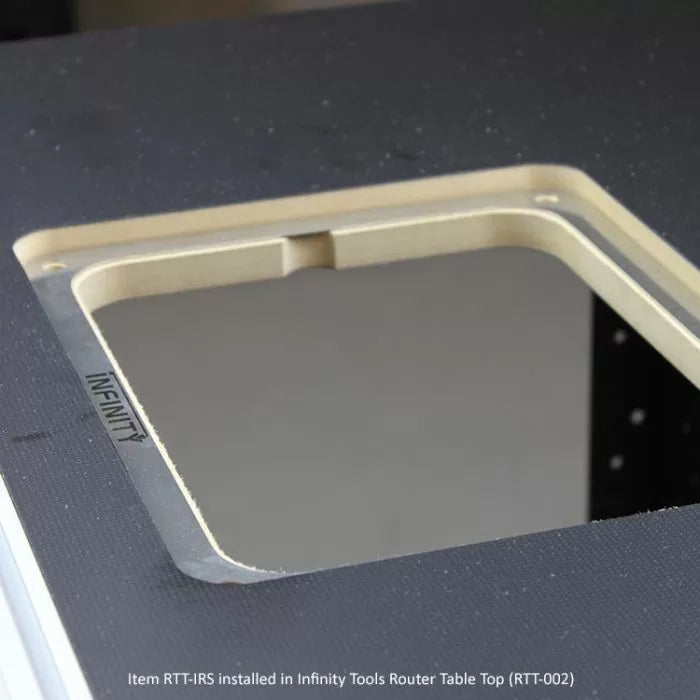

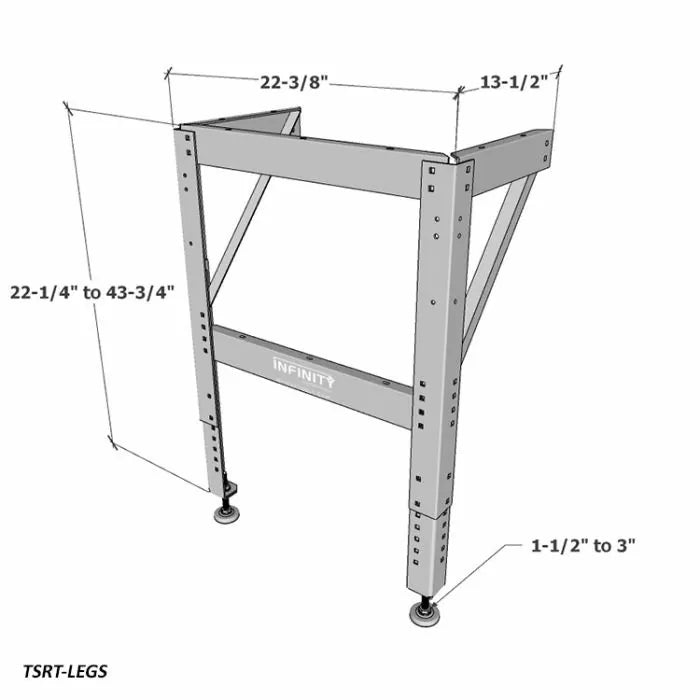

While we do offer these tables separately, we also offer them in complete packages. These packages include everything you need to start routing, including a 3-1/4 hp Triton Router (116-270), Infinity Router Table Insert Plate (RTI-INF1), Router Table Top Stainless Insert Ring (RTT-IRS), and Infinity Professional Router Table Fence (PRTF-100). We also include a pair of Infinity Table Saw Router Table Legs (TSRT-LEGS) that help support the table and are fully height adjustable to match any contractor, hybrid, or cabinet style table saw. In fact, they can be adjusted from under 24" to over 44" with the included leveling feet.

We like mounting the table directly to the fence rails because it allows the use of most mobile bases and typically lets you reuse the factory table hardware. You can also mount it directly to your saw's table and use the leveling feet to get both surfaces perfectly aligned. This is a great option for stationary saws.

The perfect addition to an Infinity Table Saw Router Table Extension Package is the Router Table Accessory Package (RTAP-116) This accessory pack includes a Triton Router Dust Collection Kit (115-117), Power Tool Safety Switch (115-052), Z-Bracket for Router Power Switch (115-054), and a flip stop for the Infinity Professional Router Table Fence (FSS-RTF).

If you want a full-featured routing station in your shop but don't have the space for a stand-alone system, our Table Saw Router Packages are a great option. They give you all the features of a dedicated router table without taking up another square inch of your valuable shop space.
