Router Bit Setup Jigs & Blocks for Accurate Height Setting

Router Bit Setup Jigs & Blocks for Fast, Accurate Bit Height Setting

The single most frustrating part of working with complex profile router bits — lock miters, rail & stile sets, glue joints — is dialing in the correct bit height and fence position. A fraction of an inch off and the joint gaps, the profile misaligns, or the two halves of a rail-and-stile door don't flush. Setup blocks eliminate this entirely by providing a physical reference that positions the bit exactly where the geometry requires it.

An Infinity Tools setup block registers against the bit body or a specific feature on the cutting geometry, locking in the correct height before the first pass. Combined with a calibrated fence setting, setup time drops from 20 minutes of test cuts to under 5 minutes — and the first cut in finished material is right.

Lock Miter Jigs, Rail & Stile Blocks & Master Setup Packages

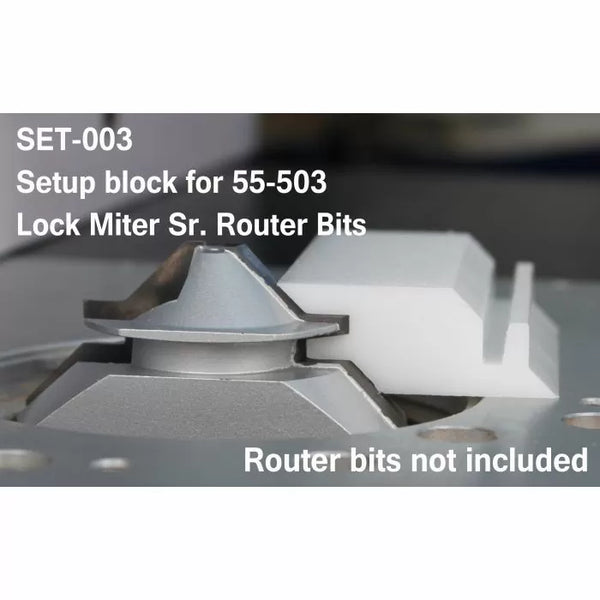

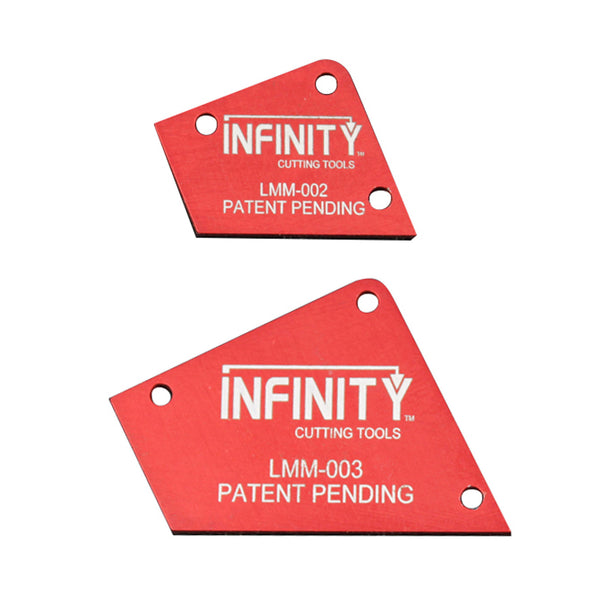

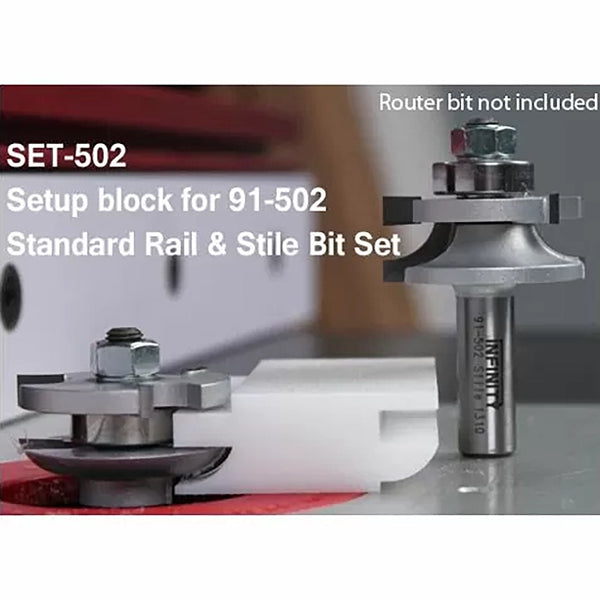

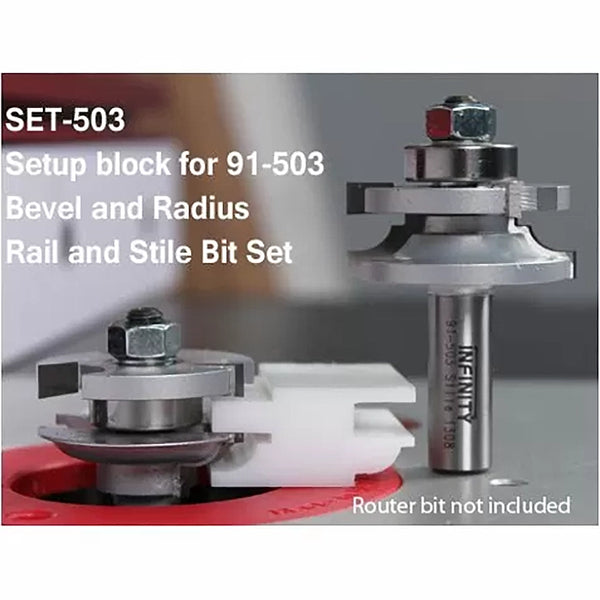

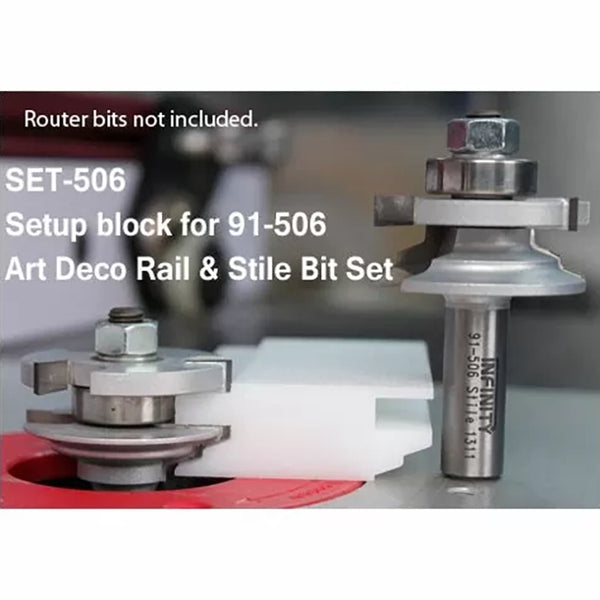

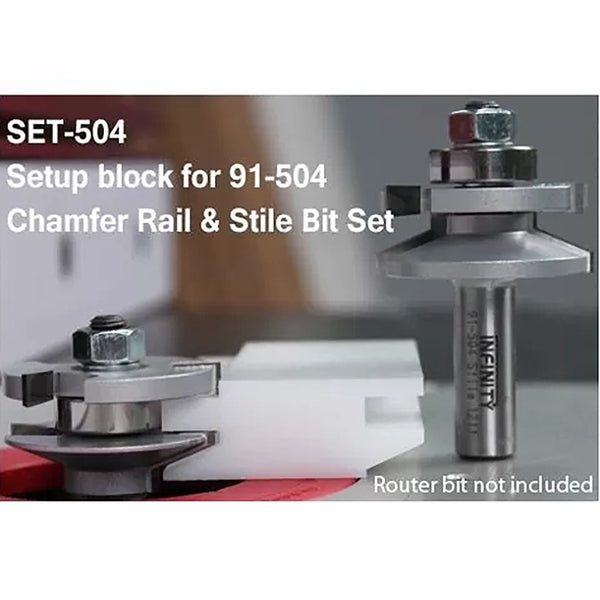

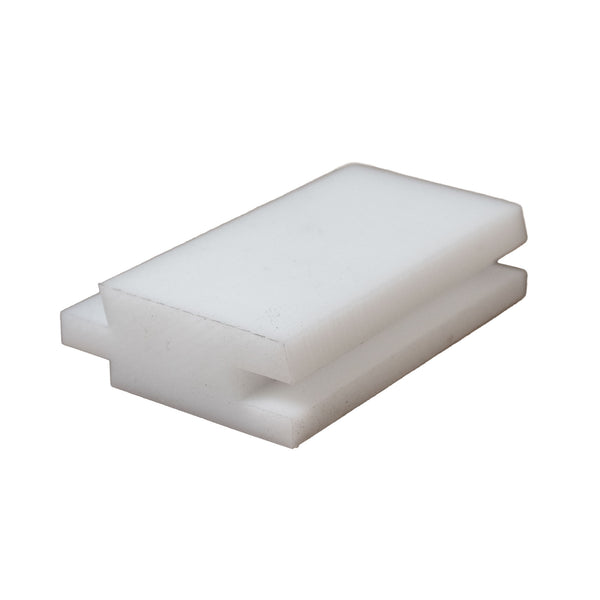

The Lock Miter Master Jig is a precision aluminum jig that sets both bit height and horizontal fence position for Infinity Tools lock miter bits simultaneously — the most complete setup solution available for this notoriously tricky bit. Individual setup blocks are available for each rail & stile profile: Ogee, Shaker, Standard, Art Deco, and other door styles. A flooring bit setup block ensures consistent tongue and groove height across every board in a floor installation.

Setup jigs and blocks complement the bits in the joinery router bits and door-making router bits collections. For the full accessory ecosystem, browse router jigs & guides or the parent routing collection.

Frequently Asked Questions

What is a router bit setup block and how do I use one?

A setup block is a machined reference tool sized to the specific geometry of a router bit set. To use it, place it against the bit while the router is unplugged, adjust bit height until the cutting edge aligns with the reference surface on the block, then lock the height. The block removes guesswork and eliminates the need for repeated test cuts.

Do I need a separate setup block for each rail and stile bit set I own?

Yes. Each rail stile profile has a unique bit height requirement, so the setup blocks are profile-specific. Using the wrong block — or no block at all — risks a misaligned cope-and-stick joint where the profiles don't flush. Infinity Tools offers individual blocks for each rail stile set they manufacture.

What makes the lock miter bit so difficult to set up without a jig?

The lock miter bit requires two simultaneous settings: precise bit height so the 45-degree cut centers on the stock thickness, and precise fence position so the horizontal miter face is flush. Both settings are interdependent, meaning adjusting one affects the other. The Lock Miter Master Jig solves both simultaneously.

Can I use a router bit setup block to set height on a router table lift?

Yes. Setup blocks work with any height-adjustment mechanism — manual collet adjustment, router table lift, or plunge-style router. The block simply references the bit geometry; how you reach and lock the height is up to your equipment. A router lift makes micro-adjustments easier after the initial block setting.

What is the coping sled setup block for, specifically?

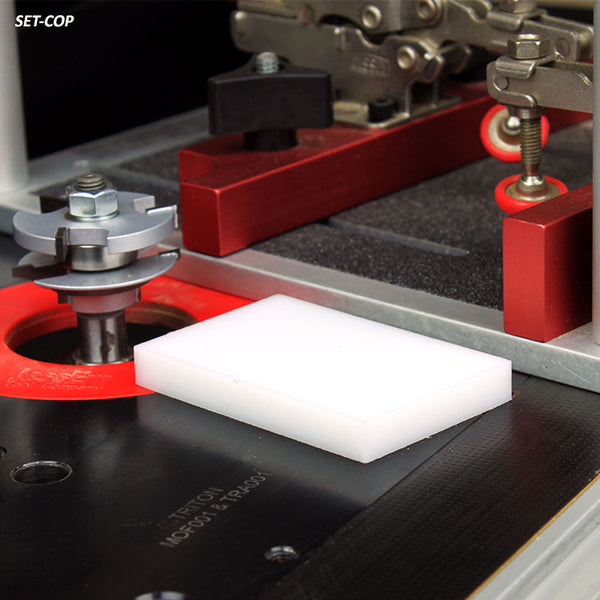

The coping sled setup block positions the router table fence at the correct distance from the bit for the cope cut on rail ends in rail-and-stile door making. Without this reference, the cope depth must be estimated and adjusted through test cuts, which wastes time and material.

Do setup blocks work with third-party bits, or only Infinity Tools bits?

Infinity Tools setup blocks are machined to the specific geometry of Infinity Tools bit sets. They may not produce accurate results with differently dimensioned bits from other manufacturers, even if the profile name is the same. For third-party bits, consult the manufacturer's documentation for bit height specifications.

How does a lapped miter setup block differ from a lock miter setup block?

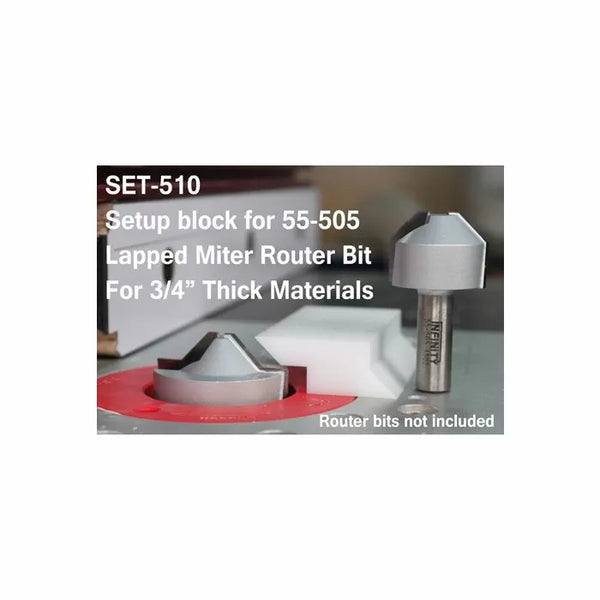

A lapped miter joint is a 45-degree overlap (not an interlocking lock) and the bit geometry is simpler. The setup block for the lapped miter router bit set is sized for 3/4-inch material thickness and sets the bit height so the miter overlaps correctly at the corner.

How long does it take to set up a lock miter bit using the Master Jig versus doing it manually?

Manual setup of a lock miter bit through test cuts and incremental adjustments typically takes 15 to 30 minutes and consumes several scrap pieces. Using the Lock Miter Master Jig reduces initial setup to under 5 minutes, with at most one test cut for final confirmation.

Are there setup blocks for flooring tongue-and-groove bits?

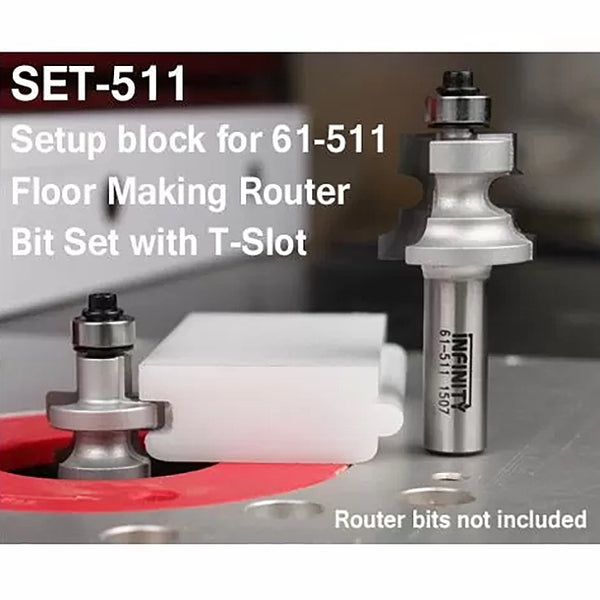

Yes. The setup block for the flooring router bit set aligns the bit height so the tongue and groove profiles interlock at the correct depth, ensuring boards lie flat without rocking or gaps at the joint.

Where can I learn more about router bit setup techniques?

The Infinity Tools woodworking blog covers bit setup, routing technique, and project tips in detailed, illustrated articles suited to both beginners and experienced woodworkers.

Router Bit Set-Up Jigs & Blocks
