Woodworking Rulers & Squares for Precision Layout

Precision Woodworking Rulers & Squares for Accurate Layout

Accurate measurement and square layout are the foundation of clean joinery and tight fits. This collection brings together the measuring tools woodworkers rely on most: precision try squares and bench squares for checking faces and edges, combination squares for marking and depth gauging, straight edges for panel and machine verification, and saddle squares for all-around layout on assembled work.

For machine setup and bench work, the iGaging Bench Square Set and the iGaging 3-Piece Premium Woodworking Square Set provide hardened, ground blades with consistent 90-degree references. The JessEm Stainless Steel Precision Squares are machined to tight tolerances and work equally well for setting router table fences and hand tool layout. Combination squares like the iGaging Premium Double Squares let you transfer measurements, mark depths, and check 45-degree miters with a single tool.

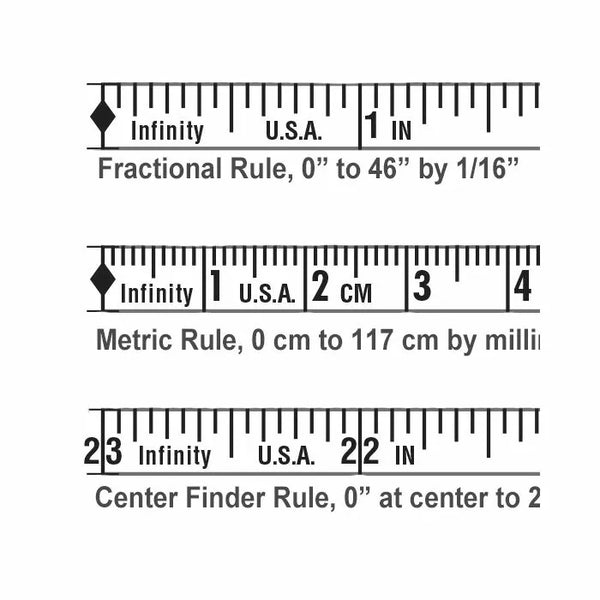

Long-form layout on panels and tops requires a reliable straight edge. The 46" Aluminum Straight Edge is useful for checking table flatness and guiding marks across wide workpieces. A ruler for the straight edge is available separately for woodworkers who want a built-in measuring reference. The iGaging 4R Rule offers fractional and decimal graduations for general shop measuring tasks.

Saddle Squares & Specialized Layout Tools

Saddle squares register on two faces simultaneously, making them ideal for marking dovetails, mortises, and tenon shoulders. The JessEm 6-Piece Saddle Square Set and the Infinity Tools Pocket Saddle T-Square handle the most common layout situations. For scribing bevel angles, pair these tools with the scribes and bevel gauges collection. See all measuring and layout tools or browse shop essentials for additional woodshop supplies.

Frequently Asked Questions

What is the difference between a try square and a combination square?

A try square has a fixed blade set permanently at 90 degrees to the handle and is used exclusively for checking and marking right angles. A combination square has an adjustable head that slides along the blade, allowing it to function as a try square, miter square (45 degrees), depth gauge, and scribe. Combination squares are more versatile; try squares are often more rigid and accurate for benchwork.

How do I check if a woodworking square is accurate?

The most reliable method is the flip test: draw a line against the square, flip the square to the opposite orientation, and draw a second line from the same reference. If the two lines diverge, the square is out of tolerance by half the visible gap. Quality squares like the JessEm Stainless Steel Precision Squares are machined to tight tolerances and resist this type of error.

What size square is best for woodworking?

A 6-inch combination or try square handles most bench and hand tool work. A 12-inch square is better suited for checking face frames, cabinet sides, and panel assemblies. Many woodworkers use both. The Ultimate Square Pack includes multiple sizes in a single bundle.

Do I need a precision straight edge to set up my table saw or jointer?

Yes. A reliable straight edge is essential for checking that a jointer table is co-planar, that a table saw top is flat, and that a fence is parallel to the blade. The iGaging Premium Straight Edge is machined to a tolerance that makes it suitable for these critical machine setup tasks.

What is a saddle square and when do I use one?

A saddle square has two perpendicular blades that wrap around the corner of a workpiece, registering on two adjacent faces simultaneously. This makes it fast to transfer a layout line from one face to another—useful for marking dovetail baselines, mortise positions, and tenon shoulders. The Infinity Tools Pocket Saddle T-Square is compact enough to carry in an apron pocket.

What is a 4R rule in woodworking?

A 4R rule is a machinist-style steel rule with four rows of graduations: typically 8ths, 16ths, 32nds, and 64ths of an inch. The tight graduations make it well suited for precise layout work and setting combination squares to specific depths. The iGaging 4R Rule in this collection is machined from stainless steel for durability and rust resistance.

How do I use a bevel center-finding gauge?

A bevel center-finding gauge like the iGaging 12" x 3" Bevel Center Finding Gauge locates the center of a workpiece regardless of its width. The V-shaped reference always positions the scribe at the center, which is useful for dowel placement, mortise centering, and symmetrical layout on turned or milled stock.

Can I use a woodworking square to check router table fence alignment?

Yes. A reliable square placed against the router table fence and referenced to the table surface confirms whether the fence is perpendicular to the table. For finer router table setup, calipers and setup tools provide the measurement precision needed for accurate bit height and fence position.

Does Infinity Tools price-match woodworking squares and rulers?

Yes. Infinity Tools offers price matching on most products. Submit a request with a qualifying competing price at the price matching page.

What layout tools do I need for hand cut dovetails?

Hand-cut dovetails require a marking gauge or mortise gauge to scribe the baseline, a sliding bevel or dovetail marker to lay out the tail angles, and a reliable square for checking the reference faces. The scribes and bevel gauges collection carries marking gauges and sliding bevels suited to this workflow.
