Our exclusive router insert plate installation kit creates a perfectly-sized opening in your shop-made router table. Designed for 9-1/4" x 11-3/4" router insert plates. Works with tables from 3/4" to 1-7/8" thick.

Includes everything you need to create the opening and rabbeted ledge that supports the insert plate. All you need to supply is a jig saw and a router.

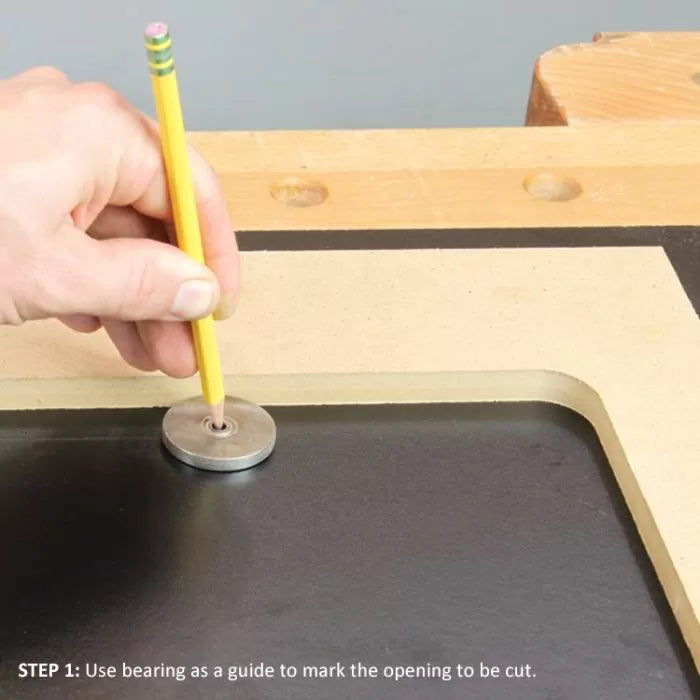

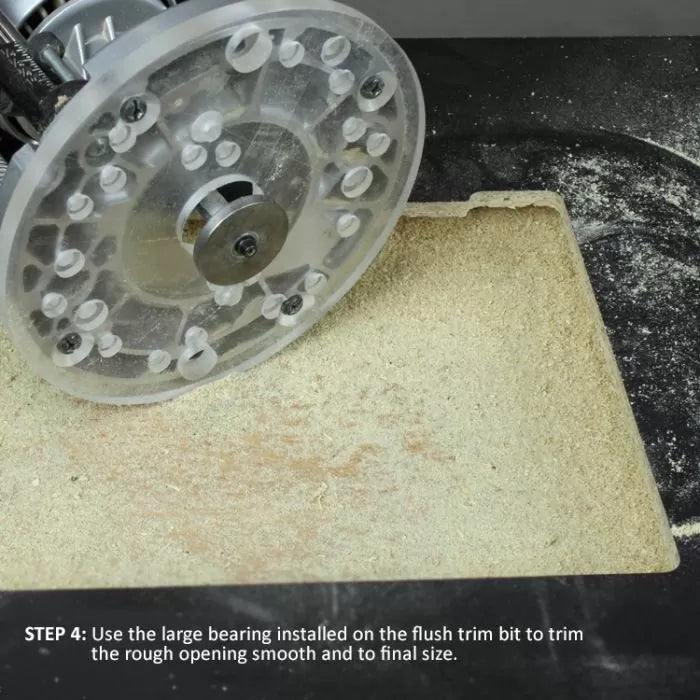

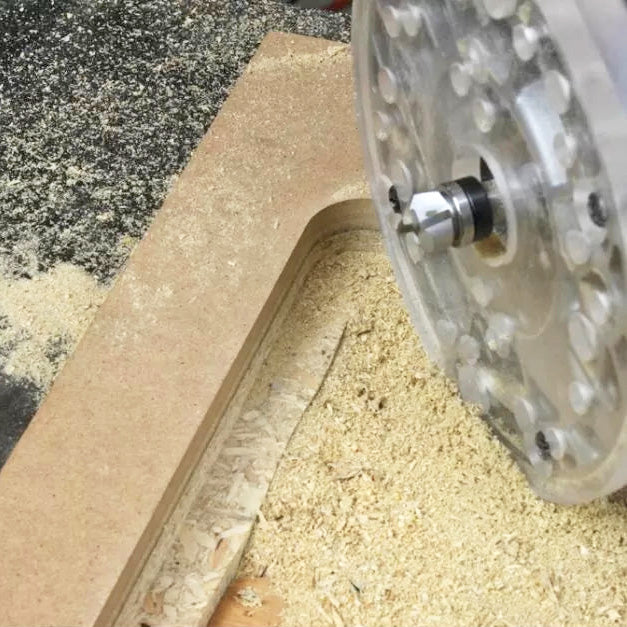

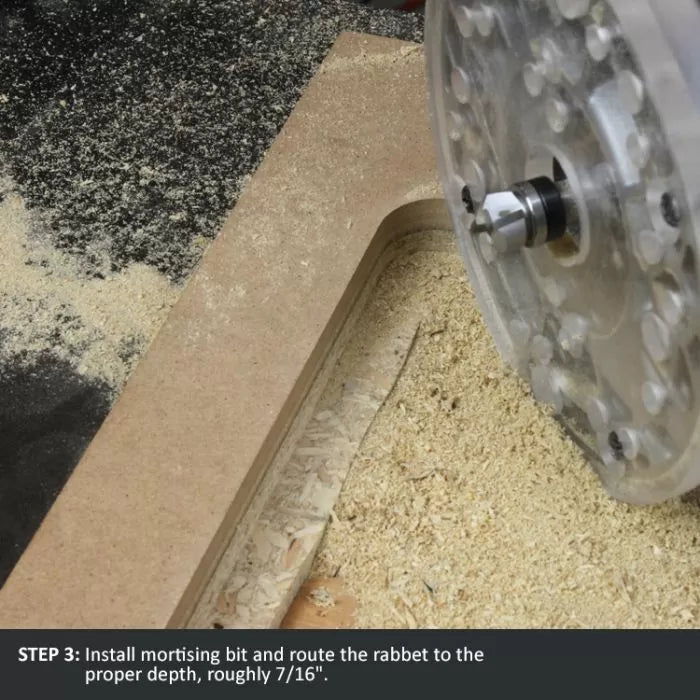

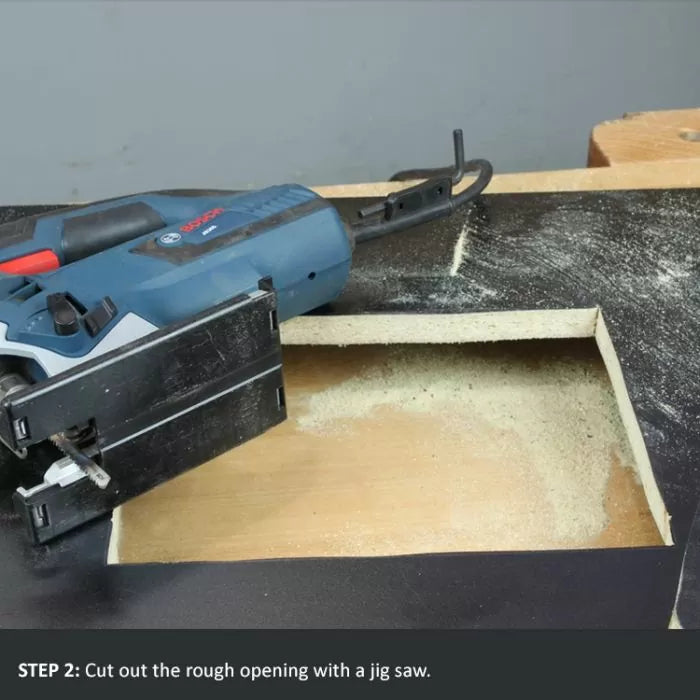

Use the included large bearing against the template as a scribe to lay out the opening. Remove the waste with a jig saw. Then create the rabbeted ledge using our pattern bit. Finally, clean up the edges of the opening while creating a 1/2"-wide rabbet using our flush trim bit outfitted with the large bearing.

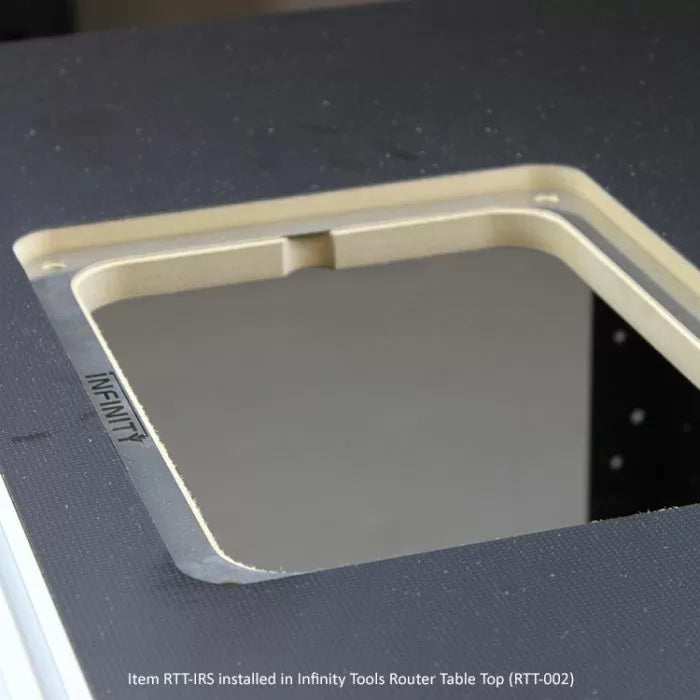

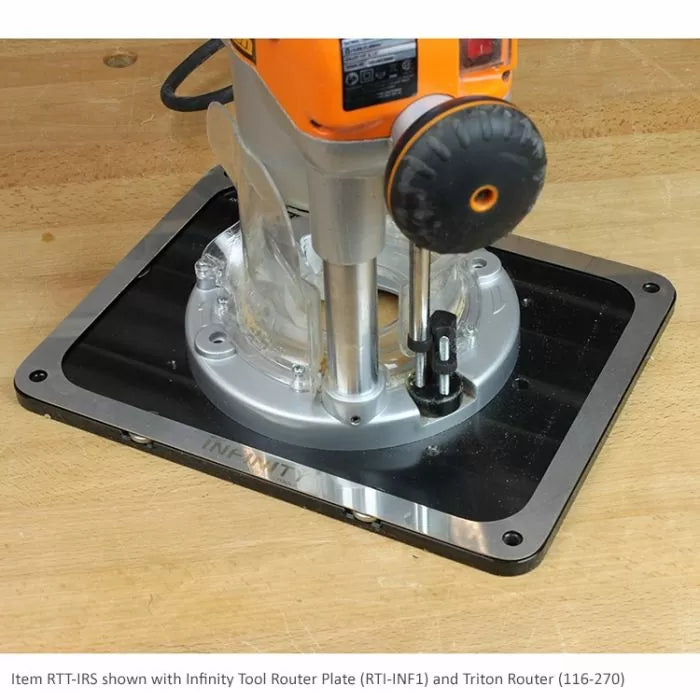

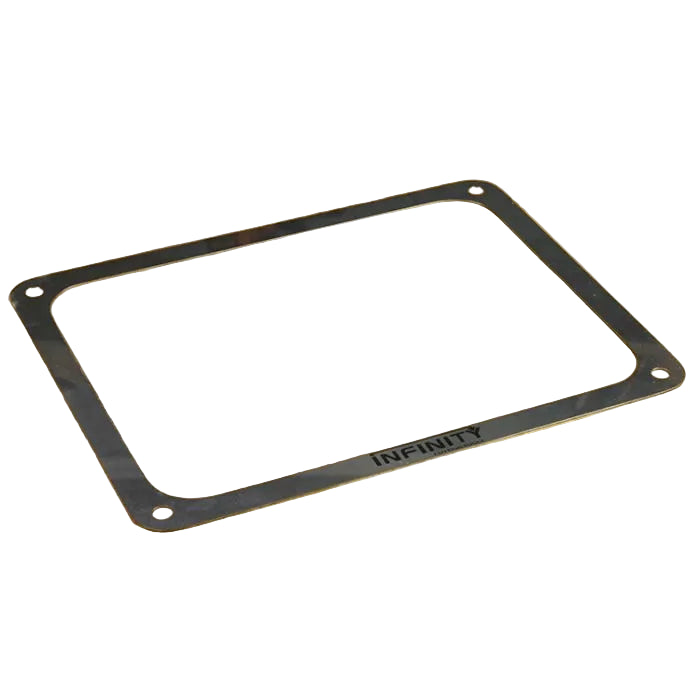

The Infinity Tools Steel Insert Ring (item RTT-IRS) sits under your router plate (or router lift) to prevent wear in the router table top from the adjustment screws. Sold separately below, we recommend this 1/32" thick stainless steel ring to be used for any router table top with at least a 7/16" deep router plate rabbet depth.

A foolproof method for custom router insert plate installation.

Please note: When using our RTI-DIY kit to make your own router table top; the rabbet width that the router plate sits on will not allow for the use of the optional 4-corner screws. Not to fear, the Infinity Tools Router Plate (RTI-INF1) features three stainless steel side plungers that actively prevent your plate from moving in the table opening.

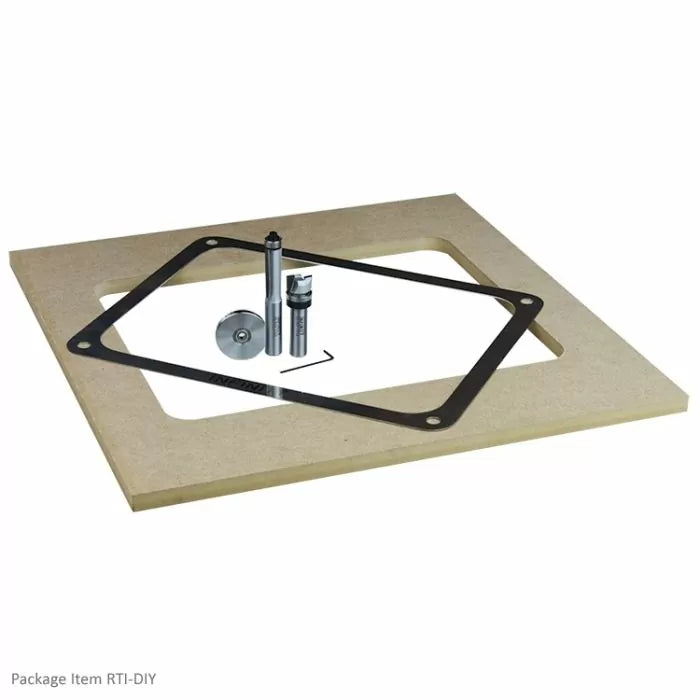

The Full D.I.Y. Router Template Package (item RTI-DIY) Includes:

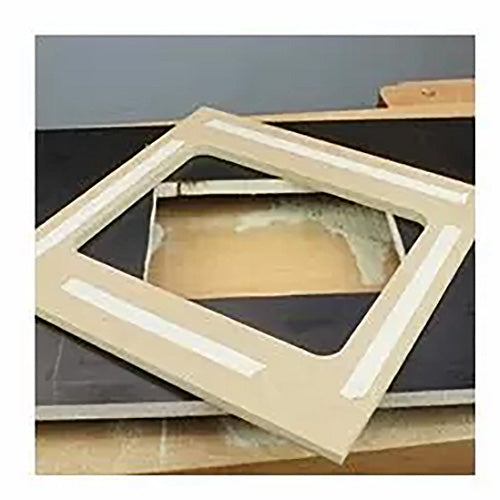

• (1) Router Table Insert Template (item 115-020)
• (1) Flush Trim Router Bit (item 06-629)
• (1) 1-1/2" Bearing (item BR-125)
• (1) Pattern Router Bit (item 52-501B)
• (1) Infinity Tools Router Table Steel Insert Ring (item RTT-IRS)
