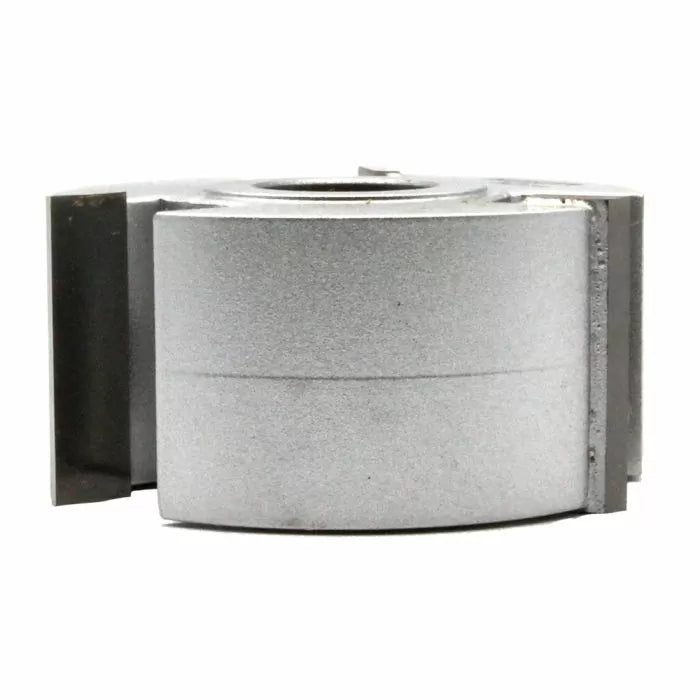

Infinity Tools Shape-Up Shaper Cutter Glass Door Kit, 3/4" Bore

It rabbets the back of an assembled cabinet door frame in one operation so you can fit a glass panel. The cutter replaces the slot cutter and trimming cutter on the stile profile. See our Shape-Up shaper cutters.

It has a 3/4" bore, matching the Infinity Tools Cabinet Door Rail & Stile shaper cutters it is designed to work with.

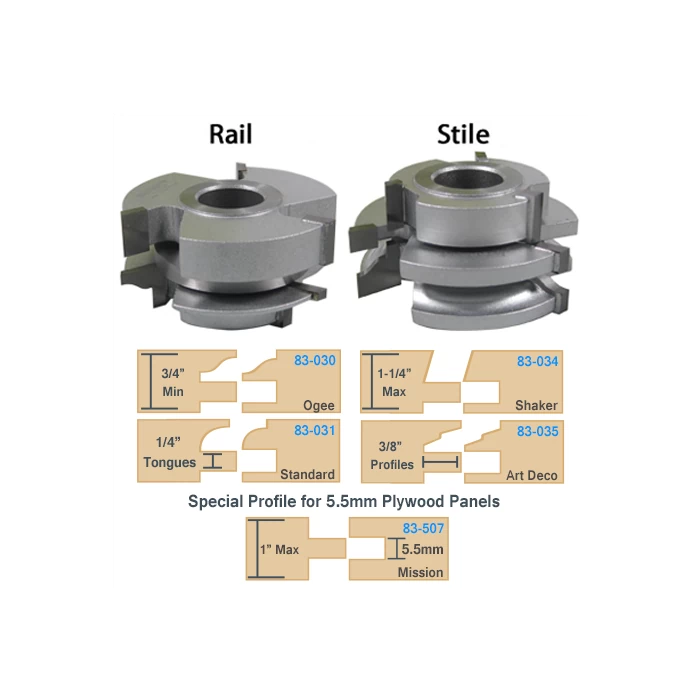

It works with the Infinity Tools 3/4" bore Cabinet Door cutters 83-030 (Ogee), 83-031 (Standard), 83-034 (Shaker), 83-035 (Art Deco), and 83-507 (Mission). Browse them in the Shape-Up shaper cutter collection.

The cutter diameter is 2-5/8".

It is set up for stock that is 1-1/4" thick, the standard thickness for cabinet door frames built with the matching rail and stile cutters.

No. This is an accessory cutter that swaps into your existing rail and stile setup, so you can convert a wood-panel door design to a glass-panel design without a whole new set. See related shaper cutters & accessories.

It produces a 1/2" profile on the back of the frame for seating the glass panel.

No, the cutter machines the rabbet to receive a glass pane, but the glass itself is supplied separately and cut to fit your door opening.

It is made by Infinity Cutting Tools as part of the Shape-Up shaper cutter program. Compare it with the higher-output Insert Pro shaper cutters.

This is a shaper cutter with a 3/4" bore designed to mount on a shaper spindle, not in a router collet. For router-table joinery look at our carbide router bits instead.
