SKU: SET-COP

Infinity Tools Setup Block For Infinity Tools Coping Sleds

$9.90
Shipping calculated at checkout.

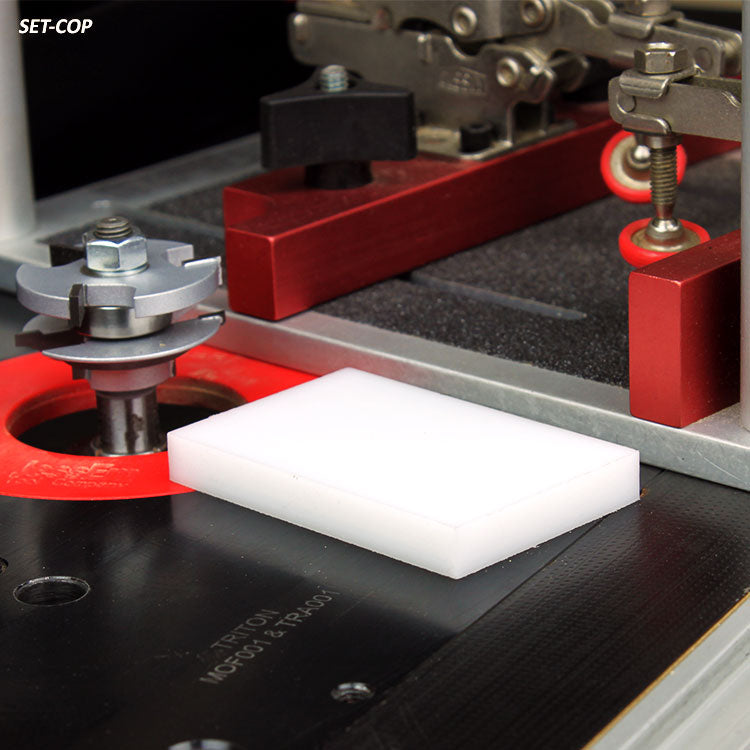

Pre-Machined Router Bit Setup Block Riser - For use with Infinity Coping Sleds

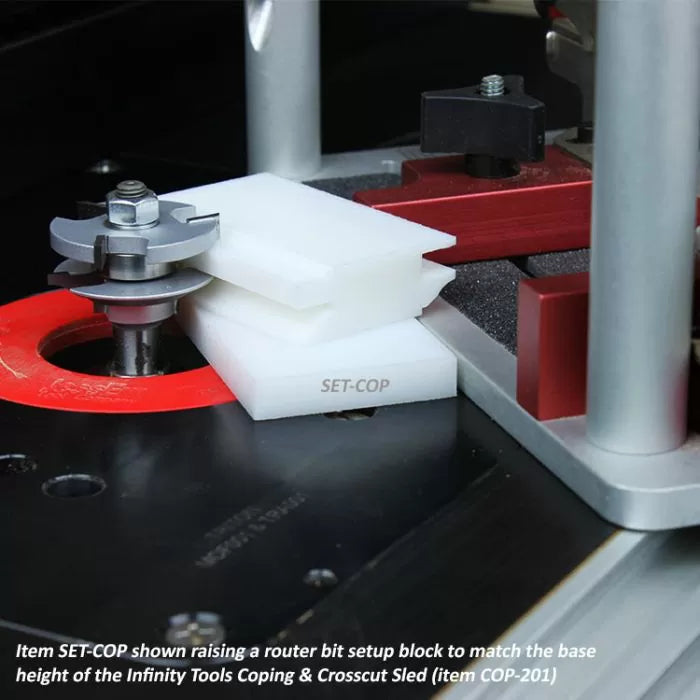

If you have an Infinity Tools Professional Cross Cut Coping Sled (COP-200 or COP-201) you'll need a reliable way to use your various setup block and jigs to adjust for the additional height created by the coping sled's base plate. Place this handy setup block riser underneath your Infinity Tools setup block and you'll be able to accurately take the base plate's height into account when raising and lower your router bits inside your router table or router plate.

Made from pre-cut high density plastic, this setup block riser will help you get your router bit perfectly aligned for use with your Infinity Cutting Tools Professional Coping Crosscut Sled in no time flat!

Coping & Crosscut Sleds for Precise, Clean End-Grain Cuts

Infinity Tools award-winning coping & cross cut sleds. The safest, most reliable and precise way to make cross cuts on your router or shaper table.
Infinity Professional Coping Sled (COP-201)
Infinity Professional Coping Sled (COP-201)

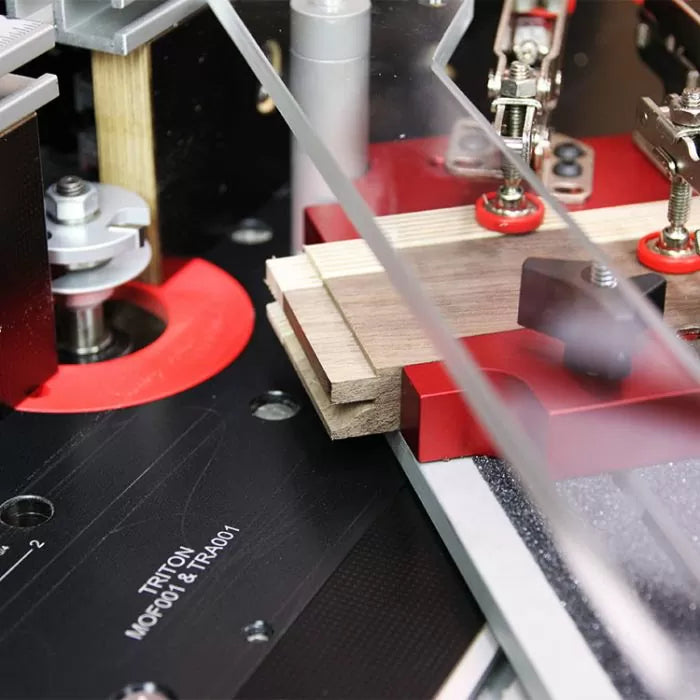

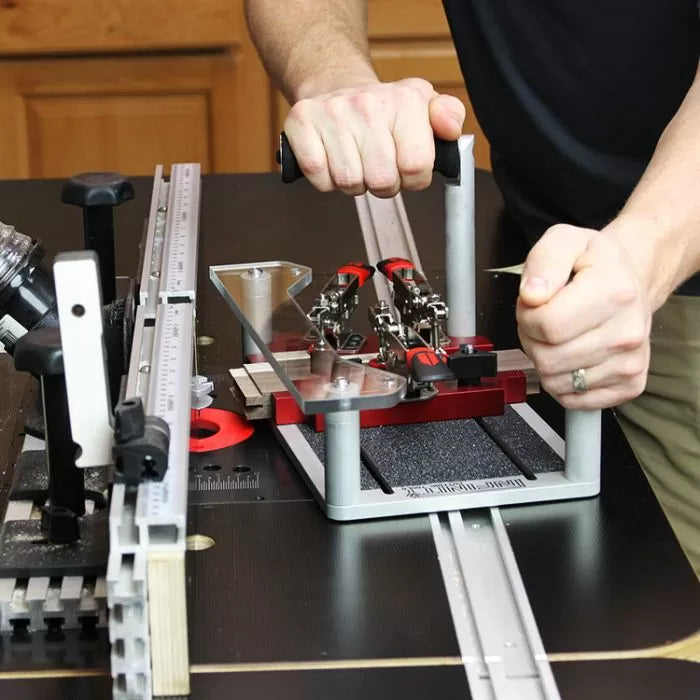

The most difficult task of making rail and stile doors for kitchen cabinets or furniture is making the cope cut in the ends of the rails. This is difficult because the workpiece is narrow and doesn't have enough surface area to reference off of the router table fence. Also, the cope cut is made across the end grain of the workpiece and is prone to blowout as the workpiece passes the router bit. The Infinity Cutting Tools Professional Coping Sled (COP-201) solves all of these problems and a few more that you may experience when building any form of frame and panel, glass panel, interior and exterior door, or many other joinery cuts at the router table or spindle shaper.

All-aluminum CNC machined construction means the Pro. Coping Sled is ready for the most demanding jobs.
All-aluminum CNC machined construction means the Pro. Coping Sled is ready for the most demanding jobs.

Clamps Make the Difference

The clamps on the Infinity Professional Coping Sleds are the key to its versatility. There are two different clamp options available.  The Infinity Coping Sled (COP-200) uses three standard toggle clamps to secure the workpiece. These clamps require adjustment when switching between materials of different thicknesses but provide some serious clamping power. They can be adjusted to hold material from 5/8" to 1-1/4" thick. If you make cabinet doors and rarely change material thickness, this is a great option. The Professional Coping Sled (COP-201) uses three auto-adjusting toggle clamps. These clamps allow easy clamping of material ranging in thickness from 5/8" all the way up to 2" thick. These clamps are the most versatile and convenient. The auto-adjust clamps allow the tension to be set anywhere between 25lb and 250lb of clamping force regardless of the thickness of the workpiece being clamped. There's no need to fiddle with the clamp if you are working with different thicknesses of material or working with softer species of wood that are prone to pressure marks.

Auto-adjust clamps on the COP-201 make it easy to router material of different thicknesses.
Auto-adjust clamps on the COP-201 make it easy to router material of different thicknesses.
All Infinity Tools coping sleds have a clamp dedicated to securing a backer block.
All Infinity Tools coping sleds have a clamp dedicated to securing a backer block.

Dedicated Backer Block Clamping

The clamp closest to the router bit is canted specifically to allow a backer block to be clamped in place. This little detail allows your backer block to stay in place without the need to be readjusted when cutting batches of parts. Definitely a big timesaver.

A Visor for Safety and Accuracy

The visor on the Pro Coping Sled is made of 3/8"-thick polycarbonate (Lexan) and can be set to either 2-1/2" or 3" above the table surface. The added heft of the visor ensures that it will not slip into a 1/4"-20 T-track often found on router table and shaper fences. While the visor provides a clear view of the cut being made and excellent protection from flying debris, the visor's main purpose is to reference off of the fence and ensure an accurate, snipe-free cut on the ends of your workpieces. The depth of cut can also be adjusted to either 11/16" or 1-7/8". This is perfect when making standard and extended tenon joints.

The visor can be set to 2-1/2
The visor can be set to 2-1/2" or 3" from the table surface to work with almost all router fences.
The visor can be set to 2-1/2
The visor can be set to 2-1/2" or 3" from the table surface to work with almost all router fences.
The visor projection can be adjusted for standard or extended tenon cuts.
The visor projection can be adjusted for standard or extended tenon cuts.

Miter Bar Compatibility

In the event that a greater depth of cut is required the Pro Coping Sled has two sets of mounting holes perfectly spaced to mount an Infinity Tools Miter Bar COP-MB1. The miter bar allows the sled to reference from your table's miter track instead of the fence. This is perfect when an extra deep cut needs to be made. The extended tenons on an exterior door often require added reach.  The two mounting locations allow the centerline of the miter bar to be mounted 3" or 4.5" from the edge of the coping sled. This allows the user to adjust the amount of clearance from the sled to the router bit or shaper cutter.

The optional Miter Bar (COP-MB1) can be mounted either 3
The optional Miter Bar (COP-MB1) can be mounted either 3" or 4-1/2" from the base of the coping sled for even more versatility.

A Low Friction Base

Every Pro Coping Sled includes a low friction base film. This film allows the sled to glide effortlessly across cast iron, phenolic, and laminate surfaces. An added benefit is it reduces wear and scratches on the surface of your table.

The low friction base film makes the Coping Sled slide effortlessly across your table and protects the table and sled from scratches.
The low friction base film makes the Coping Sled slide effortlessly across your table and protects the table and sled from scratches.

Mass Equals Stability

The all-aluminum construction of the Professional Coping Sled weighs in at 7.5 pounds. As a result, cuts are smoother than those made with a lighter weight sled or no sled at all. What does this mean for you? Each joint will fit better and help your router bits last longer, allowing you to get more work done.
