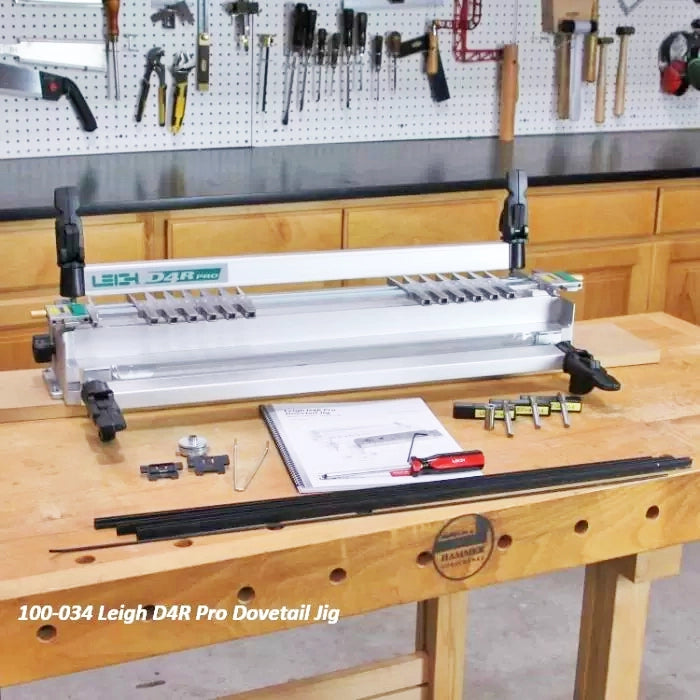

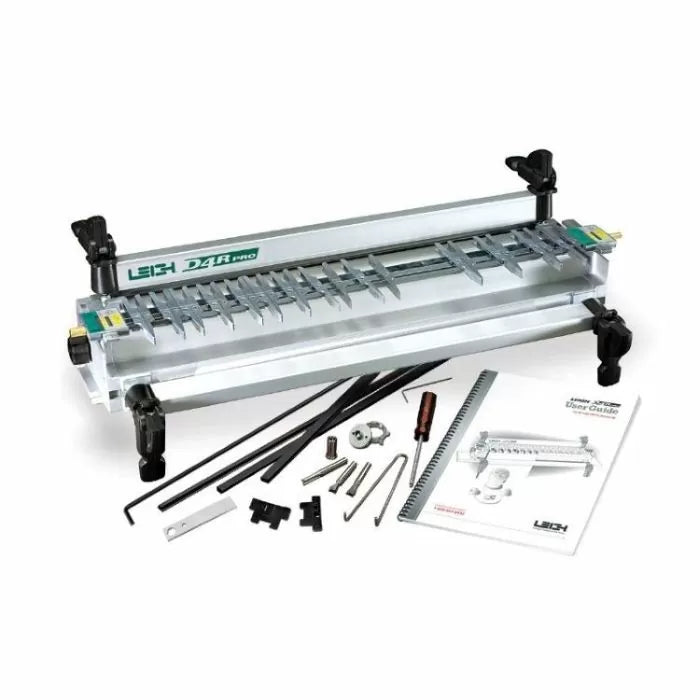

Leigh D4R Pro Dovetail Jig
The D4R PRO is the heavyweight in Leigh's dovetail jig stable. Rare among tools, the D4R PRO excels at an array of different tasks. In other words, this is not a tool that does one job well but also adapts to other tasks; it is a tool that does lots of things well, period.
Features:
- One Jig, Many Joints
- Out-of-the-box, the D4R PRO (without any additional accessories) will create all of the following joints:

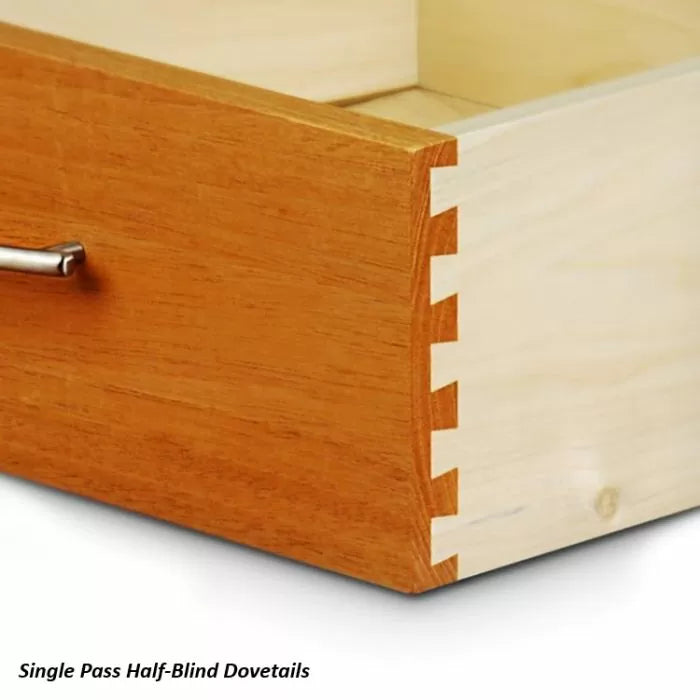

- Single-pass half-blind dovetails
- Variably spaced and sized half-blind dovetails,
- Variably spaced and sized through dovetails
- Asymmetric dovetails
- End-on-end dovetails,
- Sliding dovetails
- Box joints (3/8" and 3/4" adjustable fit)

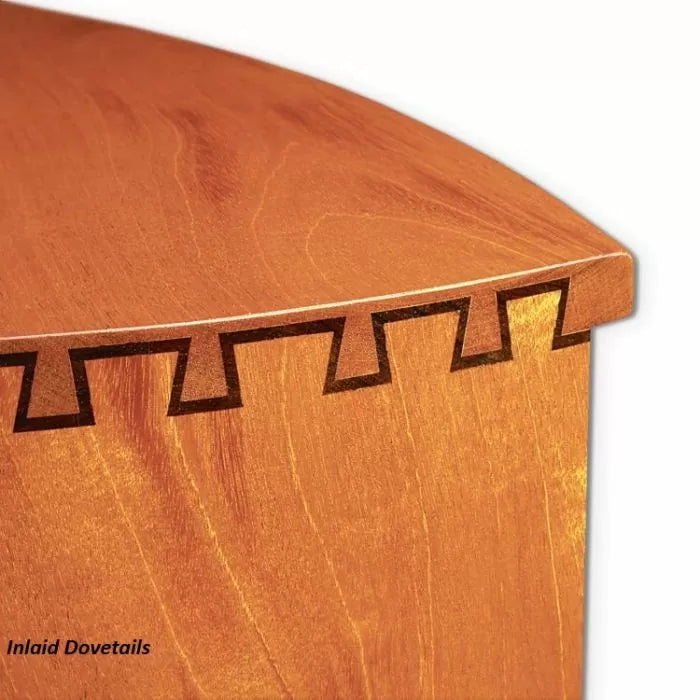

- Inlaid dovetails
- Needle pins (for a hand-cut look)
- Out-of-the-box, the D4R PRO (without any additional accessories) will create all of the following joints:
- Comprehensive User Manual With Tips and Hints - goes above and beyond in making sure you get the most of the D4R PRO
Whether used in contemporary, or classic furniture, dovetail joinery is a highlight of quality woodworking.
Infinity Tools offers a large selection of dovetail bits designed with negative shear angle to provide ultra smooth cuts, and they’re available in all sizes and for all needs. But one thing that doesn’t change … is the general shape of the bit. The weakest point of all dovetail router bits is their neck. To get the longest life possible from this type of bit, we recommend pre-plowing the groove before cutting the dovetail slot.
Pre-plowing is the concept of using a straight bit (sized smaller than the diameter of the neck) to first cut a clearance channel. Start by finding the diameter of the neck of the dovetail bit using a caliper.
Then you locate an appropriate straight bit slightly under the diameter of the neck of the dovetail bit. Use that straight bit to set up the plowing cut.
You make a first pass with the straight bit to remove much of the waste. Remember don’t run this straight bit too fast. Let the bit cut.
The dovetail bit is then used to follow through that channel, but the stress on the bit is greatly reduced, leading to better dovetail cuts … and a longer life for your dovetail bits!
Follow this simple tip and you'll get the best performance from your dovetail router bits.
