Solid Carbide Spiral Router Bits

Solid Carbide Spiral Router Bits for Plunge Cutting, Trimming, and CNC

Solid carbide spiral router bits outperform standard carbide-tipped straight bits in cut quality, chip evacuation, and edge longevity—especially in hardwoods, plywood, MDF, and composite panel materials. Unlike brazed-tip bits, the cutting geometry runs continuously along the flute from tip to shank, providing consistent shearing action throughout the full cut depth.

Upcut spiral bits pull chips upward and out of the cut, keeping the flutes clear in deep pockets and mortises. They are the preferred choice for plunge cutting, pocket routing, and through-cuts where chip accumulation would degrade surface quality. Downcut spiral bits push chips downward, keeping the top face of the workpiece fiber-supported for a clean, tear-out-free surface—ideal for MDF face veneers and laminate-faced plywood.

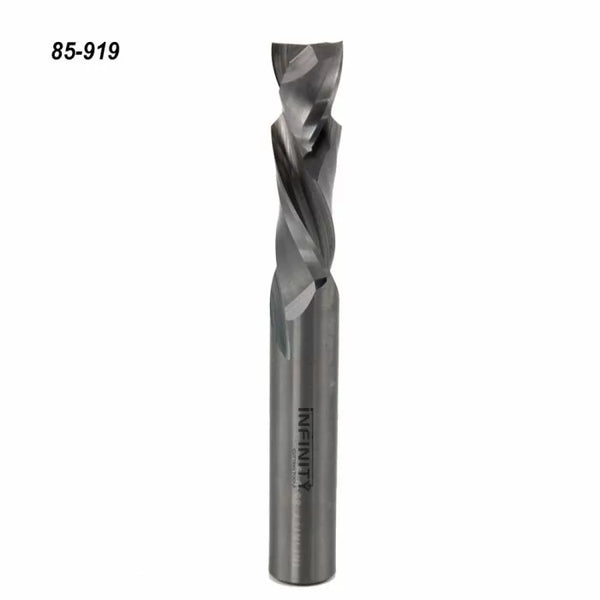

Compression bits combine both geometries: upcut at the bottom, downcut at the top. When the full cutter height engages the material, both faces are sheared cleanly. The Compression Spiral Router Bit is the go-to for production CNC work on double-sided laminated panels. Browse the complete range from 1/4" upcut through 1/2" upcut and the 7-piece set for a comprehensive library.

Selecting the Right Spiral Bit

For flush trimming with a top-bearing configuration, see our solid carbide spiral flush-trim & top bearing collection. For the broadest router bit selection by profile type, browse all carbide router bits or explore CNC-specific tooling in the CNC collection.

Frequently Asked Questions

What is a solid carbide spiral router bit?

A solid carbide spiral router bit is machined from a single carbide blank with helical flutes that wrap around the bit body. Unlike carbide-tipped bits, there is no brazed joint—the cutting geometry is integral to the bit, providing consistent shearing action, superior rigidity, and longer edge life.

What is the difference between upcut and downcut spiral bits?

Upcut spiral bits evacuate chips upward, keeping the flutes clear in deep cuts—ideal for pockets, mortises, and through-cuts. Downcut bits push chips downward, supporting surface fibers and preventing tear-out on the top face. See the 1/4" downcut or 1/2" downcut versions.

When should I use a compression spiral bit?

Use a compression spiral bit when routing completely through double-sided laminated or veneered panels and you need clean edges on both faces. The upcut bottom and downcut top work together when the full cutter height is engaged.

Can solid carbide spiral bits be used in a CNC router?

Yes. Solid carbide spiral bits are widely used in CNC routing for their superior chip evacuation, consistent geometry, and long edge life. They are especially effective in MDF, plywood, and composites common in cabinet and furniture CNC work. See also the CNC collection.

What materials can solid carbide spiral bits cut?

These bits perform well in solid hardwoods, softwoods, MDF, particleboard, plywood, melamine, high-pressure laminate, and many composite materials. The solid carbide construction handles abrasive materials better than carbide-tipped alternatives.

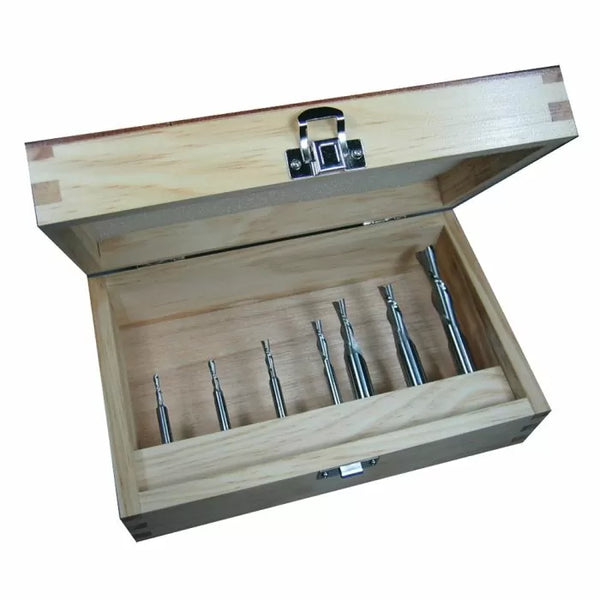

What is the 7-piece carbide spiral router bit set?

The 7-piece Carbide Spiral Router Bit Set provides a comprehensive range of spiral bit diameters and configurations—a practical all-in-one starting collection for woodworkers adding solid carbide spirals to their library.

What shank sizes are available?

Solid carbide spiral bits are available in both 1/4" and 1/2" shank sizes. For router table use and larger-diameter bits, 1/2" shank provides greater stability and reduced deflection under cut loads.

How do solid carbide spiral bits compare to standard straight bits?

Spiral bits shear material rather than chop it, producing smoother walls, less tear-out, and lower cutting forces than straight fluted bits of equivalent diameter. They also clear chips more efficiently, reducing heat buildup that can cause burning.

Are these bits good for plunge cutting?

Upcut solid carbide spiral bits are excellent for plunge cutting because the helical geometry helps clear chips as the bit enters the material vertically. Downcut bits are less suitable for plunging because chips are pushed into the pocket.

Does Infinity Tools offer a quality guarantee on solid carbide spiral bits?

Yes. All solid carbide spiral router bits are covered by our quality guarantee. Contact our team if a bit does not meet the stated performance standards.
