Infinity Tools Tapered Dovetail Spline Router Jig With Router Bit & Bushing
Rout Perfect Tapered Dovetail Grooves for Spline Joinery!
These are the routing jigs included with our value-packed Tapered Dovetail Spline System packages.

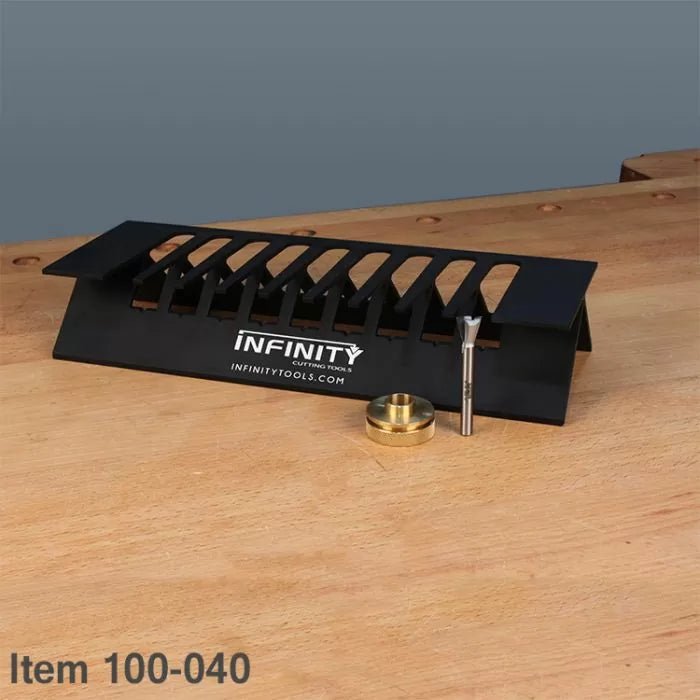

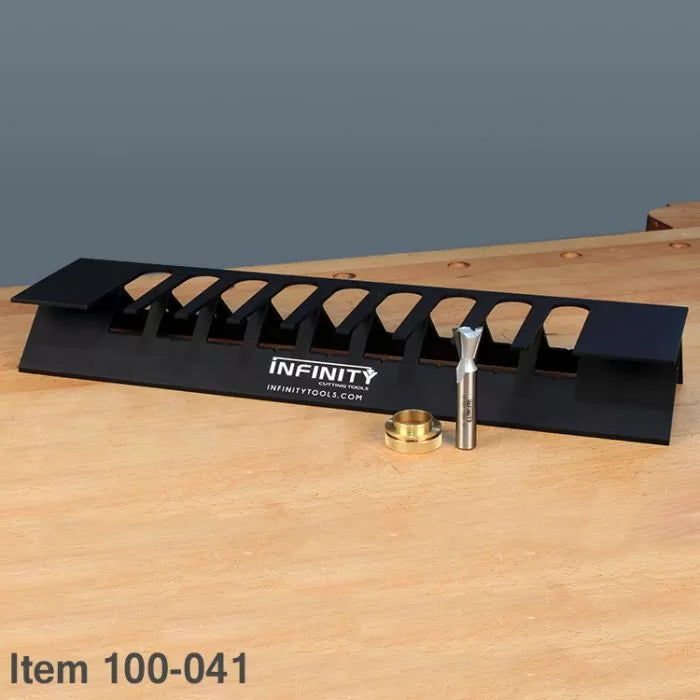

Made from CNC-machined extruded aluminum then anodized for a protective finish, these router jigs create a precise, tapered groove for tapered dovetail splines. Includes Porter-Cable-style brass guide bushing and router bit.
12" Router Jig includes a 1/4"-shank, 1/2"-dia. x 1/2"-depth, 14° dovetail bit.
18" Router Jig includes a 1/2"-shank, 3/4"-dia. x 3/4"-depth, 14° dovetail bit.

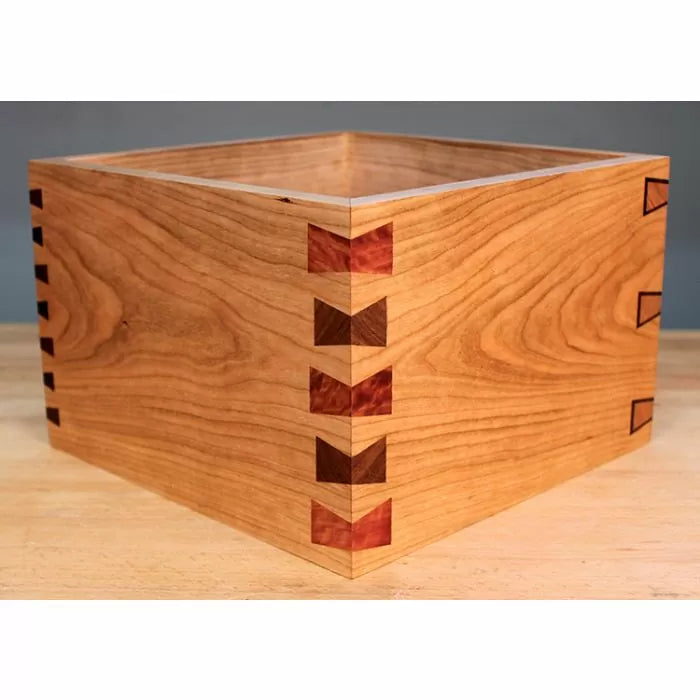

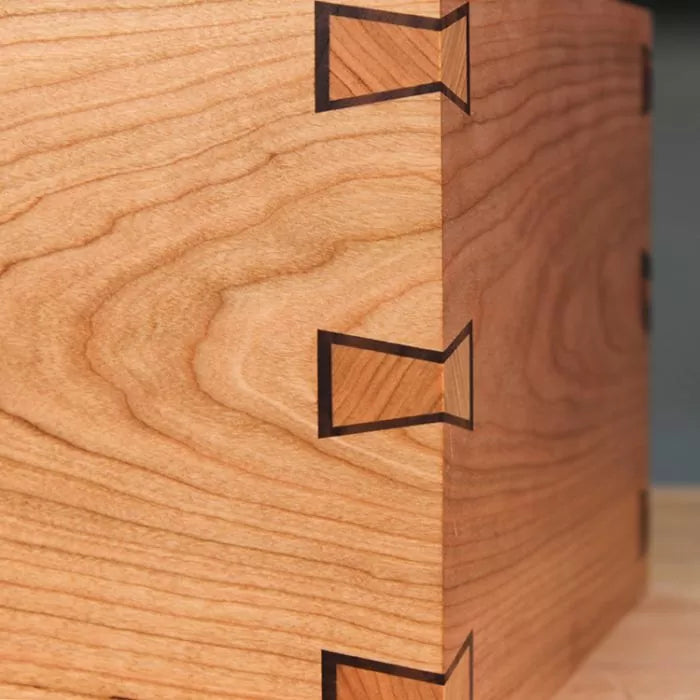

PLEASE NOTE: The 18" Router Jig is required for making nested dovetails like those pictured here. This type of result is not possible with the 12" Router Jig.
Instructions_TSS-100_Tapered_Dovetail_Spline_Making_Sled
Whether used in contemporary, or classic furniture, dovetail joinery is a highlight of quality woodworking.
Infinity Tools offers a large selection of dovetail bits designed with negative shear angle to provide ultra smooth cuts, and they’re available in all sizes and for all needs. But one thing that doesn’t change … is the general shape of the bit. The weakest point of all dovetail router bits is their neck. To get the longest life possible from this type of bit, we recommend pre-plowing the groove before cutting the dovetail slot.
Pre-plowing is the concept of using a straight bit (sized smaller than the diameter of the neck) to first cut a clearance channel. Start by finding the diameter of the neck of the dovetail bit using a caliper.
Then you locate an appropriate straight bit slightly under the diameter of the neck of the dovetail bit. Use that straight bit to set up the plowing cut.
You make a first pass with the straight bit to remove much of the waste. Remember don’t run this straight bit too fast. Let the bit cut.
The dovetail bit is then used to follow through that channel, but the stress on the bit is greatly reduced, leading to better dovetail cuts … and a longer life for your dovetail bits!
Follow this simple tip and you'll get the best performance from your dovetail router bits.
