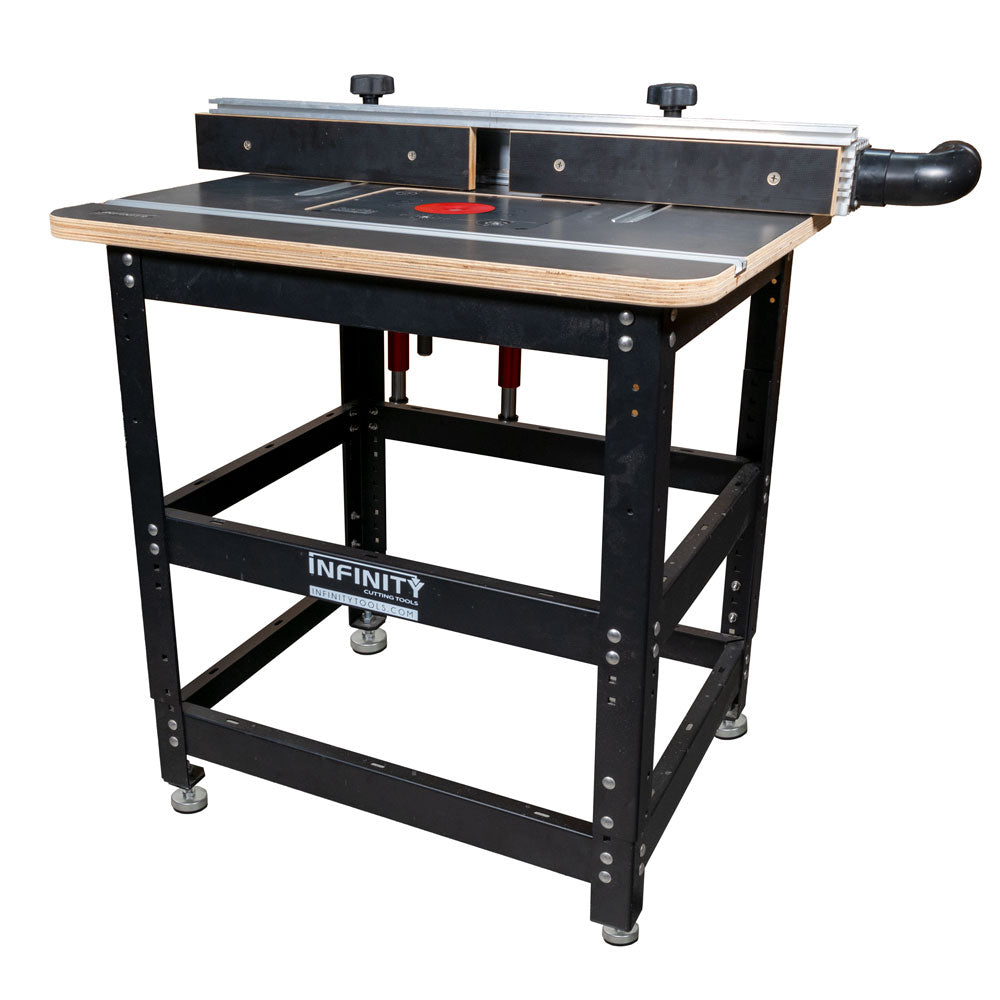

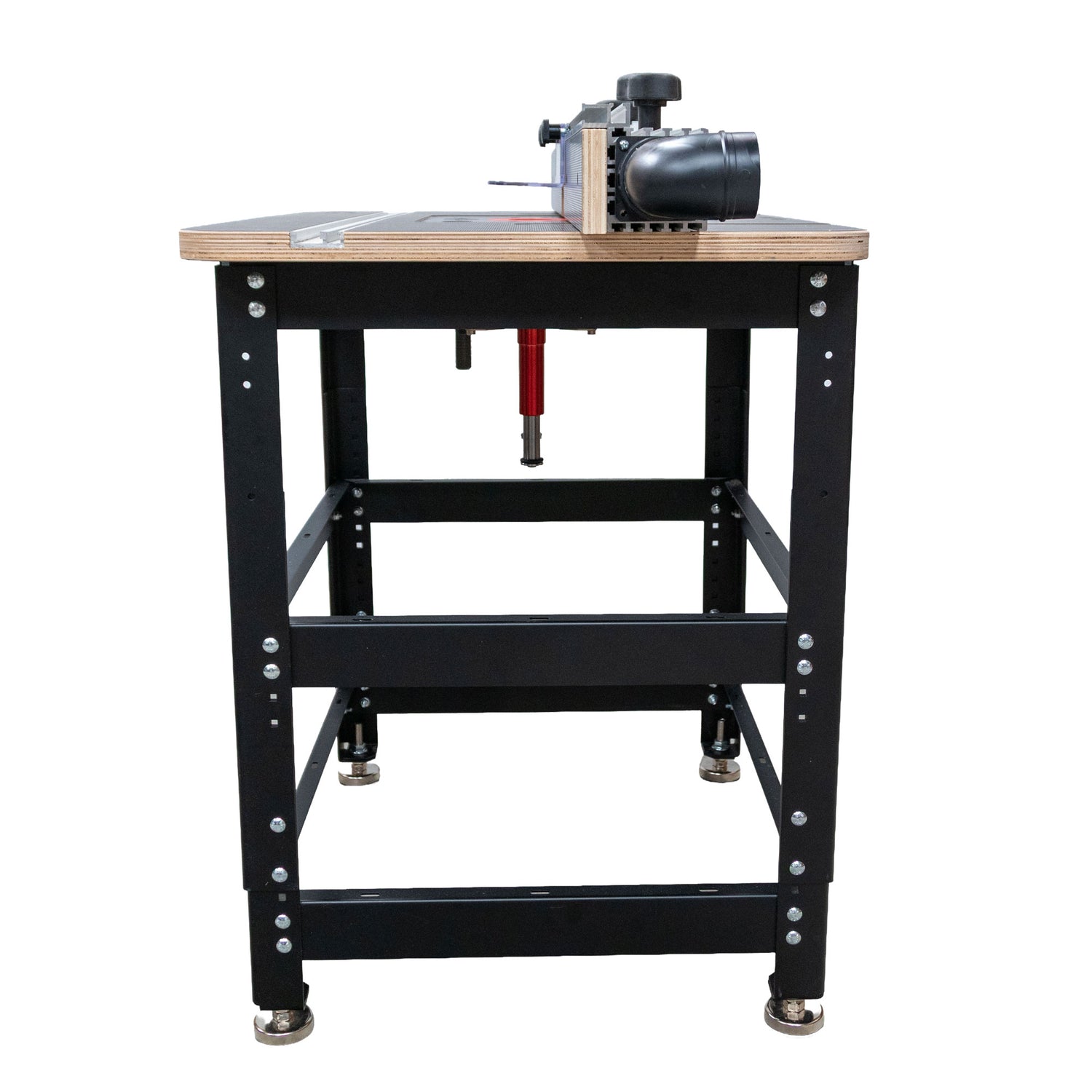

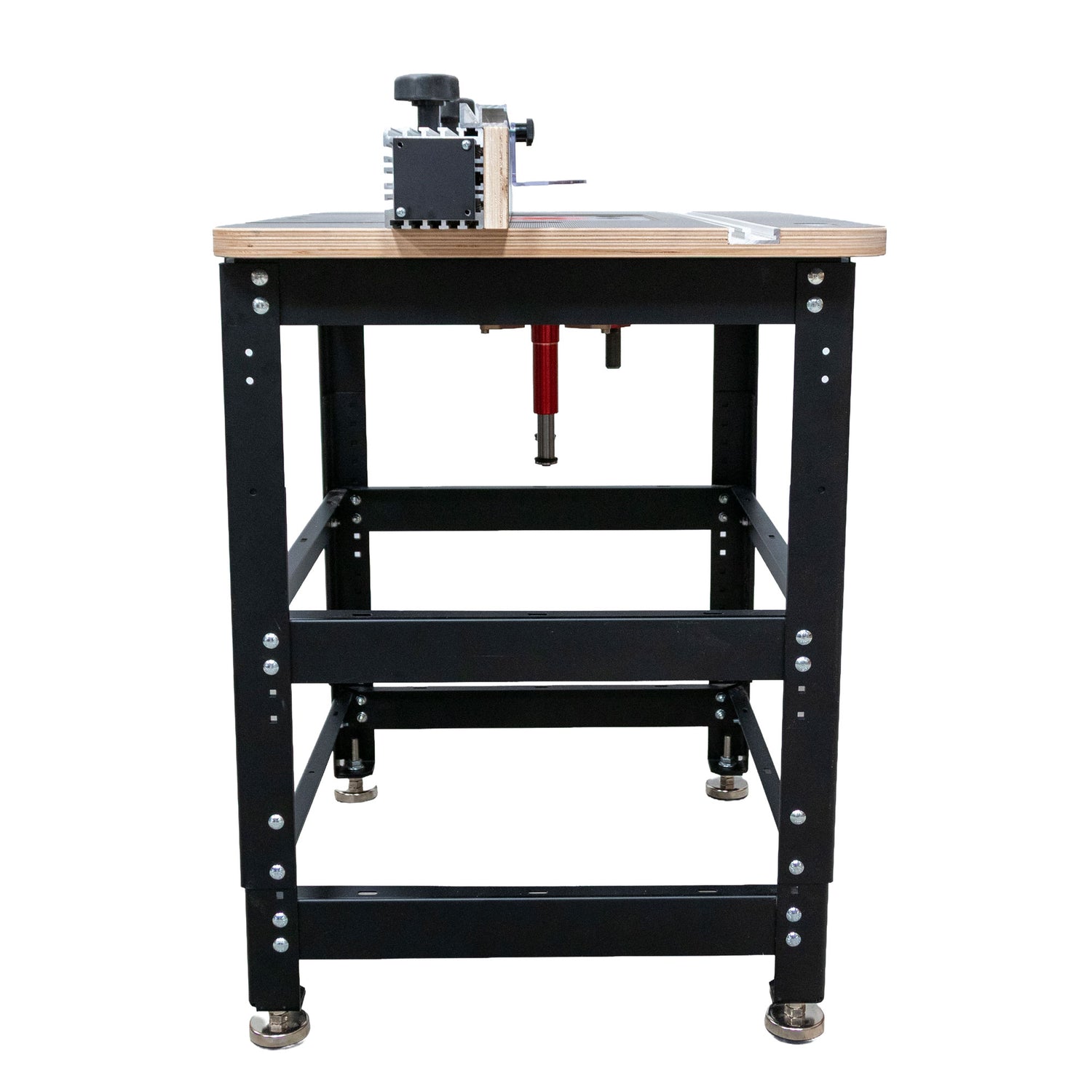

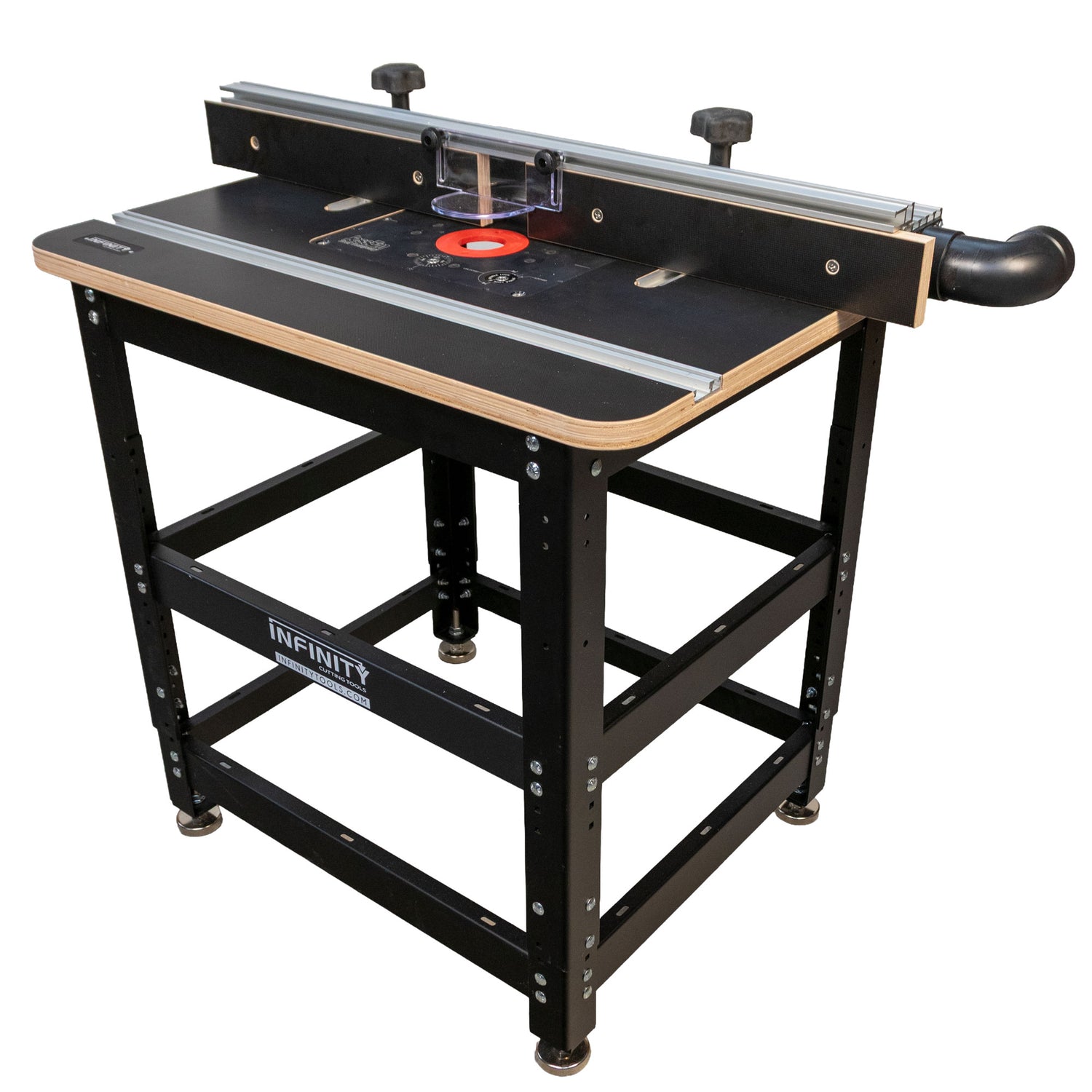

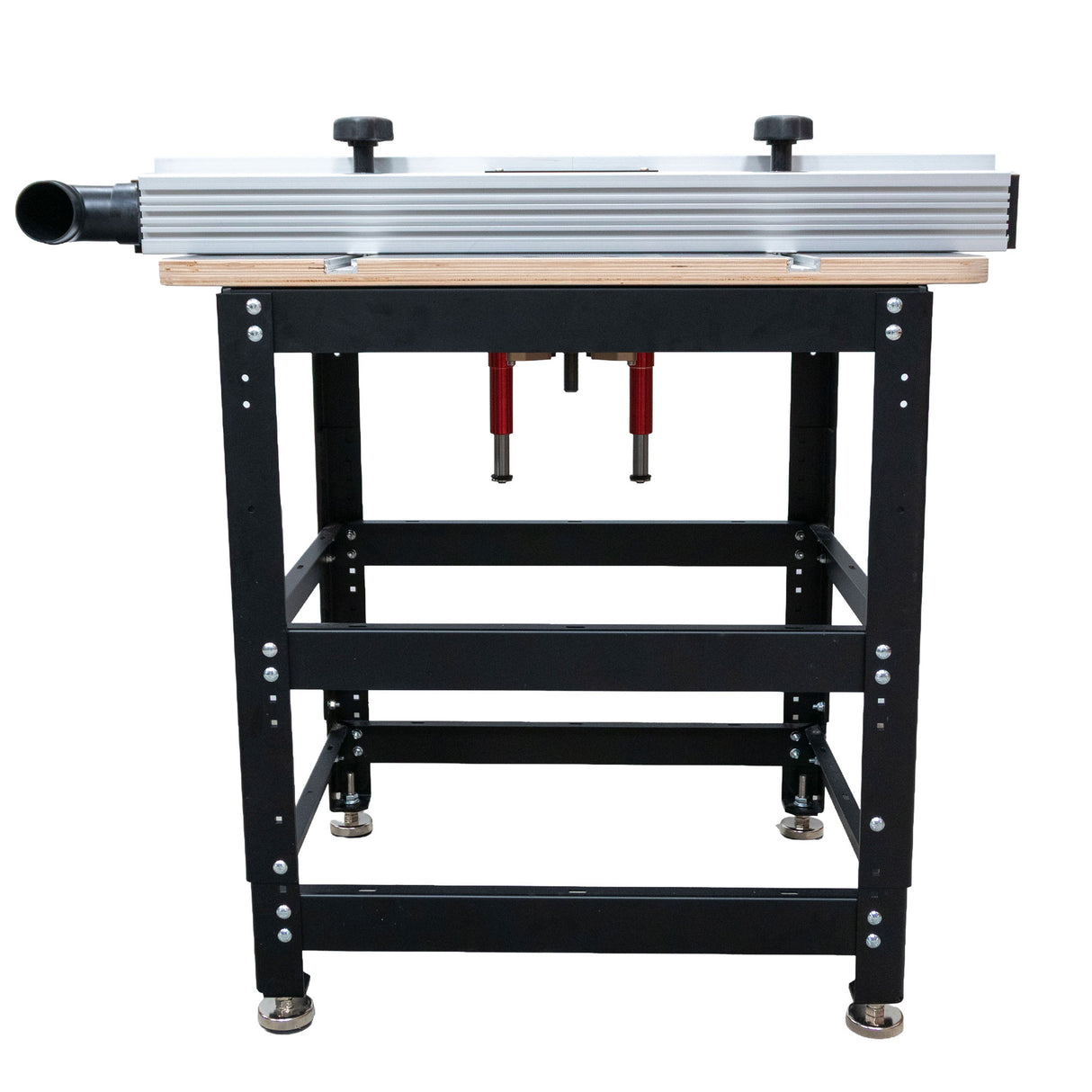

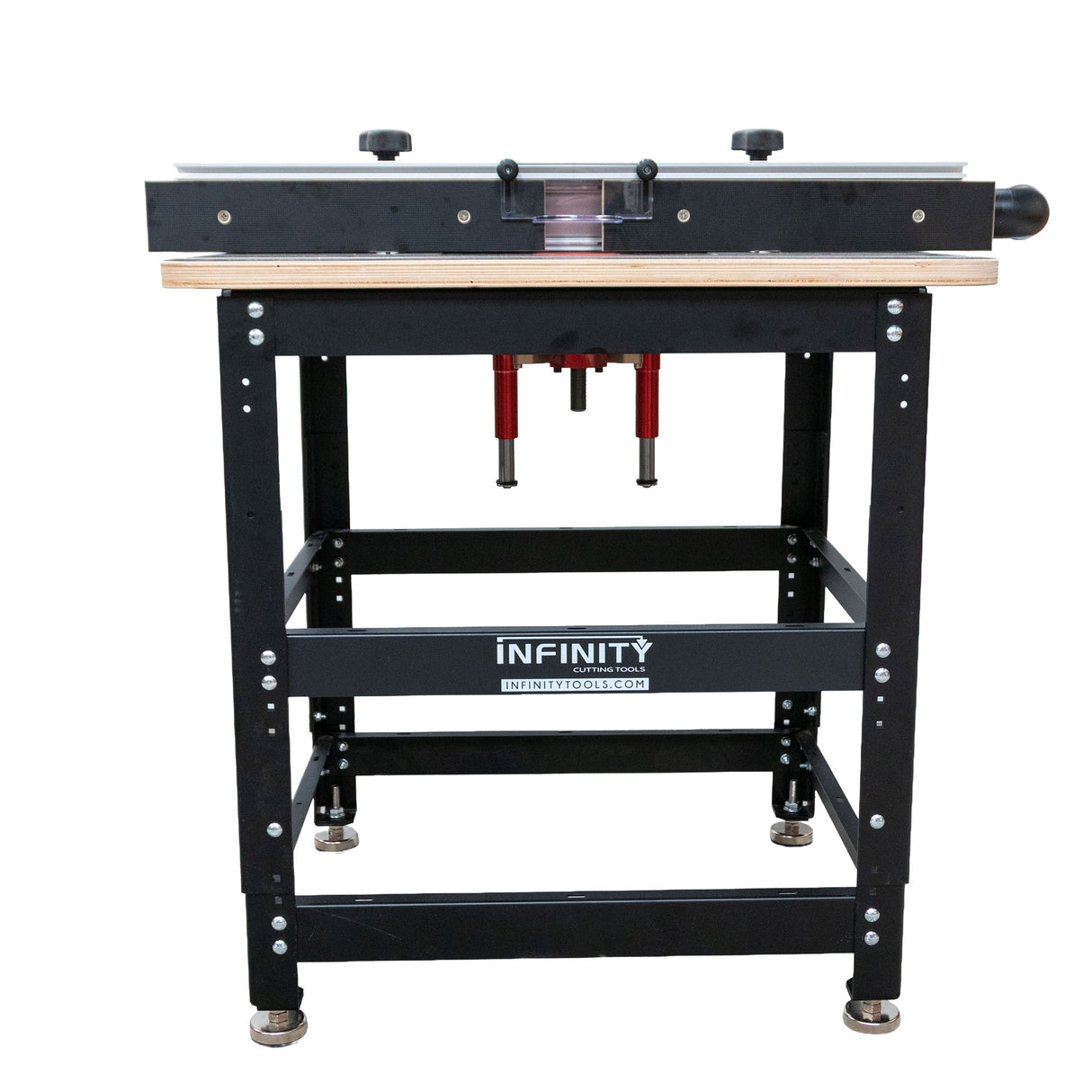

Premium Quality Pro. Router Table Package w/ Multi-Plycore Plywood Top, JessEm Mast-R-Lift II (02120)
Infinity Tools Professional Router Table Packages put you in total control of your woodworking projects. The RTP-102 gives you the highest quality components for the router stand, multi-plycore plywood top and router fence. You also get the the Jessem Mast-R-Lift II (02120) which fits most full size router motors available today. We’ve designed our router table packages to withstand the rigors of the most demanding professional woodworking environment and also be easy enough to use in your home wood shop. Customize your router table package by adding our exclusive accessories and you’ll have the latest in routing technology at your fingertips.
Our Essential Router Table Package, RTP-102 Includes:

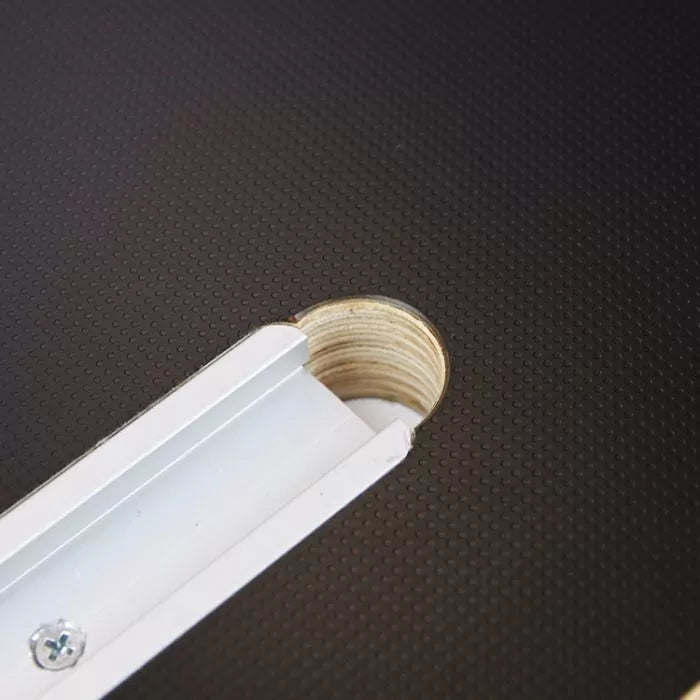

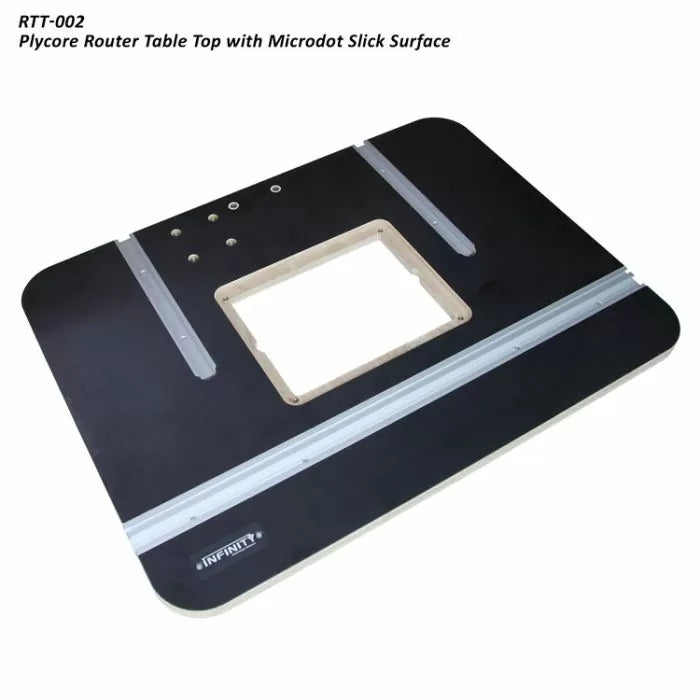

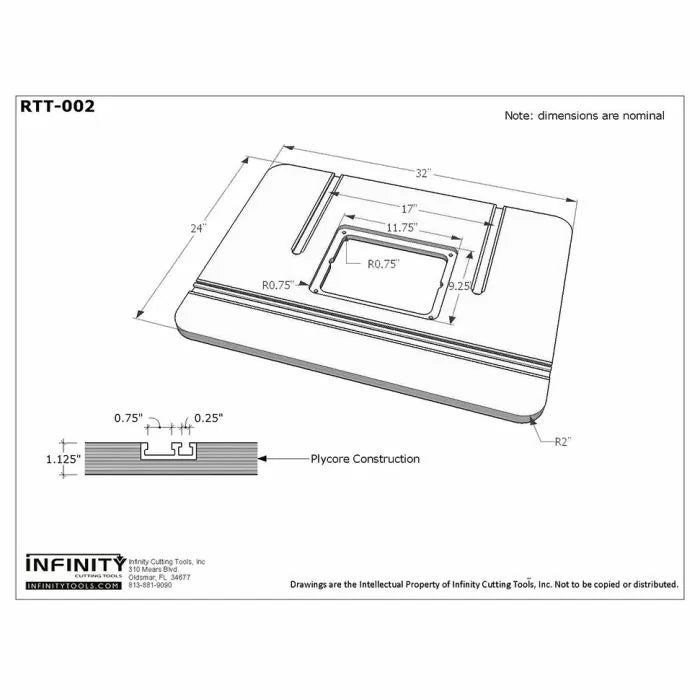

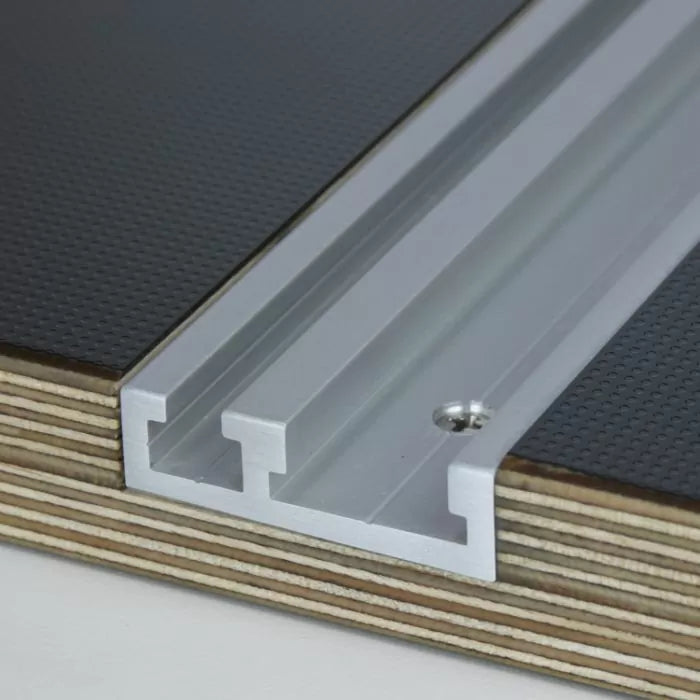

(RTT-002) The Infinity Tools router table top features an 18-ply, exterior grade Birch plywood core that is laminated on both top and bottom for strength and stability. The Micro-Dot top lamination reduces friction and allows your work piece to easily glide over the table surface. The large 24" x 32" work surface is big enough to handle most routing projects with ease and the built-in Miter & Mini combo t-track accepts any compatible hold-down or safety accessory. We go the extra mile and add pre-drilled and threaded holes to accept the optional Mini Power Feeder (MPF-001). Our power feeder is a game-changer and takes table mounted routing to a whole new level.

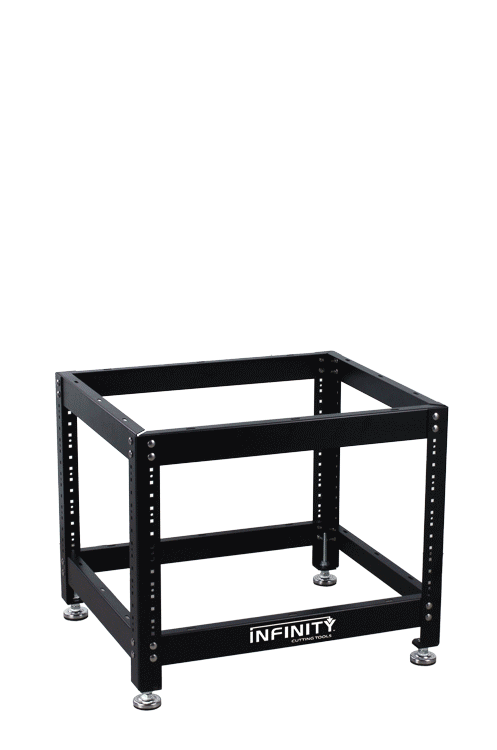

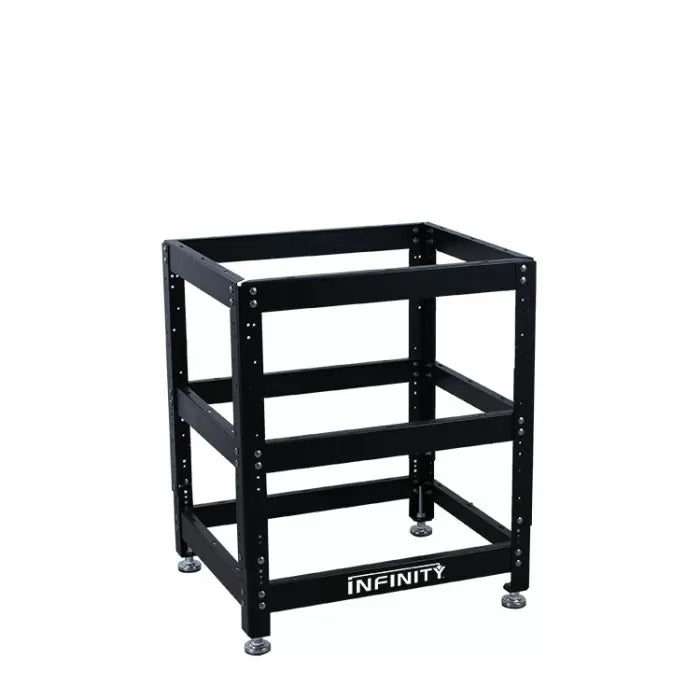

(HDTS-001) Infinity Tools Heavy-Duty Tool Stand
Our Heavy-Duty Tool stand towers above the competition. The 22-1/2” deep x 26-1/2” wide stand is made of 2mm & 3mm thick powder-coated steel and is height adjustable from 22-1/4” to 43-3/4” tall in 1” increments. With this level of adjustability, you’ll be able to get your router table to the perfect height for all-day work in the shop. The included leveling feet allow for a perfect setup on uneven shop floors and create a rock-solid foundation.
(PRTF-200) Pro Router Table Fence
The Infinity Pro Router Table Fence is made of anodized, heavy-walled, extruded aluminum. Our completely reengineered fence is based around a single robust 3-3/16” X 3-3/16” square extrusion. This design innovation improves stability, squareness to the table and workpiece, and above-the-table dust collection capability. The cut-out in the middle of the extrusion is large enough for even the widest router bits. In conjunction with the oversize cutout, the replaceable fence faces can be repositioned along the length of the fence to best accommodate your bit diameter. Unlike inferior MDF fence faces found on competitor products, our fence is fitted with ¾” thick, Micro-Dot Plycore material. The extra lubricity of our Micro-Dot covered faces allow your workpiece to glide effortlessly, and the stability and flatness of the plywood core combine for years of trouble-free service. The top rail extrusion comes with two (2) 17.5” metric and imperial scale rules and has a built-in ¼" x 20 t-track that works with any compatible fixture or hold-down. Positioned to the end of the fence, and integrated as part of the hollow center of the fence extrusion, the new dust collection port keeps your dust collection hose out of the way and improves suction by creating a stronger vacuum in the empty cavity. The tall and comfortable rubberized locking knobs make busted knuckles a thing of the past.

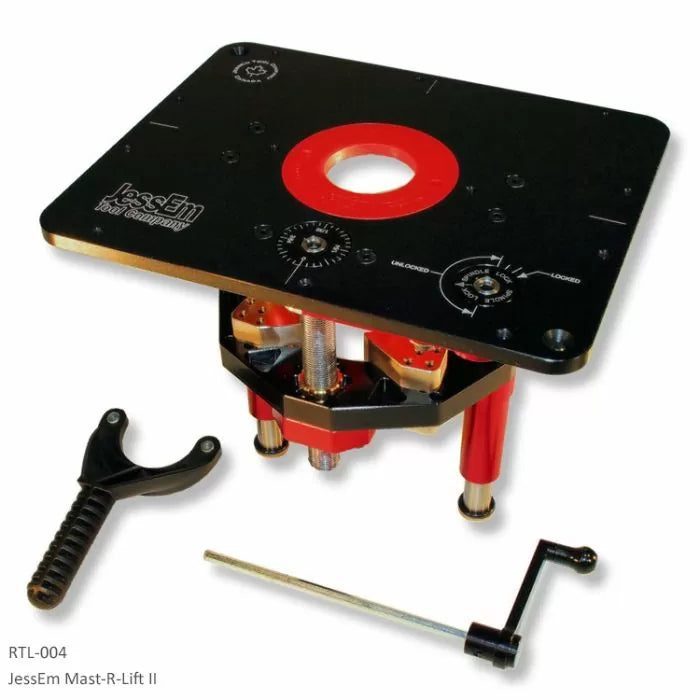

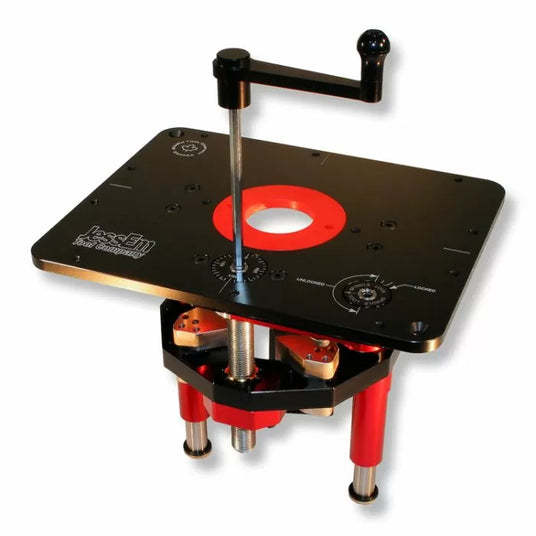

RTL-003, JessEm Mast-R-Lift II (02120)
Gone are the days of having to purchase separate router pads to accommodate your specific router when using a lift. The JessEm Mast-R-Lift II router lift now accepts 18 different router motors straight out of the box, the ultimate convenience. Make bit changes and height adjustments with a simple twist of the convenient speed crank, from above the table! The heavy duty aluminum insert plate measures 9-1/4" x 11-3/4" x 3/8" thick and is precision CNC machined to guarantee flatness. The handle of the speed crank raises and lowers the bit a total of 3-3/4" with 1/16" resolution per rotation with adjustments as fine as .002" possible. The plate features a 3-5/8" diameter center hole that will accommodate even the largest raised panel router bits. Comes with a 1-1/2" insert ring as standard, additional insert rings are available separately.
