SKU: RTL-003  |  MPN: 02120

JessEm Mast-R-Lift II - 9-1/4" x 11-3/4" Aluminum Plate

$439.90
Shipping calculated at checkout.



Mast-R-Lift II (02120) - Now Accepts 18 Different Routers, From 8 Different Mfg's!

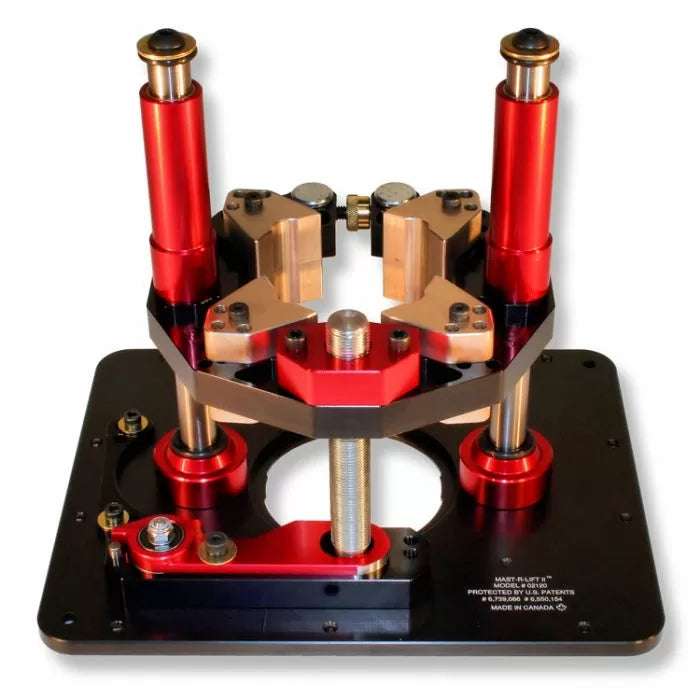

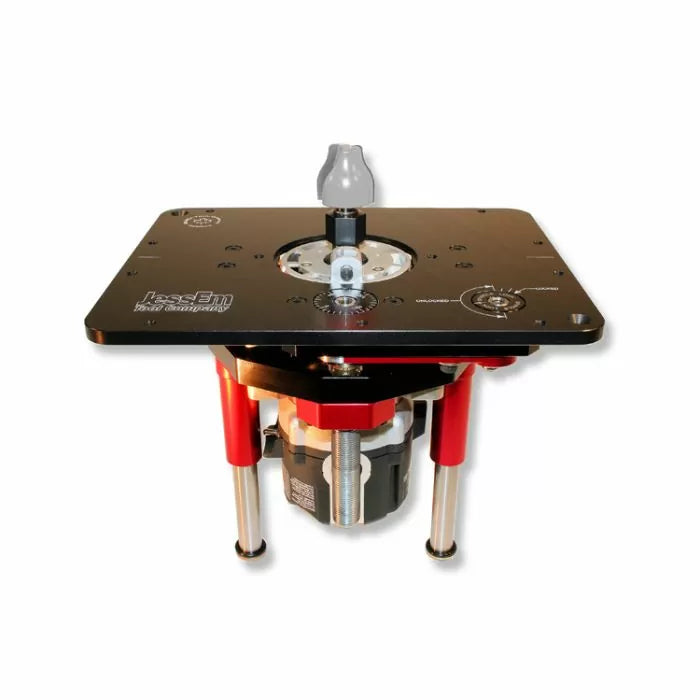

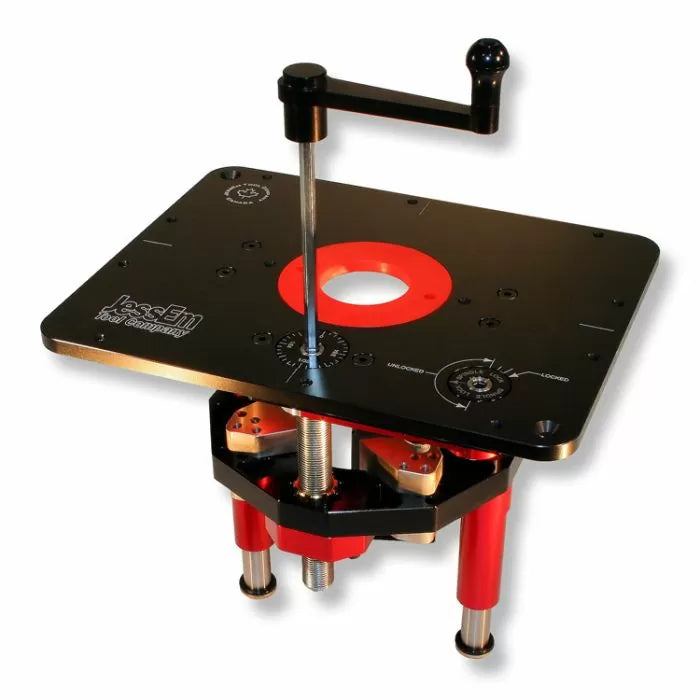

Gone are the days of having to purchase separate router pads to accommodate your specific router when using a lift. The JessEm Mast-R-Lift II ( router lift now accepts 18 different router motors straight out of the box, the ultimate convenience. JessEm have kept all of the great features of the previous Mast-R-Lift, but updated the design to include several new key features. Make bit changes and height adjustments with a simple twist of the convenient speed crank, from above the table! The Mast-R-Lift II is built for long-term use and is designed specifically for the Porter Cable 7518 router. The heavy duty aluminum insert plate measures 9-1/4" x 11-3/4" x 3/8" thick and is precision CNC machined to guarantee flatness. The handle of the speed crank raises and lowers the bit a total of 3-3/4" with 1/16" resolution per rotation with adjustments as fine as .002" possible. The plate features a 3-5/8" diameter center hole that will accommodate even the largest raised panel router bits. Comes with a 1-1/2" insert ring as standard, additional insert rings are available separately (see below).

Now fits the following routers - straight out of the box!

  • Triton 3-1/4 HP Router Motor, TFBR001MOTOR
  • Bora Router - 4.2" Diam motor
  • PC 7518 -690 - 890
  • Bosch 1617 - 1618
  • DeWalt 610 - 618
  • Makita 1101
  • Hitachi M12VC & KM12VC
  • Milwaukee 5625- 5615 - 5616 - 5619
  • Craftsman 17543 -17540 - 28190
  • Rigid R29302

Other features include:

  • Insert Plate Size 9-1/4" X 11-3/4" X 3/8" Thick
  • Vertical travel (3-1/4")

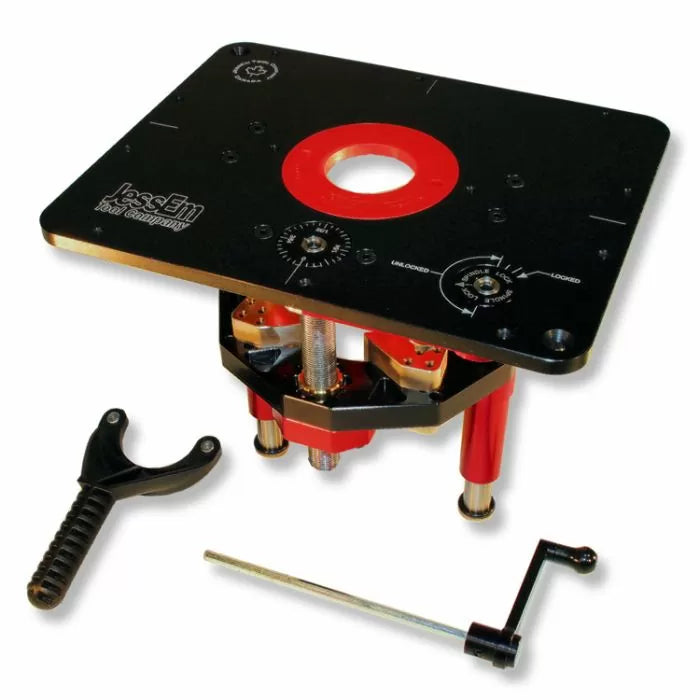

  • Comes with 2" Tab-Loc insert ring, insert ring wrench, start pin and all hardware
  • Spindle mount (2 R-8 double sealed bearings)
  • Top plate surface treatment (Hard Anodizing)
  • Built-in plate leveling system for a perfect fit.
  • 3-3/4" of total travel with .002" resolution.
  • Quick change motor installation with cam-lock clamp design.
  • Drops perfectly into our Universal Router Table Top, RTT-002.
