SKU: RTI-116

Infinity Tools Router Insert Plate w/ Triton TRA001 3-1/4 HP Router

Name: Infinity Tools Router Insert Plate w/ Triton TRA001 3-1/4 HP Router
Brand: Infinity Cutting Tools
SKU: RTI-116
Price: 549.80 USD
Availability: InStock

$549.80

Description Reviews Q&A

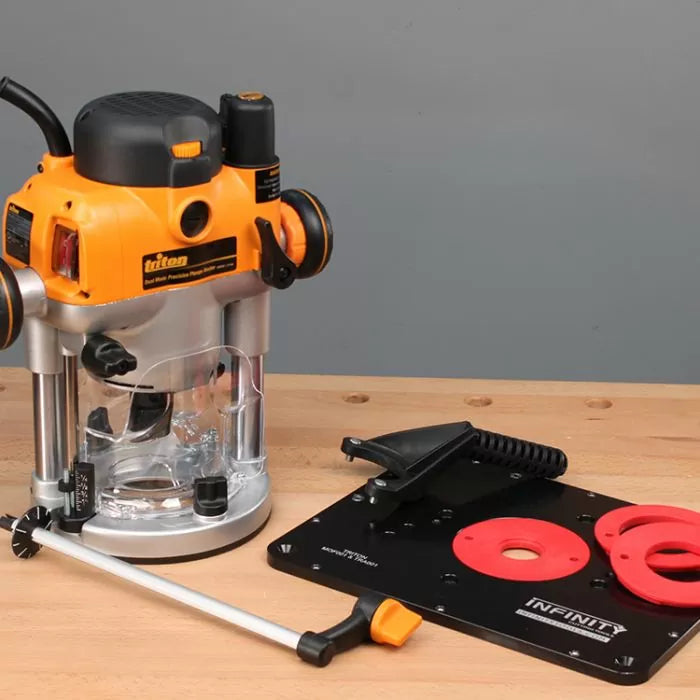

Triton 3.25 H.P. Router (TRA001) w/ Infinity Tools Aluminum Insert Plate Package

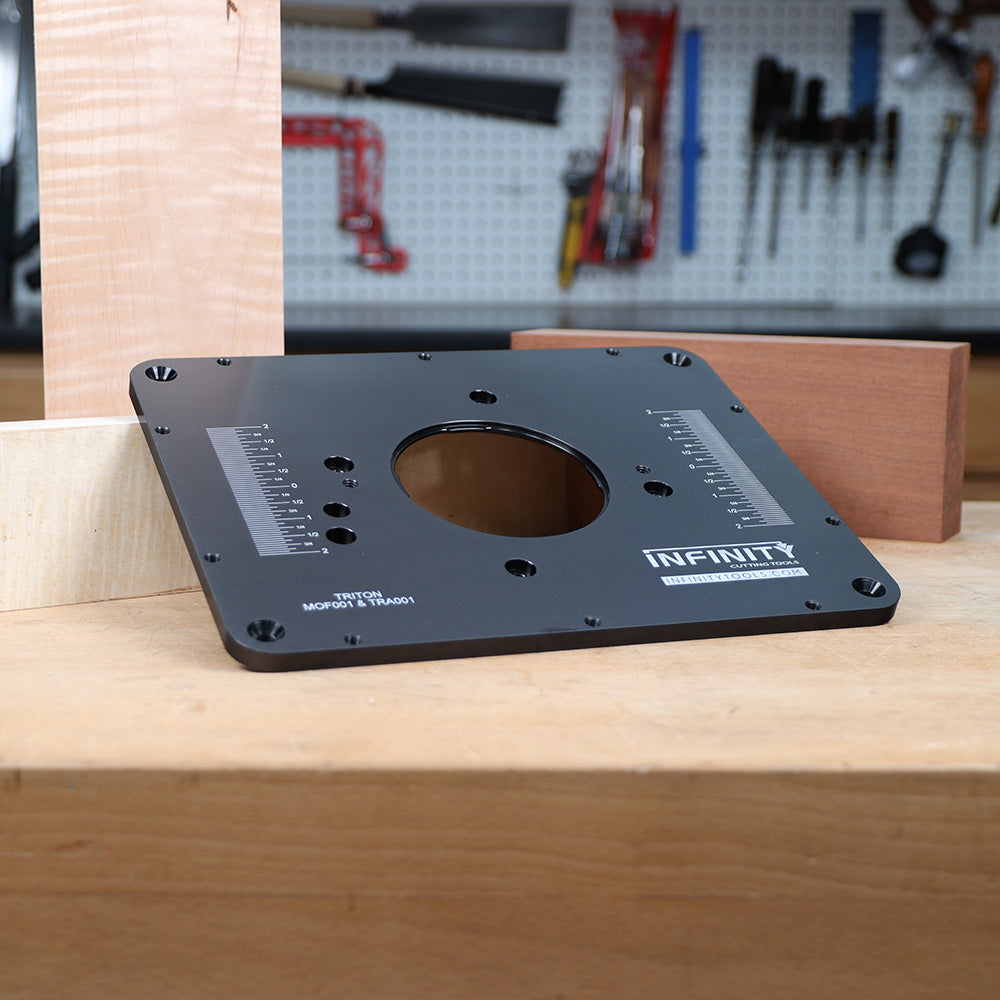

Infinity Tools' router table insert plate is the ultimate upgrade for your home-made or store-bought router table station. Designed to drop into most standard router tables, the 9-1/4" x 11-3/4" plate is C.N.C. machined out of a premium grade aluminum. The plate is then hard-anodized to create a durable protective surface, guaranteed to never bend, bow, or twist. The low-friction anodized coating makes for a flawlessly smooth routing experience. Three stainless steel adjustable snuggers and ten fine-pitch leveling screws allow allow you to dial in a perfectly flush fit in your router table top.

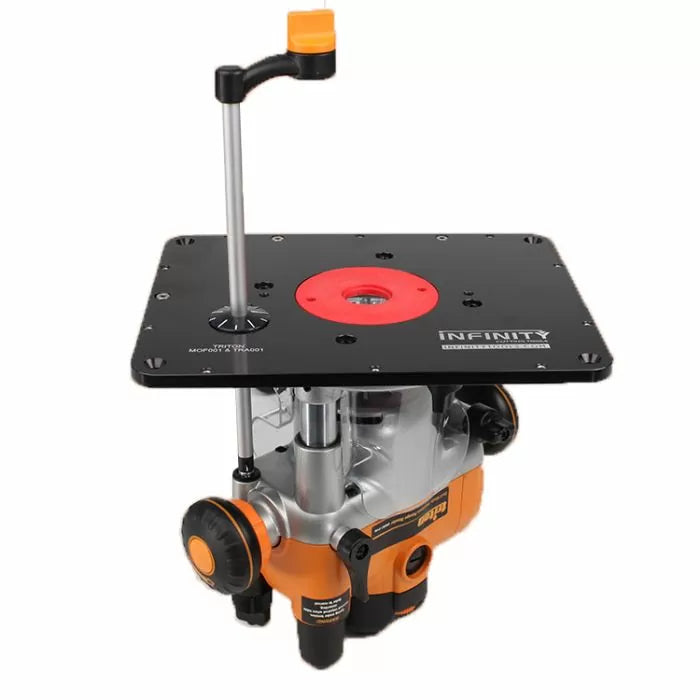

This plate has been pre-drilled to accept both the Triton MOF001 and TRA001 routers, and includes a through-hole for the Triton routers' lift cranks. With a 3-7/8" max opening, this Infinity Tools Router plate will accommodate even the largest consumer-grade router bits.

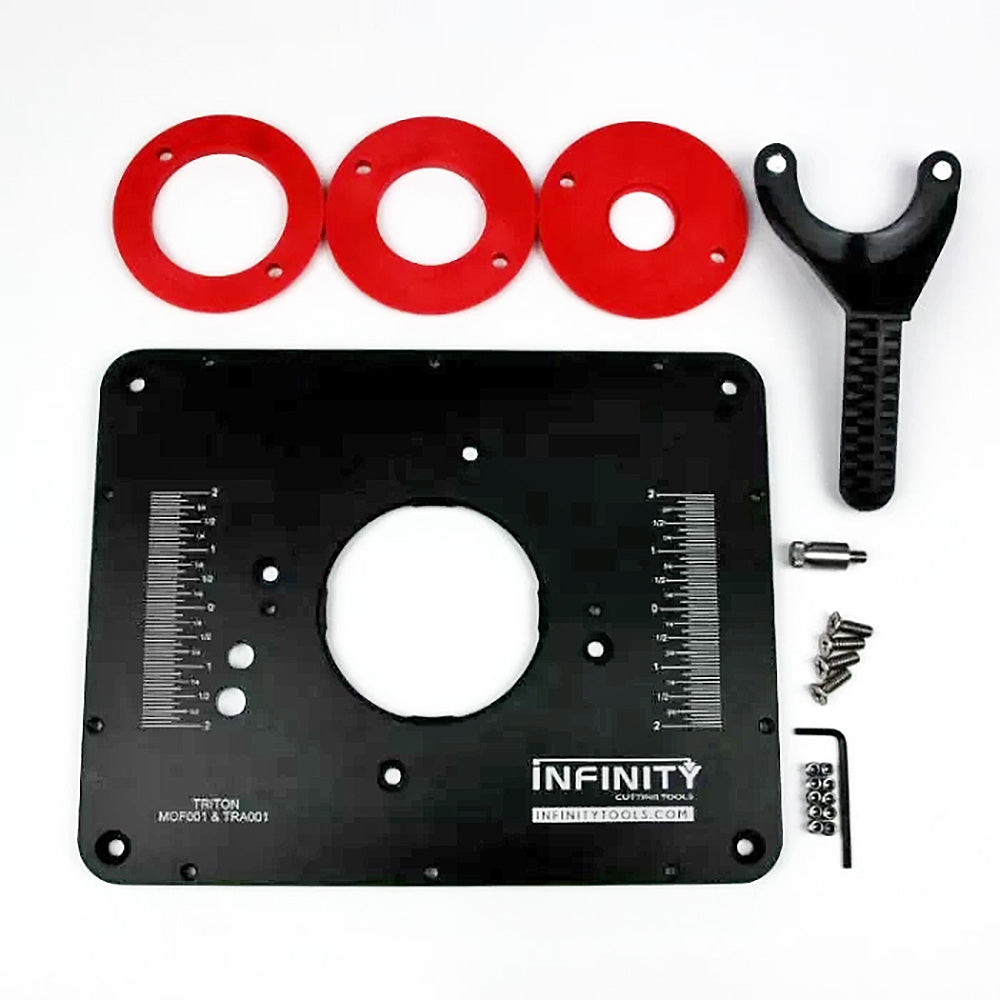

Included in the package is stainless steel hardware, a starter pin, three insert rings with 1-3/8", 2", and 2-12" inner-diameters, and an insert ring wrench. This plate fits perfectly into Infinity Tools' Universal Router Table Top, RTT-002.

Features Include:

Pre-drilled for the Triton 2-1/4 and 3-1/4 H.P. routers
Precision C.N.C. machined
Durable hard anodized slick surface
Dimensions are 9-1/4” x 11-3/4” x 3/8” thick
Ten fine-pitch levelers and three snuggers for a perfect fit
Fits the Infinity Tools Universal Router Table Top, RTT-002.
Max. opening of 3-7/8” diameter

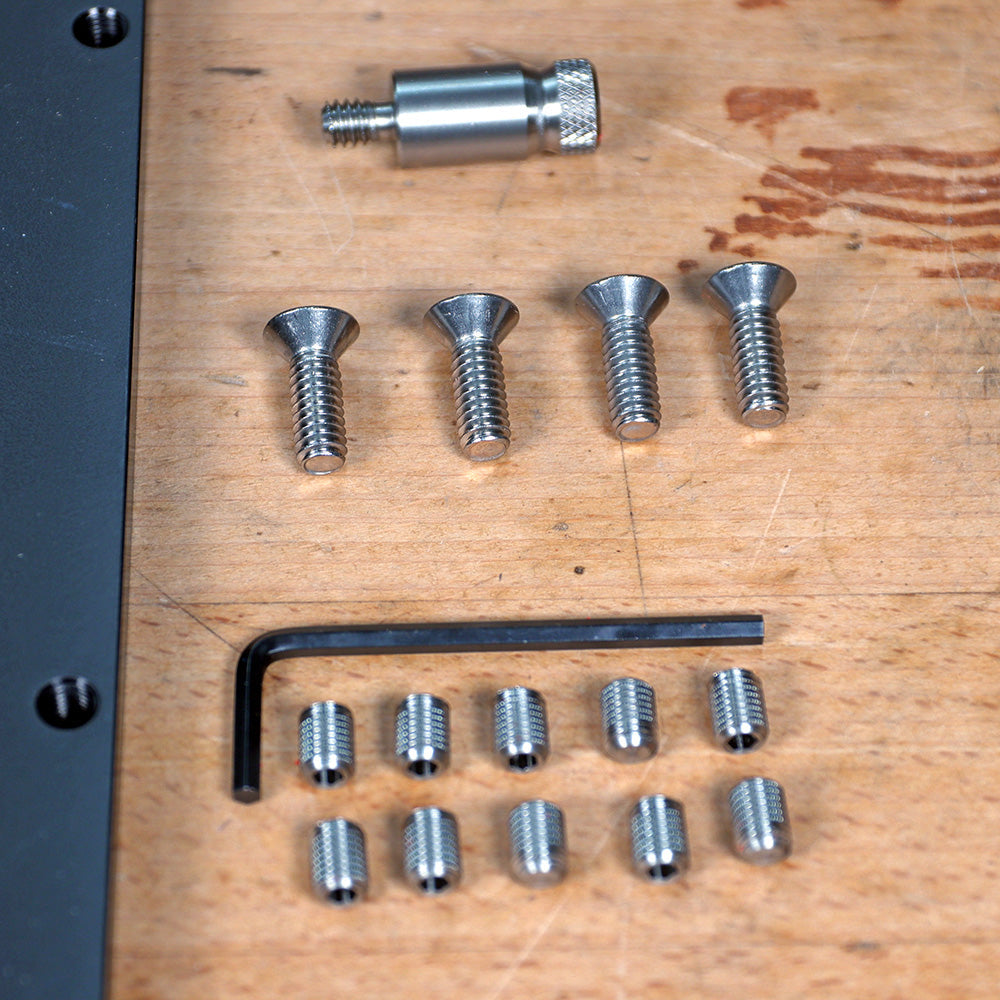

Includes all mounting hardware, starter pin, three reducing rings and wrench

Frequently Asked Questions

Which routers does this insert plate fit?

The plate is pre-drilled to accept the Triton MOF001 and TRA001 routers (the 2-1/4 and 3-1/4 HP models) and includes a through-hole for the Triton lift cranks. This package comes with the Triton TRA001 3-1/4 HP router.

What are the dimensions of the router plate?

The plate measures 9-1/4" x 11-3/4" x 3/8" thick and is designed to drop into most standard router tables.

What is the maximum bit opening on this plate?

The plate has a 3-7/8" maximum opening, large enough to accommodate even the biggest consumer-grade router bits. Browse router table accessories to outfit it.

What insert rings are included?

The package includes three reducing insert rings with 1-3/8", 2", and 2-1/2" inner diameters, plus an insert ring wrench, so you can size the opening to your bit.

How does the plate level in the table?

Three stainless steel adjustable snuggers and ten fine-pitch leveling screws let you dial in a perfectly flush fit with your table top, eliminating lips that could catch your workpiece.

What material is the plate made from?

It is CNC-machined from premium-grade aluminum and then hard-anodized for a durable, low-friction surface that is guaranteed never to bend, bow, or twist.

What hardware comes in the package?

The package includes stainless steel mounting hardware, a starter pin, three reducing rings, an insert ring wrench, and the Triton TRA001 router. See more router plates & lifts.

Will this plate fit Infinity's router table top?

Yes. The plate fits perfectly into Infinity Tools' Universal Router Table Top, RTT-002, and is also designed to drop into most standard router tables & packages.

Can I use this plate in a homemade router table?

Yes. The plate is designed to drop into most standard home-made or store-bought router tables, and the levelers and snuggers help you fit it flush in your own table top.

Does the plate accept the Triton lift crank?

Yes. The plate includes a through-hole for the Triton routers' lift cranks, so you can adjust bit height from above the table.
