SKU: PDJ-100

Infinity Tools Precision Router Dado Jig

13 Reviews
$129.90

Make Perfect Fitting Dado Joints Quickly & Easily With Our New Jig!

Use your hand-held router and this exclusive new jig to make precise dado joints quickly and with confidence. Built from a solid piece of aluminum, this router jig allows you to make precise dados, rabbets and mortises up to 2" wide in exact 1/16" increments. It will work with any of our 2" wide PRO-GRIP straight edge clamps and comes with one ¾" brass template guide and locking ring. Does not include clamp-n-guide.

Features Include:

  • Makes accurate cuts up to 2" wide in 1/16" increments
  • Dado length limited only by the length of your straight edge clamp
  • Solid aluminum construction for years of service
  • Will work with any handheld router that accepts Porter Cable style bushings (1-3/16" base opening)
  • Use any straight or spiral router bit up to 3/4" cutting diameter
  • Fits over any 2" wide PRO-GRIP straight edge clamp
  • Comes with a 3/4" brass template guide (accepts up to a 3/4" diameter straight or spiral bit)
  • Steel rollers insure smooth and accurate rolling action

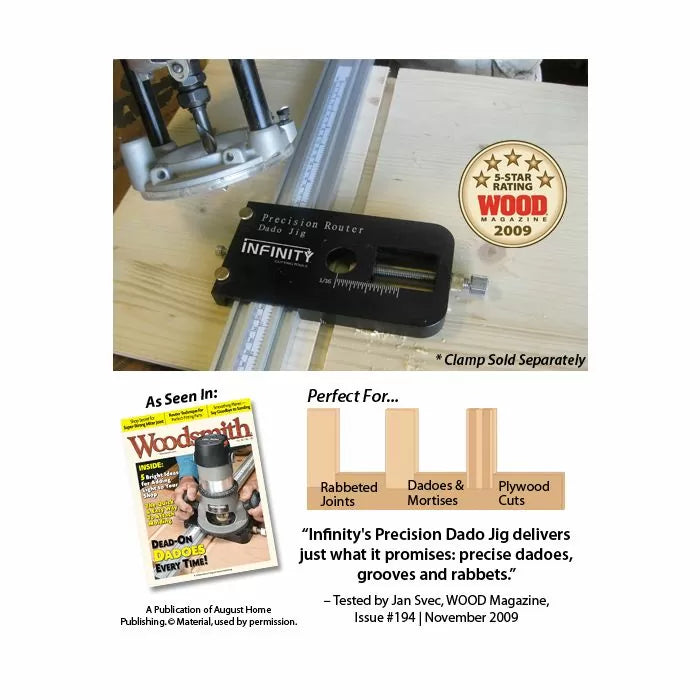

Recently tested by WOOD Magazine, Jan Svec says "Infinity's Precision Dado Jig delivers just what it promises; precise dadoes, grooves & rabbets..." Issue #194

  • 5
    10 (77%)
  • 4
    3 (23%)
  • 3
    0 (0%)
  • 2
    0 (0%)
  • 1
    0 (0%)
100% of customers rate this product 4- or 5-stars
Highest to Lowest
  • Highest to Lowest
  • Newest to Oldest
  • Favorite Reviews
All Ratings
  • All Ratings
  • 5 ★ Reviews
  • 4 ★ Reviews
  • 3 ★ Reviews
  • 2 ★ Reviews
  • 1 ★ Reviews
Jellman Verified Customer
01-16-25
What a Time Saver

Like any jig, you need to take your time with the setup and figure out how the jig works. Once you have this understanding, it is a HUGE time saver. To be able to just move over 1/16 is a life saver, especailly with the silly dimension of plywood. Once you get the different length straight edge clamps, then you really see the benefit of not having all these hand made jigs to cover various width bits or dado widths.

Reply from infinitytools.com

Hey, thanks for your feedback on our Infinity Tools Precision Router Dado Jig. We take a lot of pride in delivering experiences just like this, so we’ll be sharing this one with the team!

BillM
01-05-20
5 stars on jig, extra bushing too big

The jig, itself is great. 1 practice cut and the rest were very precise. The extra bushing PDJ-BTG does not fit. The diameter is .003 too large to fit into the jig. I chucked it up in a metal lathe and machined the OD to fit. I give the jig 5 stars, the PDJ-BTG 0 stars.

Larry E. Verified Customer
12-26-19
A great buy

This is a tool worth buying for making dados The shipping was excellent and fast

Questions & Answers
avatar
Popular Questions

5 years ago
This looks great! Any way to do 3/4" dados I. One pass? See more »
5 years ago
Yes, you can use a 3/4" bit in the Precision Dado Jig, You will need to ensure the bit is centered in the bushing on the jig to allow for clearance.
4 years ago
I have a Dewalt 621 plunge router and interested in the dado jig that comes with the 3 piece set. What would I need to make this jig work with my 621? I have a Pro Grip clamp 50" See more »
4 years ago
If I understand your question correctly, I believe all you would need is to make sure your routers base plate will accept a standard Porter-Cable Style guide bushing with 1-3/8" x 1-3/16" stepped opening
6 years ago
What is the size of the bit in this package See more »
6 years ago
The 100-503 3-pc woodworkers master dado set includes a 1/2" diameter straight bit, with a 1/2" shank.
5 years ago
I have a power tool guide from Lee Valley Tools. I want to know if I can use the precision dado jig with the guide that I have. Thank you for your assistance. See more »
5 years ago
No it will not fit, its designed to work with the Pro Grip Clamps.
5 years ago
your infinity precision dado router jig is set up for a porter cable router....I have a bosch 1617 fixed and plunge router...can I use this router and bosch bushing on infinity dado unit or is something else required to use the dado unit..I want to make sure this router will work as I want to be able to purchase the dado jig ? See more »
5 years ago
The Dado Jig uses a porter cable style bushing, this will work will work with the Bosch however you will need an adapter ( available through Bosch ) to be able to use the porter cable style bushing on the Jig.
4 years ago
I have material that is .46" in width. Could I use your jig to get the dado width to the exact measurement or am I limited to 1/16th increments? With jigs I have seen you clamp the material you want to dado to get an exact fit. Is something like that possible with this jig? Thanks. See more »
4 years ago
Yes, the Precision Router Dado Jig uses a xxxx -type adjuster to allow dadoes to be cut in multiple passes to your desired dimensions. This requires that you make one pass, and adjust the shuttle on the jig for the second pass to define the final dado width. If you are making lots of grooves of the same size I would recommend having a look at our plywood sized straight router bits, these would allow you to make the groove you need in one pass, and they still work great with the PDJ. Here is a link yo our plywood router bit sets, all of the bits are also available individually. https://www.infinitytools.com/3-pc-pl...
5 years ago
Can it be used with a dewalt router and can it be set up for a router table? See more »
5 years ago
It will work and router that can accommodate a Porter Cable Style bushing, and this is designed to be used in a hand held router applications, will not work on a router table.
4 years ago
Hi do you have any retailers in the UK that sells this product See more »
4 years ago
No, but we do ship internationally.
5 years ago
I have looked at this dado jig several times. You sell it in several different configurations starting at $159 for a 3 piece. But you don't tell me what is in the 3 piece. I think it may include (1) Precision Router Dado Jig with brass guide bushing in wooden storage case (item PDJ-100) (1) 24" long Pro-Grip Straight Edge Clamp (item 100-500) (1) Infinity Cutting Tools ½" Shank Straight Router Bit - Is that correct? See more »
5 years ago
3-Pc. Woodworker's Master Dado Package 100-503 Includes: (1) Precision Router Dado Jig with brass guide bushing in wooden storage case (item PDJ-100); 1) 24" long Pro-Grip Straight Edge Clamp (item 100-500); (1) Infinity Cutting Tools ?«ƒ? Shank Straight Router Bit
5 years ago
Is the jig available in metrics? See more »
5 years ago
The Precision Router Dado Jig is marked in both imperial and metric.
View all

Shopper Approved Q&A Shopper Approved Q&A Answerbase
view

Precision Router Dado Jig

Use your hand-held router and our exclusive jig to make precise dado joints quickly and with confidence. C.N.C. machined from a solid piece of aluminum, this router jig allows you to make precise dados, rabbets and mortises up to 2" (50mm) wide. Includes: Precision Router Dado Jig and case; Brass Guide Bushing; 24"-long Pro-Grip Straight Edge Clamp; ½” Shank Straight Router Bit.

Most woodworkers have likely used a straight edge to guide a router to create a straight and accurate dado, rabbet or groove. It works, but innovations continue, and this set is a big one! To start with, no more straight edge or board clamped to your workpiece. The Pro-Grip Straight Edge is also a solid and reliable clamp, allowing you to position the guide and then lock it into place with the flick of a lever. Moving it to the next position takes just seconds.

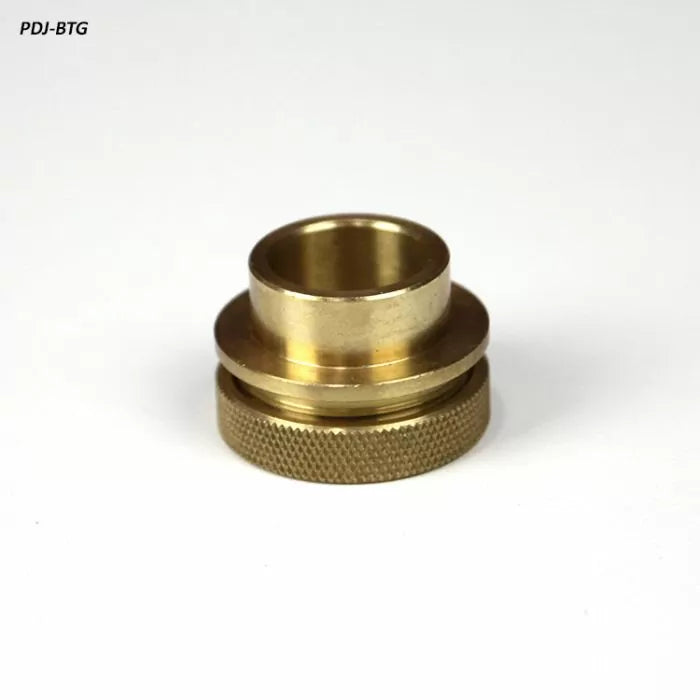

Rather than rely on your ability to consistently guide the router base along the clamp (no matter how good you are!) we've added a CNC-milled aluminum jig that rides solidly on the clamp. No chance of wandering here! Even better, the included 3/4" brass guide bushing drops into a snug fit on the jig. The router drops into place quickly and easily, and stays in place during the cut.

The brass guide bushing fits most router base plates, but if you need to switch up, we have a great set to consider.

Set the router in place with the guide bushing nestled in its slot, and make your cut. No fuss, and a perfectly straight cut!

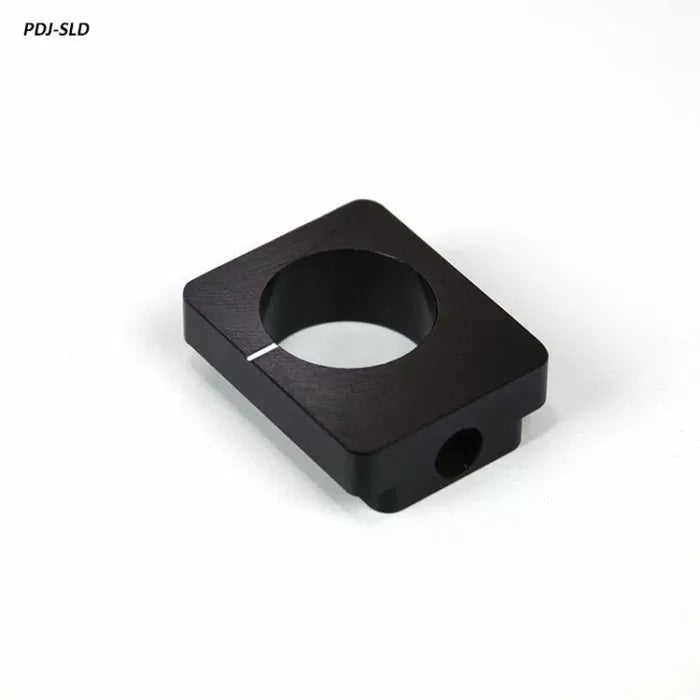

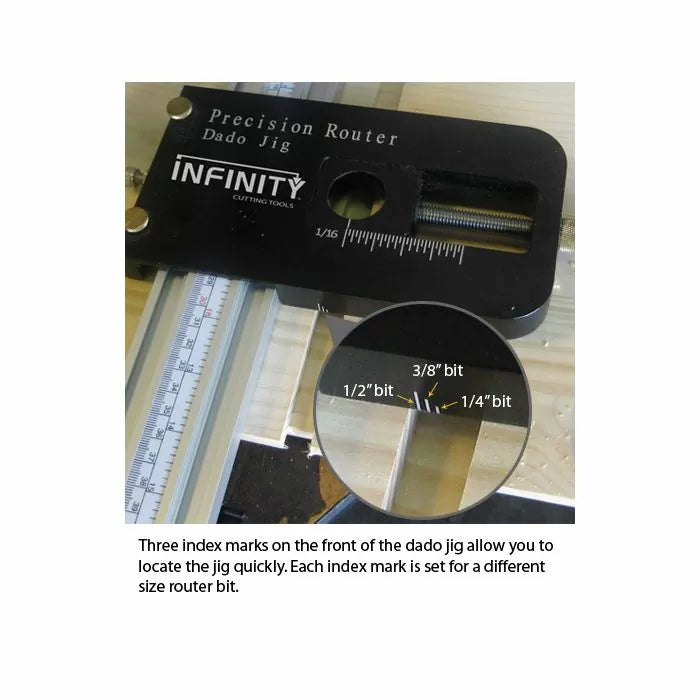

The Precision Router Dado Jig is laser marked with both standard and metric scales for accuracy and convenience. The edge of the PDJ is also marked showing the left edge of the cut for 1/2", 3/8" and 1/4" router bits so you can be confident with your setup before making a cut. The slide feature allows the Jig to be indexed so that dados of any width can be made so long as your router bit is narrower than the desired finished width, perfect for undersized plywood or custom applications. Make the first pass with the slide at the zero point then reposition the slide for each subsequent pass until your dado is the desired width. Because there is no need to reposition your straight edge clamp you don't have to worry about inconsistent results.

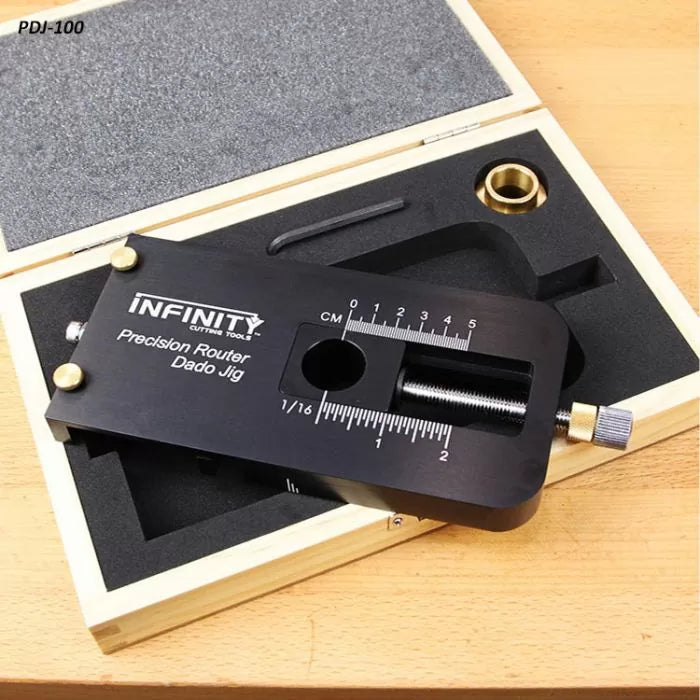

We wouldn't want to let things get knocked around when not in use, so we've included this fitted wooden box to hold the jig, bushing, included Infinity Cutting Tools ½” Shank Straight Router Bit and tools safely tucked away. The Precision Router Dado Jig will change the way you rout grooves and dados!
