Infinity Tools Mega Rabbet Router Bit Sleeves & Bearings, 1/4" Internal Diameter
Couldn't load pickup availability

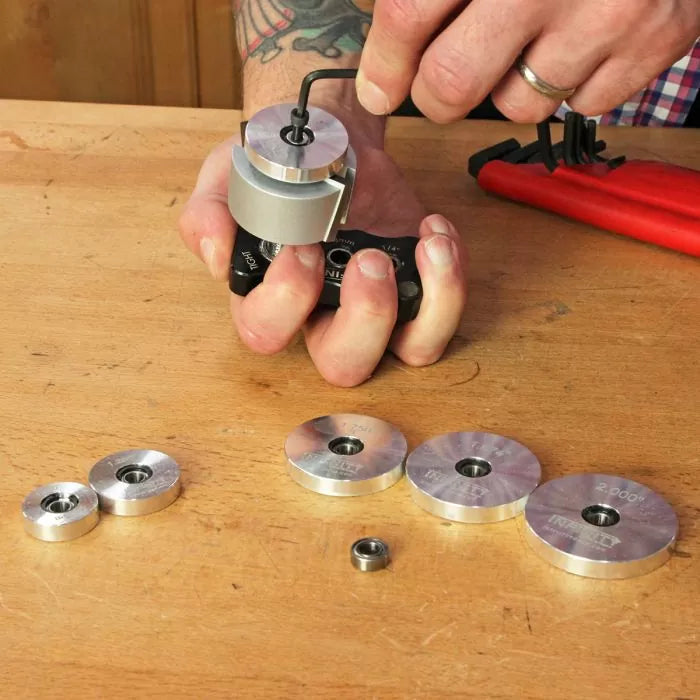

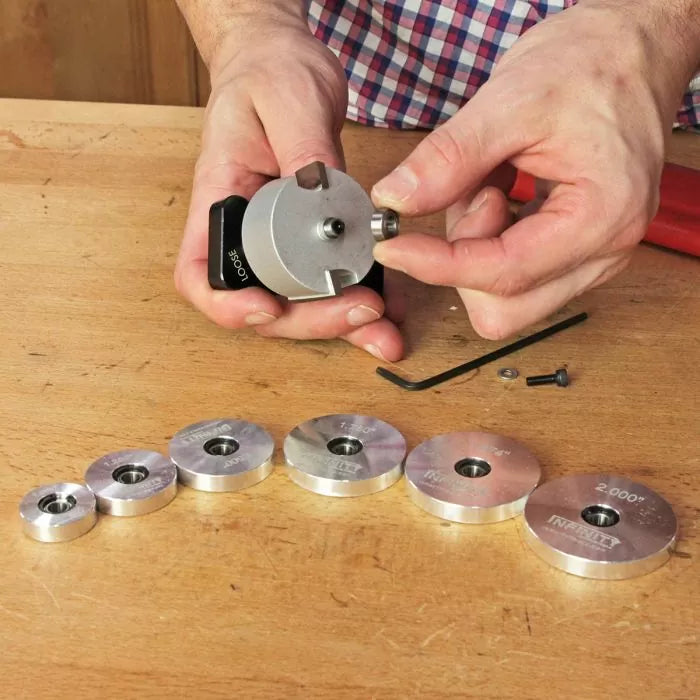

Our precision bearing sets have been designed and engineered to exacting specifications. Use these kits with our Mega-Rabbet™ Router Bit (35-856) (or any router bit with a 1/4" diameter post) to make different depths of rabbet, including a 2" diameter bearing for flush-trim applications. The outside diameter of each bearing sleeve is marked for fast set-up and the bearing inside the sleeve can be replaced if necessary.
Use these kits with our Mega-Rabbet™ Router Bit (35-856) to make different depths of rabbet, including a 2" diameter bearing for flush-trim applications. The outside diameter of each bearing sleeve is marked for fast set-up and the bearing inside the sleeve can be replaced if necessary.
Uses in your shop:
- Works with any router bit in your collection with a 1/4" O.D. bearing post
- Solve problems that you wouldn't have been able to before
- Trace templates and make pieces that are either larger or smaller while keeping the same pattern
- Make perfectly sized rabbets with ease

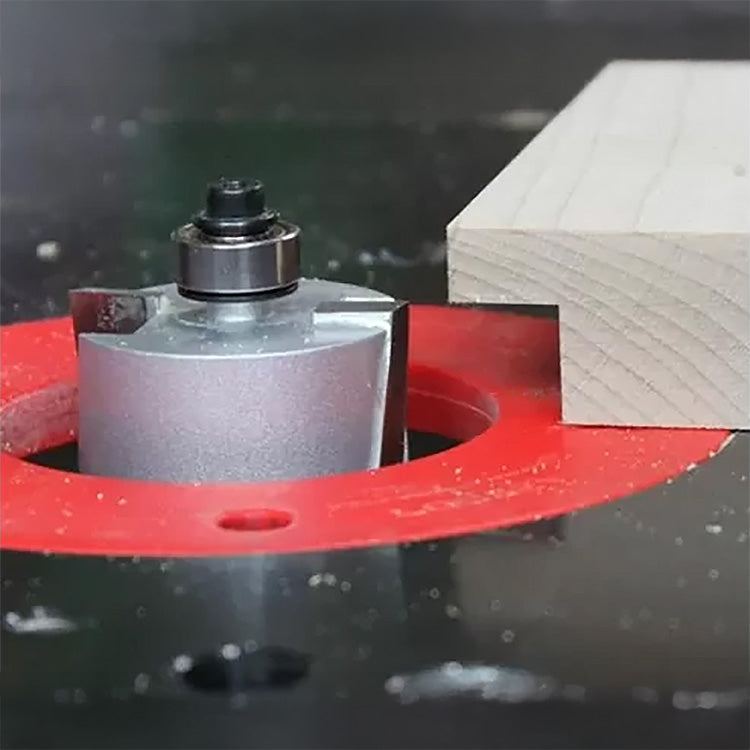

These quality bearing kits were designed to work with the 2" diameter Mega-Rabbeting Router Bit but you can use them with any router bit that has a 1/4" bearing post.

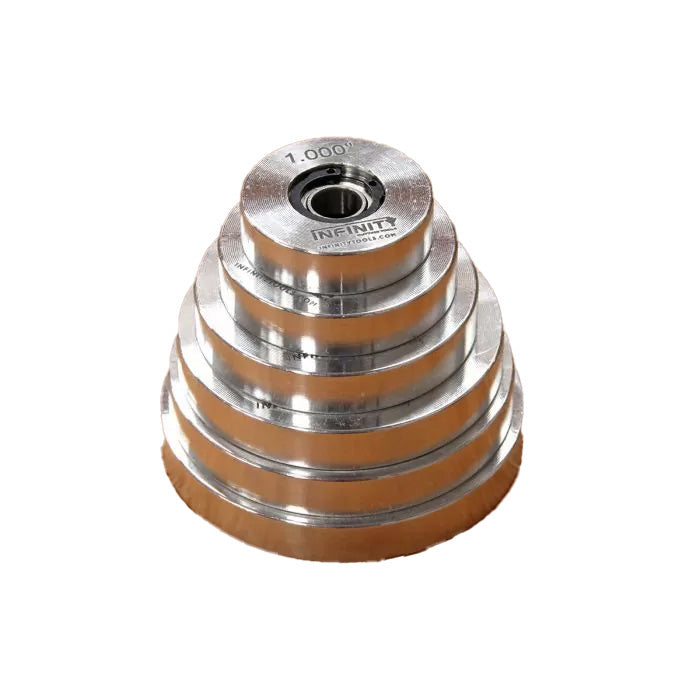

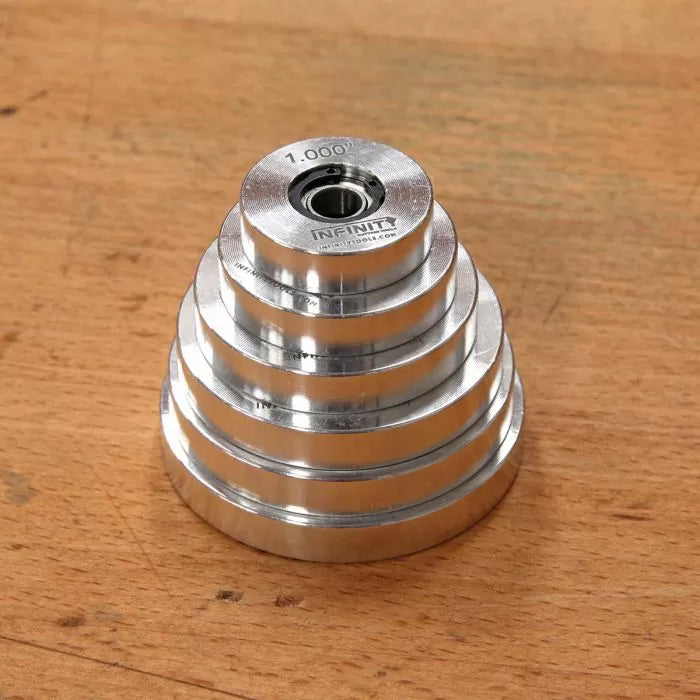

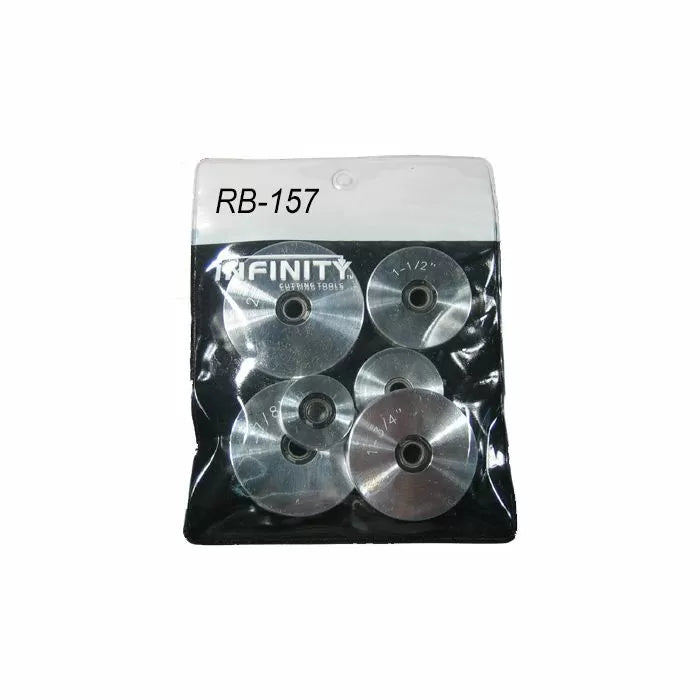

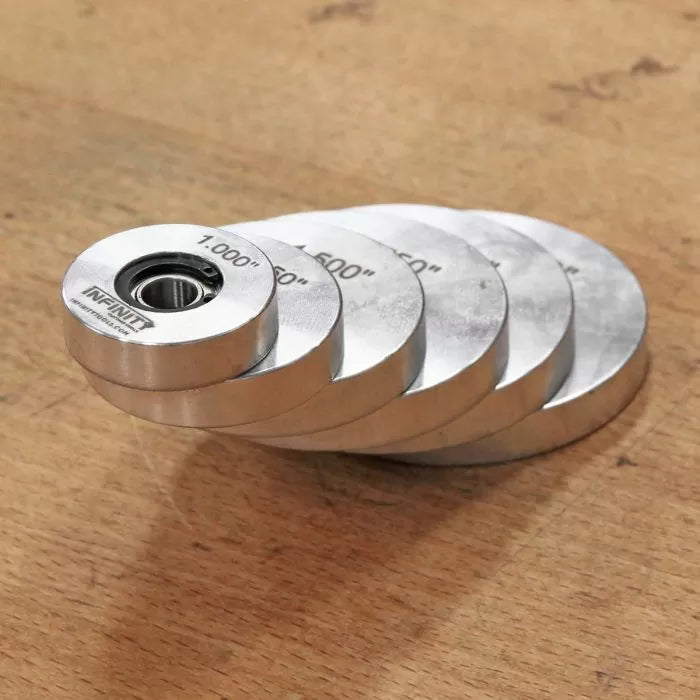

RB-157 - This precision 6-pc. bearing set has been designed and engineered to exacting specifications. It includes: O.D. 1", 1-1/4", 1-1/2", 1-3/4", 1-7/8", 2" | Rabbet Width With 2" Bit: 1/2", 3/8", 1/4", 1/8", 1/16", Flush Trim

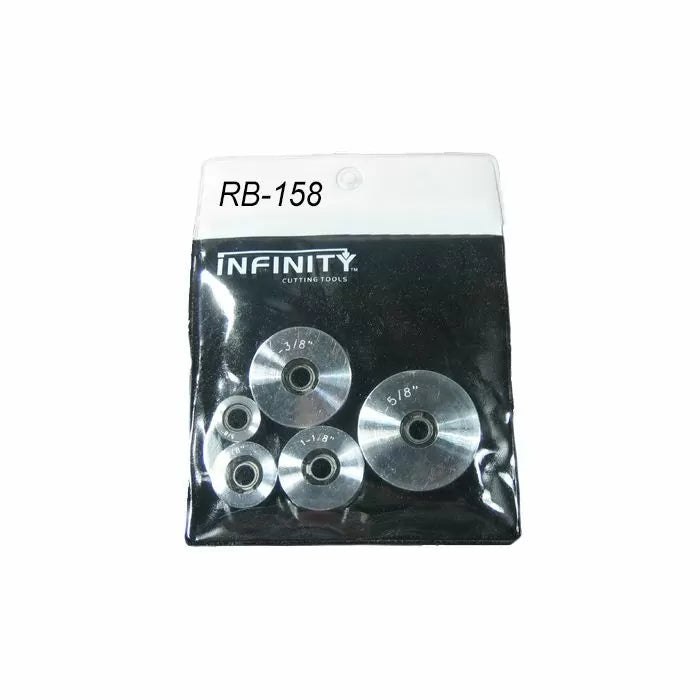

RB-158 - This precision 5-pc. bearing set has been designed and engineered to exacting specifications. It includes: O.D. 5/8", 7/8", 1-1/8", 1-3/8", 1-5/8" | Rabbet Width With 2"Bit: 11/16", 9/16", 7/16", 5/16", 3/16"
RB-159 - This precision 5-pc. bearing set has been designed and engineered to exacting specifications. It includes: O.D. 9/16" (30mm), .811" (32.5mm), 1-1/16" (27 mm), 1.279" (20.6mm), 1.535" (14.3mm) | Rabbet Width With 2" Bit: 15/64", 23-64", 15/32", 19/32", 23/32"
00-RB2 - This set includes all the bearings and sleeves in RB-157, RB-158 & RB-159. Sixteen router bearings in the following dimensions: All are 1/4" I.D., Outer Diameters - 9/16", 5/8", .811", 7/8", 1", 1-1/16", 1-1/8", 1-1/4", 1.279", 1-3/8" 1-1/2", 1.535", 1-5/8", 1-3/4", 1-7/8", 2"
