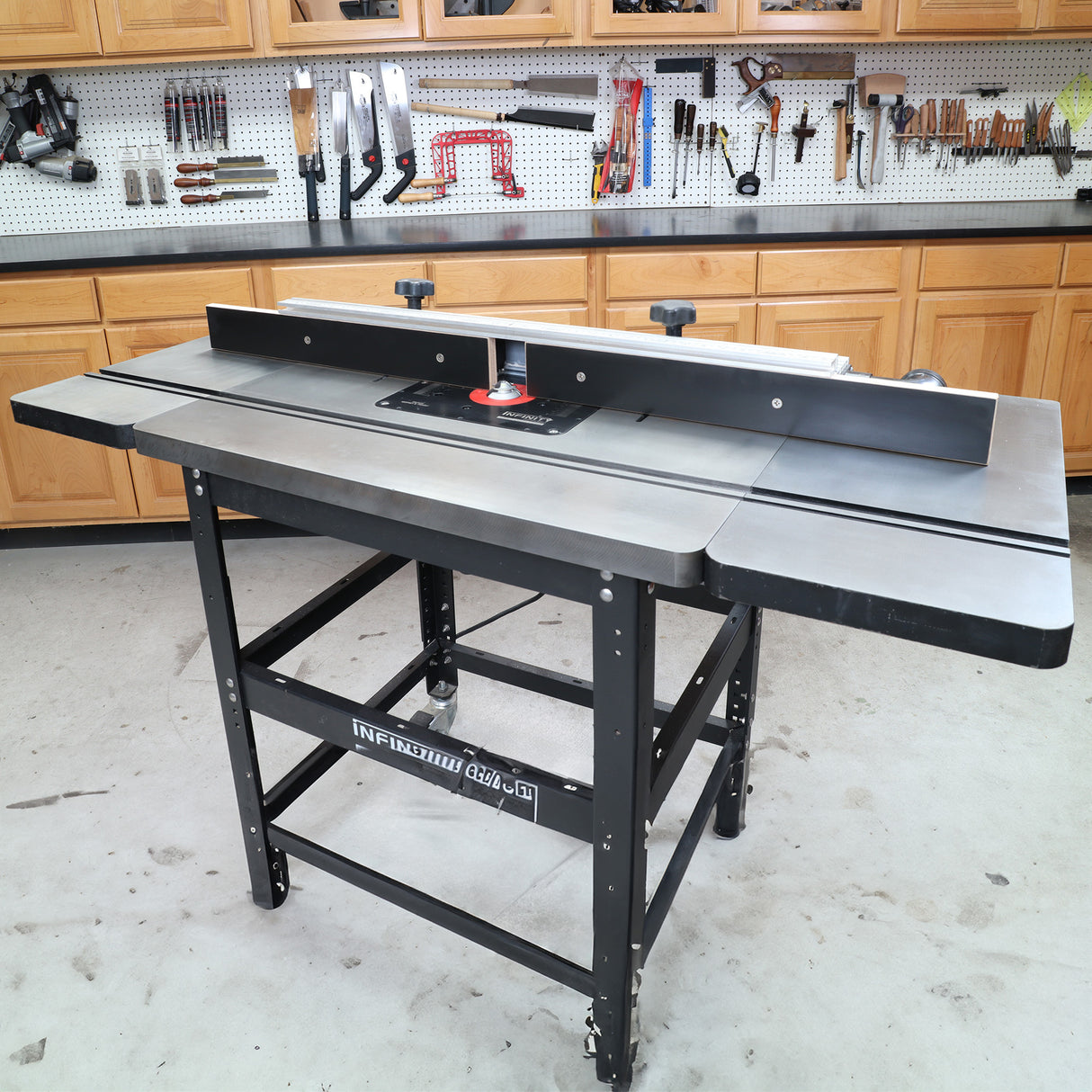

Professional Features with a Cast Iron Top!
Infinity Tools Professional Router Table Packages put you in total control of your woodworking projects. The RTP-104 gives you the highest quality components for the stand, cast iron top and fence and a 3-1/4 hp Triton Router – all for one unbeatable price. We’ve designed our router table packages to withstand the rigors of the most demanding professional woodworking environment and also be easy enough to use in your home wood shop. Customize your router table package by adding our exclusive accessories and you’ll have the latest in routing technology at your fingertips.
Check out our great Router Table Accessories

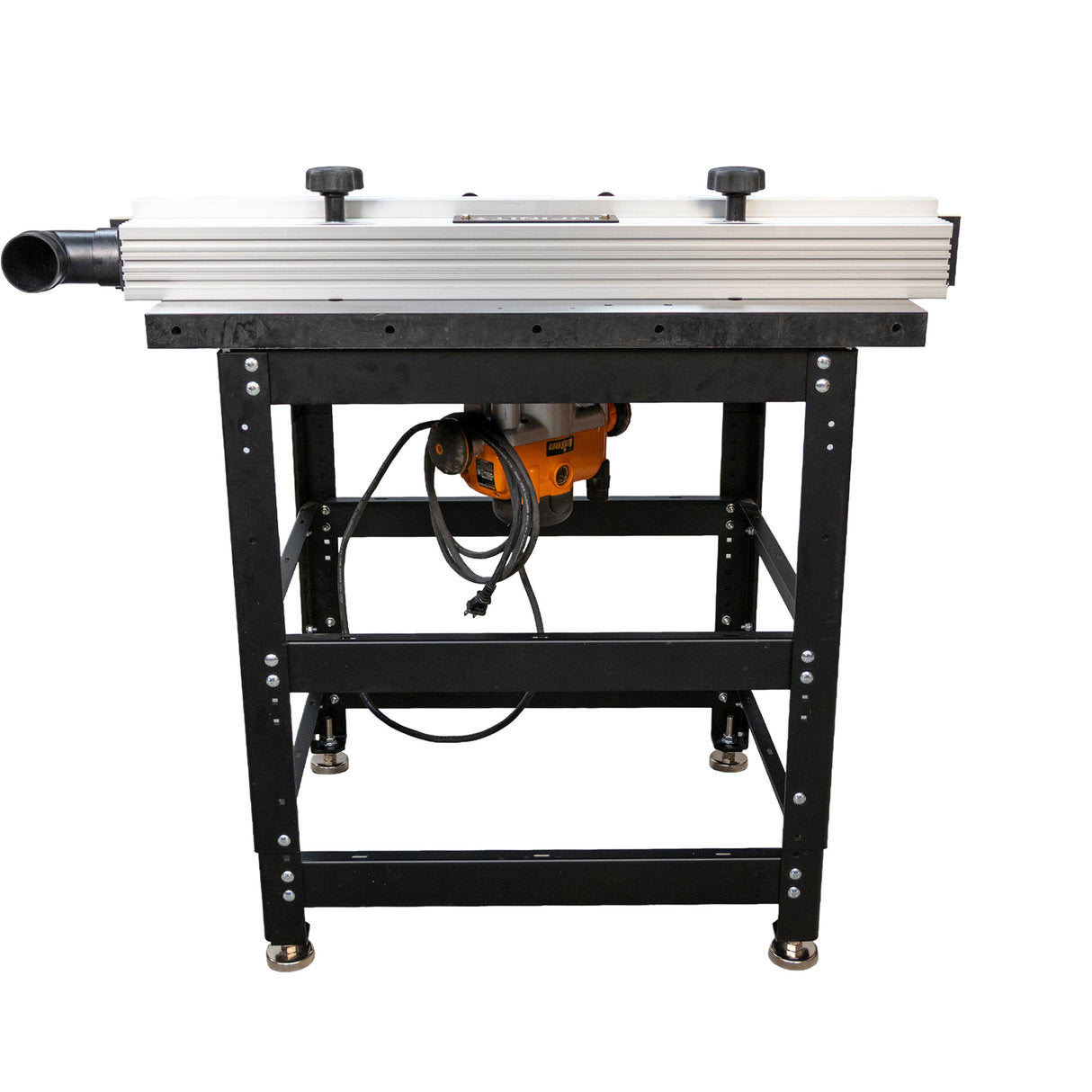

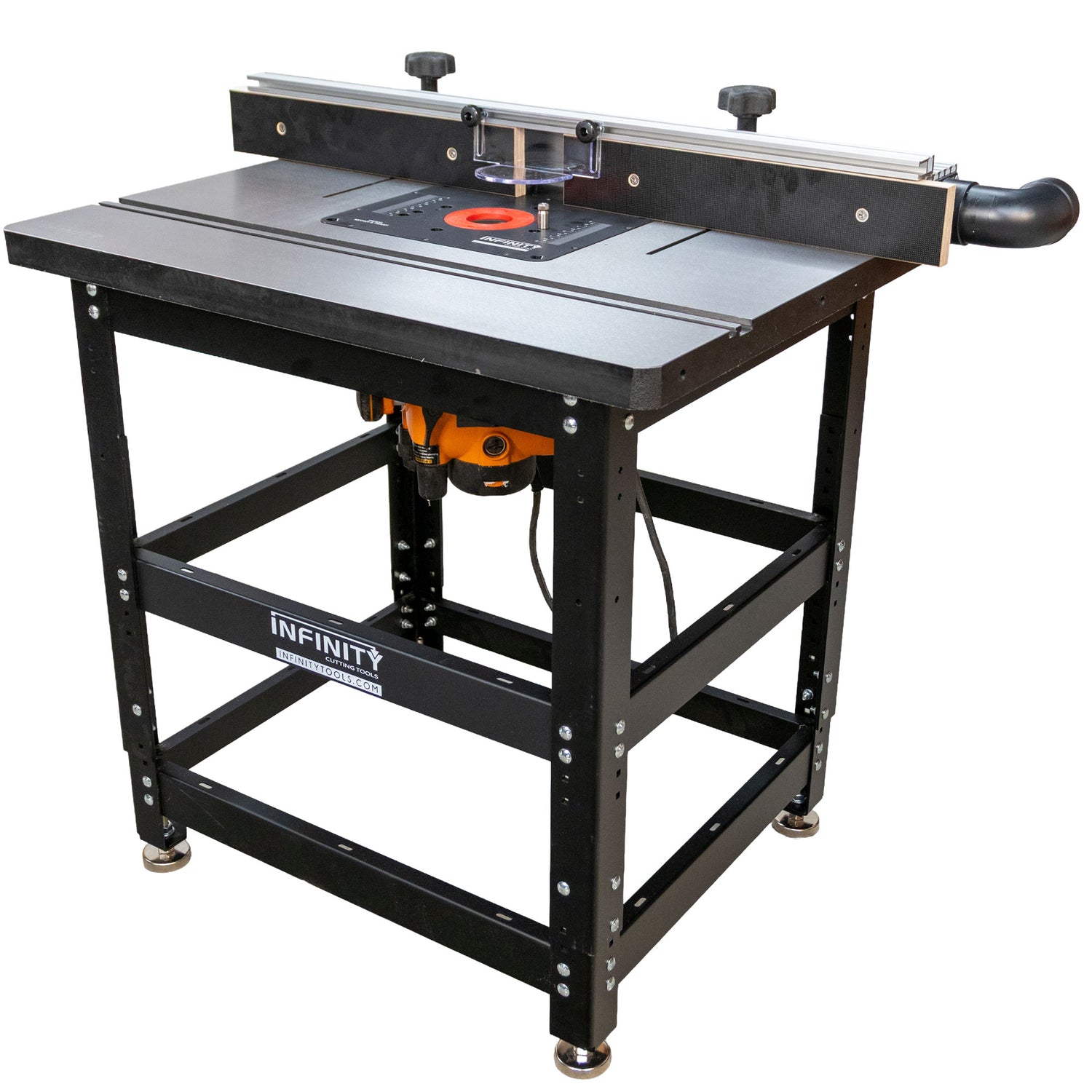

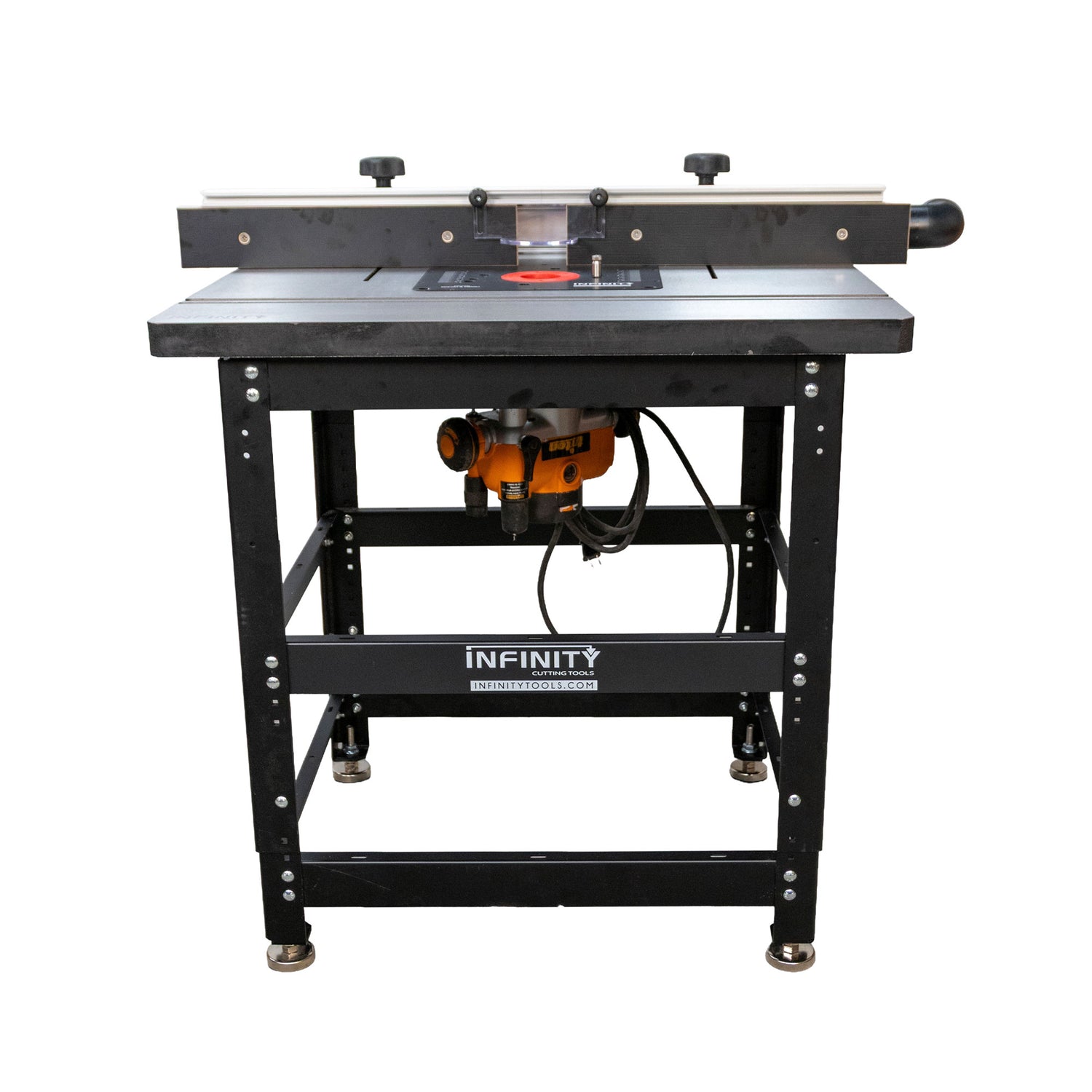

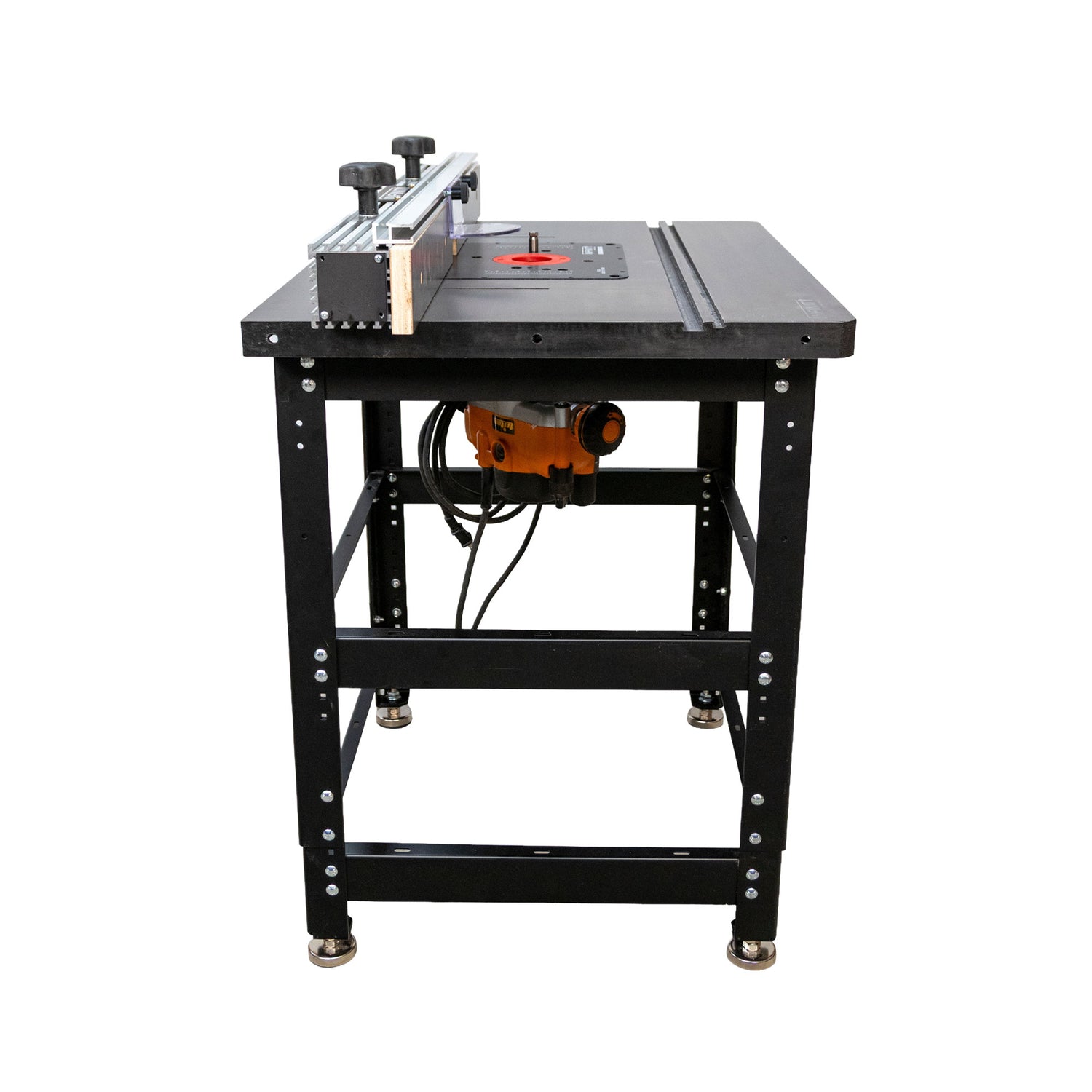

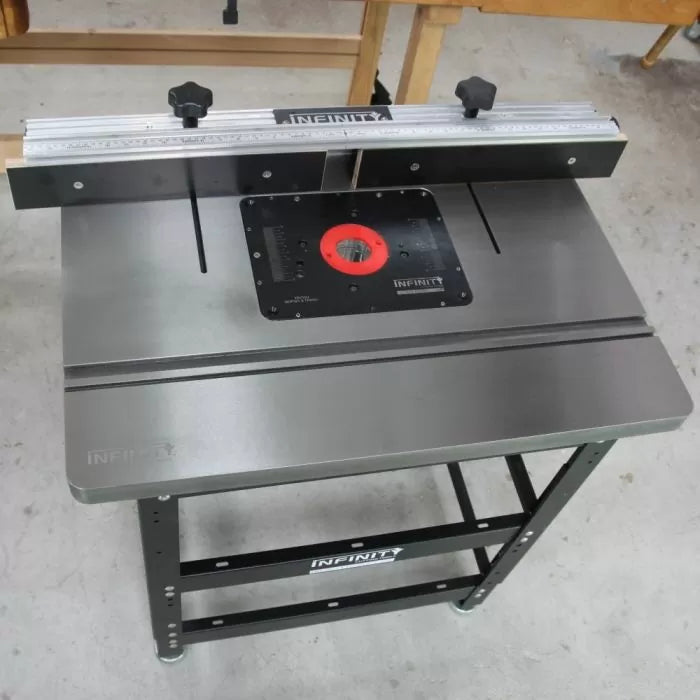

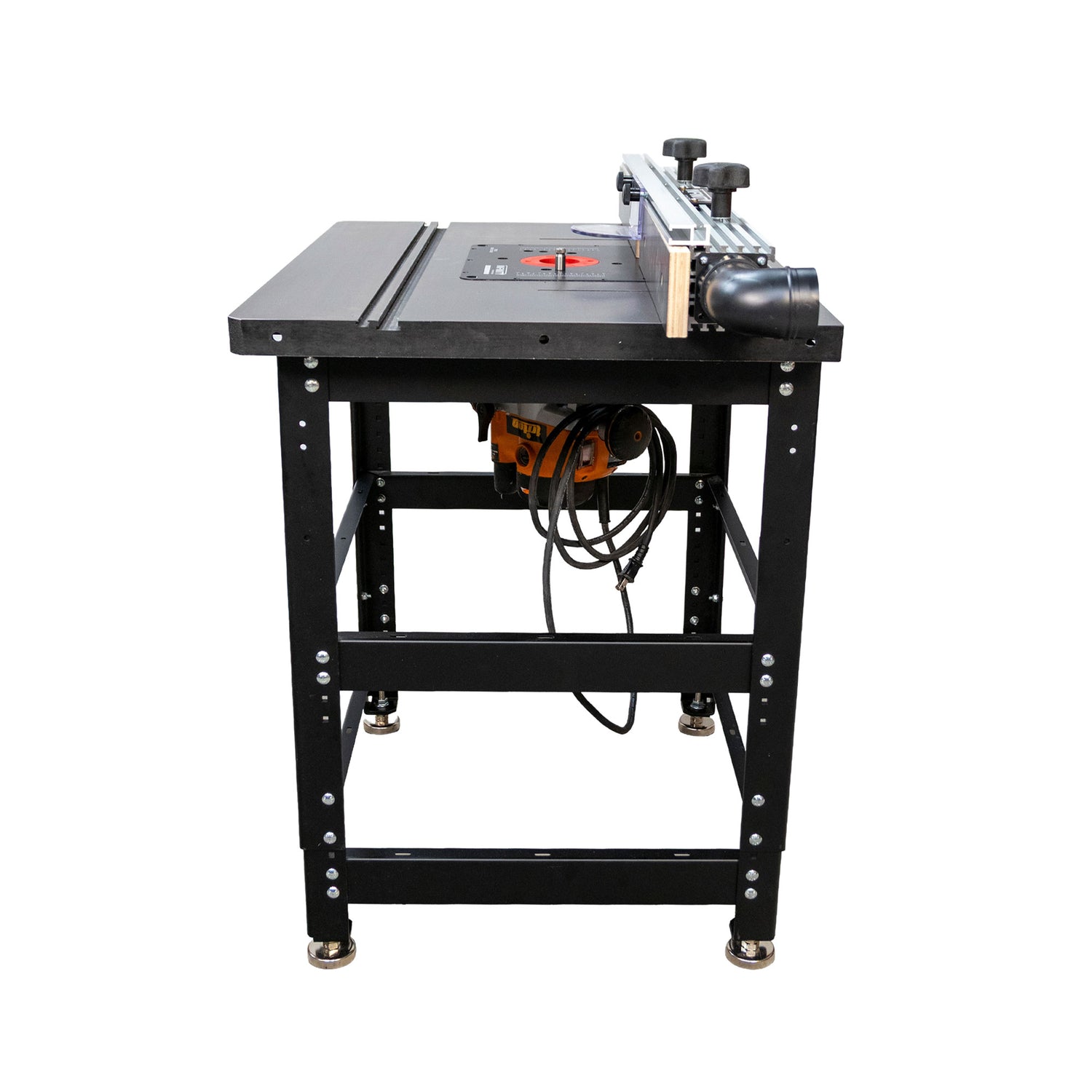

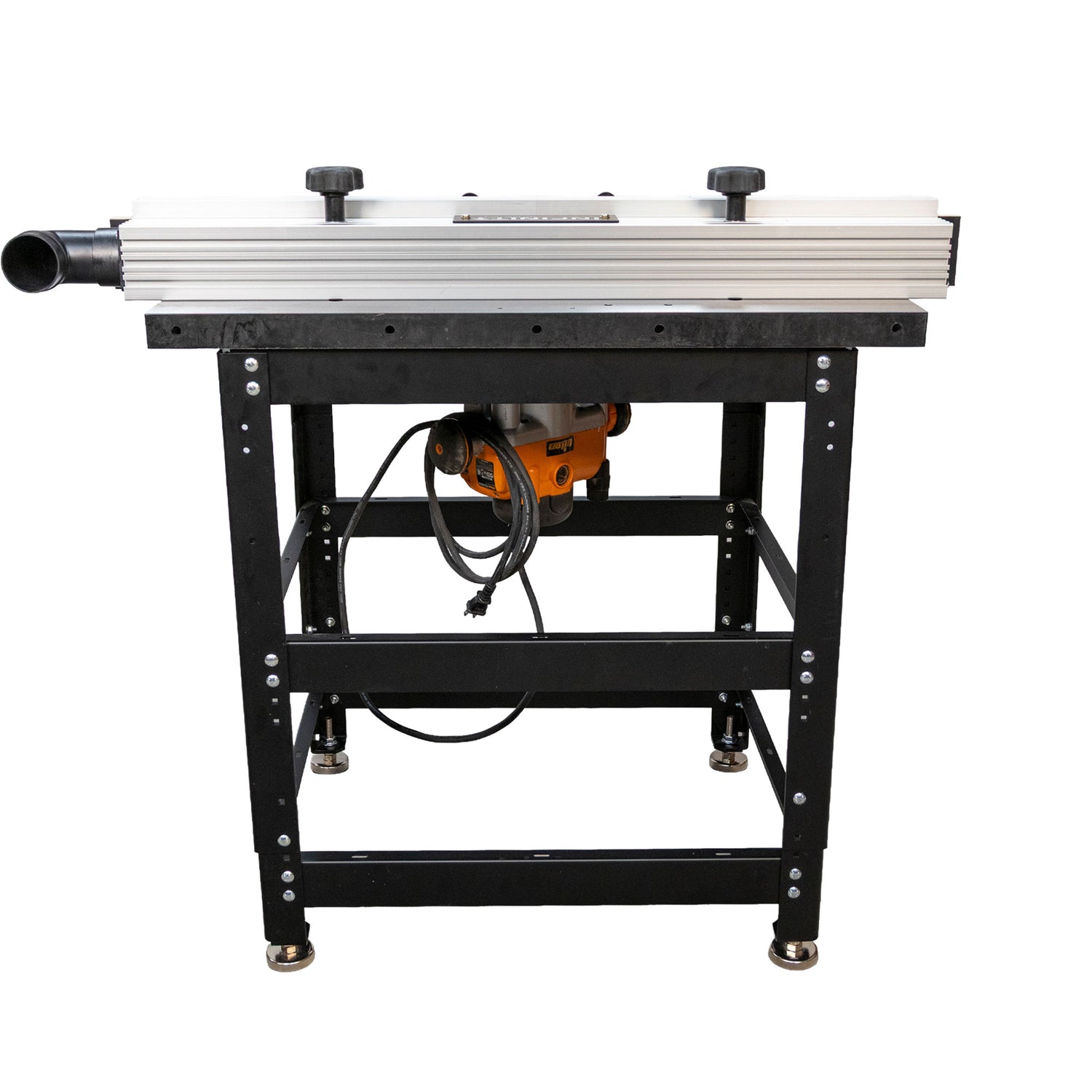

Our Pro Router Table Package with Cast Iron Top (RTP-104) Includes:

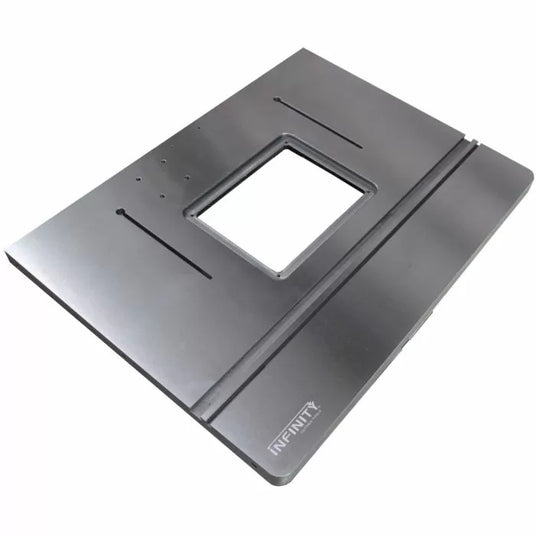

(RTT-006) Cast Iron Top

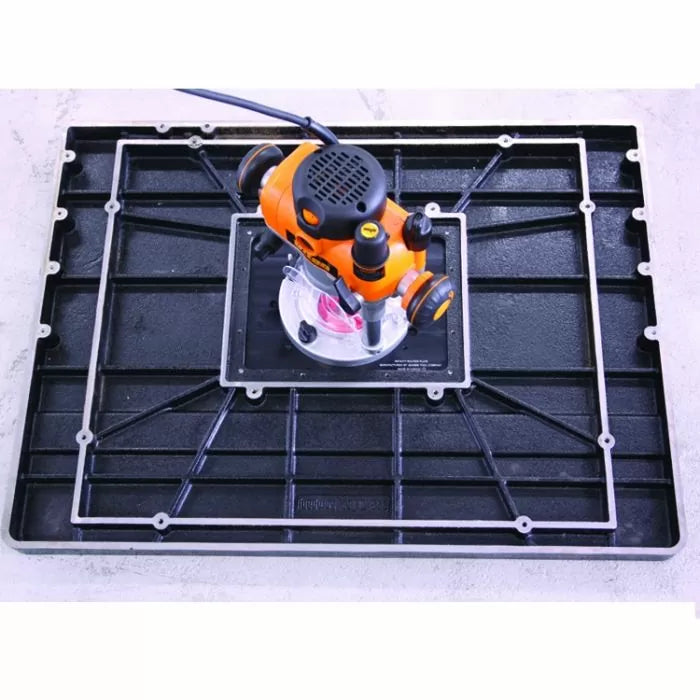

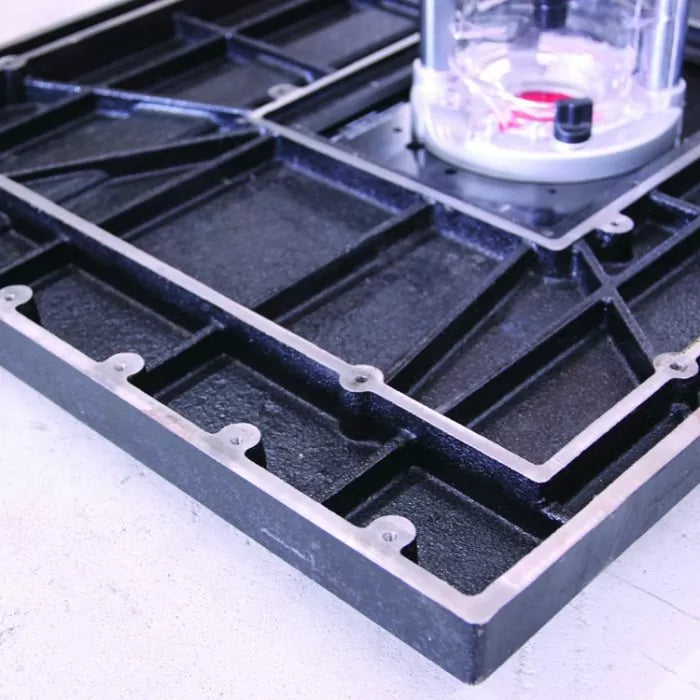

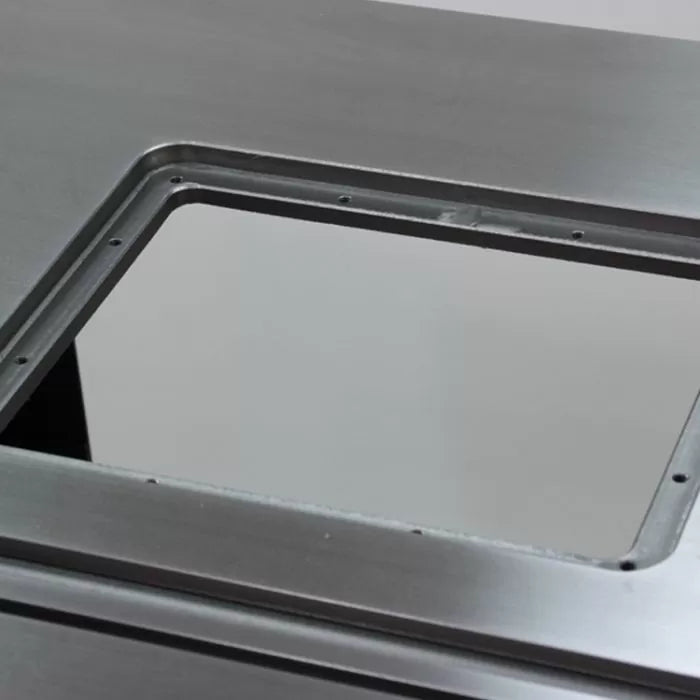

This top is made from a solid piece of cast iron and then machined and polished flat to within .010" across its entire surface, that's flat! Measuring a full 32" wide x 24" deep and weighing in at over 100 lbs, this router table kills vibration dead in its tracks. The large work area gives you plenty of space to tackle your toughest routing jobs with ease and its standard 9-1/4" x 11-3/4" opening fits most router plates and lifts on the market. The underside of the table has been pre-drilled to easily and quickly accept the Infinity Tools Heavy Duty Tool Stand and Infinity Tools Dust Cube.

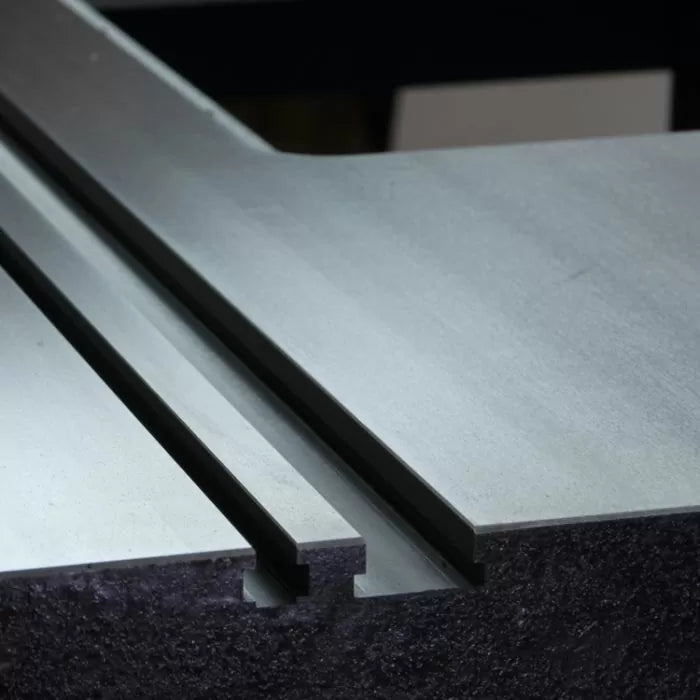

If you'd prefer to use a different fence, the bottom of the table is also predrilled to accept a JessEm-style router table fence. The top of the table is drilled and tapped to accept Infinity Tools Micro Adjust (PRTF-MAK) and Mini Power Feeder (MPF-001). RTT-006 also features a precision machined miter slot and universal t-slot. The miter slot accepts all standard 3/4" and 3/8" miter gauges while the t-slot accepts standard ¼”-20 hex bolts, ¼"-20 t-bolts, and 5/16” t-bolts. The t-slot is perfect for attaching home made and store bought fixtures and really increases the versatility of our router table top. The 9-1/4" x 11-3/4" router plate cut out is perfectly matched to accept router plates and router lifts from most manufacturers.

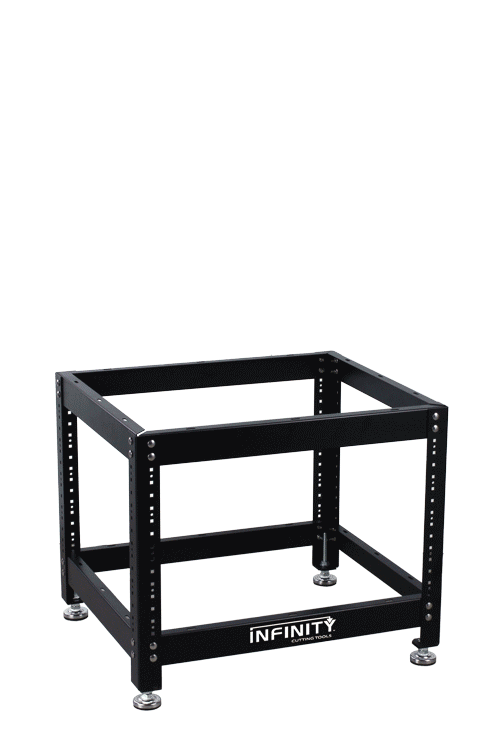

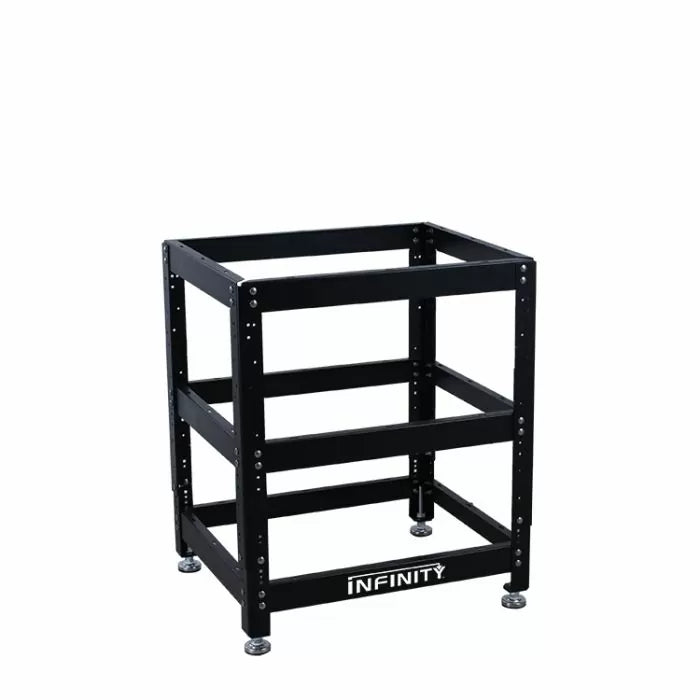

(HDTS-001) Infinity Tools Heavy-Duty Tool Stand
Our Heavy-Duty Tool stand towers above the competition. The 22-1/2” deep x 26-1/2” wide stand is made of 2mm & 3mm thick powder-coated steel and is height adjustable from 22-1/4” to 43-3/4” tall in 1” increments. With this level of adjustability, you’ll be able to get your router table to the perfect height for all-day work in the shop. The included leveling feet allow for a perfect setup on uneven shop floors and create a rock-solid foundation.

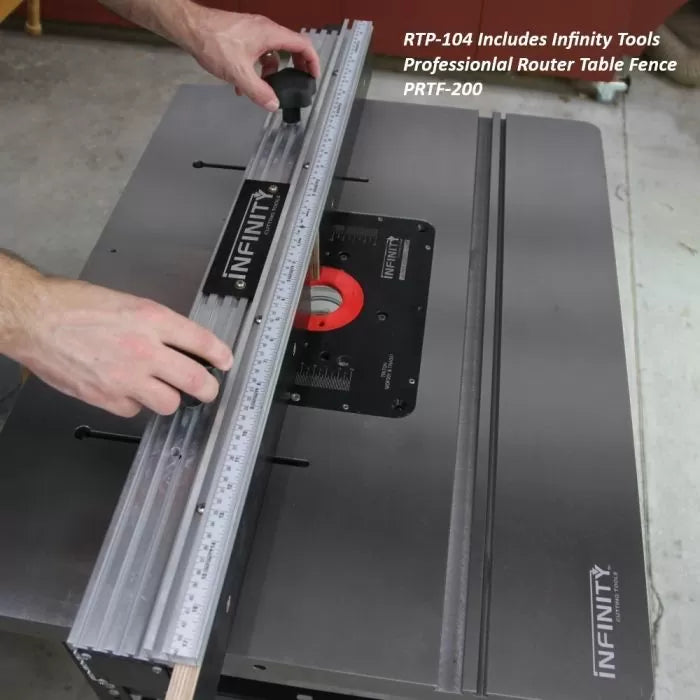

(PRTF-200) Pro Router Table Fence
The Infinity Pro Router Table Fence is made of anodized, heavy-walled, extruded aluminum. Our completely reengineered fence is based around a single robust 3-3/16” X 3-3/16” square extrusion. This design innovation improves stability, squareness to the table and workpiece, and above-the-table dust collection capability. The cut-out in the middle of the extrusion is large enough for even the widest router bits. In conjunction with the oversize cutout, the replaceable fence faces can be repositioned along the length of the fence to best accommodate your bit diameter. Unlike inferior MDF fence faces found on competitor products, our fence is fitted with ¾” thick, Micro-Dot Plycore material. The extra lubricity of our Micro-Dot covered faces allow your workpiece to glide effortlessly, and the stability and flatness of the plywood core combine for years of trouble-free service. The top rail extrusion comes with two (2) 17.5” metric and imperial scale rules and has a built-in ¼" x 20 t-track that works with any compatible fixture or hold-down. Positioned to the end of the fence, and integrated as part of the hollow center of the fence extrusion, the new dust collection port keeps your dust collection hose out of the way and improves suction by creating a stronger vacuum in the empty cavity. The tall and comfortable rubberized locking knobs make busted knuckles a thing of the past.

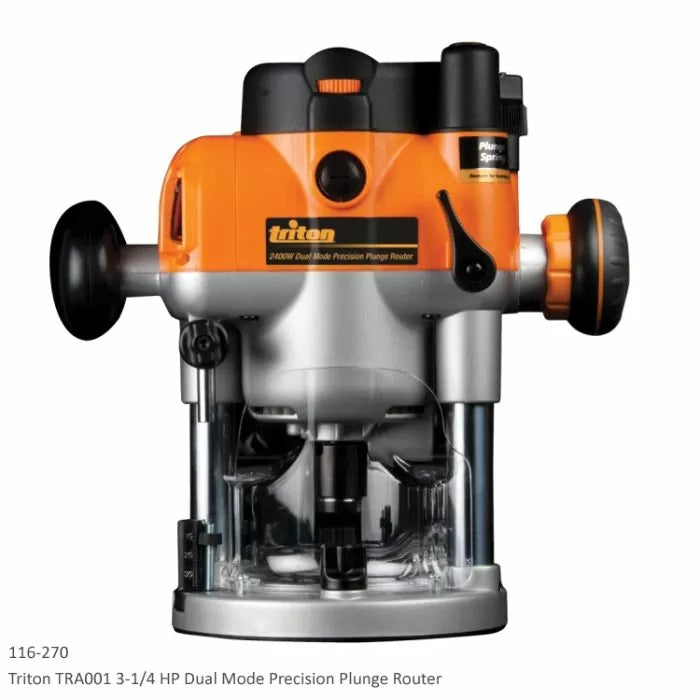

(116-270) Triton 3-1/4 HP Plunge Router
The Triton TRA001 Dual Mode Plunge Router features a powerful 2100W (3-1/4 hp) electronically controlled motor with soft start technology and is perfect for both table-mounted and handheld use. It’s built in lift mechanism eliminates the need for an expensive router lift, saving you hundreds of dollars. With 8,000-20,000 RPM variable speed, ¼” & ½” collets and built-in dust shroud you have an award-winning router, ready for any task.

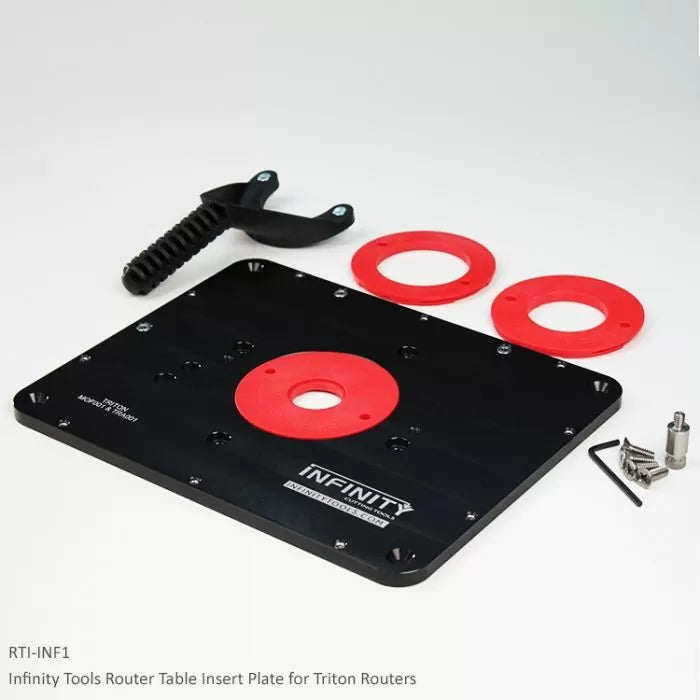

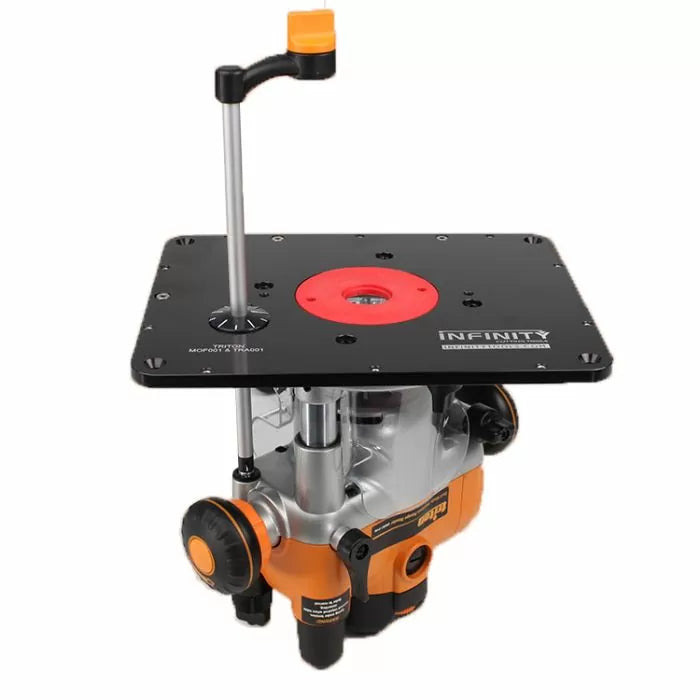

(RTI-INF1) Infinity Tools Aluminum Router Table Insert Plate
C.N.C. machined to exacting standards from premium 6061 aluminum, our router plate has been pre-drilled to accept both the Triton MOF001 (116-269) and TRA001 (116-270) routers. With a 3-7/8" max opening, this Infinity Tools router plate will accommodate even the largest consumer-grade router bits and is guaranteed flat to within .005" across its surface. Laser marked graduations at every 1/16” help with precise router bit setup and perfect cuts.
(RTT-IRS) Infinity Tools Router Table Top Stainless Steel Insert Ring
The Infinity stainless steel insert ring is laser cut and acts as a washer to support the weight of your router and plate. This 1/32" thick ring provides a solid surface for the router leveling screws to bear against and prevents plate movement. The ring ensures that once leveled in the table, the router plate will never need to be re-adjusted, eliminating a chronic problem with most other router table tops.
