SKU: 115-399

Infinity Tools Dust Collection Separator

Q: What does a dust collection separator do?

It converts a single-stage system into a two-stage collector , removing heavy wood chips and particles from the air flow before they reach your main container—which increases bag and filter life. See the full dust collection range.

Q: What's the difference between the Mini and Large separator?

The Mini (115-399) fits a standard 5-gallon bucket and uses a 2-1/2" hose to upgrade a shop vac. The Large (115-393) fits a 30-gallon metal trash can and connects to a 4" flex hose for full dust collection systems.

Q: What size hose does the Mini separator use?

The Mini Dust Separator is designed for any 2-1/2" diameter dust collection hose and mates to a 2-1/2" shop vac hose fitting.

Q: What size hose does the Large separator use?

The Large Dust Separator connects to a 4" flex hose , which is not included.

Q: What is the Large separator made of?

The Large Dust Separator is made of ABS plastic and uses cyclonic action to remove heavy debris from the air stream.

$11.90

Size

Mini Large

Description Reviews Q&A

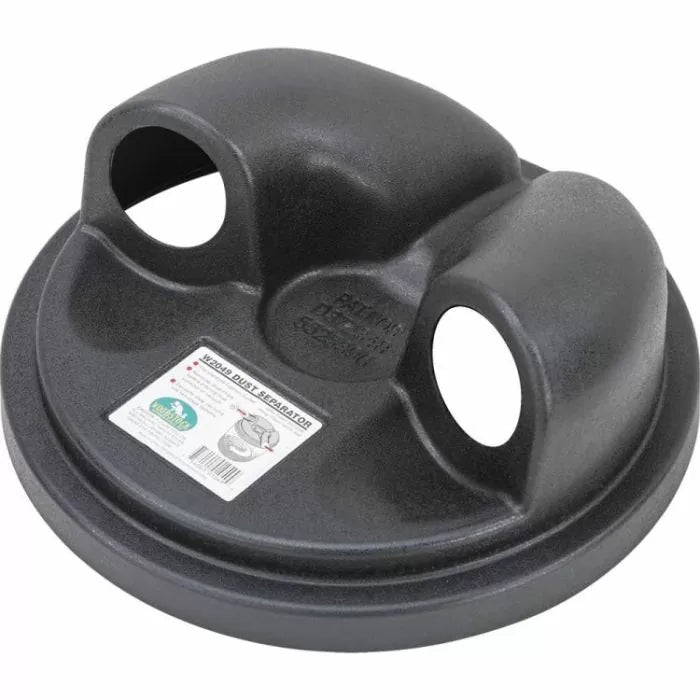

Mini Dust Separator (115-399)

Designed for use with any 2-1/2" diameter dust collection hose, the Mini Dust Collection Separator fits over a standard five-gallon bucket to convert a shop vacuum into a two-stage dust collection system. The Mini Dust Collection Separator increases the capacity and efficiency of the typical shopvac by allowing heavier particles to drop out of the system before they reach the main container. Finer particles can also be trapped by adding a small amount of water to the bottom of the bucket. Clean-ups are easy because the Mini Dust Collection Separator just lifts off of the bucket. The Mini Dust Collection Separator makes shop clean-up a breeze!

Raising the handle on most 5-gallon buckets will secure the separator in place
Fits standard 5-gallon buckets
Hole mates up to 2-1/2" diameter shopvac® hose fitting

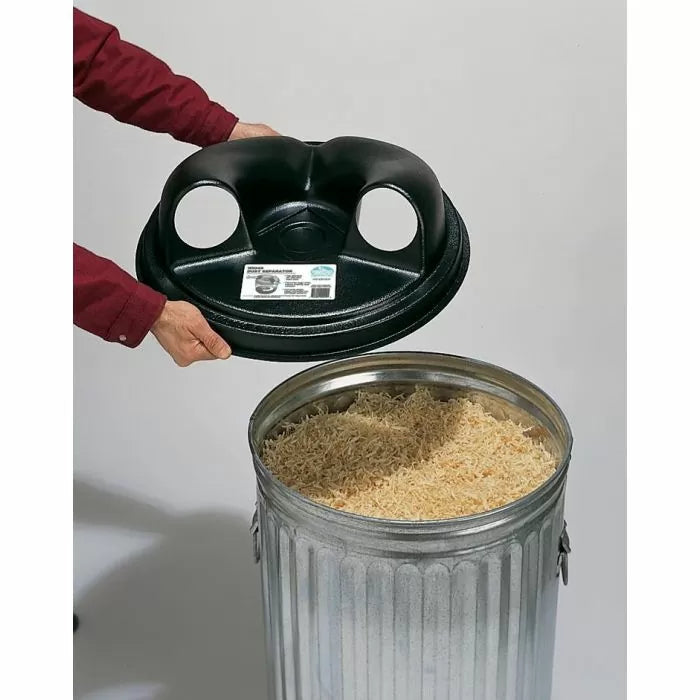

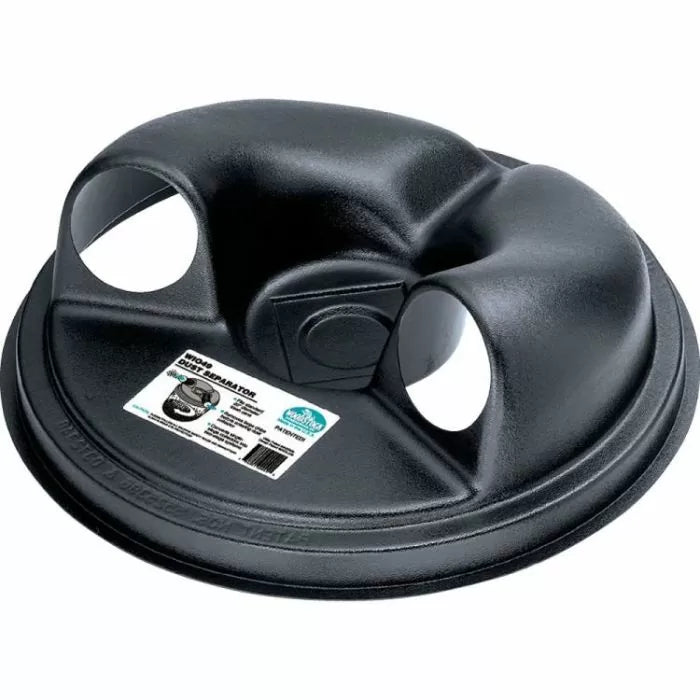

Large Dust Separator (115-393)

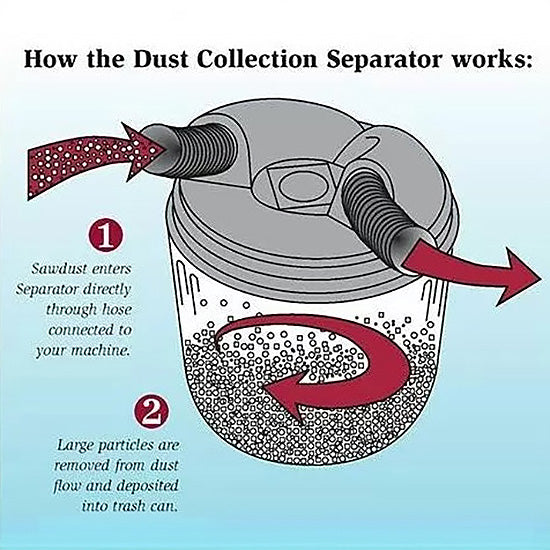

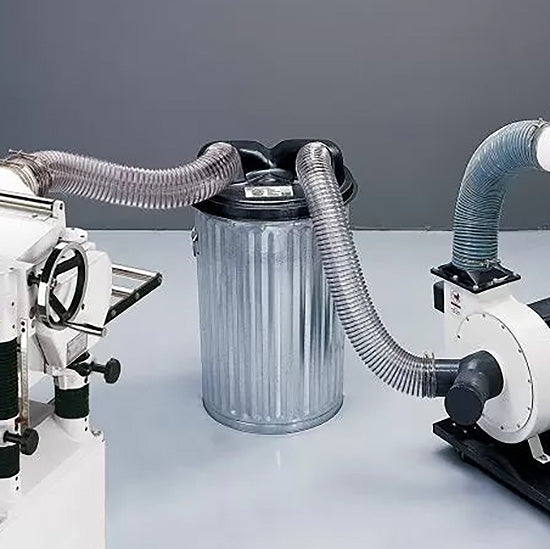

This Separator turns single-stage dust collection systems into two-stage collectors. Just fit the Separator onto any standard 30-gallon metal trash can and place in-line between your shop machinery and dust collection system. The Separator automatically removes heavy wood chips and particles from the air flow, saving trips to the dumpster with those hard to handle fabric bags. ABS plastic.

Connects to 4" flex hose—not included
Fits 30-gal. metal trash can—not included
Cyclonic action
Economical
Increases bag & filter life

Frequently Asked Questions

What does a dust collection separator do?

It converts a single-stage system into a two-stage collector, removing heavy wood chips and particles from the air flow before they reach your main container—which increases bag and filter life. See the full dust collection range.

What's the difference between the Mini and Large separator?

The Mini (115-399) fits a standard 5-gallon bucket and uses a 2-1/2" hose to upgrade a shop vac. The Large (115-393) fits a 30-gallon metal trash can and connects to a 4" flex hose for full dust collection systems.

What size hose does the Mini separator use?

The Mini Dust Separator is designed for any 2-1/2" diameter dust collection hose and mates to a 2-1/2" shop vac hose fitting.

What size hose does the Large separator use?

The Large Dust Separator connects to a 4" flex hose, which is not included.

Does the Large separator come with a trash can or hose?

No. The Large separator fits a standard 30-gallon metal trash can and connects to a 4" flex hose, but neither the can nor the hose is included.

How does the Mini separator stay in place on the bucket?

Raising the handle on most 5-gallon buckets will secure the separator in place. It also lifts right off the bucket for easy cleanup.

Can the separator trap fine dust too?

With the Mini separator, you can trap finer particles by adding a small amount of water to the bottom of the bucket. The cyclonic action of both units pulls out the heavier chips and particles.

What is the Large separator made of?

The Large Dust Separator is made of ABS plastic and uses cyclonic action to remove heavy debris from the air stream.

Why use a two-stage system?

A two-stage system drops heavy debris into a separate container first, which increases capacity and efficiency, extends bag and filter life, and saves trips to the dumpster with hard-to-handle fabric bags.

What accessories do I need to complete the setup?

You'll want the appropriate hose and connections. Browse dust collection fittings and hoses & accessories to match your system.
