SKU: PDT-101

Infinity Tools Door Making Templates, Router Use Only. 20-Pcs.

Have a product question?Ask us
$119.90

Profile

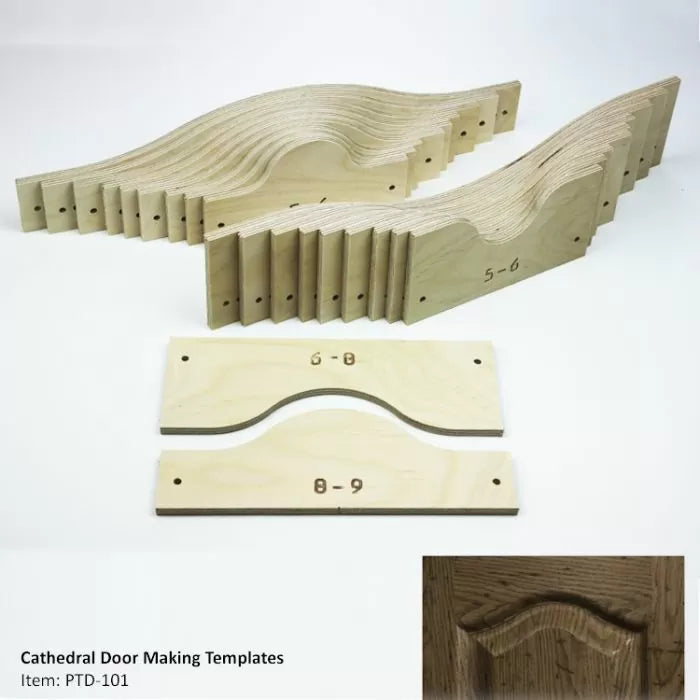

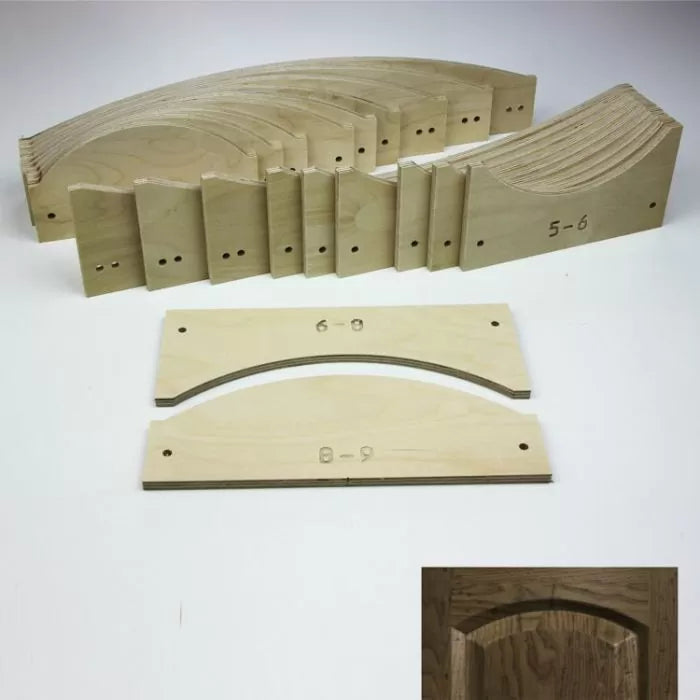

Our Door Templates are used to cut mating panel and rail shapes for frame and panel construction. These 3/8" thick Baltic birch plywood templates are thicker and stronger than other brands and provide maximum bearing support. Designed for use with your table mounted router, we include twenty templates with each set, 10 for the panels and 10 for the rails. The templates fasten to the workpiece with double-face tape or nails. For a more secure fastening option, choose our Frame & Panel Master for greater safety and faster production.

Other benefits include:

  • For use with table mounted router only.
  • Twenty templates per set.
  • For 5" to 18" parts, or frames 8-3/4" to 21-3/4" based on a 3/8" deep cope joint and a 2-1/4" wide stile.
  • Exclusive indexing fences center and align the workpiece on the template.
  • Made of 3/8" thick Baltic birch plywood.
  • Templates can be used with or without the optional Frame & Panel Master.
  • Features a 1-3/4" Rise.
  • Lifetime guarantee against defects in material or workmanship.
