SKU: 58-500

Infinity Tools 1/2" Shank Point Cutting Router Bits

Q: What shank size does this point cutting router bit have?

It has a 1/2" shank , so it requires a router with a 1/2" collet. Pair it with other carbide router bits for your sign and edge work.

Q: What is this router bit primarily used for?

It's designed for sign making , carving sharp, precise letters into custom signs. The carbide edges form a 20° angle that gives letters a crisp, professional look.

Q: What is the cutter angle on this bit?

The sides of the carbide edges form a 20° angle . This same angle lets you cut clean 20° chamfers on table tops and other furniture as a bonus use.

Q: What are the cutter dimensions?

The cutter is 1-1/8" in diameter with a 1-1/4" cutter height on the 58-500 (without bearing kit) version. Find more edge-forming router bits in the same family.

Q: What's the difference between the 58-500 and the 58-500B?

The 58-500 ships without a bearing, while the 58-500B includes a bearing kit. Both share the 1-1/8" cutter diameter and 20° cutter angle.

Q: What comes in the bearing kit?

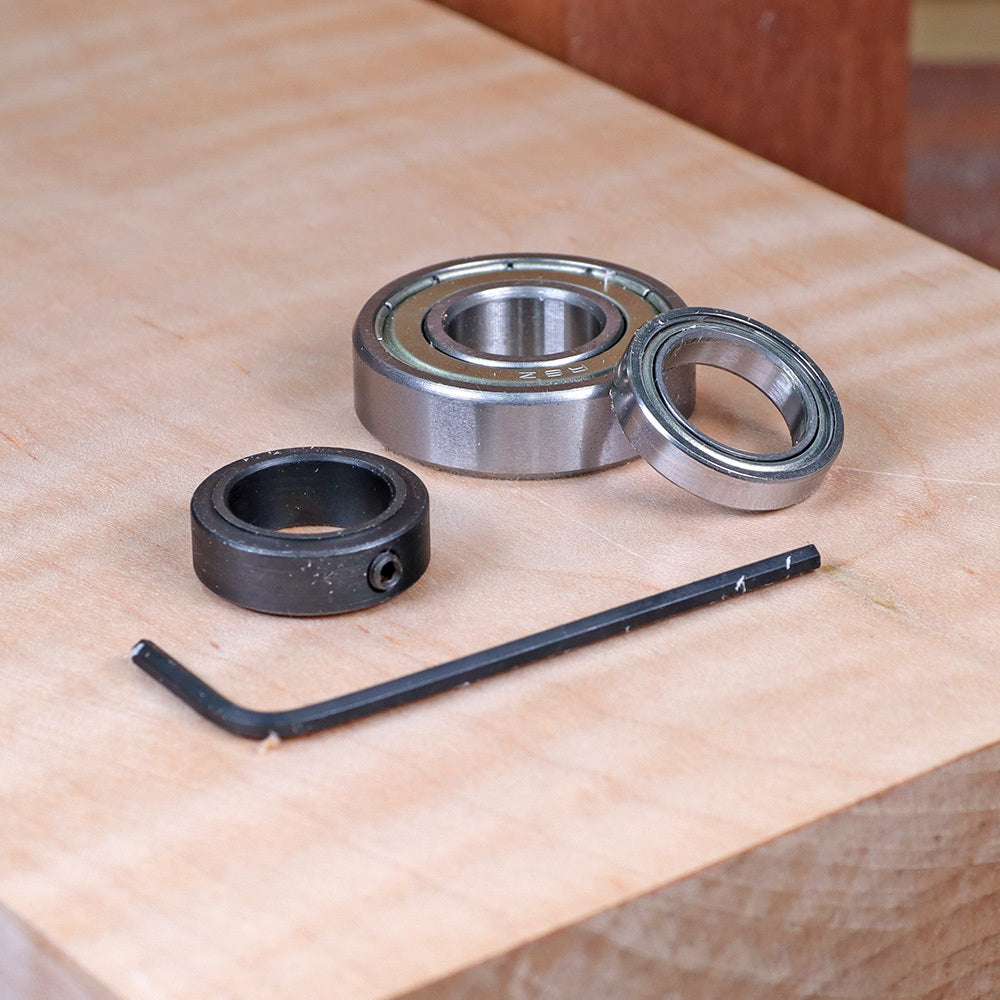

The bearing kit (58-500B) includes a 1/2" x 1-1/8" bearing with a stop collar and an Allen key , giving you a guided edge for chamfering and template work.

Q: Can I use this bit to make chamfers?

Yes. Beyond sign lettering, this bit makes clean 20° chamfers on table tops and other furniture edges. See more molding router bits for decorative profiles.

Q: What material are the cutting edges made of?

The cutting edges are carbide , machined to form the point and 20° sides that produce sharp, precise lettering.

Q: Who makes this router bit?

It's made by Infinity Cutting Tools . Browse the complete line of carbide router bits for more profiles.

$37.90

Option

Without Bearing Kit With Bearing Kit

Buy 3 or More Router Bits, Receive 10% Off Each.
Discount automatically applies in cart.

Description Reviews Q&A Documents

This Point Cutting Sign Making Router Bit gives you the power to create unique letters for all of your custom made signs. The sides of the carbide edges form a 20° angle that gives your letters a sharp and precise appearance. As a special bonus, use this router bit to make 20° chamfers on table-tops or other furniture.

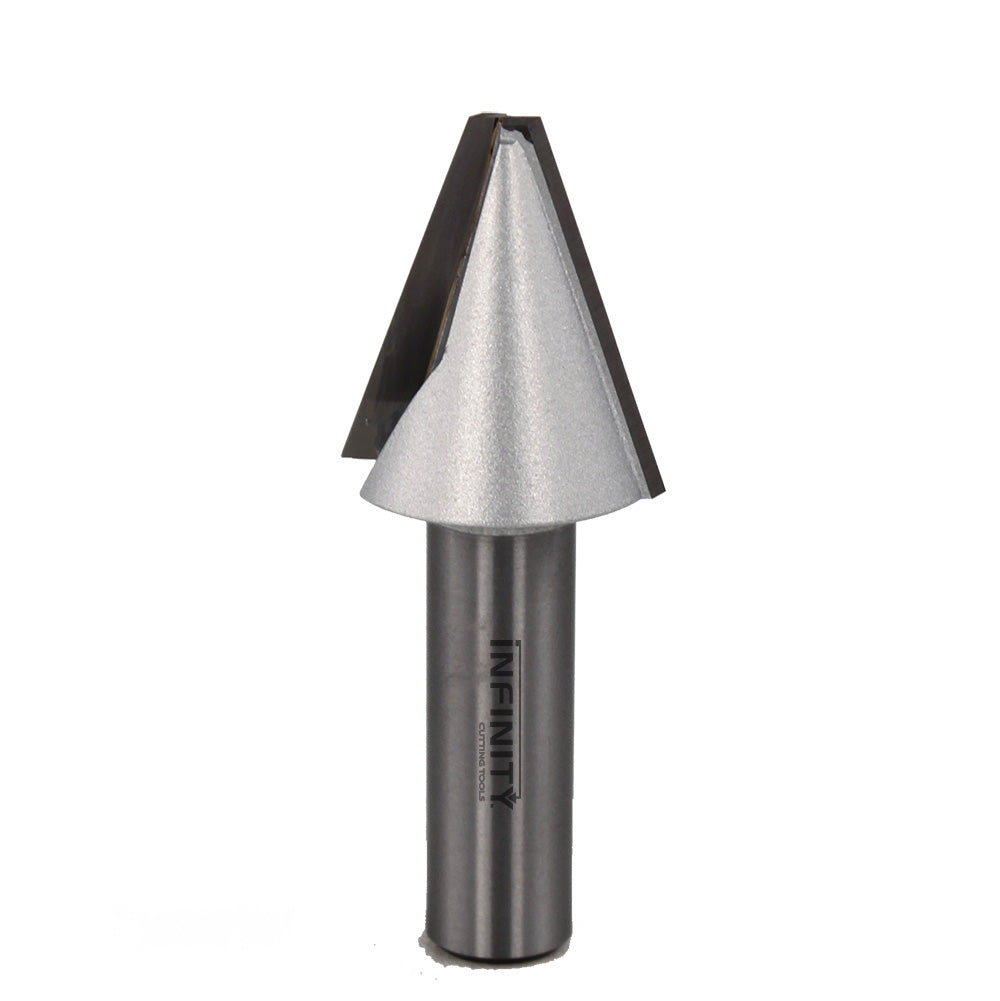

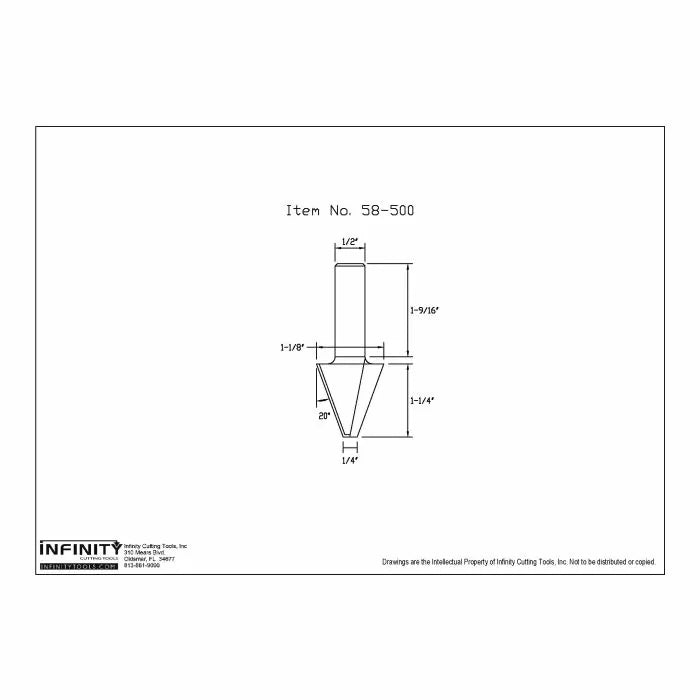

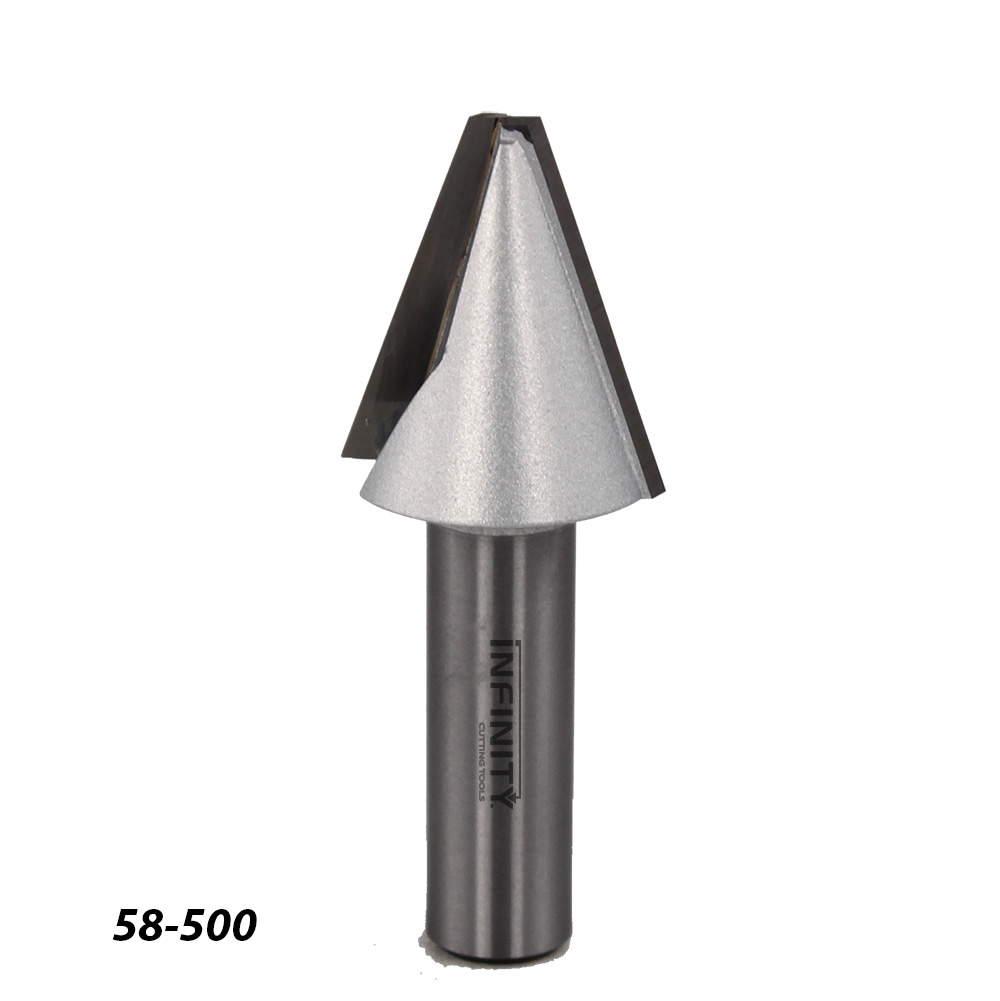

Without Bearing Kit (58-500)
Cutter Diameter 1-1/8", Cutter Height 1-1/14", Cutter Angle 20°

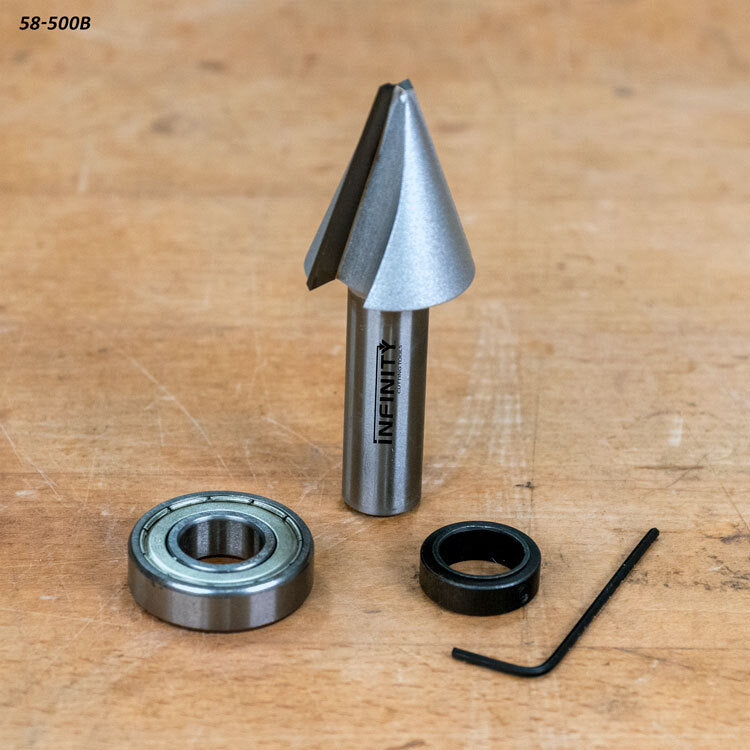

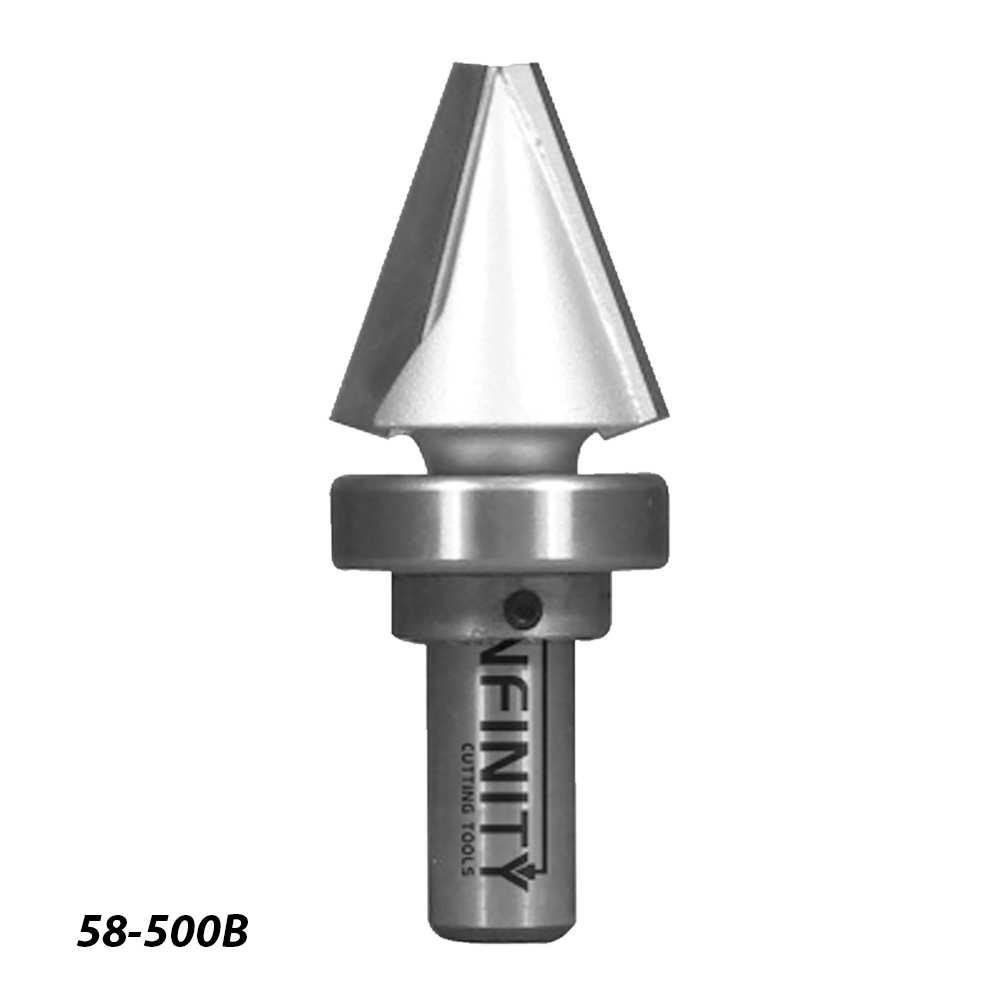

With Bearing Kit (58-500B)
Cutter Diameter 1-1/8", Cutter Height 1-1/18". Bearing kit includes a 1/2" x 1-1/8" bearing with stop collar and Allen key. Cutter Angle 20°

Router Bit Suggested RPM & Safety Guidelines

The Infinity Cutting Tools Difference

Frequently Asked Questions

What shank size does this point cutting router bit have?

It has a 1/2" shank, so it requires a router with a 1/2" collet. Pair it with other carbide router bits for your sign and edge work.

What is this router bit primarily used for?

It's designed for sign making, carving sharp, precise letters into custom signs. The carbide edges form a 20° angle that gives letters a crisp, professional look.

What is the cutter angle on this bit?

The sides of the carbide edges form a 20° angle. This same angle lets you cut clean 20° chamfers on table tops and other furniture as a bonus use.

What are the cutter dimensions?

The cutter is 1-1/8" in diameter with a 1-1/4" cutter height on the 58-500 (without bearing kit) version. Find more edge-forming router bits in the same family.

What's the difference between the 58-500 and the 58-500B?

The 58-500 ships without a bearing, while the 58-500B includes a bearing kit. Both share the 1-1/8" cutter diameter and 20° cutter angle.

What comes in the bearing kit?

The bearing kit (58-500B) includes a 1/2" x 1-1/8" bearing with a stop collar and an Allen key, giving you a guided edge for chamfering and template work.

Can I use this bit to make chamfers?

Yes. Beyond sign lettering, this bit makes clean 20° chamfers on table tops and other furniture edges. See more molding router bits for decorative profiles.

What material are the cutting edges made of?

The cutting edges are carbide, machined to form the point and 20° sides that produce sharp, precise lettering.

Who makes this router bit?

It's made by Infinity Cutting Tools. Browse the complete line of carbide router bits for more profiles.

Is this bit suitable for furniture work as well as signs?

Yes. While built for custom sign lettering, the 20° geometry also cuts attractive chamfers on furniture. Explore related edge-forming router bits for additional furniture profiles.

Infinity Tools 1/2" Shank Point Cutting Router Bits
