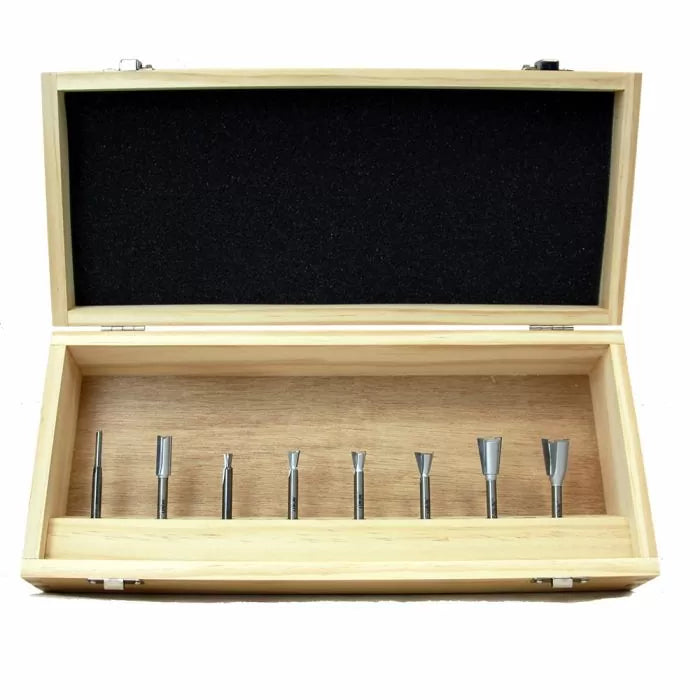

Infinity Tools 1/4" Shank 8-Pc. Dovetail & Box Joint Makin...
Drawers, jewelry boxes, shaker furniture and shadow boxes are just a few of the applications for this dovetail & Box Joint set. These are the eight router bits that produce the most popular joints. 1/4" and 3/8" diameter straight bits produce box joints and are useful for numerous applications around your wood shop.
This premium quality dovetail router bit set includes the following;
Angle 7°, 7.5°, 9° & 14° | Cutter Diam. 1/4" – 5/8" | Cutter Height 5/16" – 1" | With Wood Box | Shank 1/4"
- Highest to Lowest
- Newest to Oldest
- Favorite Reviews
- All Ratings
- 5 ★ Reviews
- 4 ★ Reviews
- 3 ★ Reviews
- 2 ★ Reviews
- 1 ★ Reviews
Infinity Tools 1/4" Shank 8-Pc. Dovetail & Box Joint Making Router Bit Set
I purchased the 6' Dadonator Jr expecting it to perform as described in Infinity Cutting Tools catalog. For the most part it performed as expected. Issues with the actual dado width produced by the blade were not what I was expecting, dado width was close to 1/64' oversized. Customer support experience was not a pleasant one. After many back and forth emails to convince Infinity that I was properly installing and using the blade they agreed to returning the blade for diagnosis at their facility.Three aggravating weeks later Infinity agreed that the blade was not within their specifications and offered to return the blade or give a refund. I chose the refund. During this entire process I got the distinct impression that Infinity Cutting Tools was convinced that their product was not the problem but rather it was something I was doing wrong ,in the end Infinity begrudgingly agreed that the fault was the Dado blade and not user error. Will I buy other Infinity Cutting tools in the future? Yes I most likely will. Nothing is perfect, mistakes happen and I try to be a gracious person.
Customer ServiceI was wanting a dado blade that didn’t leave “bat ear” undecuts at the outside edges of the dado groove
My overall experience has been very positive.
Thank you for the feedback, Jack! We’re glad to hear you had such a positive shopping experience. We hope to see you back soon!
Because I have an affinity for wood handplanes.
I love the equipment works as designed. Easy to set up. My only complaint is the price is to high.
Hey Jerrod, thanks for your feedback. We are very competitivey priced and also offer free shipping on most orders over $100. If you have additional questions just reach out our office hours are Monday – Friday, between 8:30 am and 5:00 pm ET. Just give us a call or send us an email to open a support ticket, and we’ll jump right on it! 877-872-2487 | support@infinitytools.com
Whether used in contemporary, or classic furniture, dovetail joinery is a highlight of quality woodworking.
Infinity Tools offers a large selection of dovetail bits designed with negative shear angle to provide ultra smooth cuts, and they’re available in all sizes and for all needs. But one thing that doesn’t change … is the general shape of the bit. The weakest point of all dovetail router bits is their neck. To get the longest life possible from this type of bit, we recommend pre-plowing the groove before cutting the dovetail slot.
Pre-plowing is the concept of using a straight bit (sized smaller than the diameter of the neck) to first cut a clearance channel. Start by finding the diameter of the neck of the dovetail bit using a caliper.
Then you locate an appropriate straight bit slightly under the diameter of the neck of the dovetail bit. Use that straight bit to set up the plowing cut.
You make a first pass with the straight bit to remove much of the waste. Remember don’t run this straight bit too fast. Let the bit cut.
The dovetail bit is then used to follow through that channel, but the stress on the bit is greatly reduced, leading to better dovetail cuts … and a longer life for your dovetail bits!
Follow this simple tip and you'll get the best performance from your dovetail router bits.
