SKU: 00-561

Infinity Tools 1/2" Shank Handrail Router Bit Sets

Q: What shank size do these handrail bits have?

All bits in these sets have a 1/2" shank , so they require a router with a 1/2" collet. See more edge-forming router bits .

Q: What is the difference between the two sets?

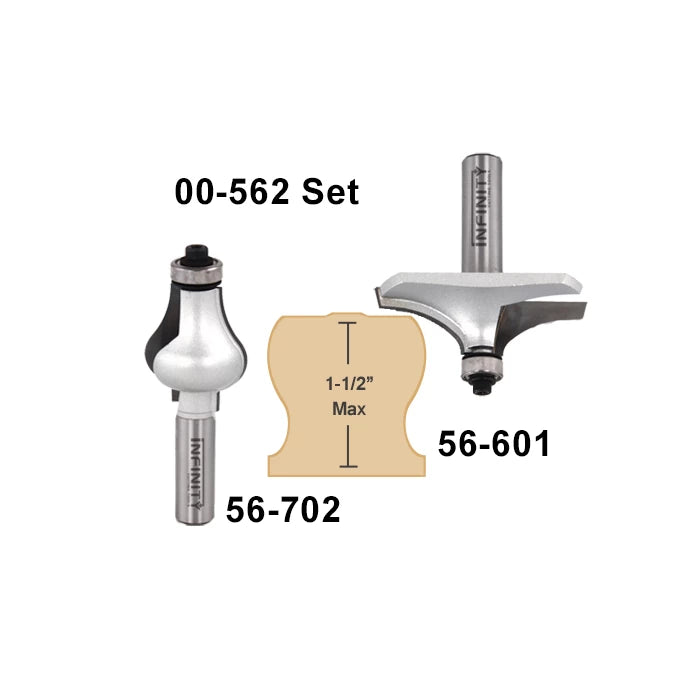

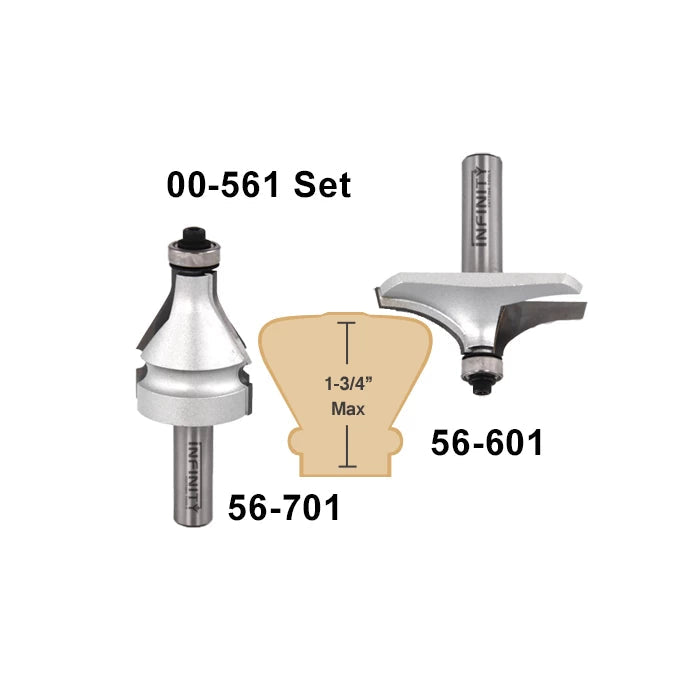

Both sets include the 56-601 Table Edge Bit. Set 00-561 pairs it with the Classical Handrail Bit (56-701), while Set 00-562 pairs it with the Radius Handrail Bit (56-702).

Q: What is the Table Edge Bit used for?

The Table Edge Bit (56-601) cuts a smooth, well-proportioned curve ideal for dining or coffee tables, with a 1" profile width from the edge of the bearing for a classically modern look.

Q: How thick a board can the Classical Handrail Bit handle?

The Classical Handrail Bit (56-701) is rated for stock up to 1-3/4" . It has a 1-1/2" cutter diameter, 1-3/4" cutter height and 3-1/4" overall length.

Q: What are the dimensions of the Radius Handrail Bit?

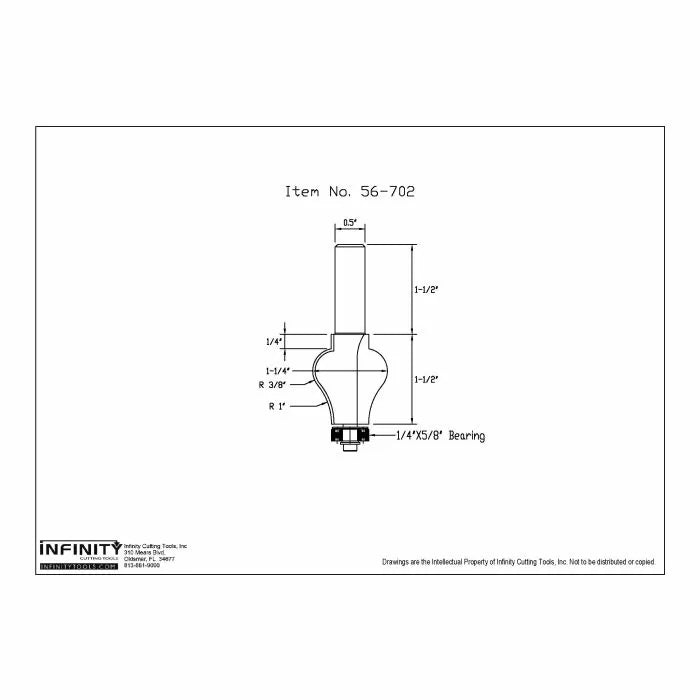

The Radius Handrail Bit (56-702) has a 1/2" shank, 1-1/4" cutter diameter, 1-1/2" cutter height and 3" overall length, and handles stock up to 1-1/2".

Q: What is the profile width of the Classical Handrail Bit?

The Classical Handrail Bit (56-701) has a 7/16" profile width and a 1-1/4" large diameter, while the Radius Handrail Bit (56-702) has a 3/8" profile width.

Q: Who makes these handrail router bit sets?

They are made by Infinity Cutting Tools as premium-quality router bit sets. Browse the full collection of carbide router bits .

12% off

$139.90 ~~Regular price$159.80~~

Profile

Classical Radius

Buy 3 or More Router Bits, Receive 10% Off Each.
Discount automatically applies in cart.

Description Reviews Q&A Documents

Used individually, these premium quality router bit sets cut a variety of decorative profiles and meet many demands around the shop.Used as a pair, they are perfect for creating custom hand rails.

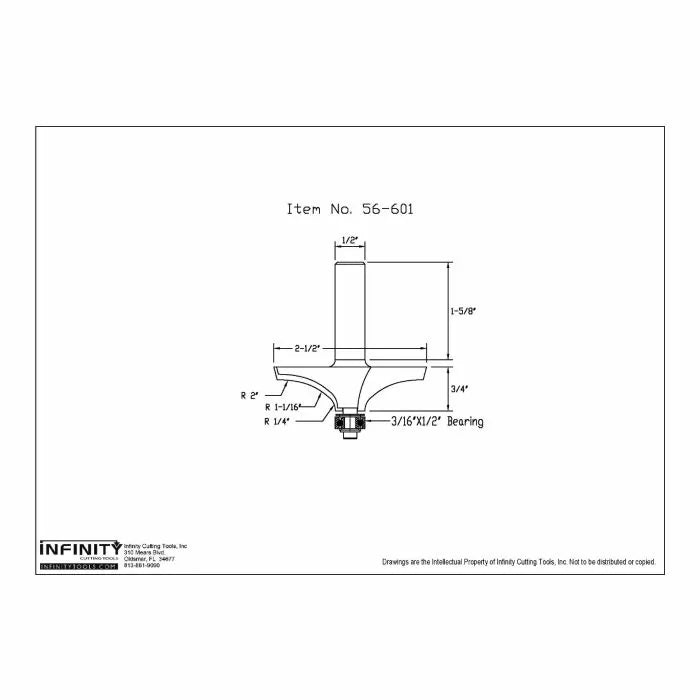

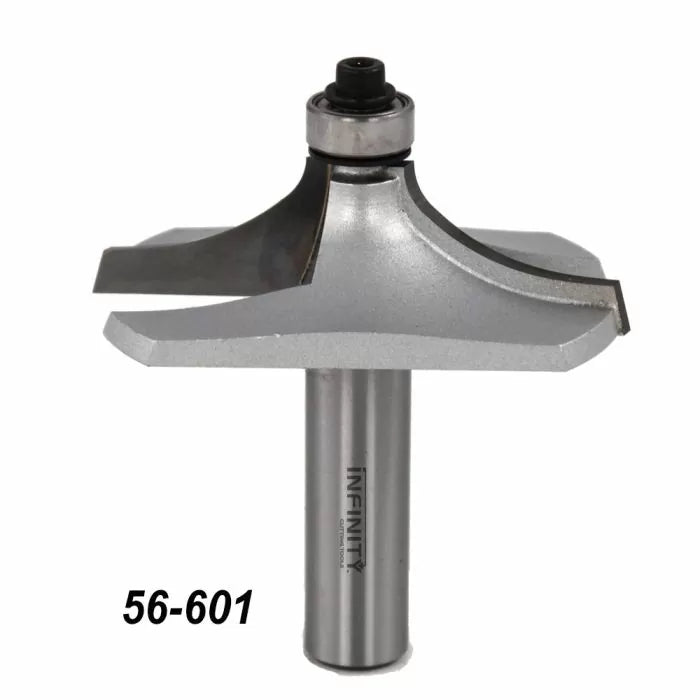

Our Table Edge Router Bit (56-601) cuts a smooth, well proportioned curve that is ideal for dining or coffee tables. This is a unique profile that will perfectly shape your table edge and give it a classically modern look. Profile width is 1" from edge of bearing.

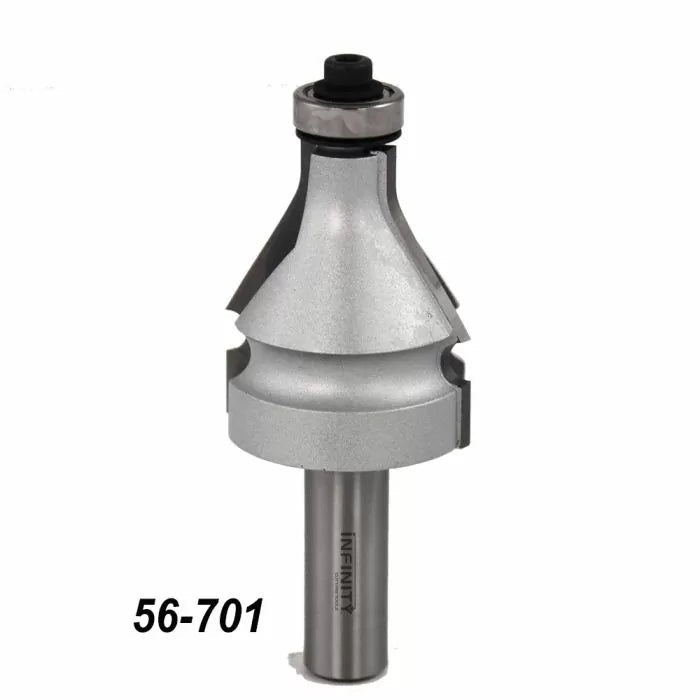

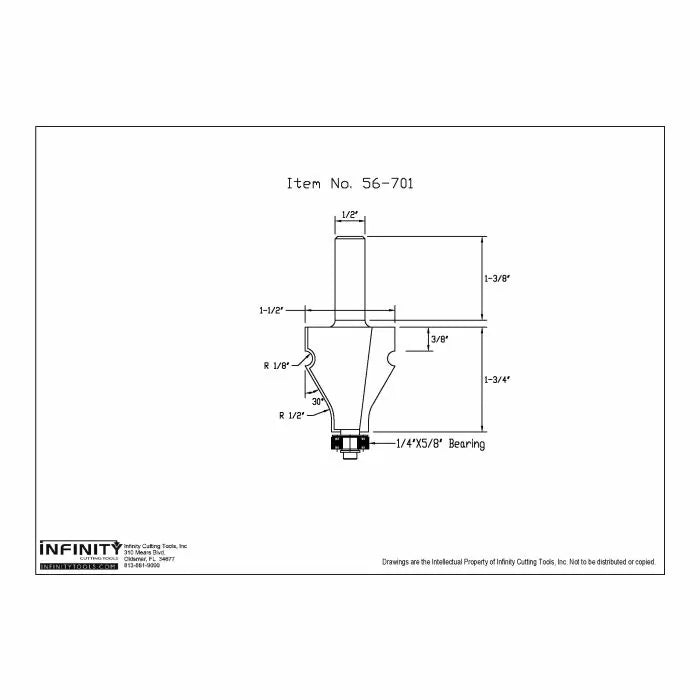

Our Classical Handrail Router Bit (56-701) will allow you to make your own handrails for your home. Details: 1/2" Shank, 1-1/2" Cutter Diameter, 1-3/4" Cutter Height, 3-1/4" Overall Length, For Stock Up to 1-3/4"

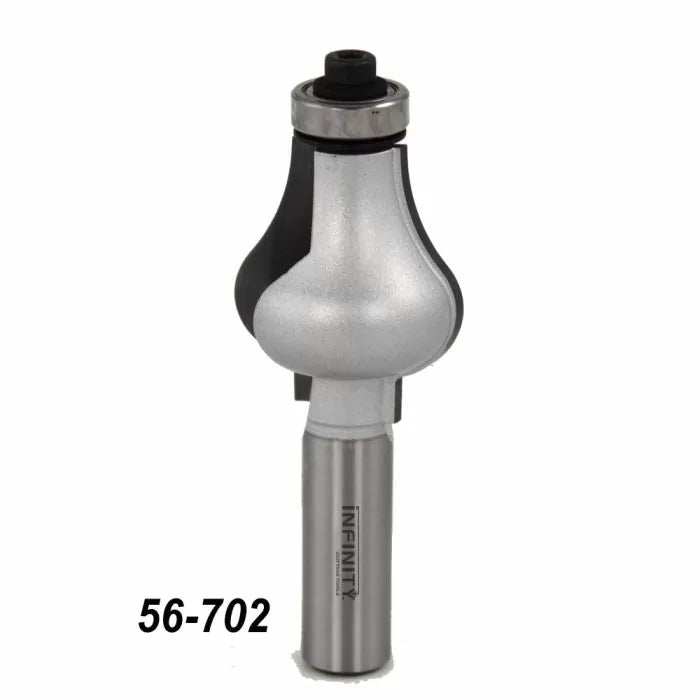

Use the Radius Handrail Router Bit (56-702) to make a handrail for your home staircase. Details: 1/2" Shank, 1-1/4" Cutter Diameter, 1-1/2" Cutter Height, 3" Overall Length, For Stock Up to 1-1/2.

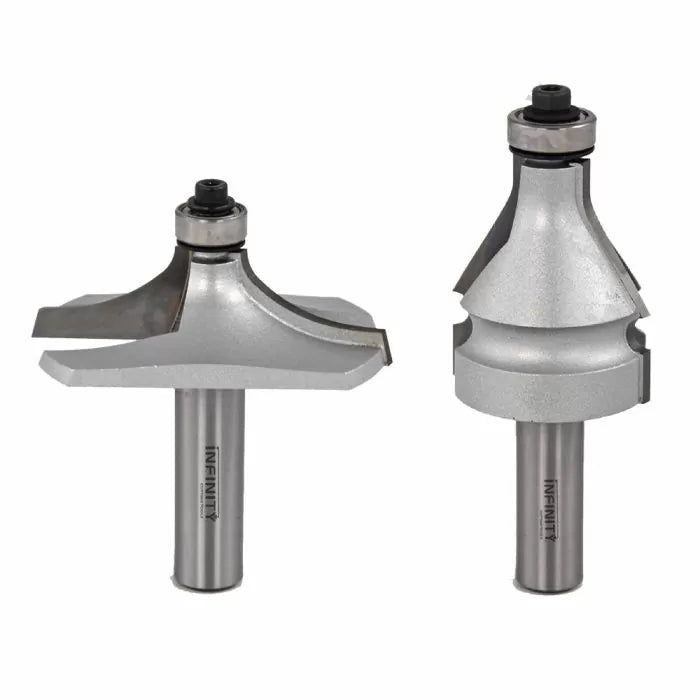

Individual items included in Set 00-561

Item	Shank	Description	Large Diam.	Profile Width
56-601	1/2"	Table Edge Bit	2-1/2"	1"
56-701	1/2"	Classical Handrail Bit	1-1/4"	7/16"

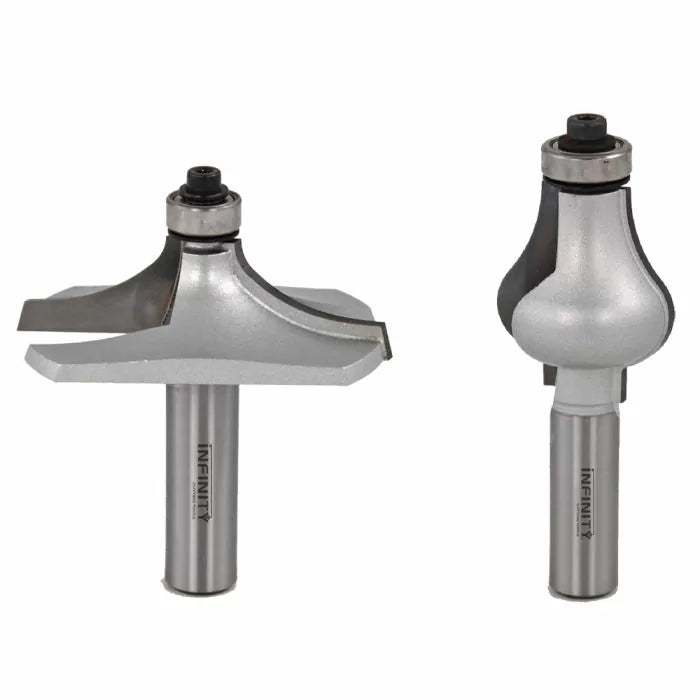

Individual items included in Set 00-562

Item	Shank	Description	Large Diam.	Profile Width
56-601	1/2"	Table Edge Bit	2-1/2"	1"
56-702	1/2"	Radius Handrail Bit	1-1/4"	3/8"

Router Bit Suggested RPM & Safety Guidelines

The Infinity Cutting Tools Difference

Frequently Asked Questions

What shank size do these handrail bits have?

All bits in these sets have a 1/2" shank, so they require a router with a 1/2" collet. See more edge-forming router bits.

What is the difference between the two sets?

Both sets include the 56-601 Table Edge Bit. Set 00-561 pairs it with the Classical Handrail Bit (56-701), while Set 00-562 pairs it with the Radius Handrail Bit (56-702).

What is the Table Edge Bit used for?

The Table Edge Bit (56-601) cuts a smooth, well-proportioned curve ideal for dining or coffee tables, with a 1" profile width from the edge of the bearing for a classically modern look.

How thick a board can the Classical Handrail Bit handle?

The Classical Handrail Bit (56-701) is rated for stock up to 1-3/4". It has a 1-1/2" cutter diameter, 1-3/4" cutter height and 3-1/4" overall length.

What are the dimensions of the Radius Handrail Bit?

The Radius Handrail Bit (56-702) has a 1/2" shank, 1-1/4" cutter diameter, 1-1/2" cutter height and 3" overall length, and handles stock up to 1-1/2".

Can I make a staircase handrail with these bits?

Yes. Used as a pair, the Table Edge and handrail bits are designed to create custom handrails for your home staircase. Explore more molding router bits for architectural work.

Can the bits be used individually?

Yes. Used individually, each premium bit cuts decorative profiles and meets many everyday shaping demands around the shop, not just handrail work.

What is the profile width of the Classical Handrail Bit?

The Classical Handrail Bit (56-701) has a 7/16" profile width and a 1-1/4" large diameter, while the Radius Handrail Bit (56-702) has a 3/8" profile width.

Who makes these handrail router bit sets?

They are made by Infinity Cutting Tools as premium-quality router bit sets. Browse the full collection of carbide router bits.

Do I need a router table to use these bits?

Larger profile bits like these handrail cutters are generally safest and most accurate in a router table. The Table Edge and handrail bits both shape edges that benefit from the support and control a table provides.
