Premium Factory Matched Door Making Router Bit Sets w/ Backcutter!
Infinity Tools factory matched Raised Panel and Rail & Stile router bits are perfect for making beautiful door panels and frames in 3/4" to 1" thick stock. Produced using the most premium raw materials and manufactured on state-of-the-art C.N.C. machinery, our Rail & Stile and Raised Panel router bits represent the finest quality on the market. The extra-sharp carbide profiles are precision ground on computer controlled equipment to ensure a perfect fit and leave the smoothest finish possible with minimal sanding. Three wing slot cutters and engineered shear cutting geometry are a big improvement over inferior quality sets that burn and tear your material.
The factory matched Rail & Stile router bit set on this page leaves an attractive 7/16" wide profile while cutting a full 1/4" thick tongue and groove joint to accept your raised panel. Using 1/4" plywood for your panel? You know it's not going to be a full 1/4" thick, right? No problem, click here for our Plywood Panel Conversion Kits. These two piece slot cutter kits replace the 1/4" slot cutters in the Stile and Rail profiles and give you a perfect fitting panel door when using undersized plywood panel stock.
Features include:
- 1-3/8" wide Raised Panel profile with backcutter designed for 3/4" to 1" thick stock
- 7/16" wide Rail & Stile profile designed for 3/4" to 7/8" thick stock
- Includes FREE ($9.90 value) Rail & Stile setup block

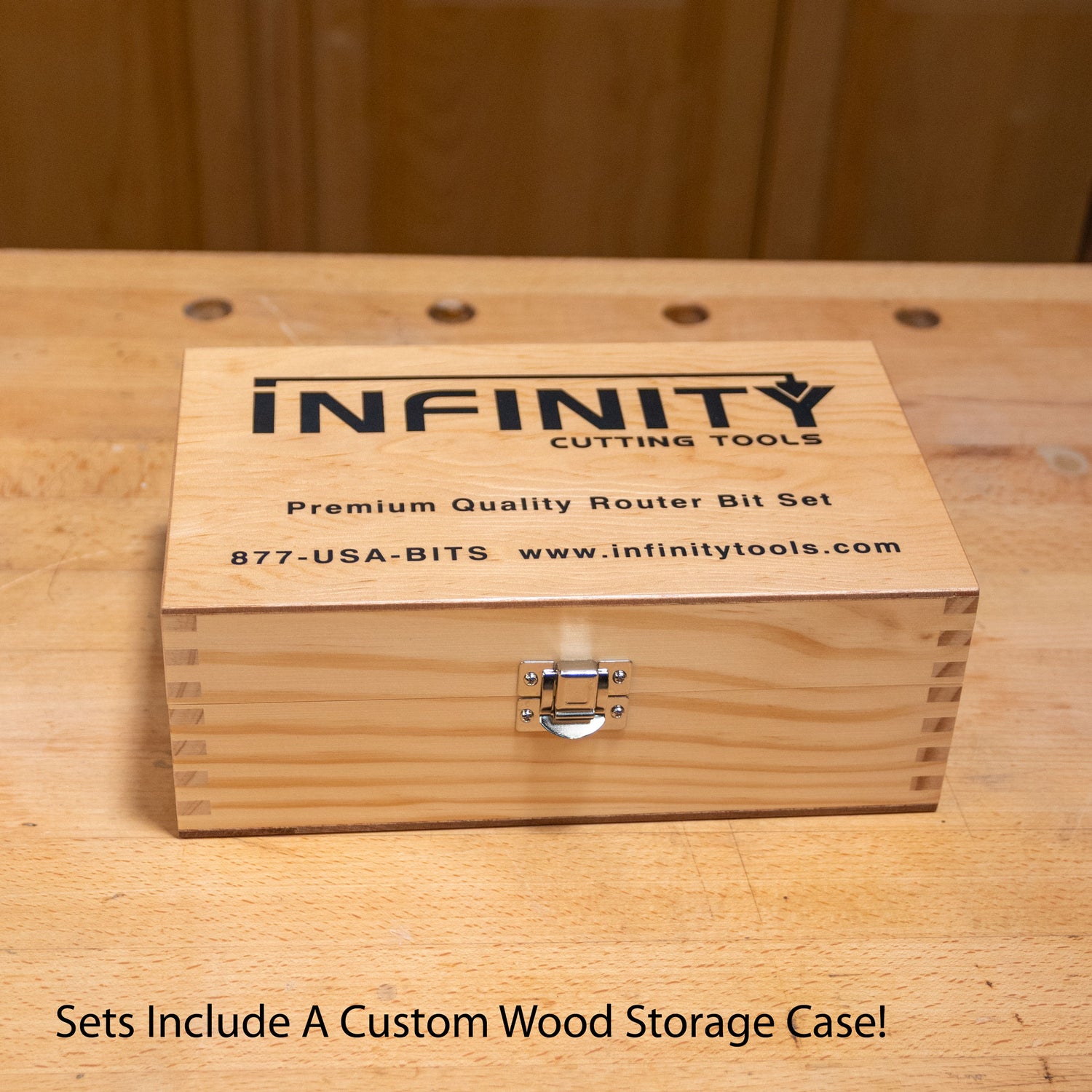

- Includes custom wood storage case
- Extra thick micro grain carbide edges last longer and stay sharper than inferior cutters
- Specially designed cutting geometry allow our bits to cut cleaner and require little (if any) sanding

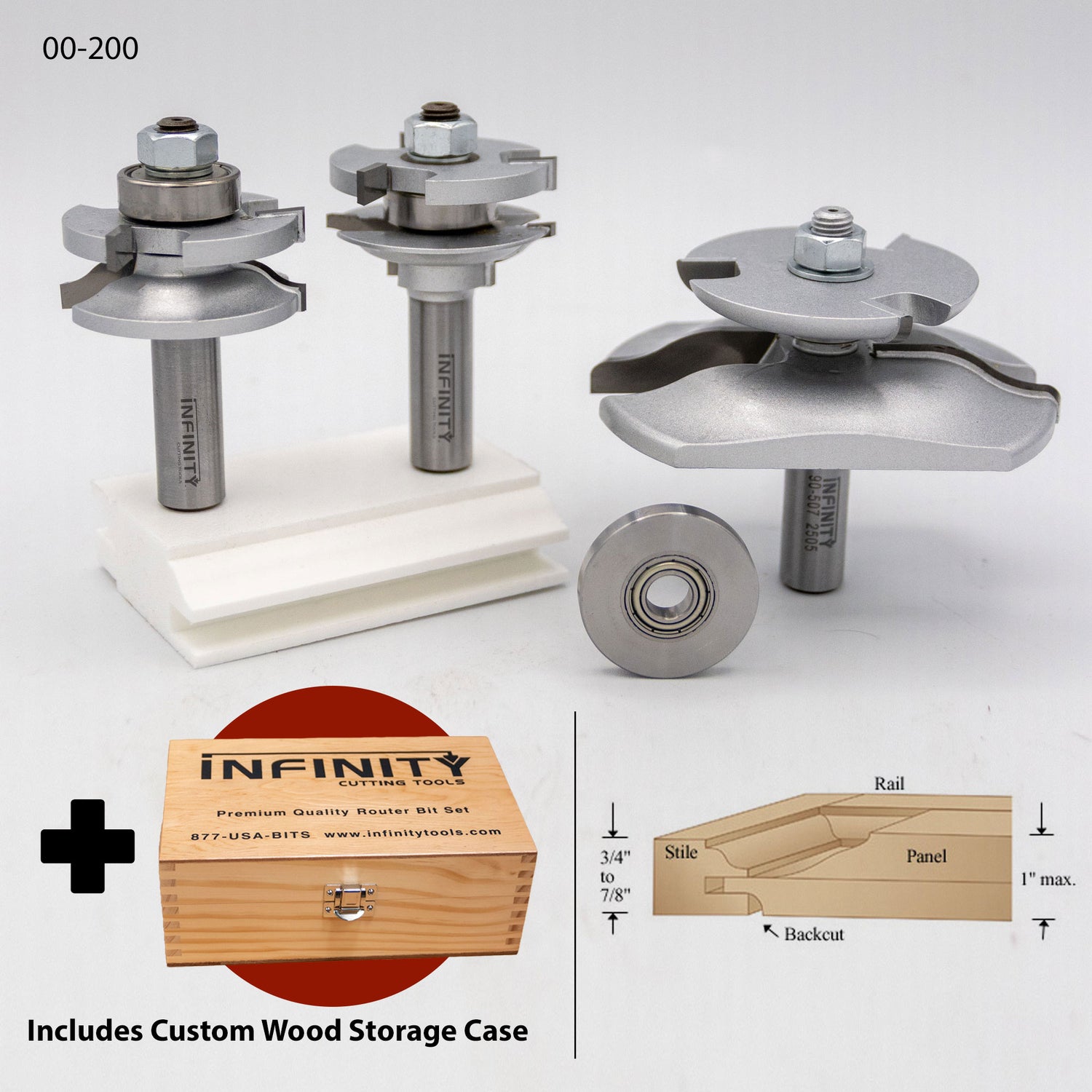

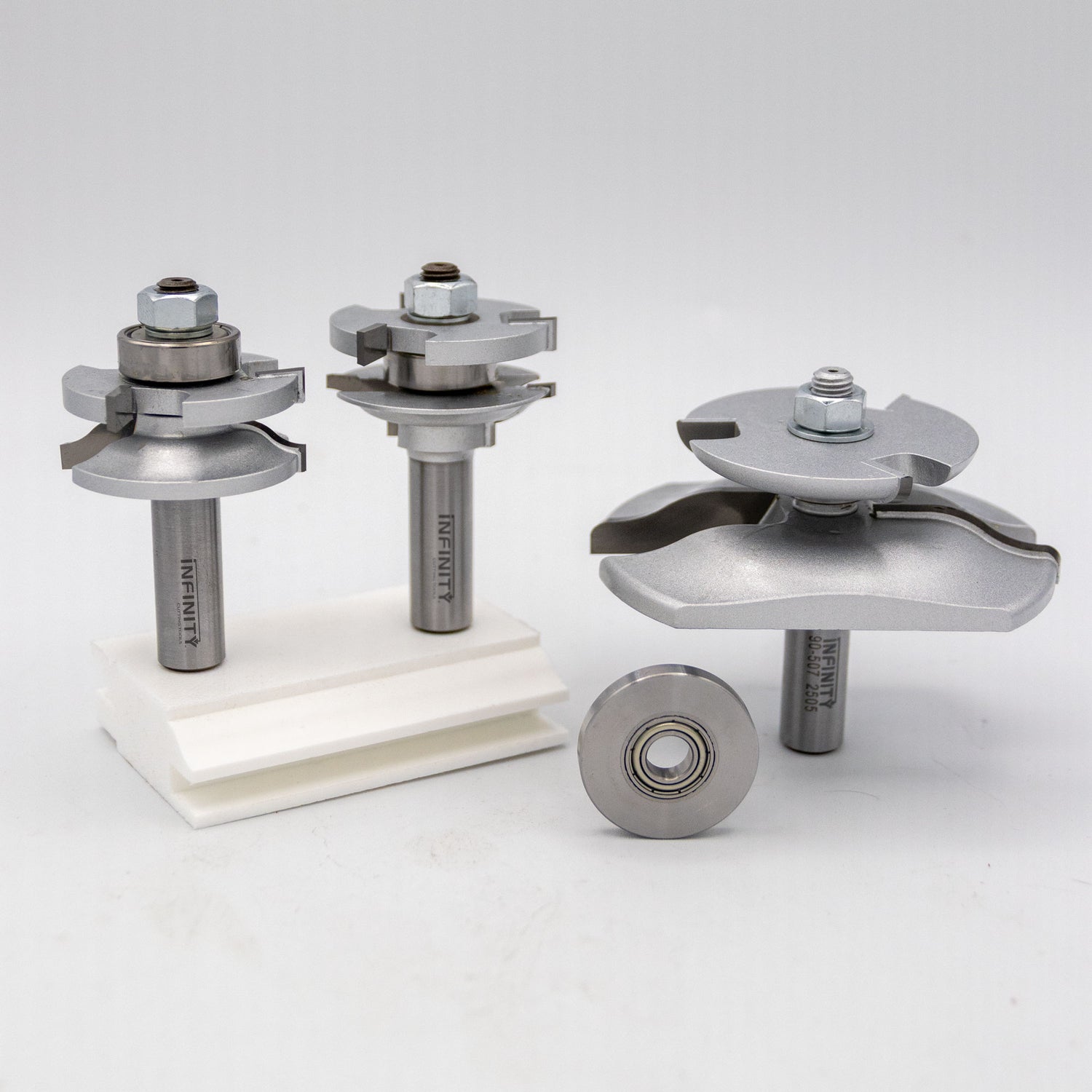

Included in Set 00-200:
#90-507 - 1/2" shank, Ogee Raised Panel Bit w/ Backcutter - 3-1/2" Dia., 1-3/8" Width
#91-501 - 1/2" shank, 2 pc. Ogee Matched Rail & Stile Set - 1-3/4" Dia., 7/16" Width

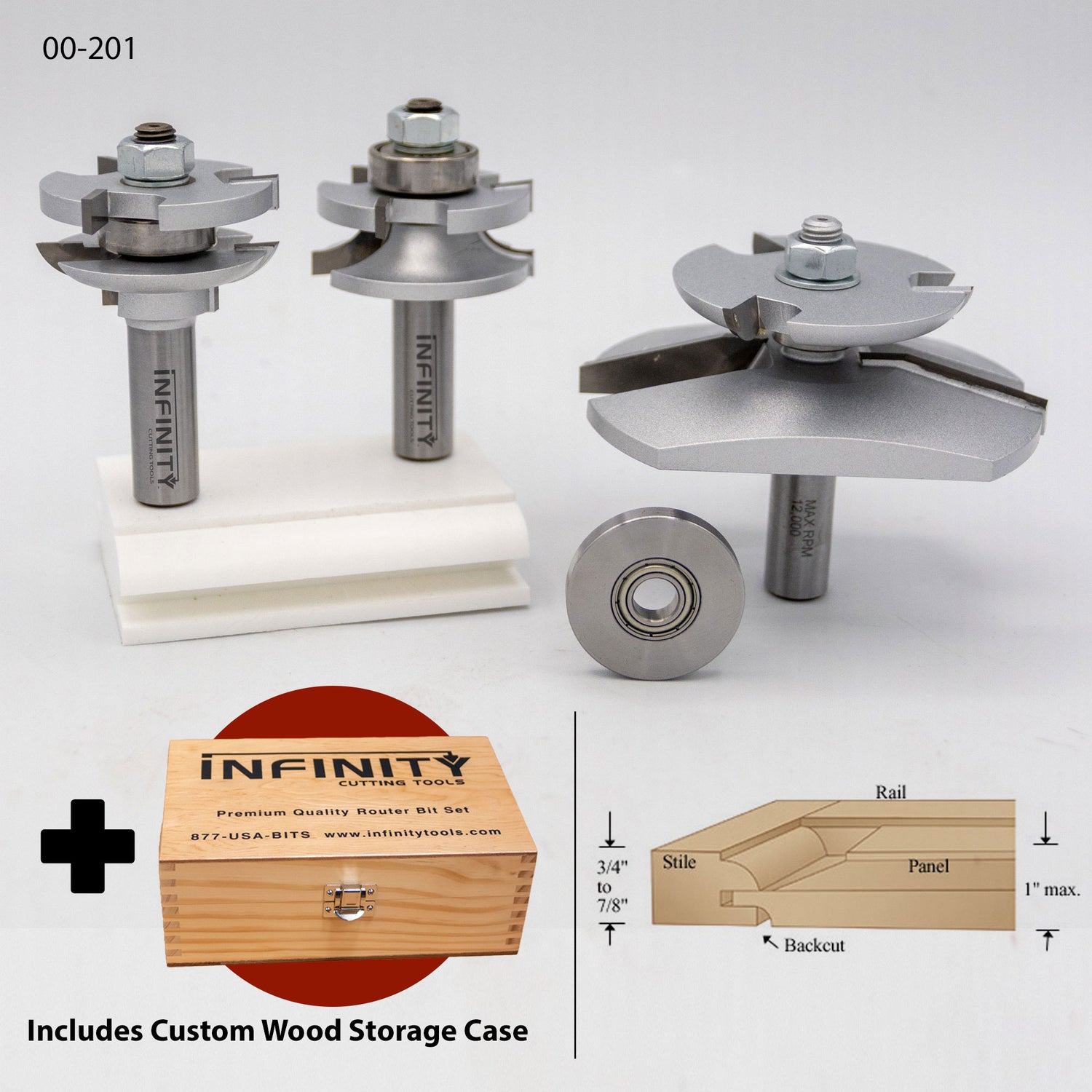

Included in Set 00-201:
#90-508 - 1/2" shank, Stnd. Raised Panel Bit w/ Backcutter - 3-1/2" Dia., 1-3/8" Width
#91-502 - 1/2" shank, 2 pc. Stnd Matched Rail & Stile Set - 1-3/4" Dia., 7/16" Width

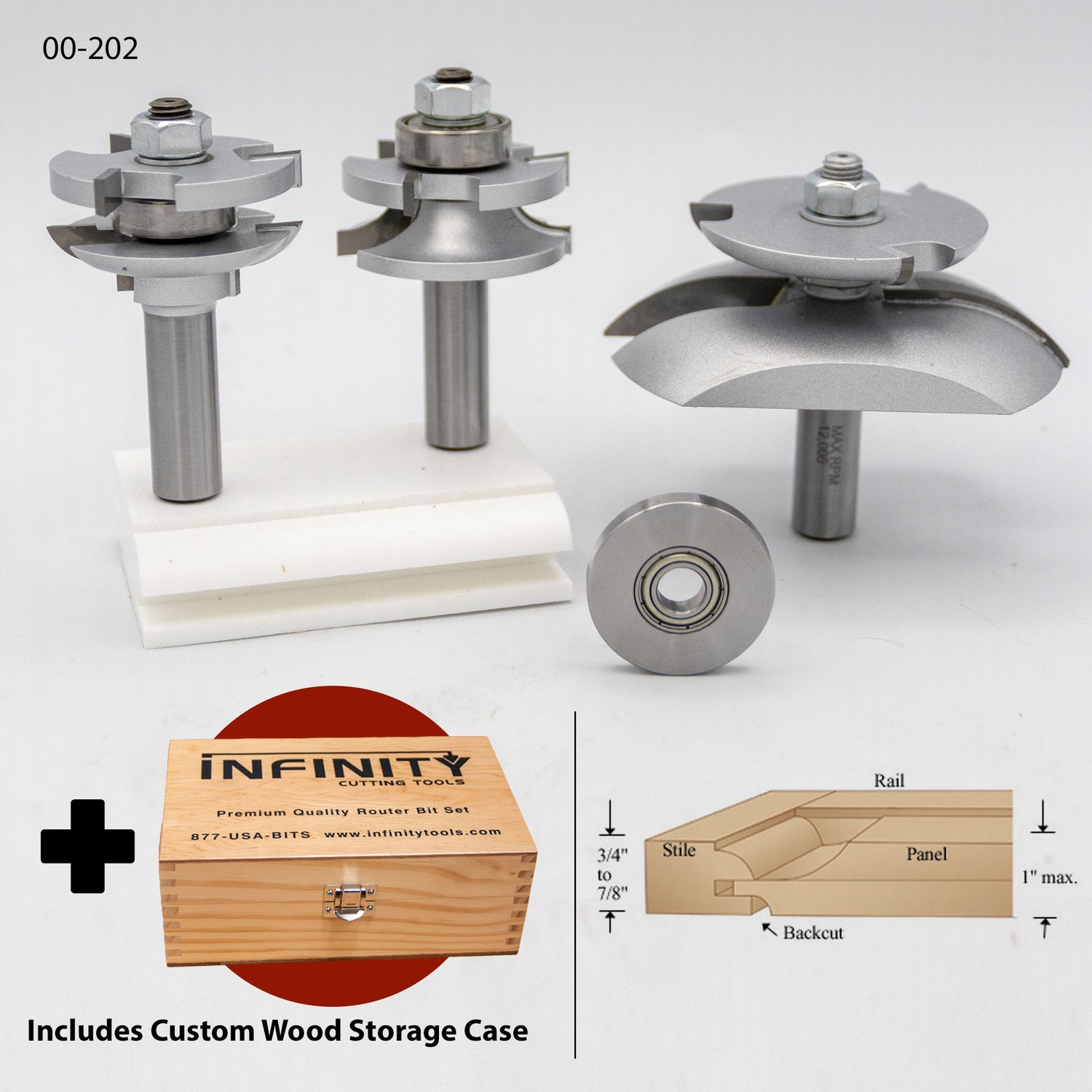

Included in Set 00-202:
#90-509 - 1/2" shank, Cove Raised Panel Bit w/ Backcutter - 3-1/2" Dia., 1-3/8" Width
#91-502 - 1/2" shank, 2 pc. Stnd Matched Rail & Stile Set - 1-3/4" Dia., 7/16" Width
