Easy To Setup and Use, An Absolute Must-Have Shop Accessory!

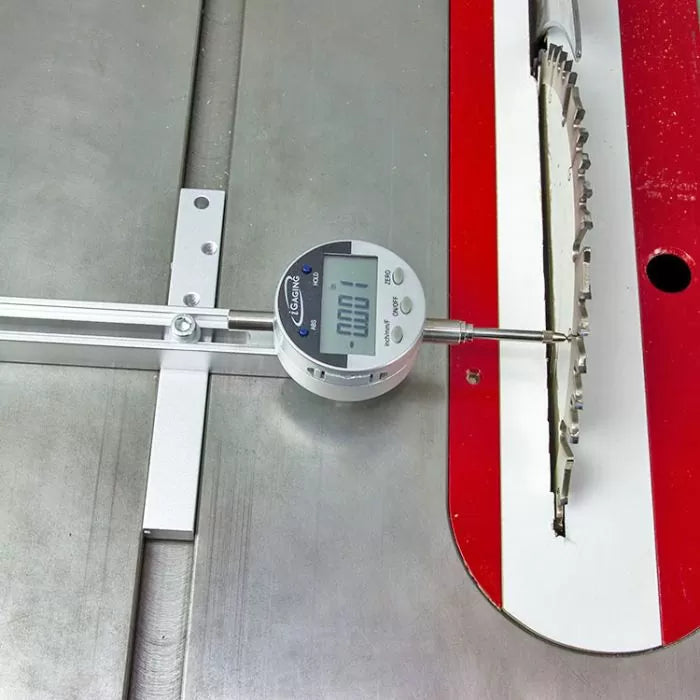

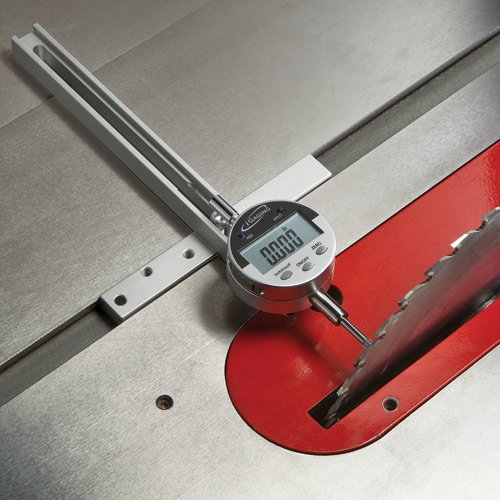

The iGaging DigiAlign gauge is an ideal tool for getting your woodworking machines in tip-top-shape. Use it to get perfect alignment on your table saw, both for the blade and for the fence. Also use it for checking drill press arbor run-out, setting your planer and jointer knives and also shaper spindle run-out. The precision 6" miter bar features strong magnets and expansion anvils for a prefect fit in any standard ¾" x 3/8" miter channel. Slide the bar into the miter slot on your table saw and quickly get the precision you need to insure a perfect cut. Measure the distance from your fence to your blade in multiple points along the channel.

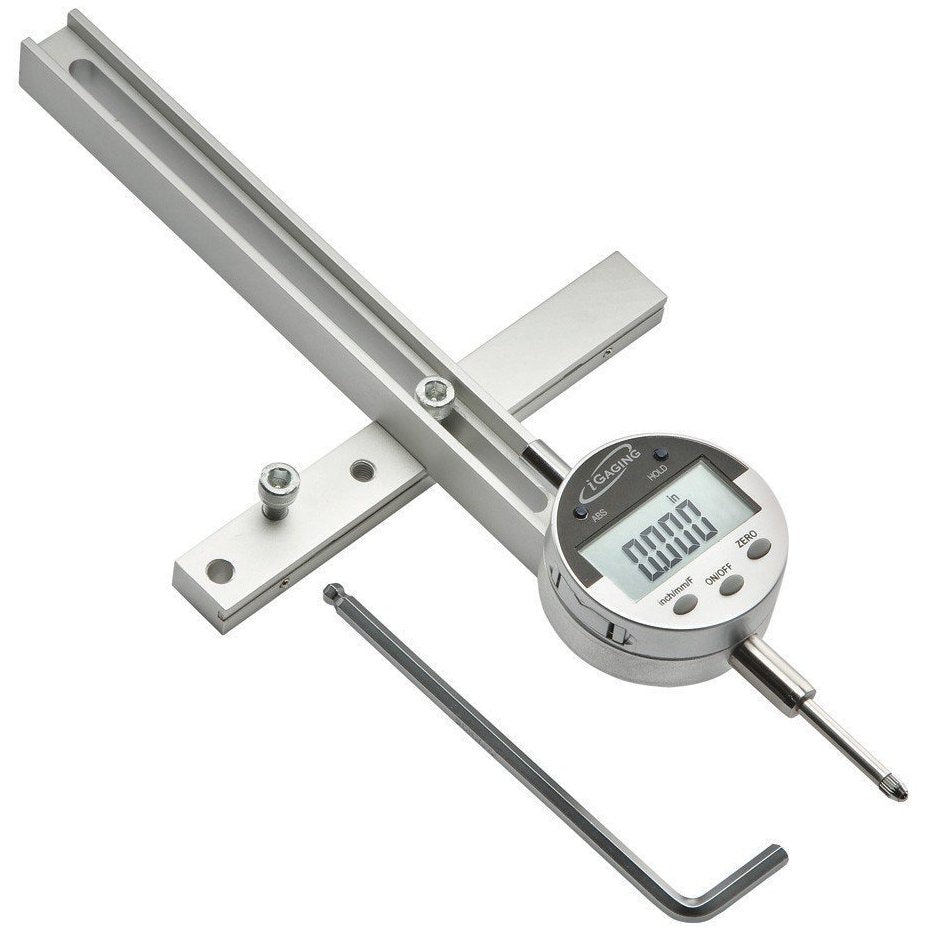

The large digital display gives you readings in metric, inch or fractional increments and has a 1" range. With accuracy of .001" and extra features like an ABS reading (absolute/relative) and HOLD function you'll get precise setups every time. The versatility of this tool is amazing. Detach the digital indicator from its aluminum slide and use the 3/8" hole on the back mounting to fit it to multiple alignment tools. The digital indicator attaches to our magnetic base (MAG-001) and other alignment helpers.
Features:
- Extra-large and easy to read display
- Reads in Fractions, Inch and Metric
- Measuring range from 4 - 11"
- Absolute / Relative & Hold functions
- Strong magnets on all bottom
- Accuracy - +/- .001"
- One year life from 3V CR2032 battery ( extra battery included)
- Highest to Lowest
- Newest to Oldest
- Favorite Reviews
- All Ratings
- 5 ★ Reviews
- 4 ★ Reviews
- 3 ★ Reviews
- 2 ★ Reviews
- 1 ★ Reviews




This really did help me dial in my tablesaw. Although I was pretty close, it helped me dial it in .007 closer to where I am now dead on. I purchased this thinking it was the complete set with the magnetic base but it wasn’t until after it had shipped that I realized that I didn’t get the magnetic base. Or at the time I purchased it, the magnetic base was $10 more with the three-piece kit. That’s my fault though so if you are looking for the three-piece kit, make sure you selec
The product seems fine however it was missing a part. I contacted customer service and didn’t even receive a reply! This is the one and only toll I will order from them.
Thanks for the feedback, Michael. Our team puts a lot of effort into serving and supporting our customers to the best of our ability. Unfortunately, we have no record of you reaching out to us, we will reach out to you directly to help get you taken care of. In the meantime, if you are having any additional problems or just have additional questions please reach out our office hours are Monday – Friday, between 8:30 am and 5:00 pm ET. Just give us a call or send us an email to open a support ticket, and we’ll be happy to help!
877-872-2487 | support@infinitytools.com
