Infinity Tools 5-pc. Router Bit Bearing Kit, 3/16" I.D.
Couldn't load pickup availability
Make Multiple Depth Cuts Using Any Router Bit With A 3/16" Diameter Bearing Post!

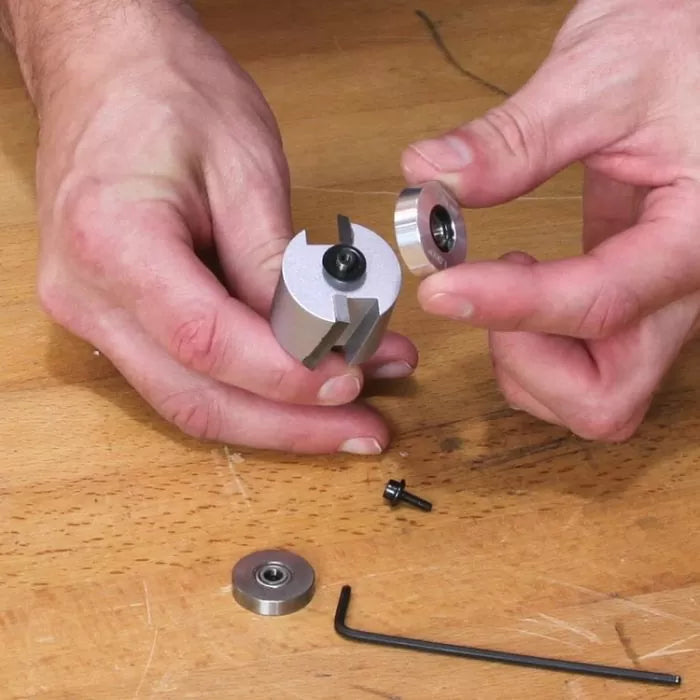

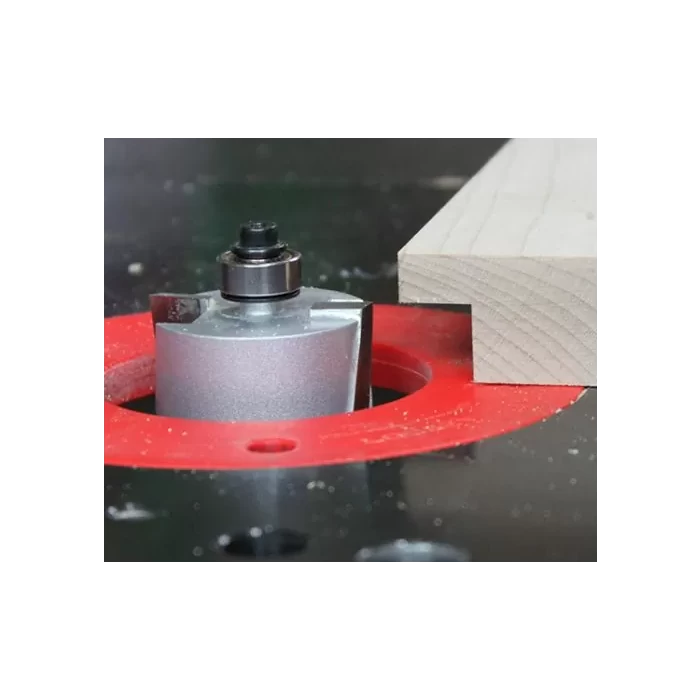

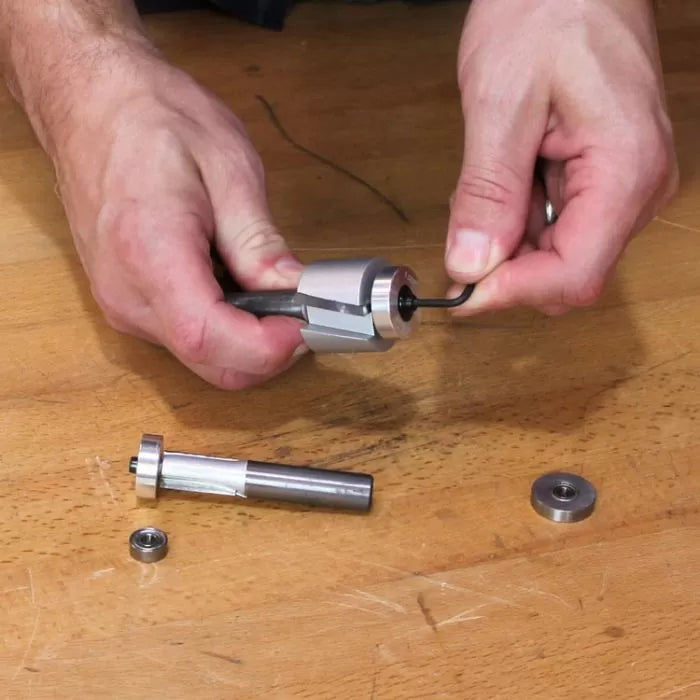

Making a special depth rabbet cut or other custom application is easy with this exclusive router bit bearing kit. We've precision machined five bearing sleeves from high grade aluminum and inserted a quality 3/16" x 1/2" bearing into each one. This technique has allowed us to offer you six special size bearings otherwise not available on the market. Now you can take any brand router bit with a 3/16" bearing post and use one of our specially designed sleeves to make just about any offset cut you can think of. Each bearing sleeve is laser marked for fast set-up and the bearing inside the sleeve can be replaced if necessary. This is a very handy bearing set and one you should not be without!
Please note: Rabbet depth will be dependant on the outside diameter of router bit you are using.

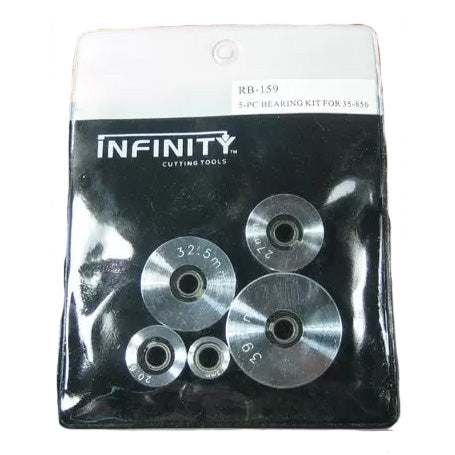

This six piece set includes sleeves with the following dimensions:
Description | Inside Diam. | Outside Diam. |
Bearing | 3/16" | 14.3mm = 9/16" |
Bearing | 3/16" | 20.6mm = 13/16" |
Bearing | 3/16" | 27mm = 1-1/16" |
Bearing | 3/16" | 32.5mm = 1-9/32" |
Bearing | 3/16" | 39mm = 1-17/32" |
