Infinity Tools 5-pc. Router Bit Bearing Kit, 3/16" I.D.

The kit fits any router bit with a 3/16" diameter bearing post. The sleeves slide over the post to change the effective bearing diameter for custom cuts. See more carbide router bits.

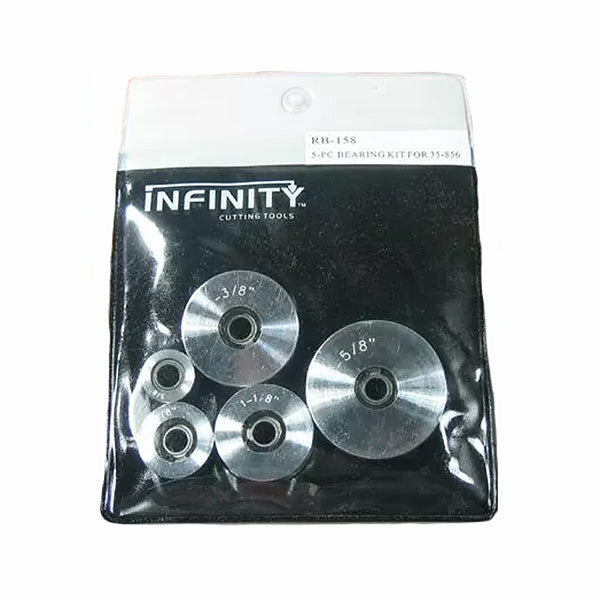

The set includes five aluminum sleeves with a 3/16" inside diameter and outside diameters of 5/8", 7/8", 1-1/8", 1-3/8", and 1-5/8", each housing a 3/16" x 1/2" bearing.

Yes. As long as the bit has a 3/16" bearing post, you can use these sleeves with any brand router bit to make a wide range of offset cuts.

The sleeves are precision machined from high-grade aluminum, with a quality 3/16" x 1/2" bearing inserted into each one.

It is ideal for special-depth rabbet cuts and other custom offset applications. Changing the sleeve changes how much material the bit removes. Pair it with cutters from our router bit sets.

Yes. The final rabbet depth is dependent on the outside diameter of the router bit you are using together with the chosen sleeve size.

Yes. The bearing inside each sleeve can be replaced if necessary, so the kit keeps performing for years of use.

Each bearing sleeve is laser marked, which makes it fast to identify the size you need and speeds up setup at the router table.

Yes. Bearing-guided offset and rabbet cuts are well suited to table routing. See our router tables for a stable, controlled setup.

It is an exclusive kit from Infinity Cutting Tools, assembled to offer special bearing sizes not commonly available on the market. Explore more router bits from Infinity Tools.
