Tackle Rough (and Milled) Lumber of Any Length!
The Infinity Miter Saw Fence System will add accuracy and functionality to your miter station. Made of strong and stiff extruded aluminum, the fence rails are anodized for durability and have ¼-20 tracks on all faces. This allows the two included flip stops to be easily mounted and positioned anywhere along the length of the rails.

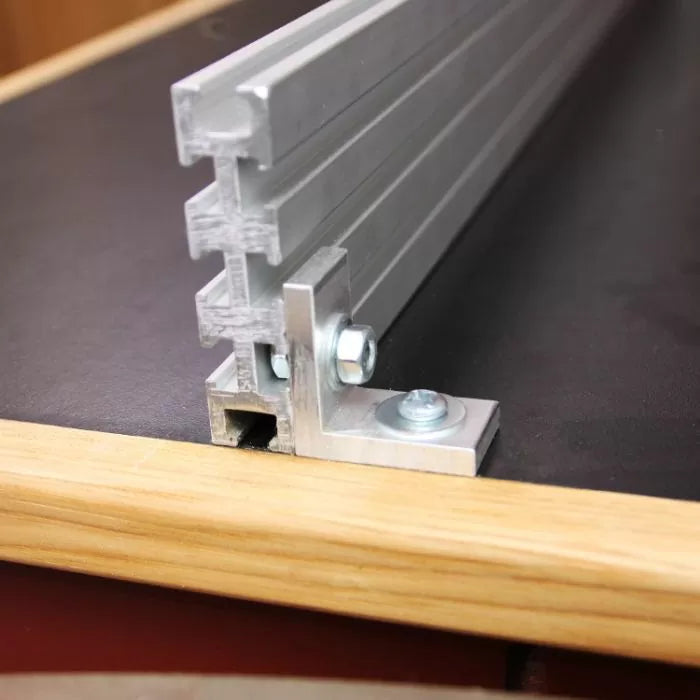

Each fence rail measures a full 48” long, ¾” thick, and 3” tall and includes mounting brackets and hardware so you can mount the fence securely to your miter station. A pair of adhesive measuring tapes are included, one reading right to left and the other reading left to right. These tapes can be applied to the fence allowing for quick and accurate setting of the flip stops.
Two different flip stops are included, one with a traditional straight body design and the other with a unique curved body. This “pork chop” shaped stop allows you to set your stop position and slide a workpiece up to 7/8” thick under the stop without lifting it out of the way. Slide the workpiece out from under and it will fall back into place allowing you to use both stops on the same side of the blade for multi cut operations. The straight stop also includes an extension arm for those extra-large or unusually shaped workpieces. Buy the 2-Pc. Flip Stop Set separately (see chart below) and use them on any number of home-made jigs or fixtures with 1/4 -20 track.
Each system also includes a hardware pack to allow sacrificial fence faces to be installed. Each Pack Includes 6x ¼-20 flat head machine screws and oval nuts. This means you can make sacrificial faces out of any ¾” material with standard drill and countersink bits (not included). Because the hardware attaches to the T-track fence rails your sacrificial faces will be easily adjusted to create a zero clearance with your miter saw blade producing cleaner and safer cuts. The stops can be configured to be used with or without sacrificial fences.
If it is time to step up your game and improve your miter saw station the Infinity Miter Saw Fence System is just what you have been looking for and includes everything you need to start getting cleaner, safer, and more accurate results.
*Pro Tip, if the 48” fence rails are too long they can be cut with any miter saw with a carbide tipped blade. Be sure to clamp the fence rail securely before cutting.

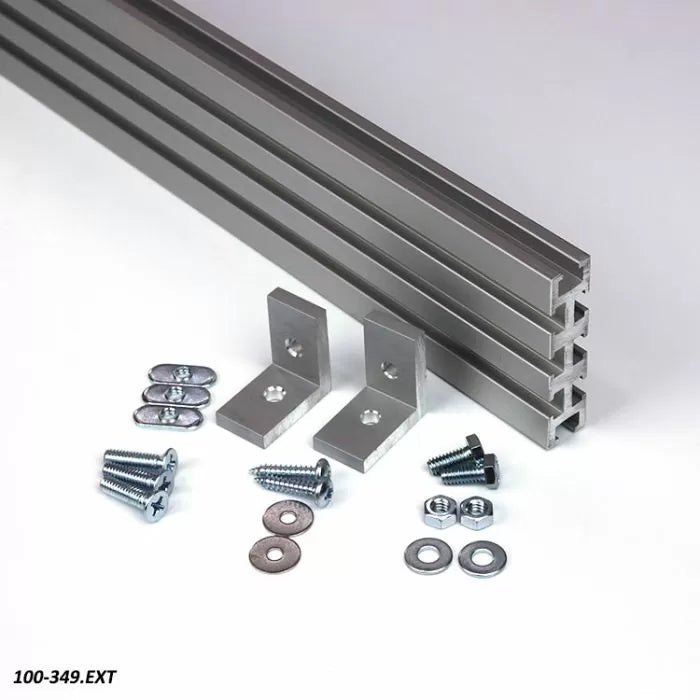

Need a longer fence either right or left of the blade? Add our 48" Extrusion Kit (100-349.EXT). This kit includes one 48" length of extrusion, a pair of mounting brackets, and a set of hardware to mount a sacrificial fence if desired. With this add on kit you can extend your Miter Saw Fence System an additional 4'.
Parts included:
- 2x 48” fence rails
- 4x mounting brackets with hardware
- 2x flip stops
- 2x adhesive tapes (imperial)
- 6x ¼-20 flat head machine screws and oval nuts
