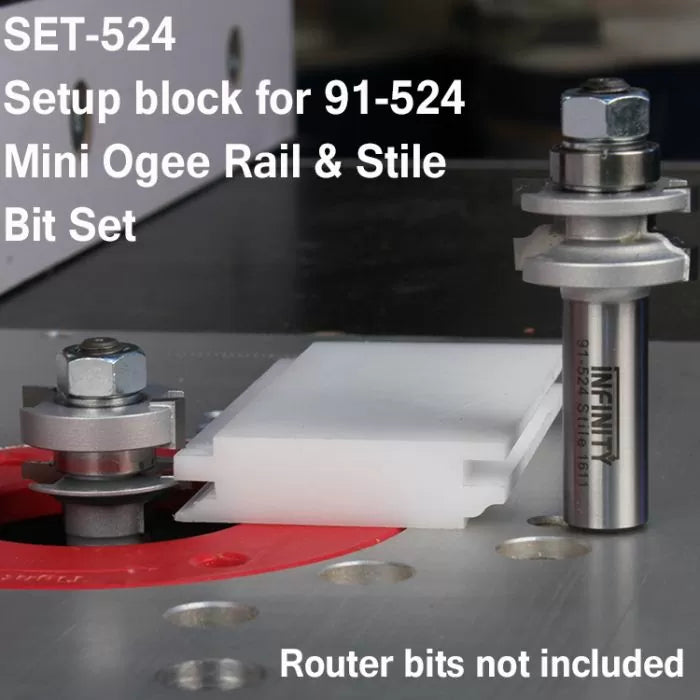

Bloque de configuración de brocas para enrutador premecanizado: para juego de brocas para enrutador mini Ogee s
Tómese el tiempo de preparar un juego de brocas para enrutador Ogee en miniatura (artículo 91-524) con nuestros bloques prefabricados. Fabricados con plástico de alta densidad precortado, harán que el frustrante proceso de preparación sea cosa del pasado.
Fácil de usar: solo tienes que ajustar la altura de la broca para que el bloque coincida con el perfil de la fresa. Como la altura de la broca se ajusta automáticamente, solo tienes que hacer unos pocos cortes de prueba para ajustar la altura. No desperdicies madera ni tiempo. Mira los útiles videos sobre el uso del bloque de ajuste.
Tenga en cuenta que los bloques de instalación que se entregan en pares no están pensados para que encajen a la perfección. Están pensados para servir como ayuda para ajustar la altura o para determinar la distancia de la valla.
Highest to Lowest
- Highest to Lowest
- Newest to Oldest
- Favorite Reviews
All Ratings
- All Ratings
- 5 ★ Reviews
- 4 ★ Reviews
- 3 ★ Reviews
- 2 ★ Reviews
- 1 ★ Reviews
Write a Review
Infinity Tools Setup Block For 91-524 Mini Ogee Router Bit Set How would you rate this product?
Please fix above errors.
set up block for 1/2 inch lapped miter router bit
This is from another reviewer from 2016..."Gets you in the arena, won't make a perfect cut. You need to make test cuts. Once you get them set the joint is excellent!". I completely agree. After dialing it in, I wrote down the measurements and was able to duplicate a very good joint.
Popular Questions
The larger diameter improves the cutting action of the bit by creating a shallower angle of attack. In turn this helps reduce chipping and tearout when routing into the grain or in figured woods.
Flush trim router bits can't be sharpened because they will become smaller in diameter and no longer match the guide bearing.
Eliminating tearout entirely will take more than just a different router bit. That being said, the large diameter and strong shear angles on the Mega flush trim bit will certainly help a lot when compared to a normal small diameter flush trim bit with no shear angle. Other factors that will affect trearout include, wood species, router and/or router table setup, depth of cut, work holding, backer boards, and bit speed.
Both are great options. In a spiral bit you would want a compression setup. The Mega Flush Trim is already configured this way. The spiral bit will not have bearings as the Mega Flush Trim does and is intended for template work and flush trimming.
Absolutely, I recommend one of the 1-1/2" diameter versions for edge jointing at the router table.
The cutter height is the distance between the bearings. We provide detailed schematic drawing that show all the measurement on our bits and cutter heads for your reference.
The glue in plywood will cause any router bit to dull more quickly compared to a typical North American Hardwood. It is the nature of the beast.
These bits are made to a very tight tolerance, the chances of the bit being out of tolerance are extremely small. Because this bit is quite large in diameter and tall it is important to insure that your collet are perfectly clean with no sawdust or other debris in it and that the bit is inserted properly and not bottomed out in the collet. Running the bit at proper RPM is also very important, We recommend starting at 16,000 RPM and making small speed adjustments if needed to best suit the material being routed. If you continue to have issues please contact us at customerservice@infinitytools.com and we can help troubleshoot further.
two slow will often feel like you are driving with a flat tire, too fast my have excessive vibration. usually these bits like 16k to 18k rpm which will typically be right in the middle of your speed setting range.
Yes, just ensure your using a variable speed router and adjust the speed for the size bit you are using.
