SKU: 100-129

Base magnética iGaging con indicador

Q: What does the magnetic base attach to?

The heavy-duty magnetic base attaches to any metal work surface and engages or releases with a built-in on/off switch. Browse more measuring & layout tools .

Q: Can I choose between a digital and a dial indicator?

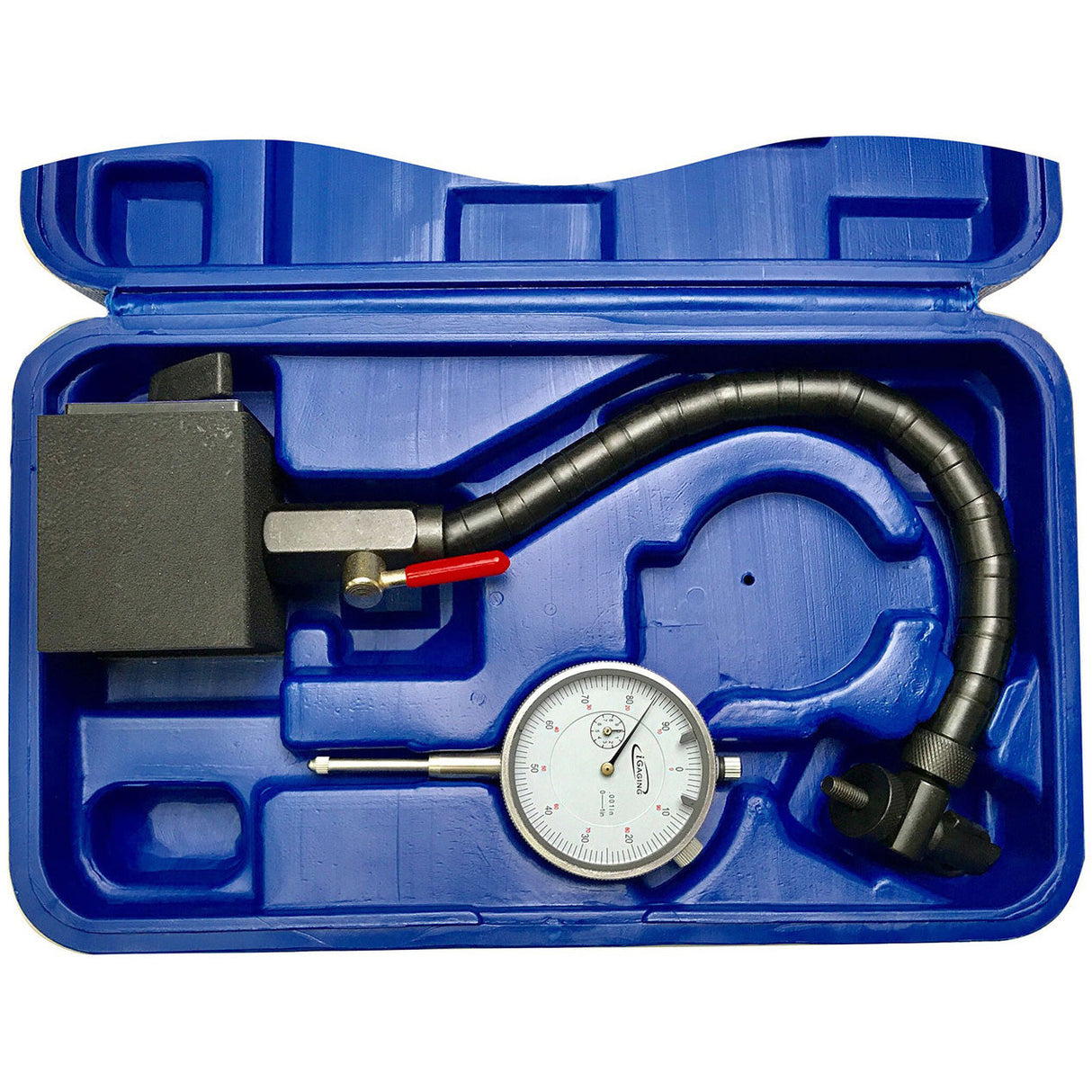

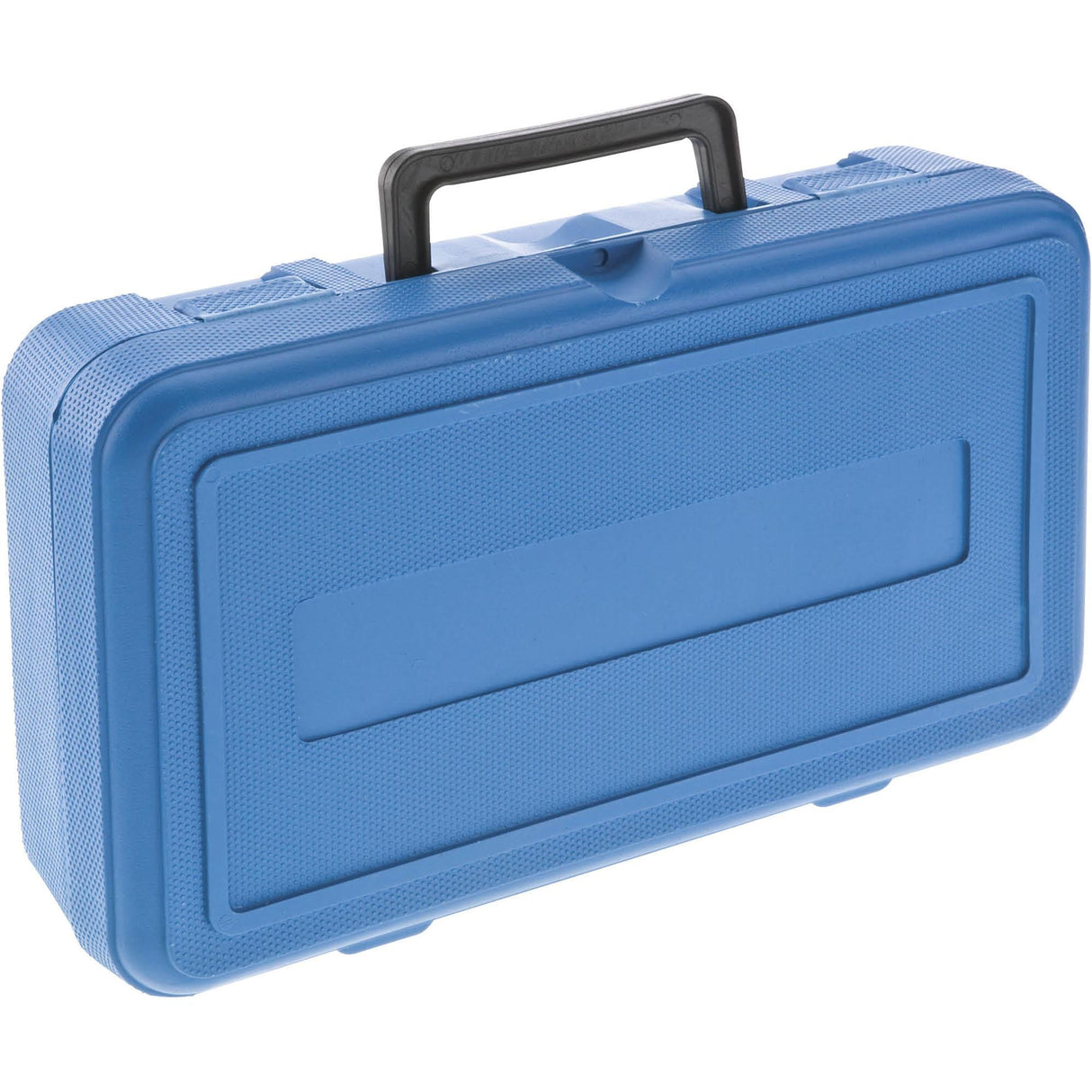

Yes. The base is offered with either a digital or a dial indicator , both covering a 0"–1" range. A sturdy carry case is included.

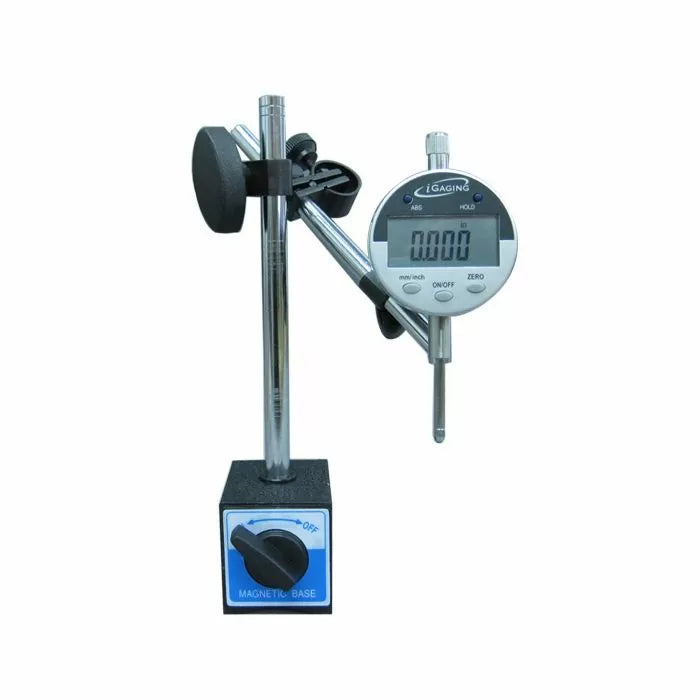

Q: How accurate is the digital indicator?

The digital indicator has a guaranteed accuracy of 0.001" / 0.01mm , with a resolution of .0005" / .01mm / 1/128" across its 0–1" range.

Q: What probes come with the digital indicator?

It includes 4 probes : a carbide ball, a large flat, a small flat and a point, so you can choose the right contact tip for each measurement.

Q: What machines can I set up with this tool?

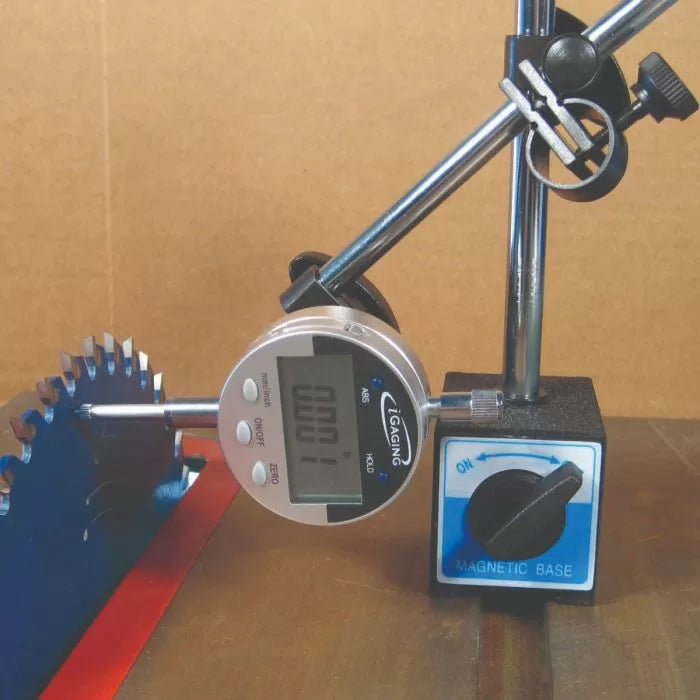

Use it to make precise adjustments to your table saw, bandsaw, jointer, drill press and router . It's especially handy for checking blade alignment and table saw runout. See related gauges & setup tools .

Q: Does the digital indicator read in metric?

Yes. The digital indicator has two reading functions, inch and metric , and also displays fractions, with absolute and incremental reading modes.

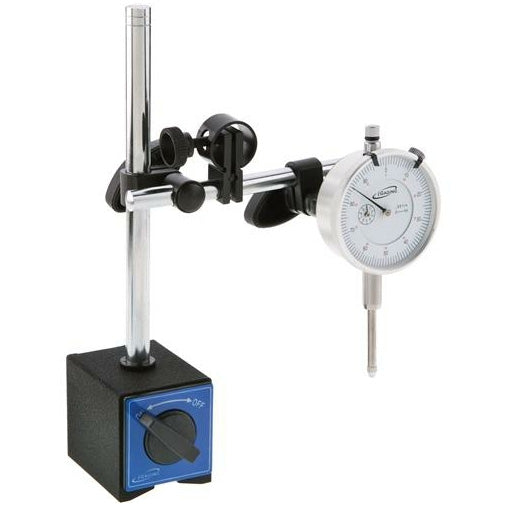

Q: What are the dial indicator's graduations?

The dial indicator reads 0.001" per line and 0.1" per revolution on an easy-to-read 2-1/4" white face, and is built to AGD specifications.

Q: Who makes this magnetic base and indicator?

It is made by iGaging . Pair it with other marking & layout guides for accurate machine setup.

$61.90

Opción

Con indicador digital Con indicador de cuadrante

Description Reviews Q&A

Esta base magnética de alta resistencia se fija a cualquier superficie de trabajo de metal con su interruptor de encendido y apagado. El brazo de extensión de metal cuenta con una articulación pivotante y tiene un punto de fijación conveniente para indicadores digitales o de cuadrante.

Utilice esta práctica herramienta para realizar ajustes precisos en su sierra de mesa, sierra de cinta, ensambladora, taladro de columna y fresadora. Es especialmente útil para comprobar la alineación de la hoja y el descentramiento de la sierra de mesa. El brazo de extensión tiene un punto de pivote accionado por resorte que se conecta al brazo del indicador de cuadrante.

Elija un indicador digital o de cuadrante, un indicador digital de 0" a 1" que muestra en pulgadas, unidades métricas y fracciones con una precisión garantizada de 0,001"/0,01 mm. Incluye nuestro resistente estuche de transporte.

Características del indicador digital:

4 sondas: bola de carburo, plana grande, plana pequeña, punta
2 funciones de lectura: pulgadas y métricas
Pantalla LCD extra grande
Opción de lectura absoluta e incremental con parte posterior plana o con lengüeta incluida
Estuche protector
Rango 0-1" Resolución: .0005"/.01mm/1/128 pulgadas Precisión: +/- 0.001"
Batería adicional incluida.

Características del indicador de cuadrante:

Esfera blanca de 2-1/4" fácil de leer con marcas negras
Graduaciones nítidas
Acabado cromado satinado duradero.
Los piñones y los trenes de engranajes de los husillos están fabricados con componentes de acero de alta calidad que garantizan una larga vida útil.
Construido según especificaciones AGD
Configuración de orejeta vertical hacia atrás
Graduaciones: 0,001" por línea, 0,1" por revolución

Frequently Asked Questions

What does the magnetic base attach to?

The heavy-duty magnetic base attaches to any metal work surface and engages or releases with a built-in on/off switch. Browse more measuring & layout tools.

Can I choose between a digital and a dial indicator?

Yes. The base is offered with either a digital or a dial indicator, both covering a 0"–1" range. A sturdy carry case is included.

How accurate is the digital indicator?

The digital indicator has a guaranteed accuracy of 0.001" / 0.01mm, with a resolution of .0005" / .01mm / 1/128" across its 0–1" range.

What probes come with the digital indicator?

It includes 4 probes: a carbide ball, a large flat, a small flat and a point, so you can choose the right contact tip for each measurement.

What machines can I set up with this tool?

Use it to make precise adjustments to your table saw, bandsaw, jointer, drill press and router. It's especially handy for checking blade alignment and table saw runout. See related gauges & setup tools.

Does the digital indicator read in metric?

Yes. The digital indicator has two reading functions, inch and metric, and also displays fractions, with absolute and incremental reading modes.

What are the dial indicator's graduations?

The dial indicator reads 0.001" per line and 0.1" per revolution on an easy-to-read 2-1/4" white face, and is built to AGD specifications.

Does the extension arm adjust?

Yes. The metal extension arm features a pivot joint and a spring-loaded pivot point that attaches to the arm of the indicator, letting you position the probe precisely.

Is a battery included with the digital model?

Yes. The digital indicator comes with a protective case and an extra battery included.

Who makes this magnetic base and indicator?

It is made by iGaging. Pair it with other marking & layout guides for accurate machine setup.
