SKU: 101-331

Punta de fluido Earlex: aguja, punta de fluido y tapa de aire para Earlex 6300

25 % de descuento
$44.93 $59.90
Tamaño

Puntas de fluido Earlex para el puerto de pulverización 6003, ahora descontinuado

Estos productos están descontinuados y en liquidación. Todas las ventas son definitivas; cuando se agoten, se agotarán.

Ya sea que esté trabajando con acabados ultrafinos o mezclas de viscosidad espesa para realizar recubrimientos gruesos, las agujas con punta de fluido Earlex son el complemento perfecto y confiable para su sistema de pulverización.

  • Agujas accesorias adicionales disponibles optimizadas para tareas específicas

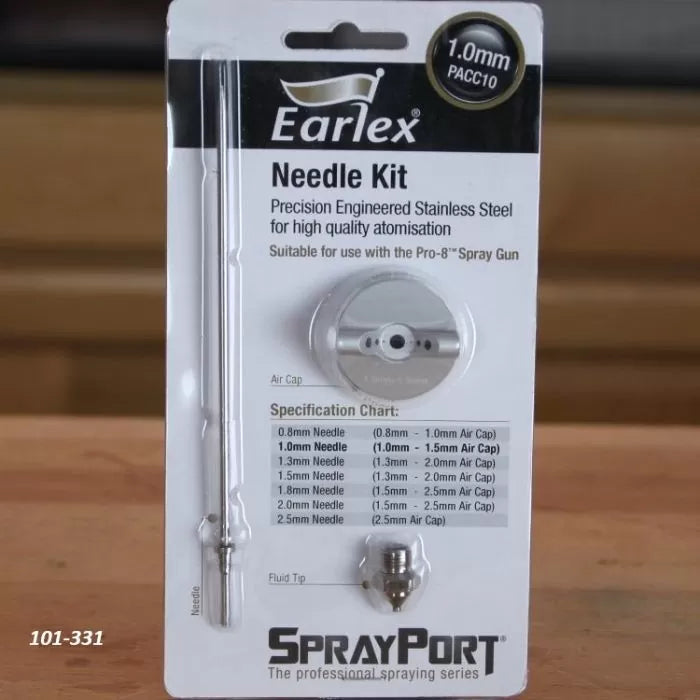

    • Aguja de 1,0 mm: aguja de 1,0 mm, punta de fluido y tapa de aire (101-331)
      • Atomización muy, muy fina
      • Rango de tapa de aire de 1,0 mm a 1,5 mm
      • Ideal para acabados a base de agua, lacas diluidas y lacas para acabados automotrices (acabado de alto brillo)

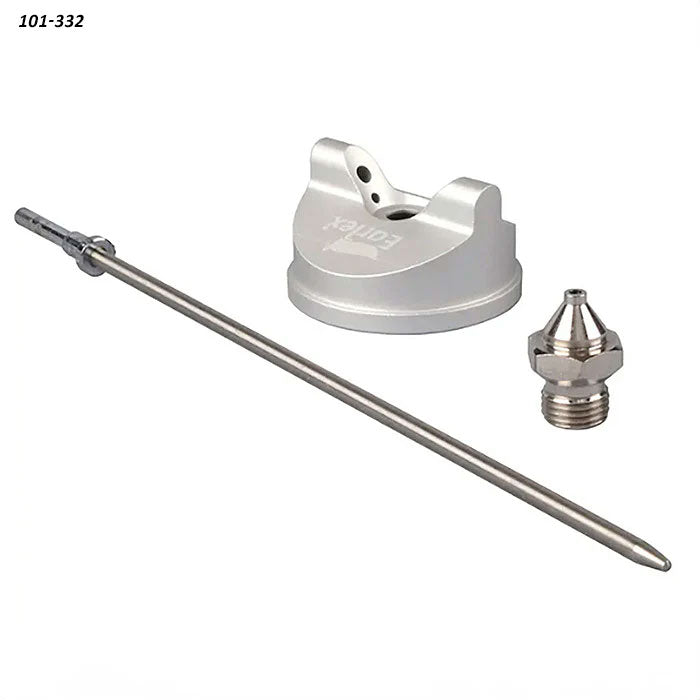

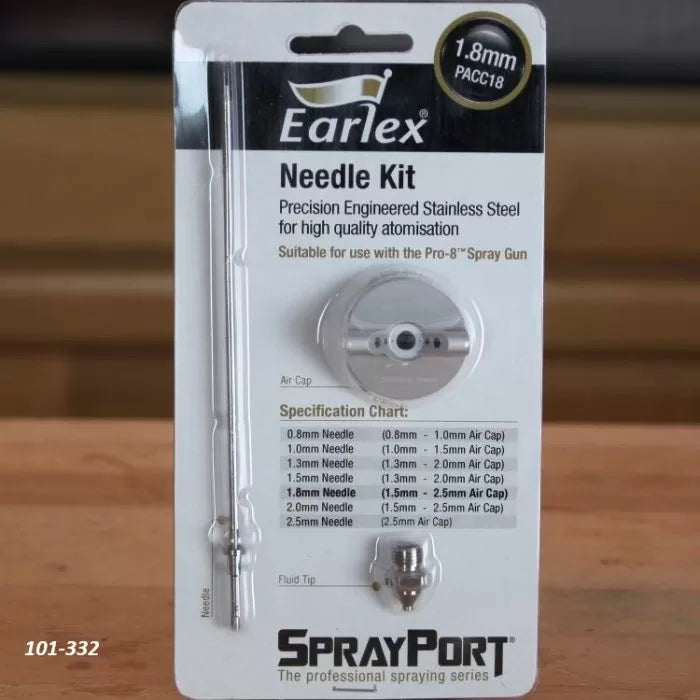

    • Aguja de 1,8 mm: aguja de 1,8 mm, punta de fluido y tapa de aire (101-332 )
      • Atomización media
      • Rango de tapa de aire: 1,5 mm a 2,5 mm (en el extremo superior de su rango)
      • Ideal para acabados a base de agua, poliuretano, aceite diluido y pintura de látex (acabado de muebles, gabinetes y molduras)

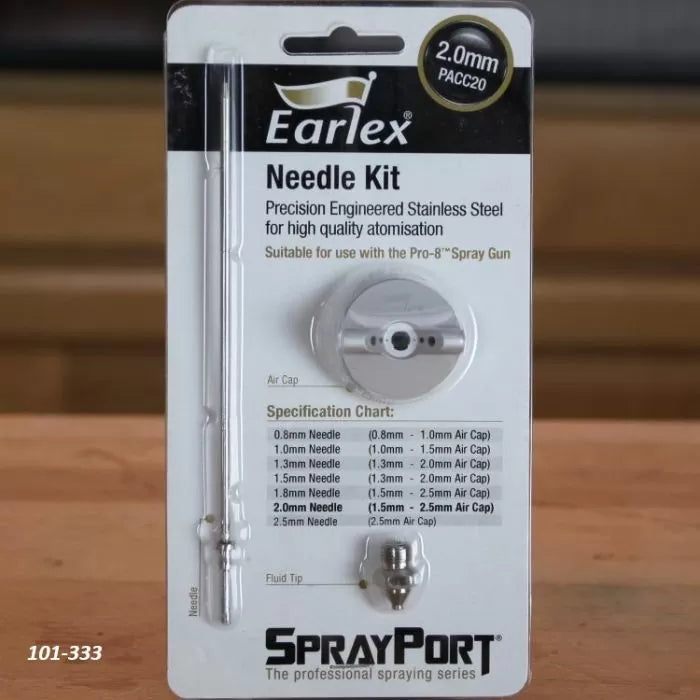

    • Aguja de 2,0 mm: aguja de 2,0 mm, punta de fluido y tapa de aire (101-333)
      • Atomización de cursos
      • Rango de tapa de aire de 1,5 mm a 2,5 mm (pulveriza fácilmente en el rango de 2,5 mm)
      • Ideal para barniz, poliuretano, pintura al óleo y látex (acabados de molduras y muebles de exterior).

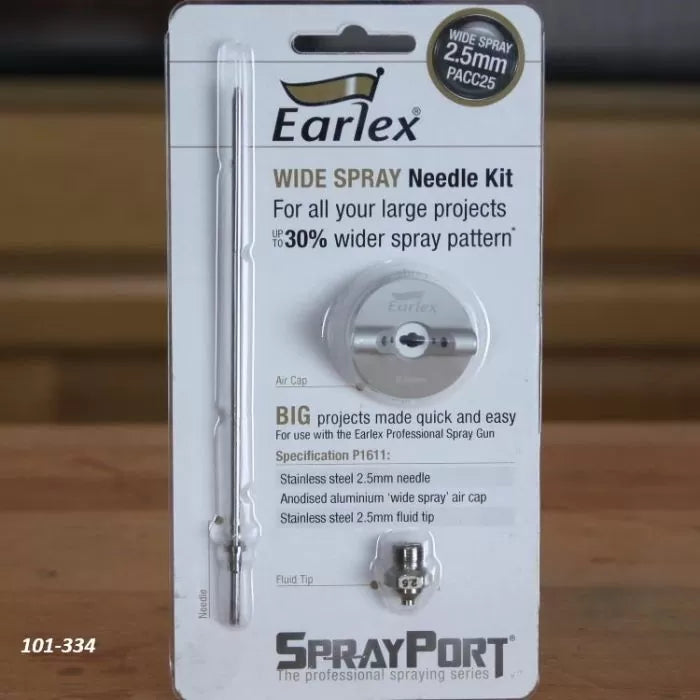

    • Aguja de 2,5 mm: aguja de 2,5 mm, punta de fluido y tapa de aire (101-334)
      • Atomización del curso muy
      • Rango de cabezal de aire de 2,5 mm con un amplio ángulo de pulverización
      • Ideal para pintura de látex espesa (paredes, terrazas, acabado de cercas)

**Nota**: Estas agujas no son compatibles con Earlex 5700. Para agujas Earlex 5700, haga clic aquí .

Frequently Asked Questions

Which Earlex spray system do these fluid tips fit?

They are made for the Earlex 6300 (the now-discontinued Spray Port 6003) spray system. They are not compatible with the Earlex 5700.

What sizes of needle are available?

Three sizes are offered: 1.0mm (101-331), 2.0mm (101-333), and 2.5mm (101-334), each supplied with a matching needle, fluid tip, and air cap.

What is included in each set?

Each set includes a needle, fluid tip, and air cap sized for a particular range of coatings.

Which needle is best for fine finishes like lacquer?

The 1.0mm needle (101-331) gives very fine atomization and is ideal for water-based finish, thinned lacquer, and high-gloss lacquer automotive finish.

Which needle should I use for varnish or poly?

The 2.0mm needle (101-333) provides coarser atomization with an air cap range of 1.5mm to 2.5mm, ideal for varnish, poly, oil, and latex paint on trim and outdoor furniture.

Which needle handles thick latex paint?

The 2.5mm needle (101-334) delivers very coarse atomization with a wide spray angle, ideal for thick latex paint on walls, decks, and fences.

Are these fluid tips compatible with the Earlex 5700?

No. These needles are not compatible with the Earlex 5700. They are made specifically for the Earlex 6300 spray system. See more spray finishing systems.

Are these products still in production?

No. They are discontinued and on close-out. All sales are final, and once stock is gone, they are gone.

Why would I switch fluid tips on my spray gun?

Different coatings atomize best at different orifice sizes. Matching the tip to the material's viscosity gives smoother coverage and fewer defects across fine and heavy finishes.

What safety gear should I use when spraying?

Use appropriate respiratory and eye protection when spraying finishes. Browse shop safety gear to protect yourself during finishing work.
