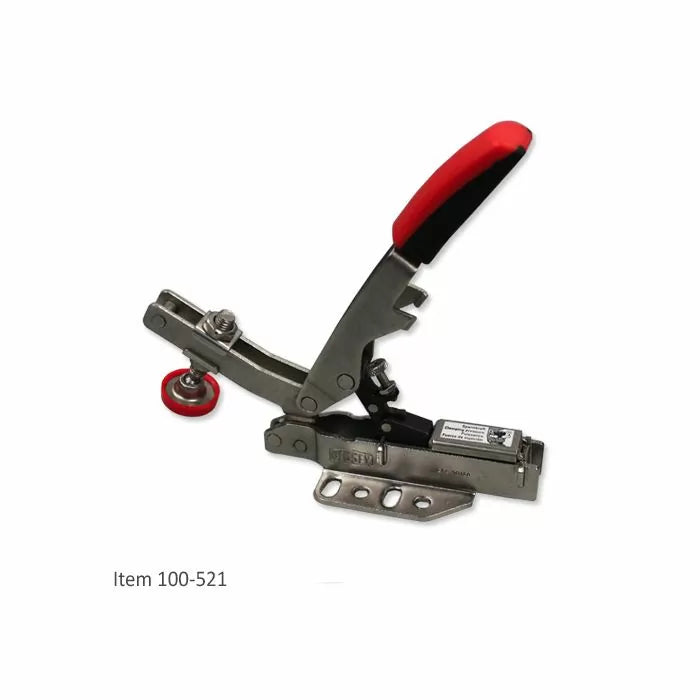

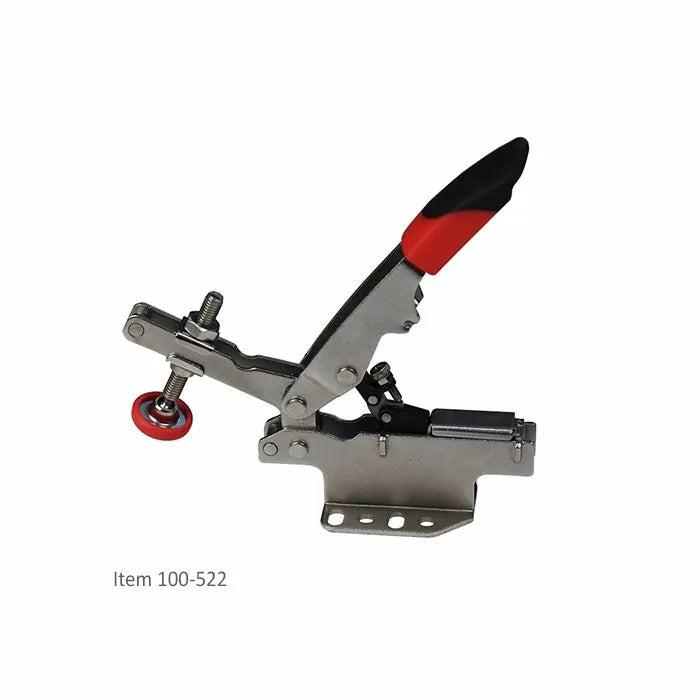

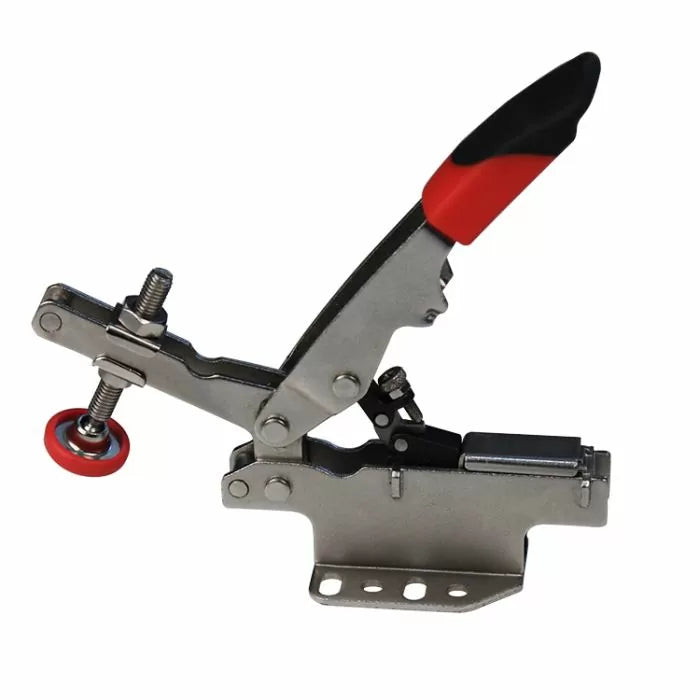

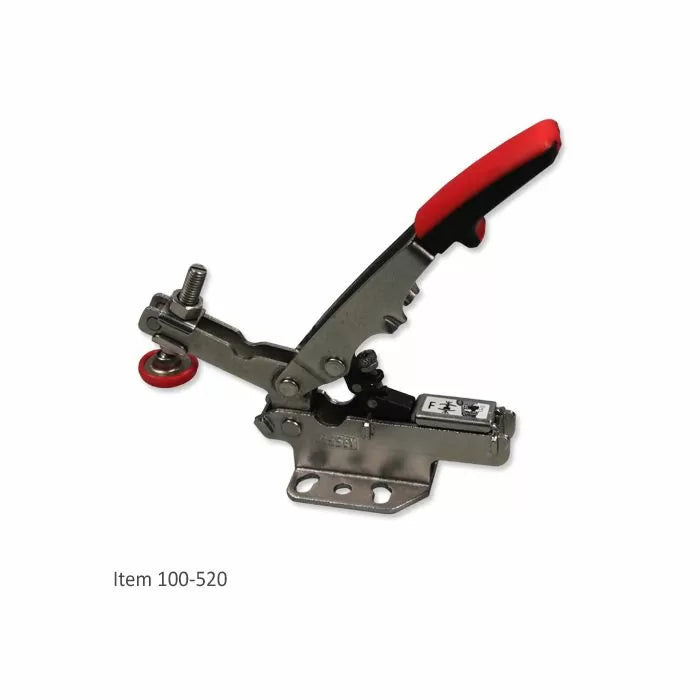

Bessey Auto Adjust Toggle Clamps

Auto-Adjust Toggle Clamps - Revolutionary Workholding For Your Shop!

Whether woodworking is your hobby or your profession you should seriously consider these Auto Adjust Toggle Clamps for your shop. They give your woodworking jigs another dimension of speed, accuracy and convenience. Unlike conventional Toggle Clamps that need to be re-adjusted every time your material thickness changes, these Toggles automatically maintain constant clamp pressure. No more stopping to manually adjust the lock nut and pressure pad height, simply switch material thickness and clamp as you did before. Now that is a huge time saver!

Features Include:

• Automatically adjusts to variations in work piece thickness while maintaining constant clamping force
• Adjustable clamping force via the integrated set screw lets you add or subtract holding power as you see fit
• Heavy duty flanged base plate features multiple mounting points for ultimate fixture building flexibility
• Heavy duty flanged base designed for use with M5 or 3/16" fasteners (not included)
• Large handle with soft rubber inserts provides all-day comfort even in a production environment
• Removable non-maring plastic cap covers the 7/8" diameter swivel pad

Specifications of this STC-IHH15 clamp as follows:

• Note: this inline style of toggle 'pushes' forward to clamp and does not 'press' down
• Accepts stock thickness from 0" to 2" with 1" of pad depth adjustment
• Handle lock position is horizontal
• Heavy duty flanged base designed for use with M5 or 3/16" fasteners (not included)
• Maximum opening is
• Nominal clamping force range from 25-550 lbs.
• Holding capacity 450 lbs.
• Base plate - 2-1/4" W x 2-1/2" L

Specifications of this STC-HH20 clamp as follows:

• Accepts stock thickness from 0" to 1-1/2" with 1/2" of pad height adjustment
• Handle lock position is horizontal
• Heavy duty flanged base designed for use with M5 or 3/16" fasteners (not included)
• Nominal clamping force range from 25-250 lbs.
• Holding capacity 450 lbs.
• Base plate - 2-1/4" W x 2-1/2" L

Specifications of this STC-HH70 clamp as follows:

• Accepts stock thickness from 0" to 2-1/4" with 1" of pad height adjustment
• Handle lock position is horizontal
• Heavy duty flanged base designed for use with M6 or 1/4" fasteners (not included)
• Nominal clamping force range from 25-550 lbs.
• Holding capacity 700 lbs.
• Base plate - 2-1/4" W x 2-1/2" L

Specifications of this STC-HH50 clamp as follows:

• Accepts stock thickness from 0" to 1-1/2" with 1/2" of pad height adjustment
• Handle lock position is horizontal
• Heavy duty flanged base designed for use with M6 or 1/4" fasteners (not included)
• Nominal clamping force range from 25-550 lbs.
• Holding capacity 700 lbs.
• Base plate - 2-1/4" W x 2-1/2" L
