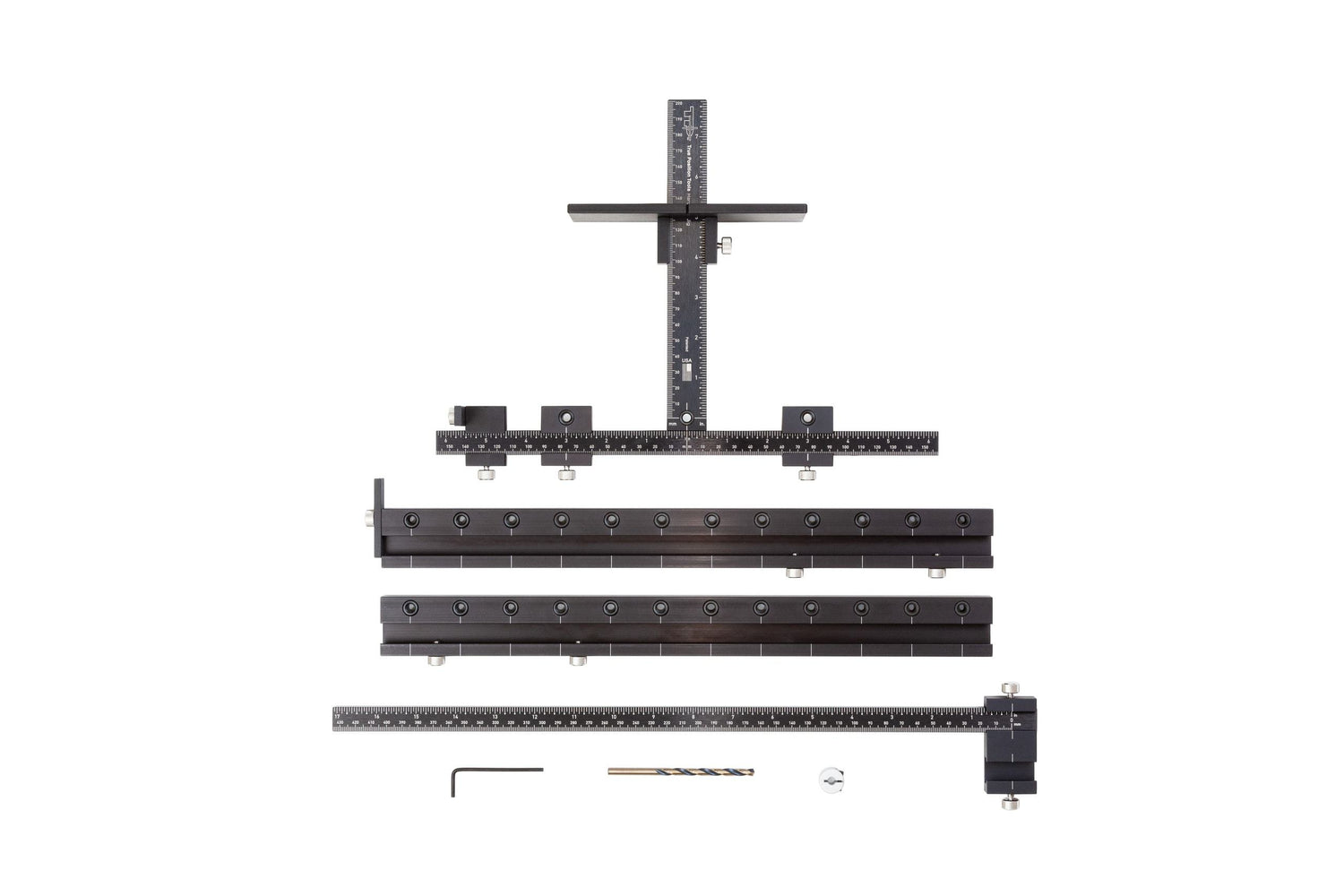

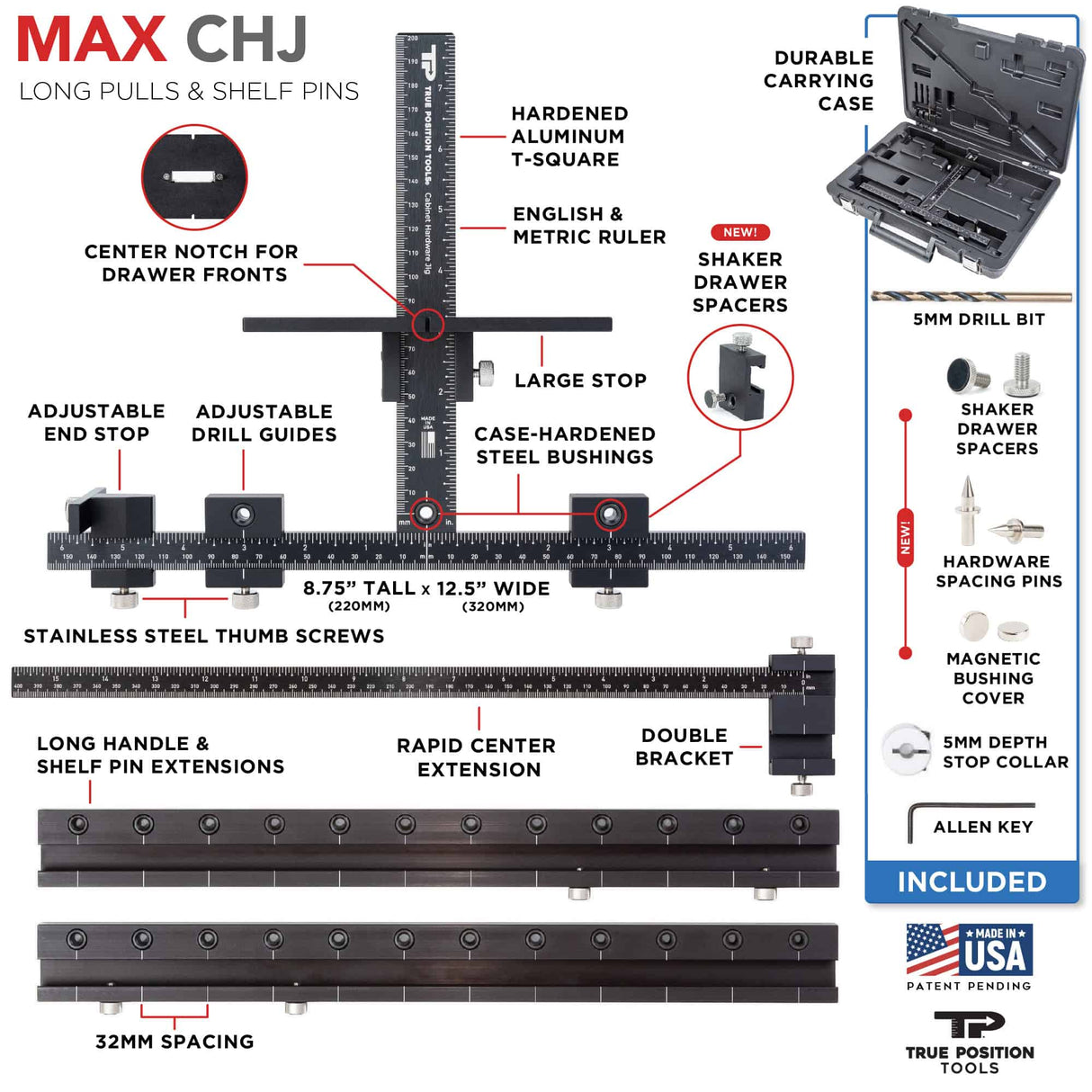

True Position Tools Cabinet Hardware & Shelf Pin Install Jig

It is machined and calibrated to within 0.005", using a patent-pending True Calibration system paired with Perfect Match laser-engraved rulers for repeatable, symmetrical hardware placement.

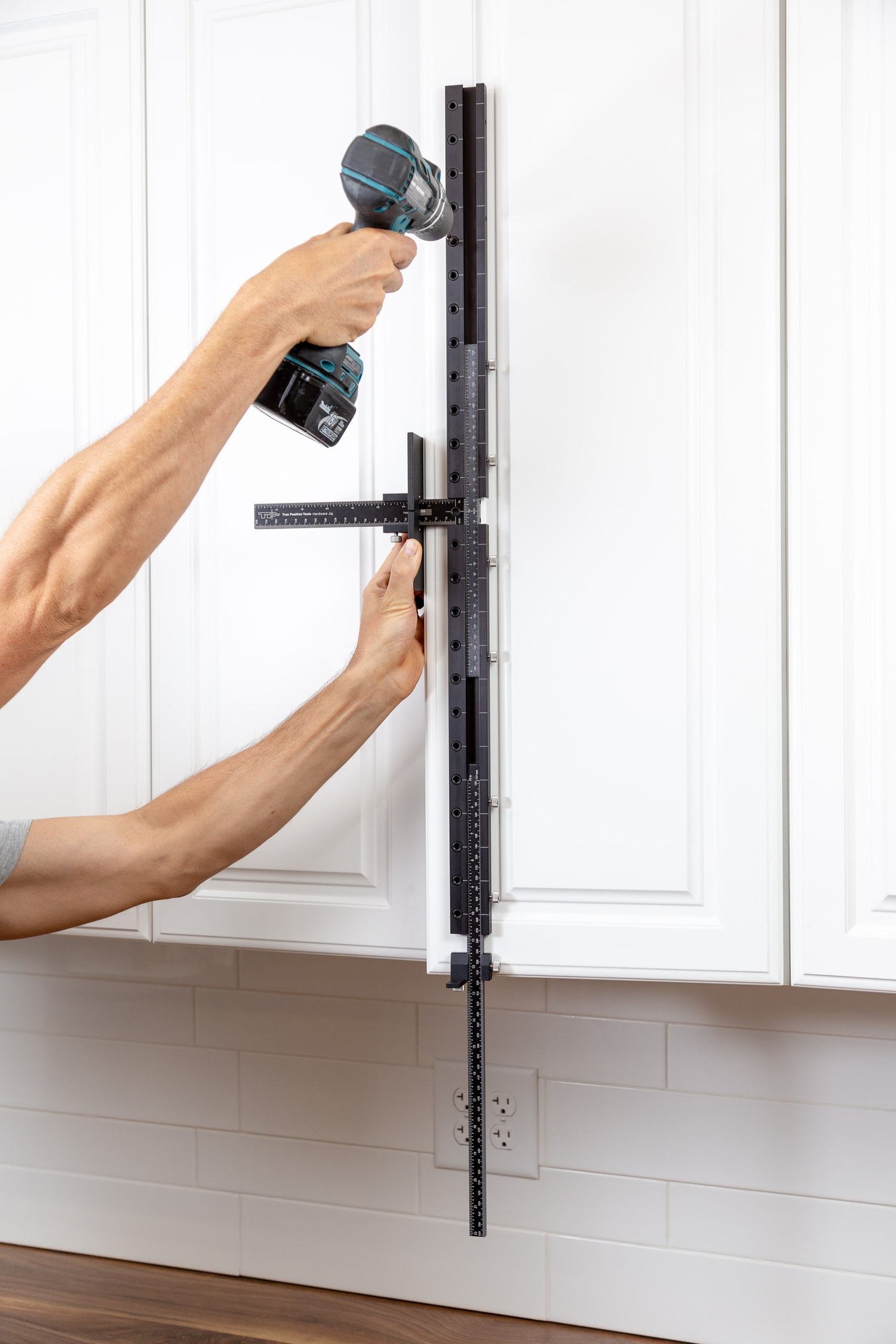

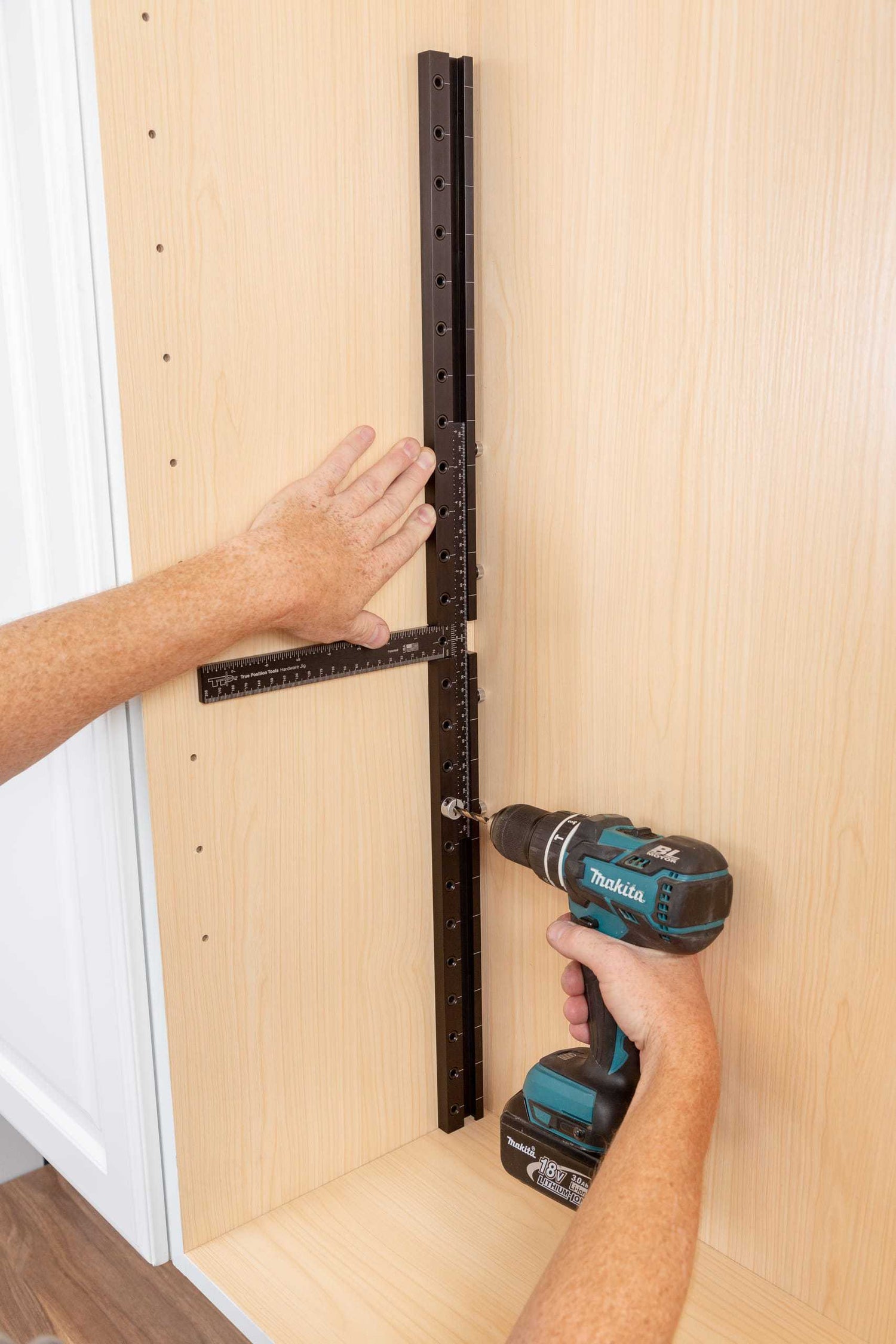

No clamp is needed. The design lets you simply hold the jig in place and drill, which speeds up repetitive hardware installation. Browse related drilling & boring tools.

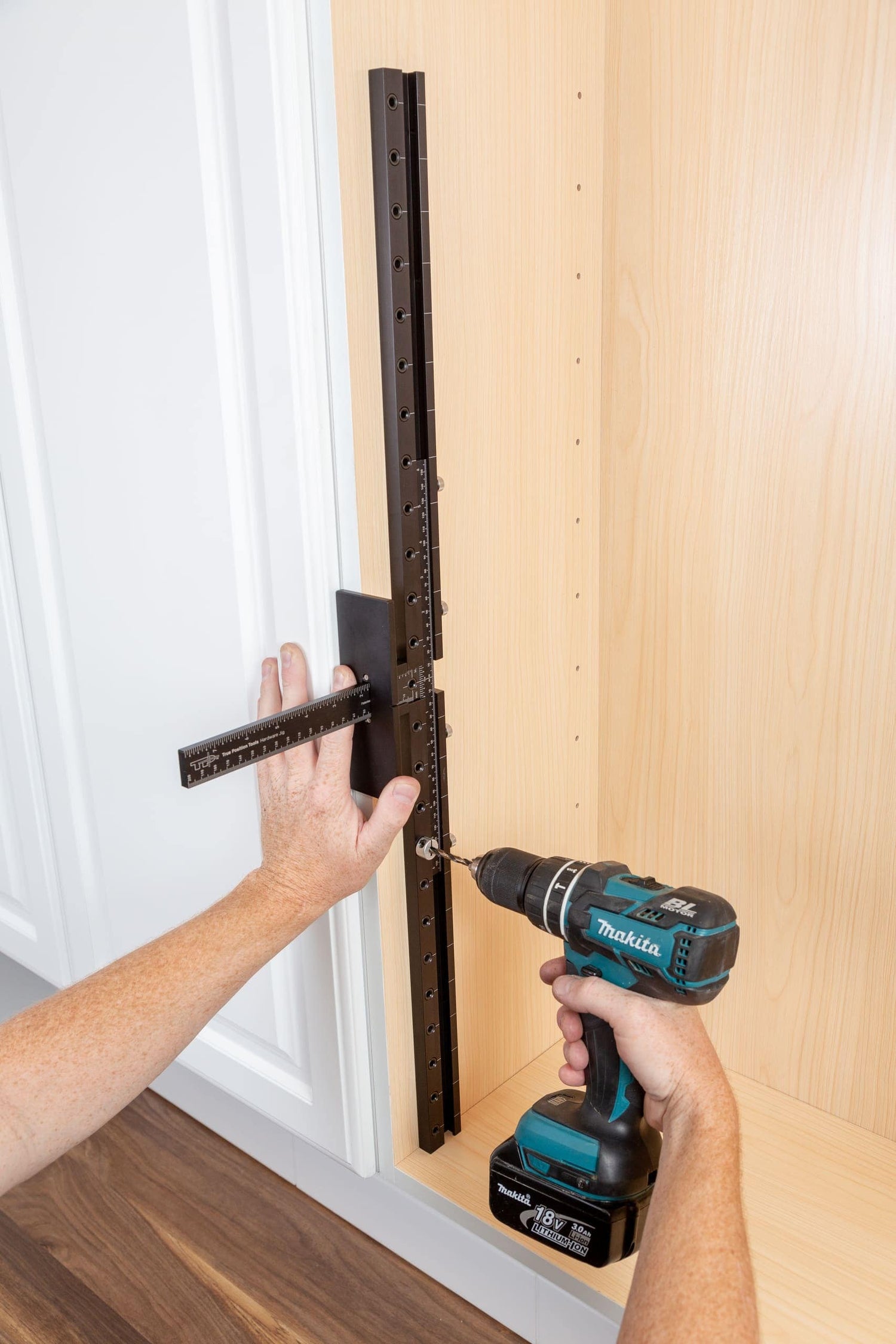

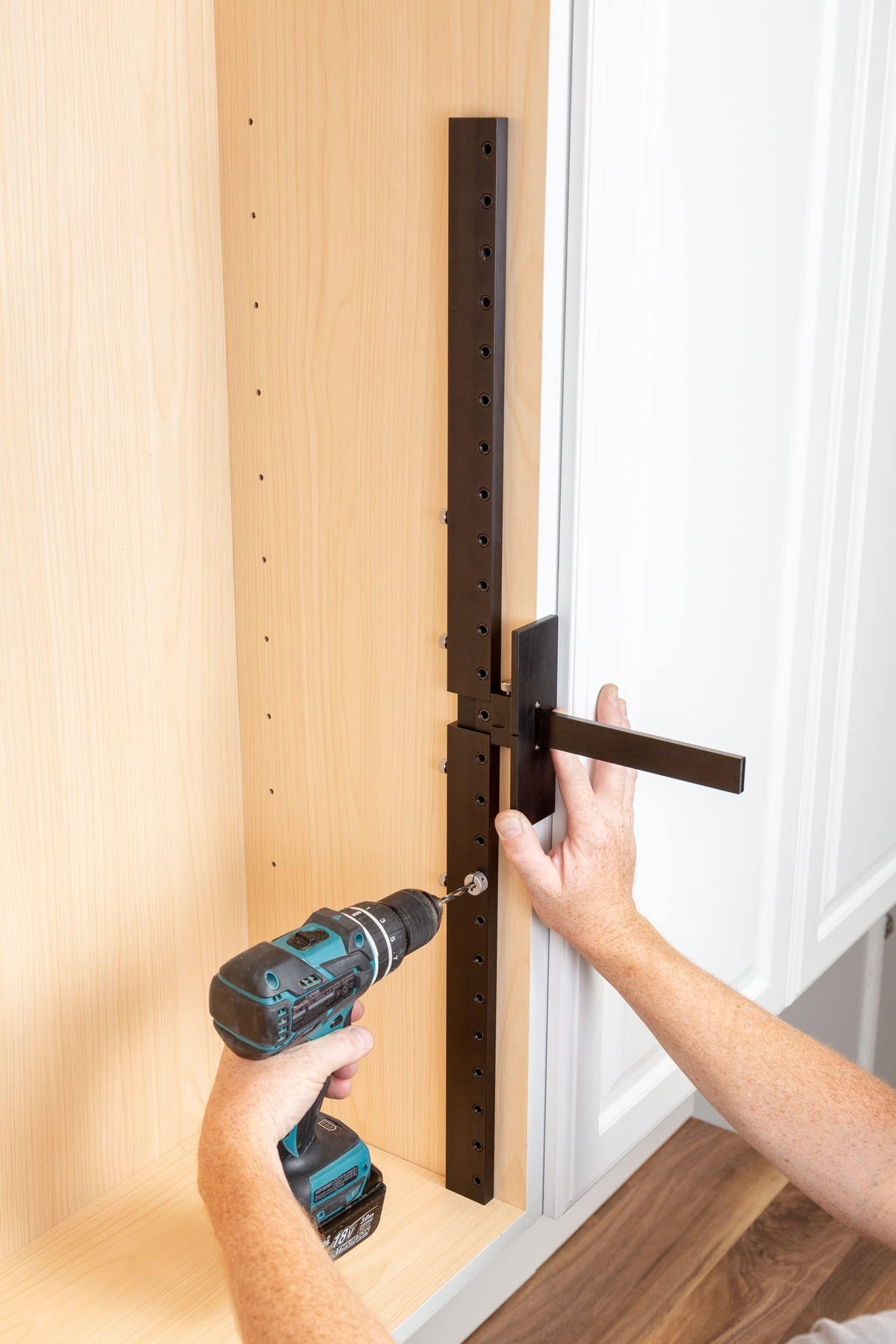

Yes. The jig is designed for locating and milling cabinet door and drawer hardware as well as shelf pin holes, making it a versatile cabinetmaking tool.

It is built from anodized aluminum rated 3X stronger for durability, helping it hold its calibration through repeated use.

The bushings are rated for 10,000+ holes, so the jig is built to handle high-volume cabinet and drawer hardware work.

Yes. The rulers are laser engraved in both Imperial and Metric graduations, so you can lay out hardware in whichever measurement system your project requires.

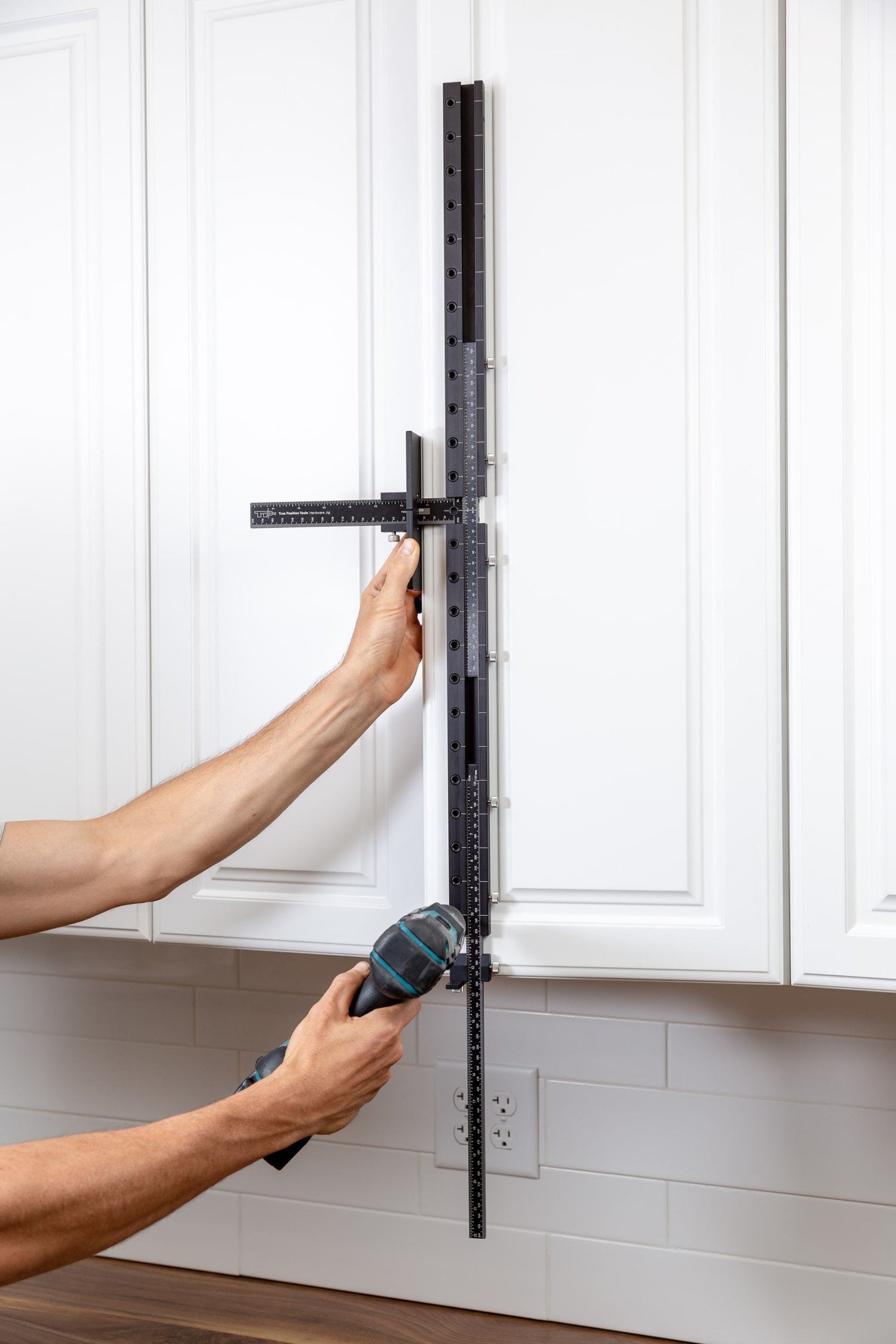

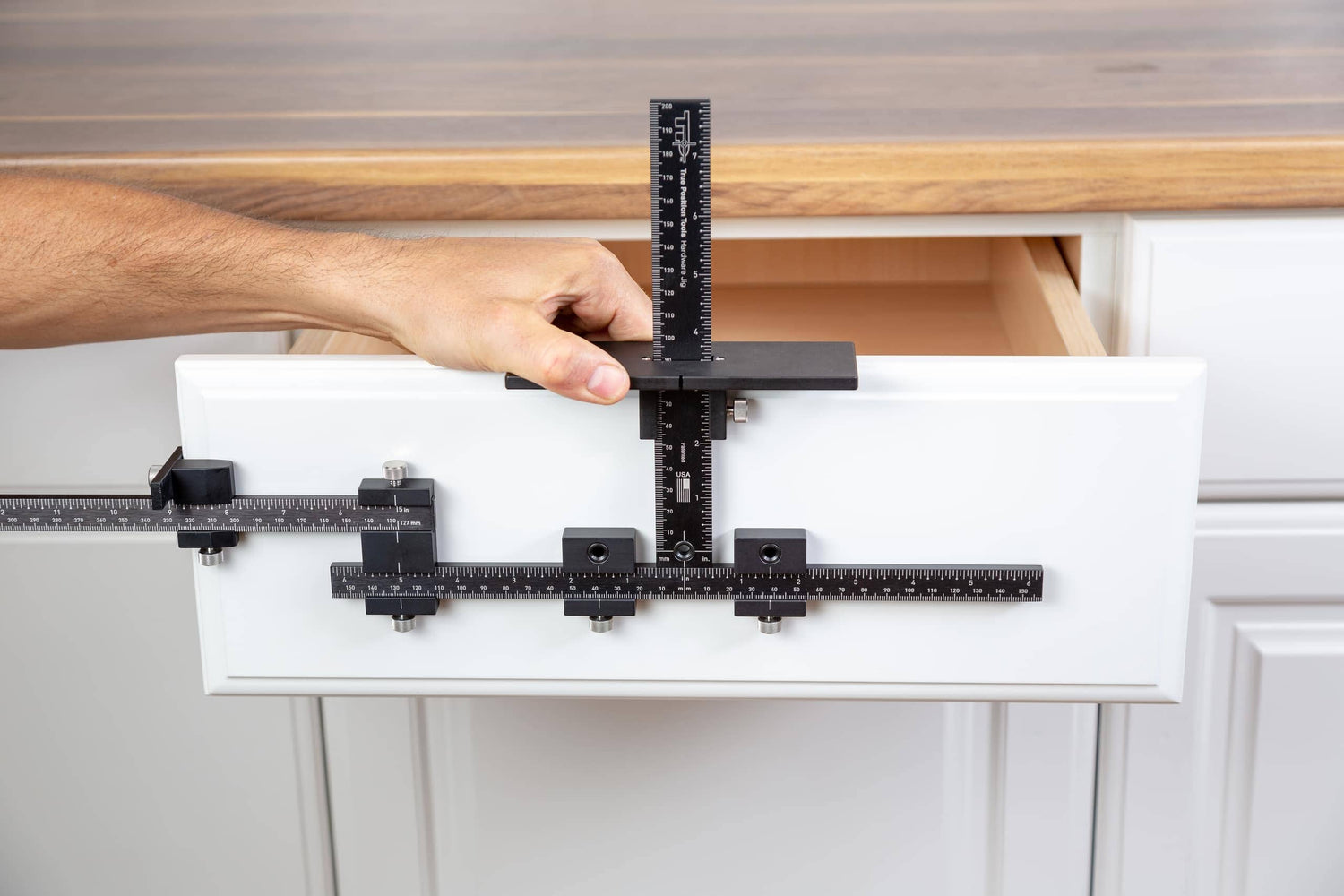

You can locate and drill for handles and knobs on both cabinet doors and drawers, achieving even and symmetrical hardware locations across a project.

It is made by True Position Tools, whose Calibrated Cabinet Hardware Jig is described as the most accurate cabinet hardware jig on the market. Pair it with drill press accessories for precise hole work.

Yes. The True Calibration system and matched rulers are designed to produce even, symmetrical, repeatable hardware locations from one piece to the next.
