Infinity Tools SuperNut Table Saw Arbor Nut
Fully Engaged Threads for Full-Stack Dado Sets
The Infinity SuperNut Arbor Nut is a smarter, safer upgrade for table saws with a standard right-hand 5/8"–12 TPI Acme-threaded arbor, including SawStop and most full-size cabinet saws. It tightens clockwise and is not compatible with left-hand–threaded arbors or right-tilt saws.
A Better Arbor Nut Design

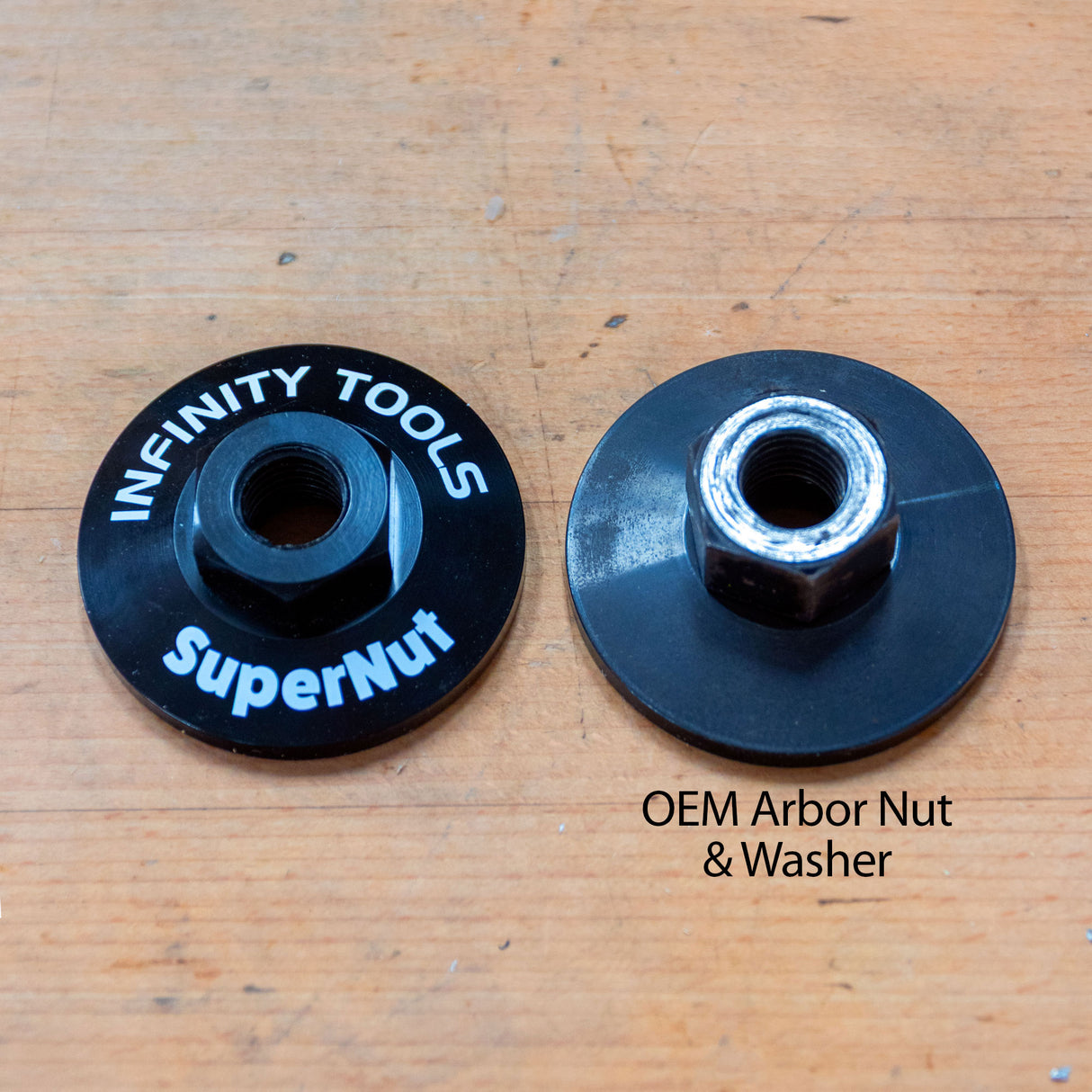

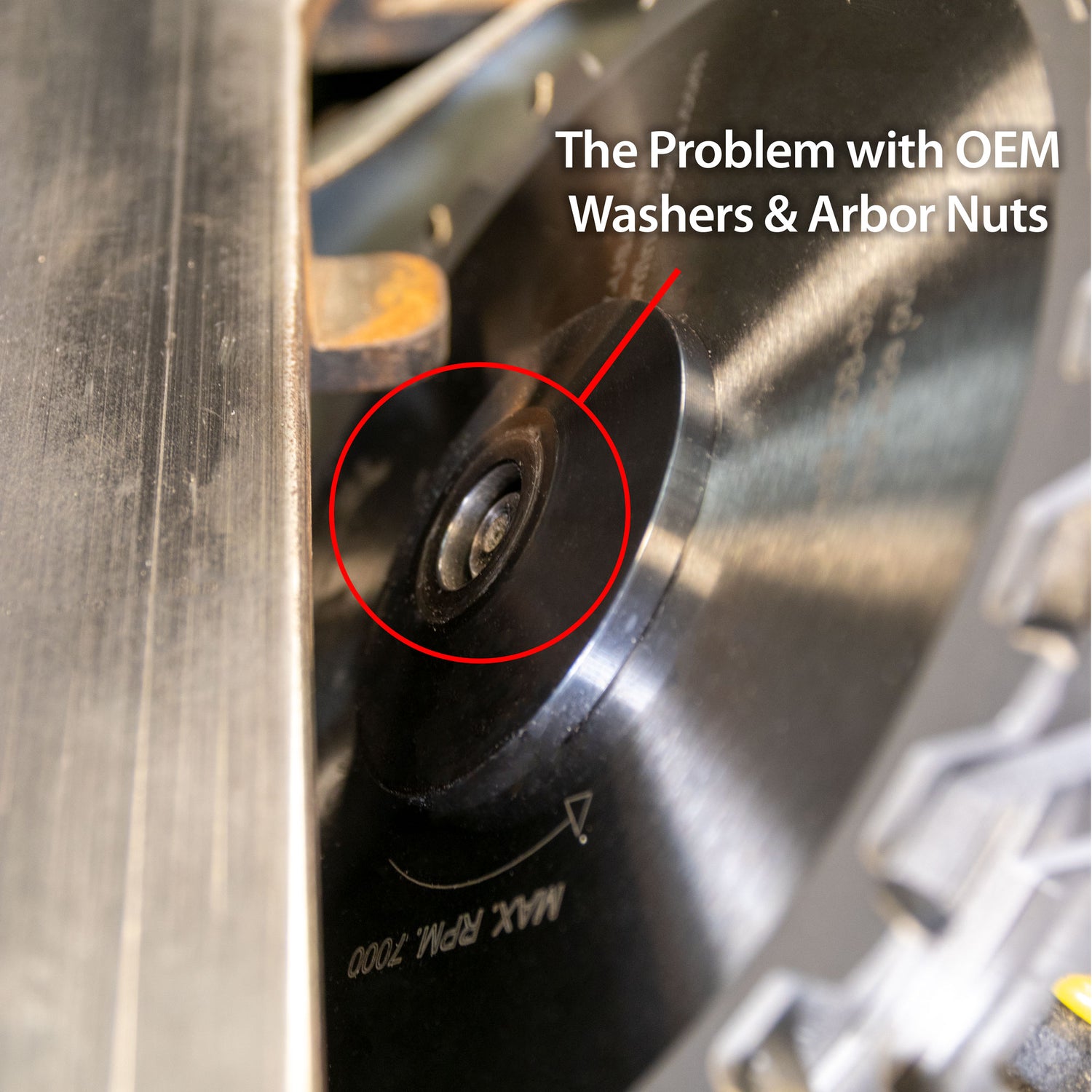

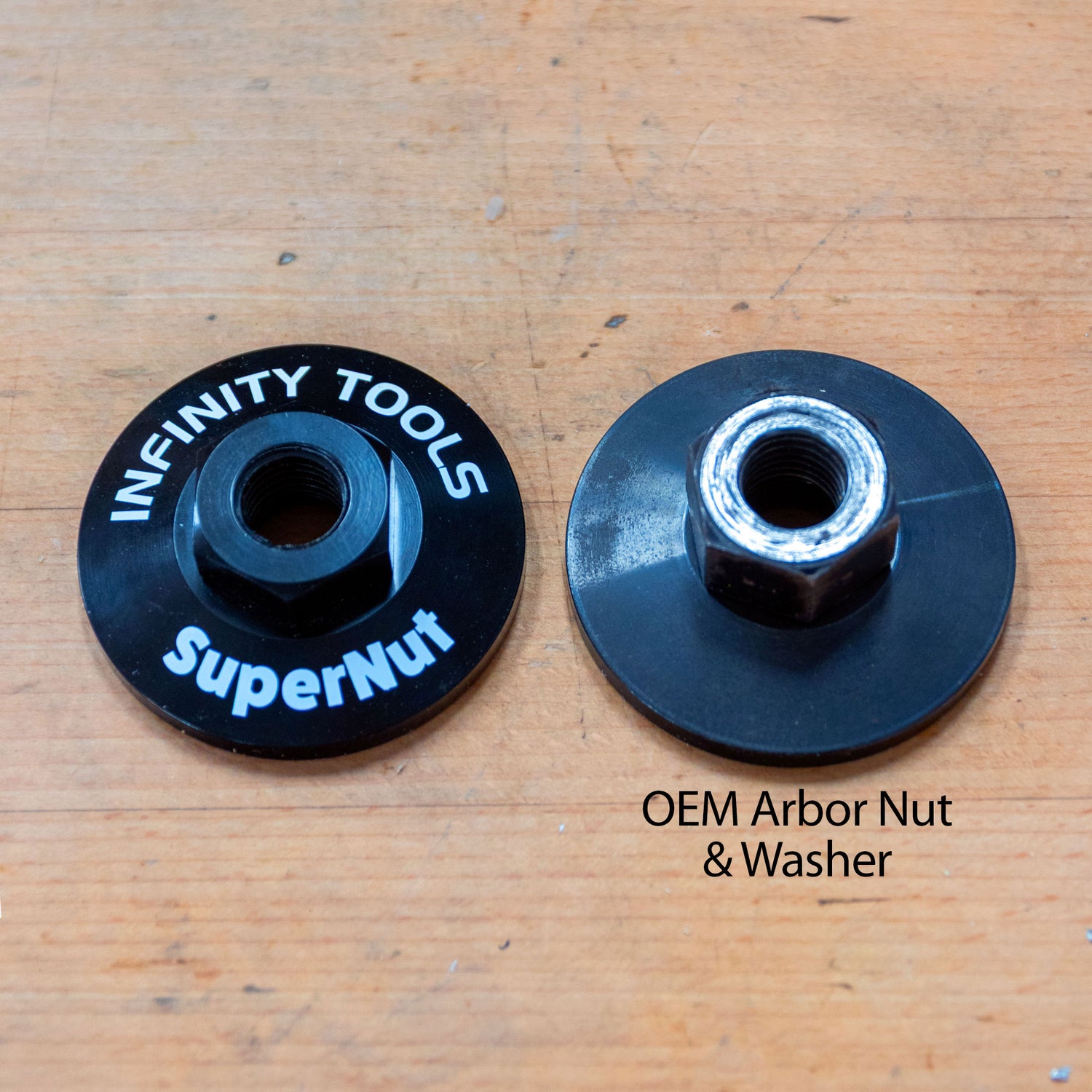

Traditional arbor nuts use a separate nut and flange—easy to drop inside the saw and often too bulky for wide dado stacks. When cutting dados, these parts can take up valuable arbor length, reducing thread engagement and compromising safety.

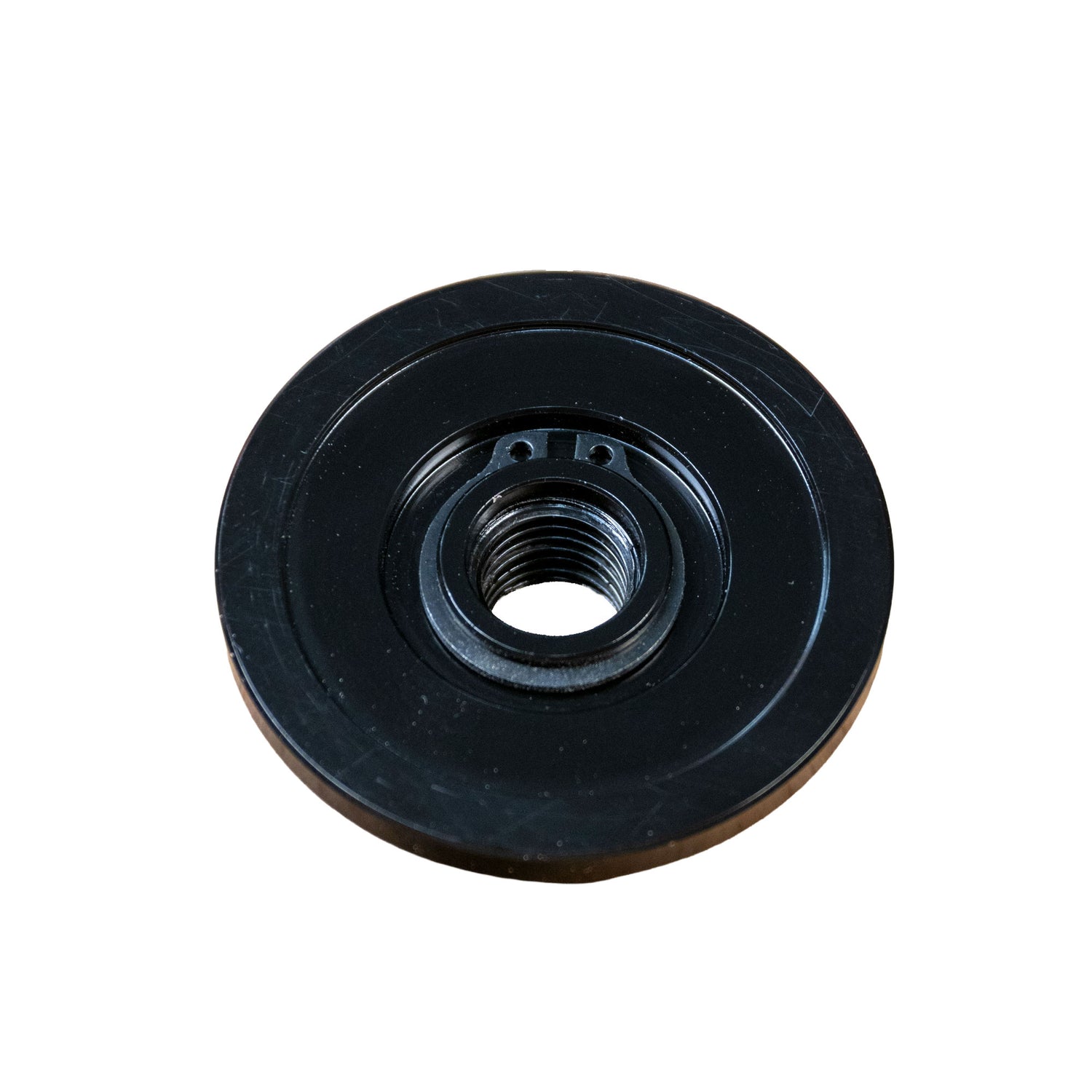

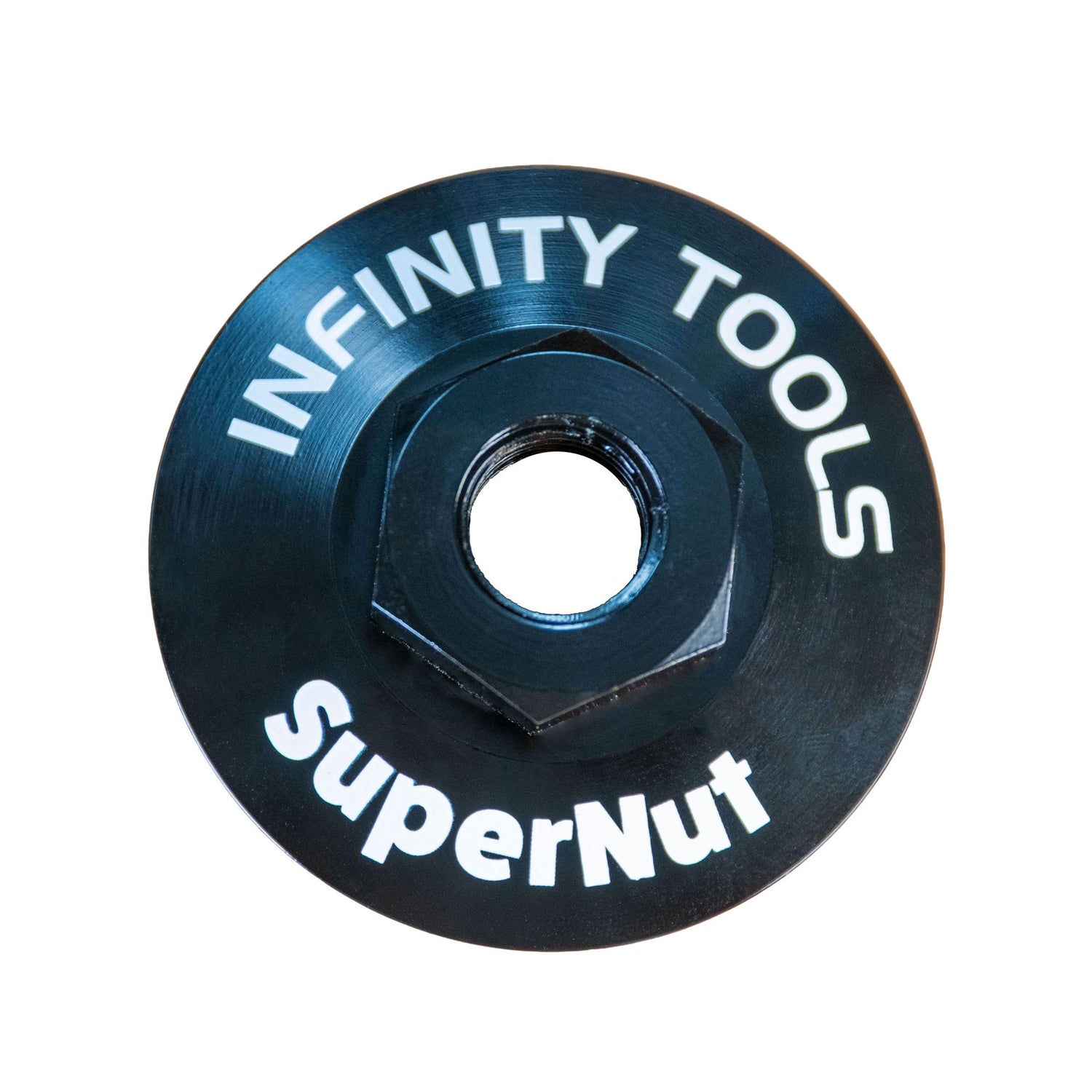

The SuperNut solves these issues with a compact, one-piece design that integrates the flange and nut. Nothing to lose, nothing to fumble, and full thread engagement even with wide dado sets.
Compact Profile, Maximum Clearance

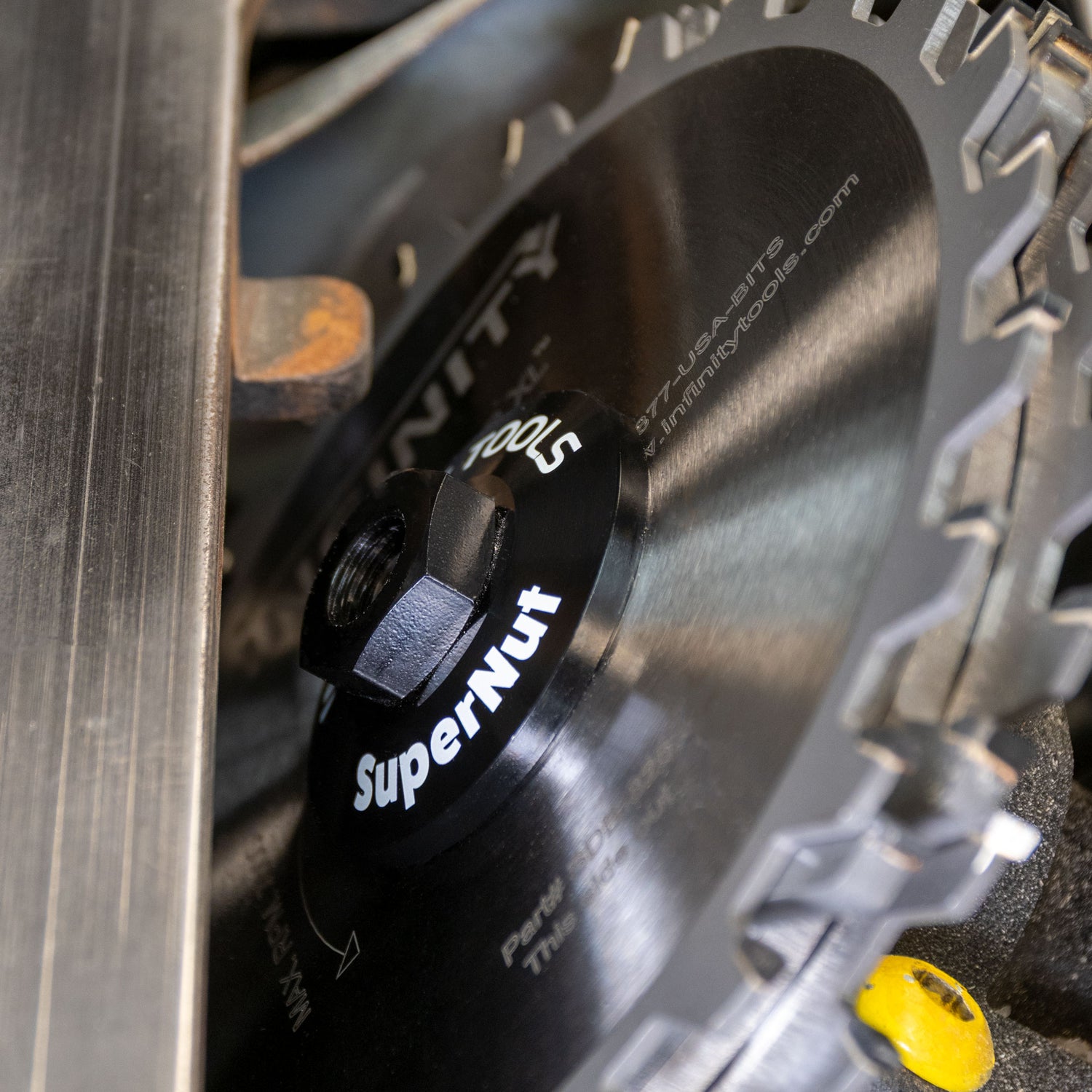

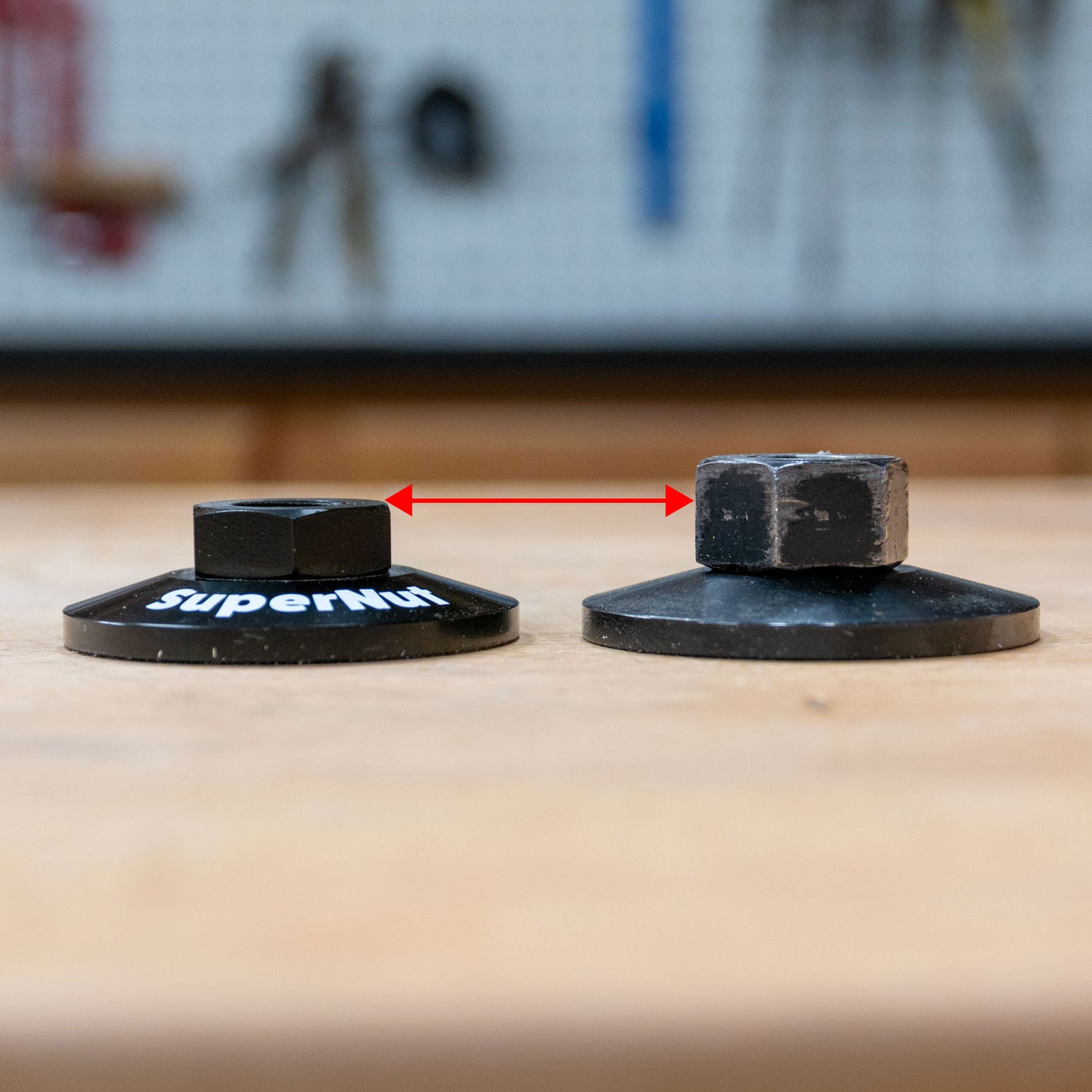

Designed specifically for 5/8" Acme-threaded arbors, the SuperNut measures just 25/32" thick, providing added clearance under the throat plate. It works with your saw’s factory hex wrench and allows a full dado stack to tilt to 45° at full blade height without contacting the throat plate.

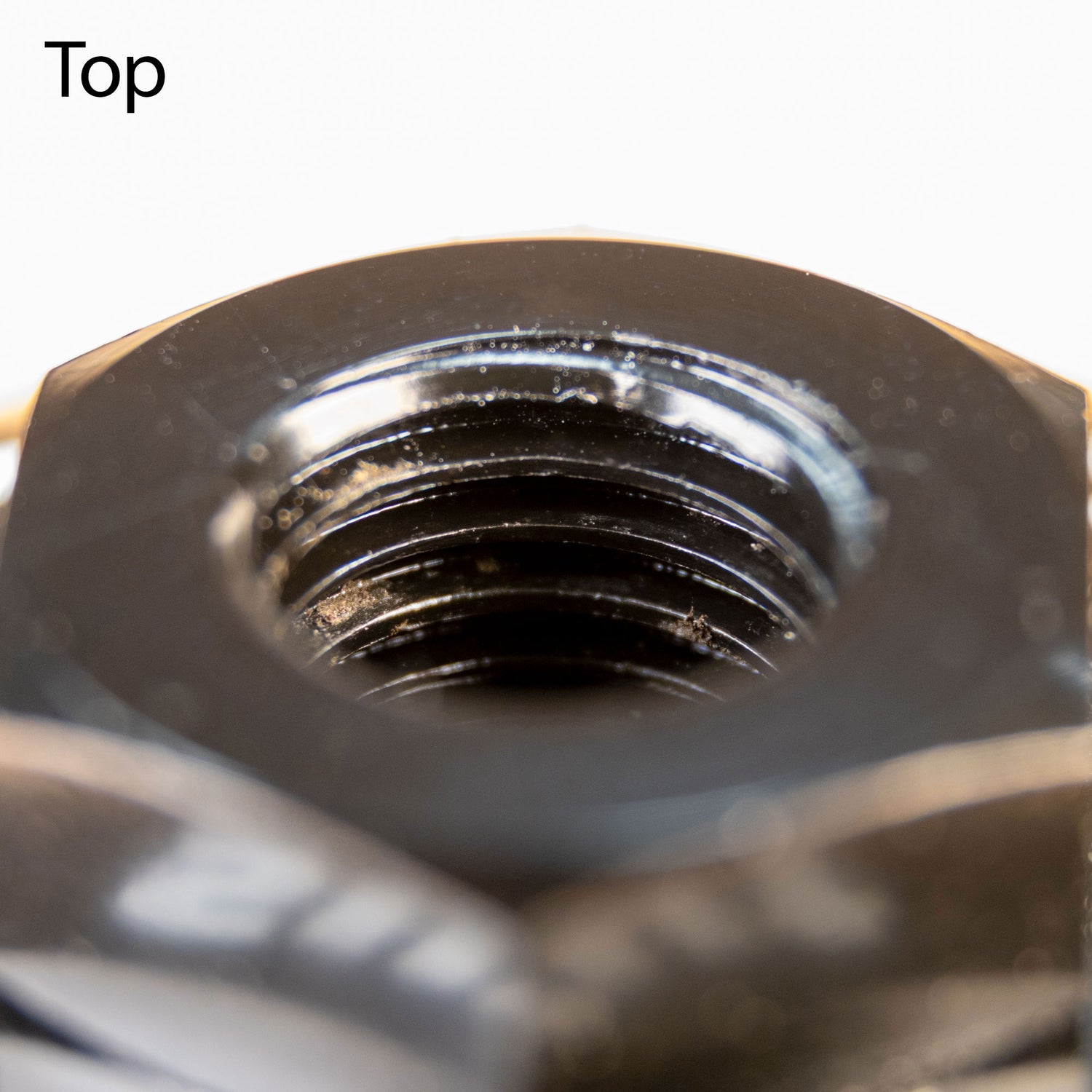

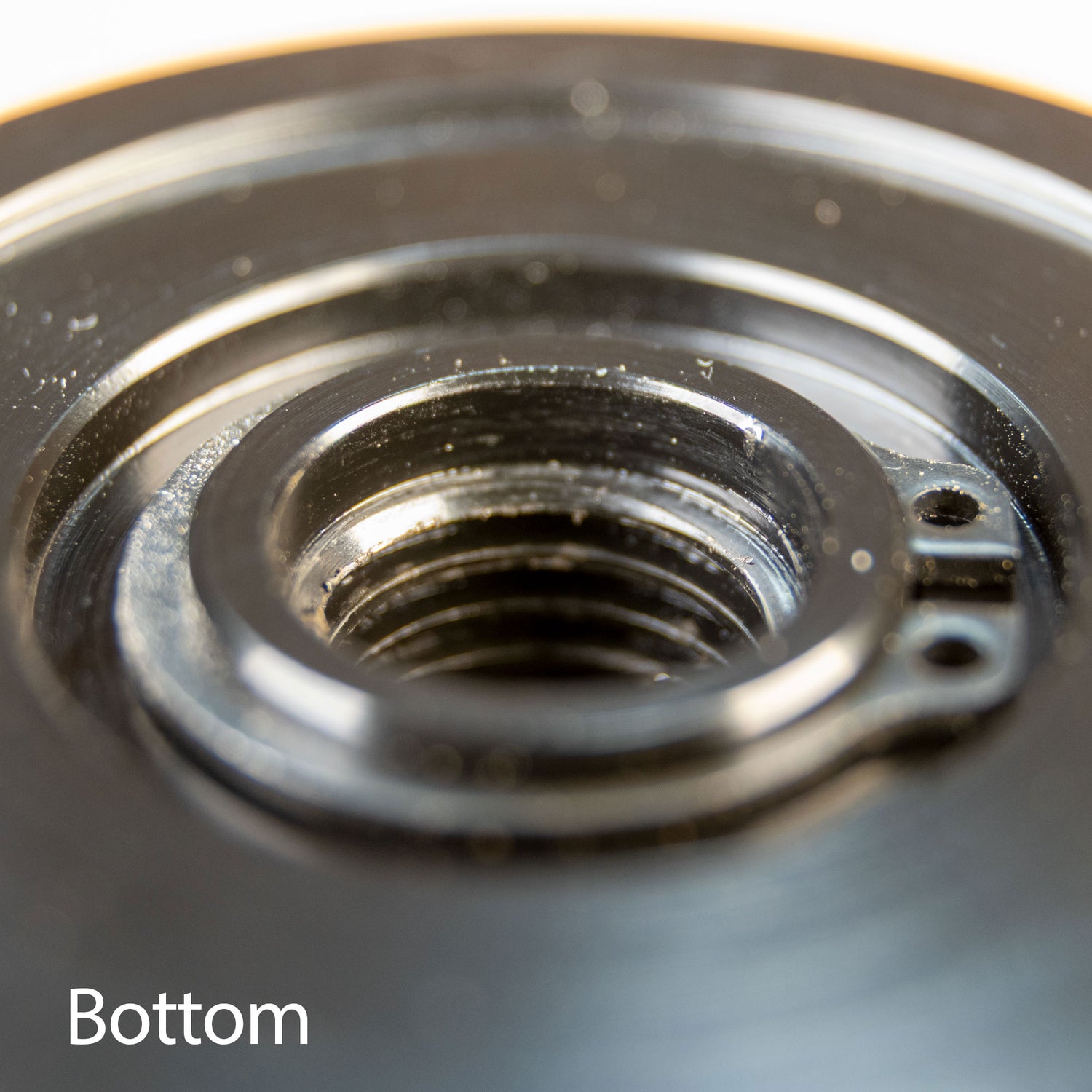

Threads extend through the entire flange, ensuring a secure, confident hold on standard blades and full-width dado stacks alike.
Faster Blade Changes, Fewer Headaches
With the flange permanently attached, dropped hardware becomes a thing of the past. Blade changes are quicker, easier, and more reliable—keeping your workflow smooth and your focus on the cut.
Key Features
- Integrated design – Nut and flange are permanently connected
- Proper fit – For right-hand 5/8" Acme-threaded arbors (not for left-hand threads or right-tilt saws)

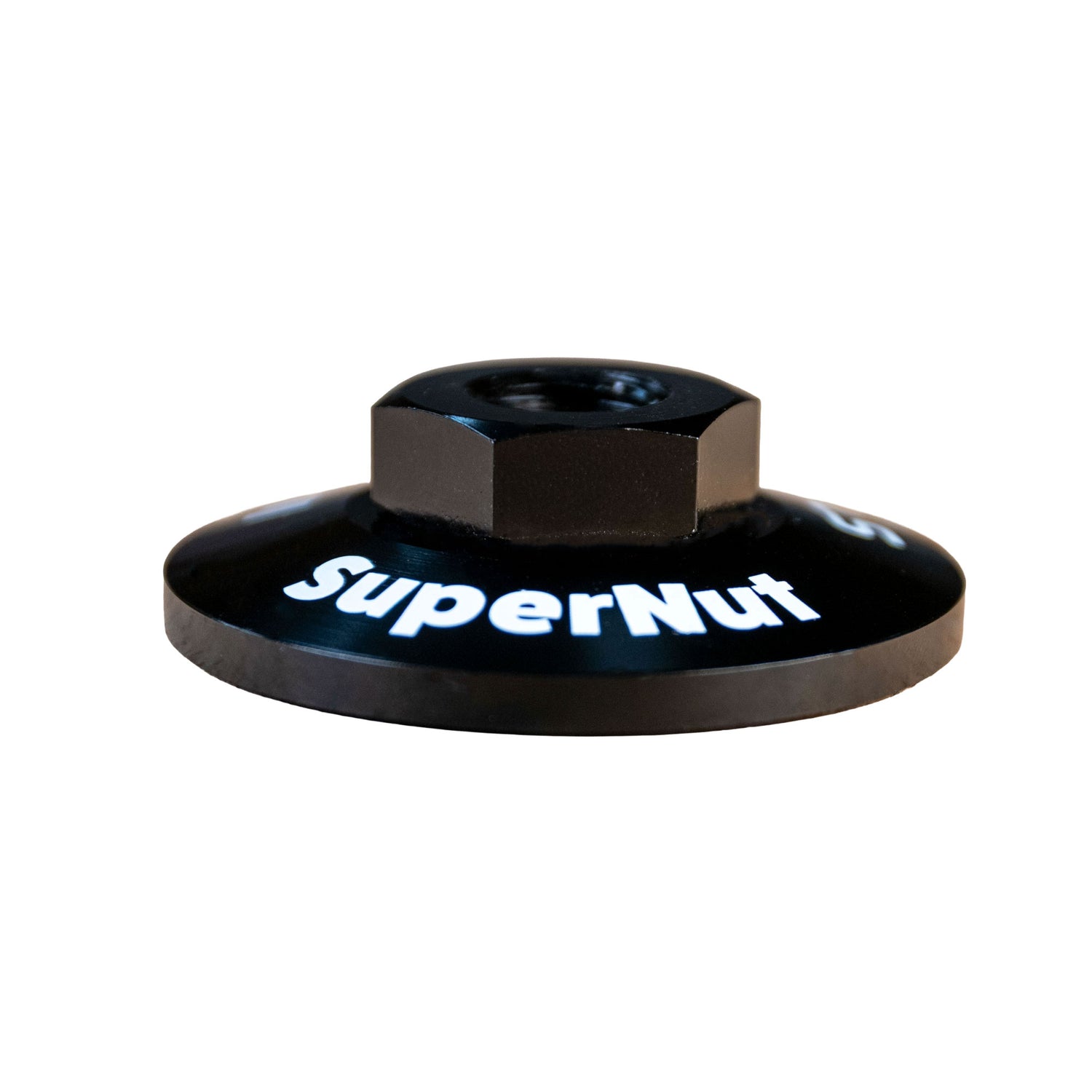

- Slim profile – 25/32" thickness for increased internal clearance
- Dado ready – Maintains full thread engagement with wide dado stacks
- More efficient workflow – No dropped parts, faster blade changes
