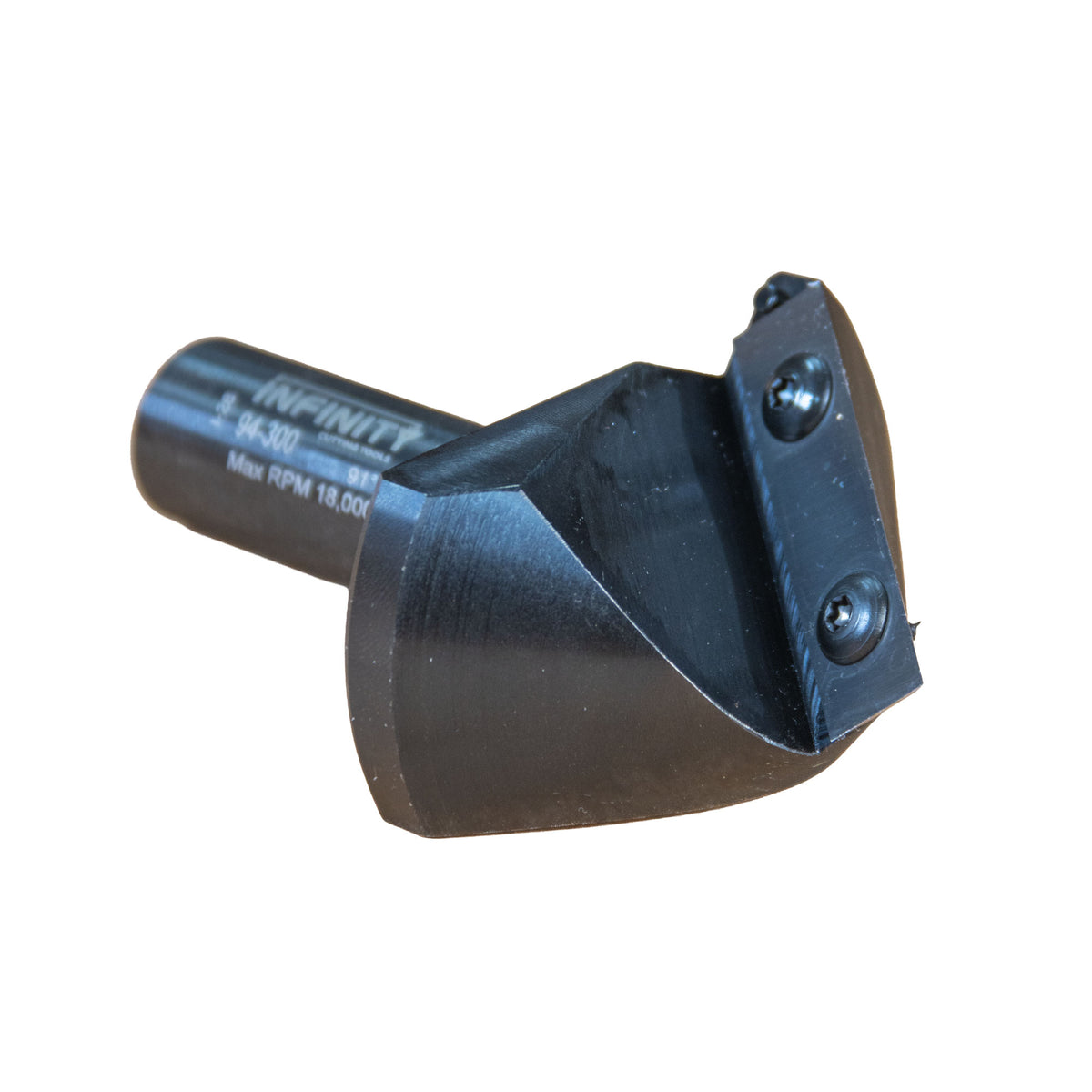

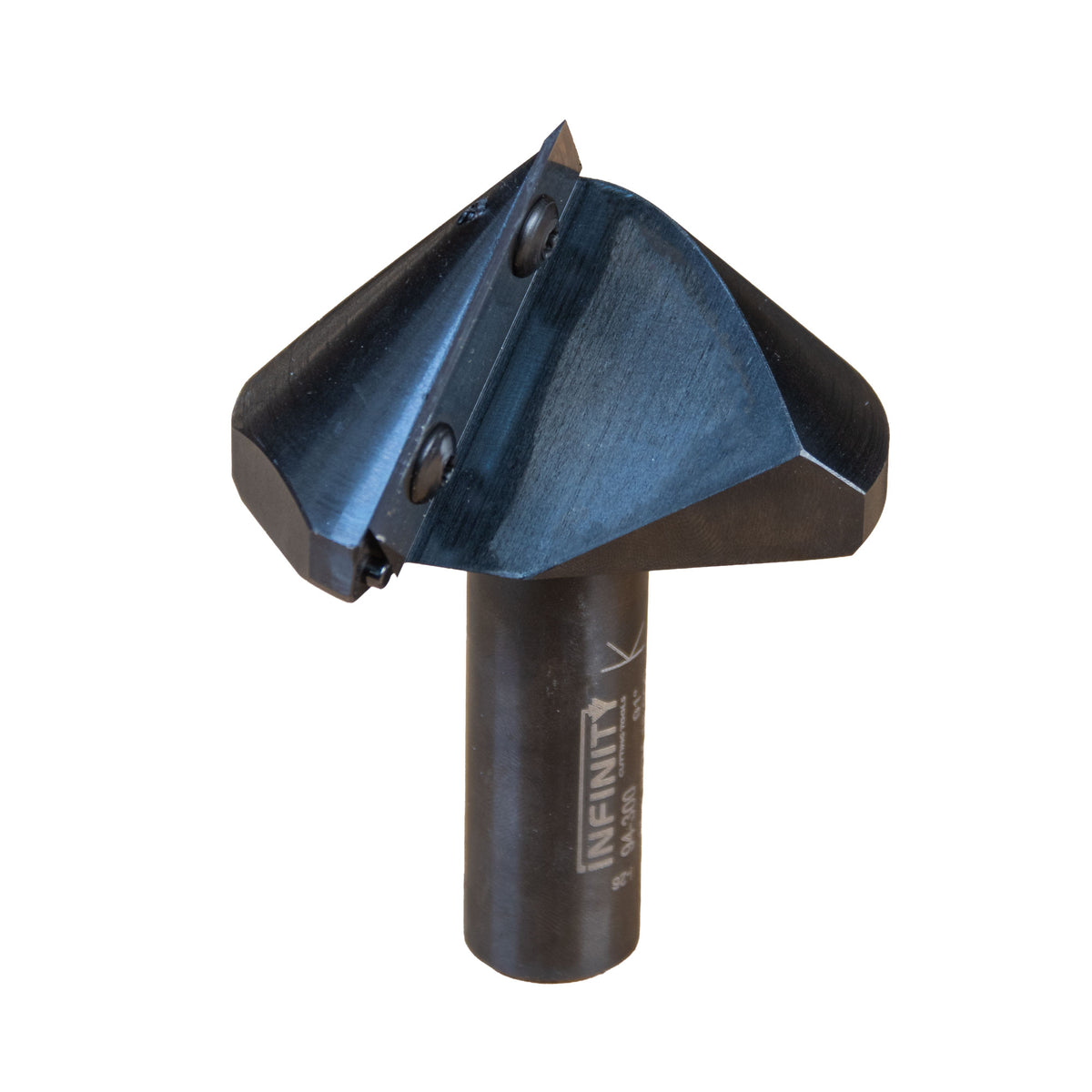

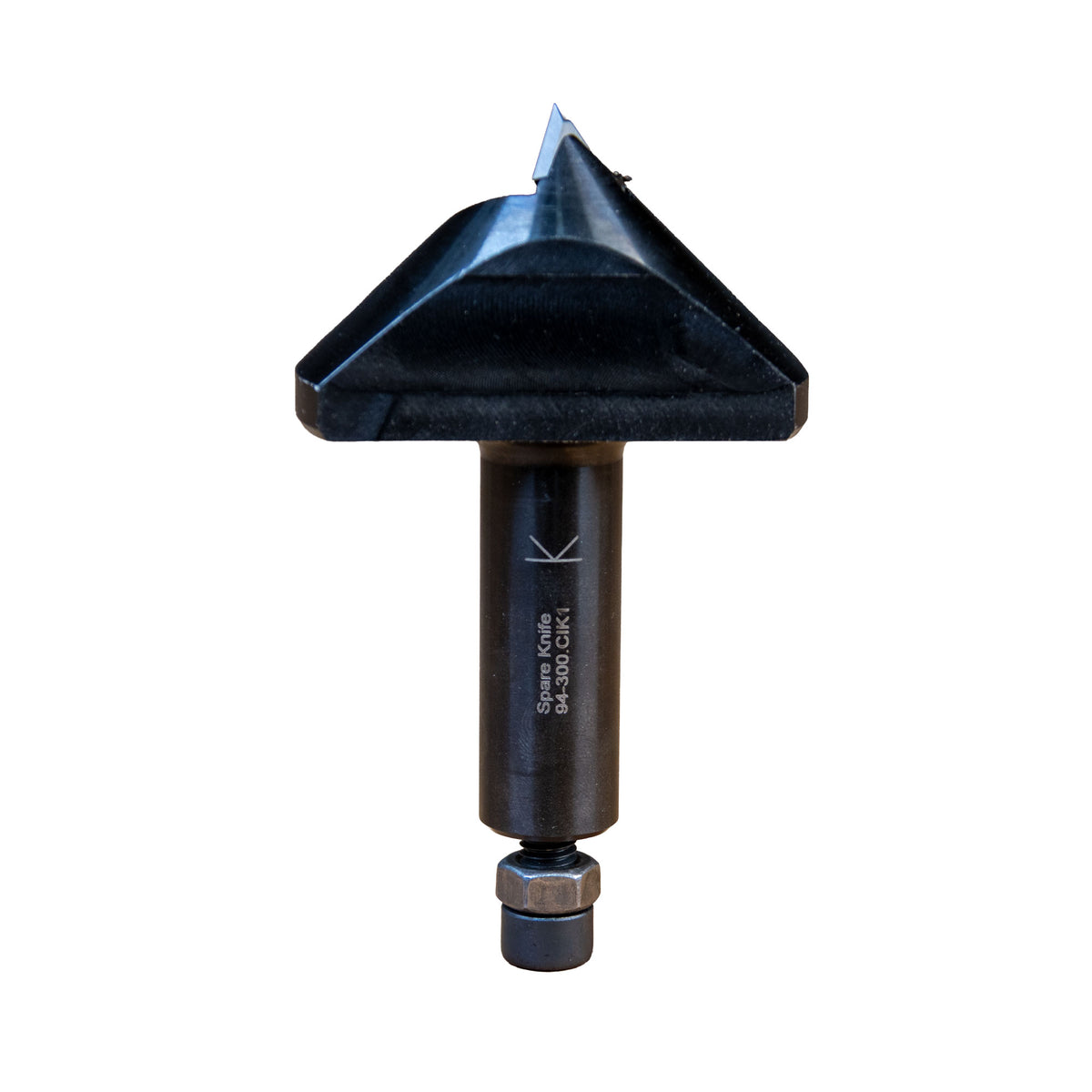

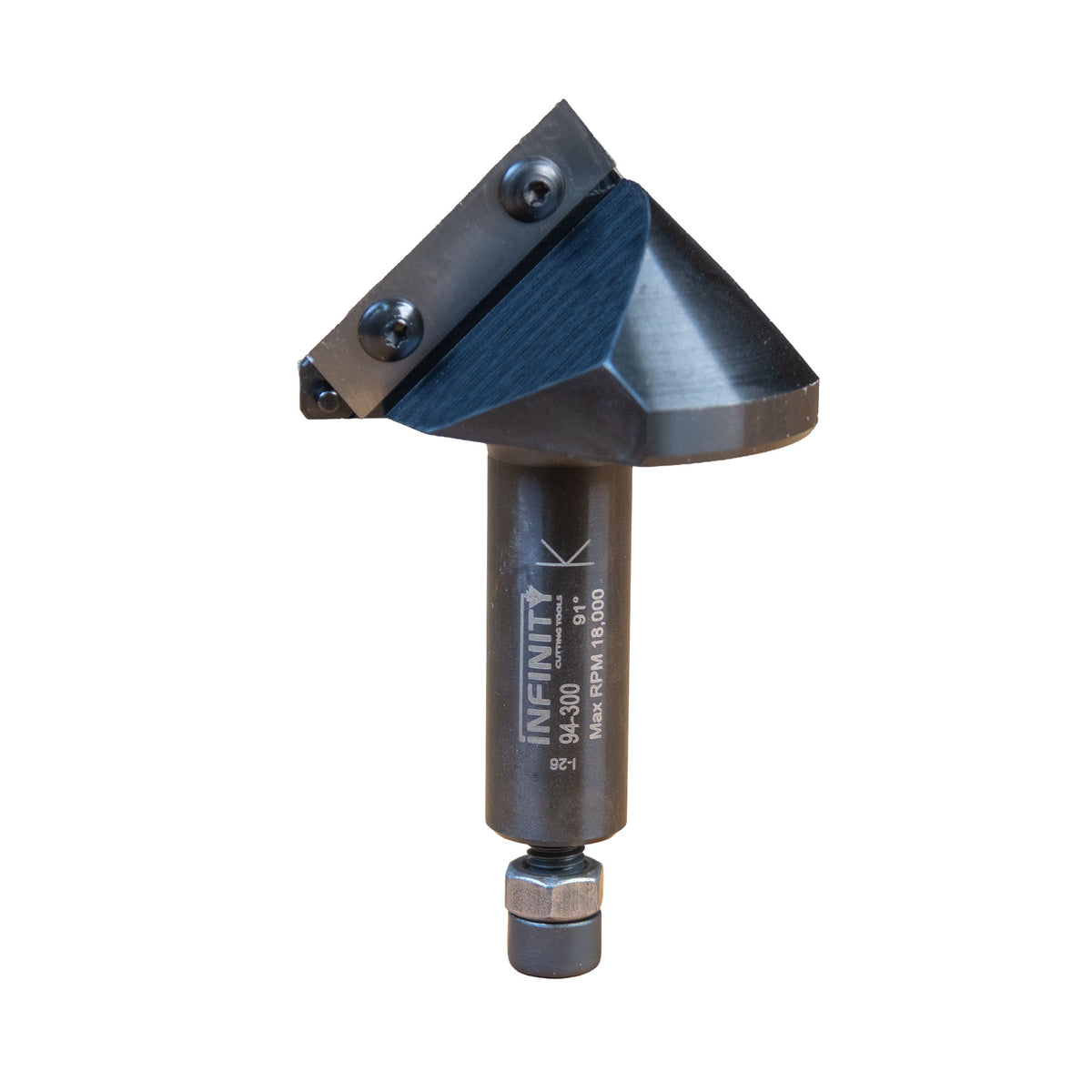

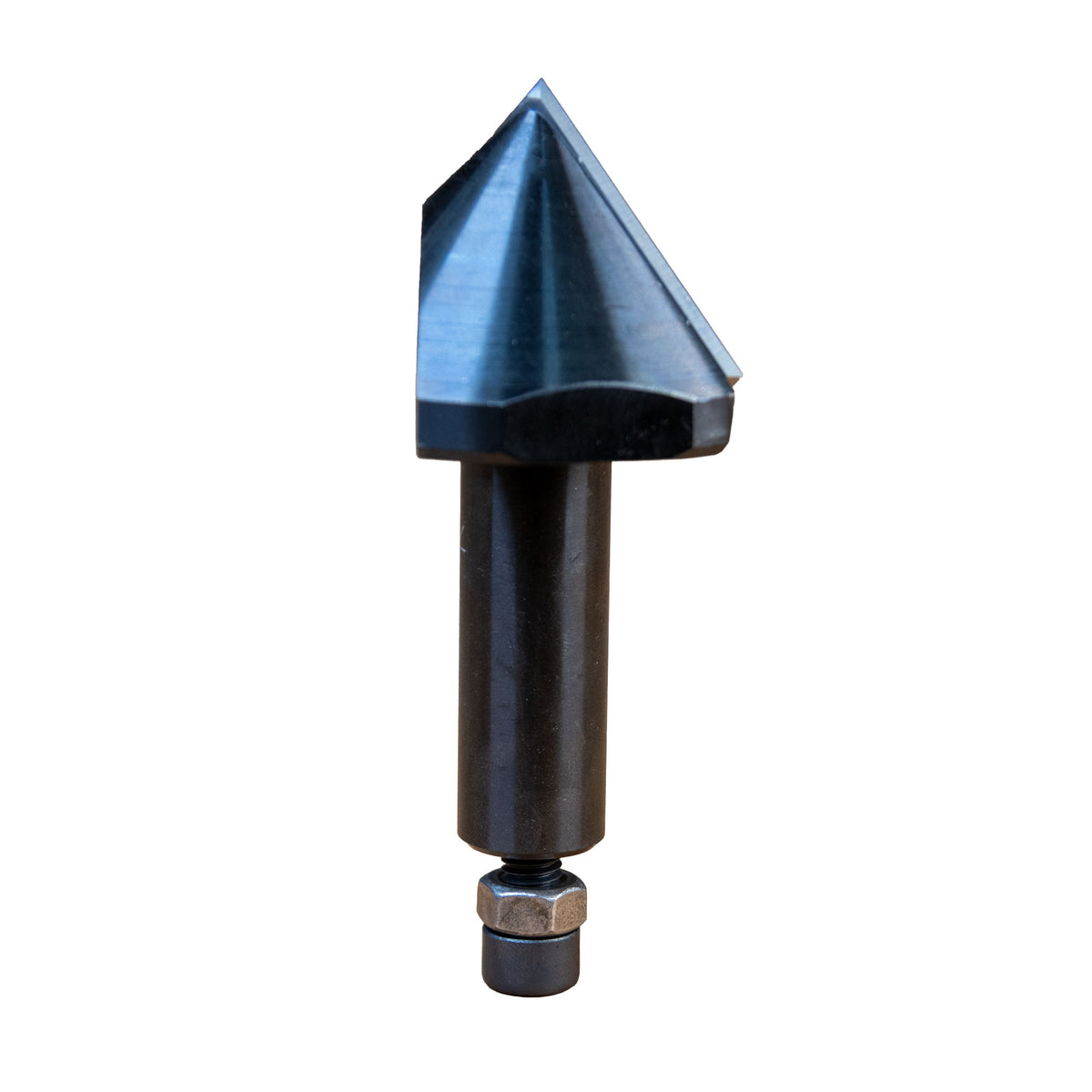

Infinity Tools Insert-Pro 91° Miterfold Router Bit, 2-5/8" D, 1-5/16" CH and 3/4" Shank
Insert Miter Fold 91 Deg x 1-5/16" Cutting Height with 3/4" Shank CNC Router Bit
Create clean, precise miter folds with the Infinity Tools 94-300 Insert Miter Fold CNC Router Bit. Designed for CNC routing applications, this specialized 91° cutter produces accurate V-grooves for creating strong, clean-fitting miter-fold joints in a wide variety of materials.
The 94-300 features a 2-5/8" diameter and 1-5/16" cutting height, giving you substantial cutting capacity for demanding CNC applications. Its precisely ground insert knife is designed to produce a clean V-groove while minimizing material buildup at the point of the cut. The result is a crisp, consistent groove that makes folding panels and creating mitered corners fast and repeatable.

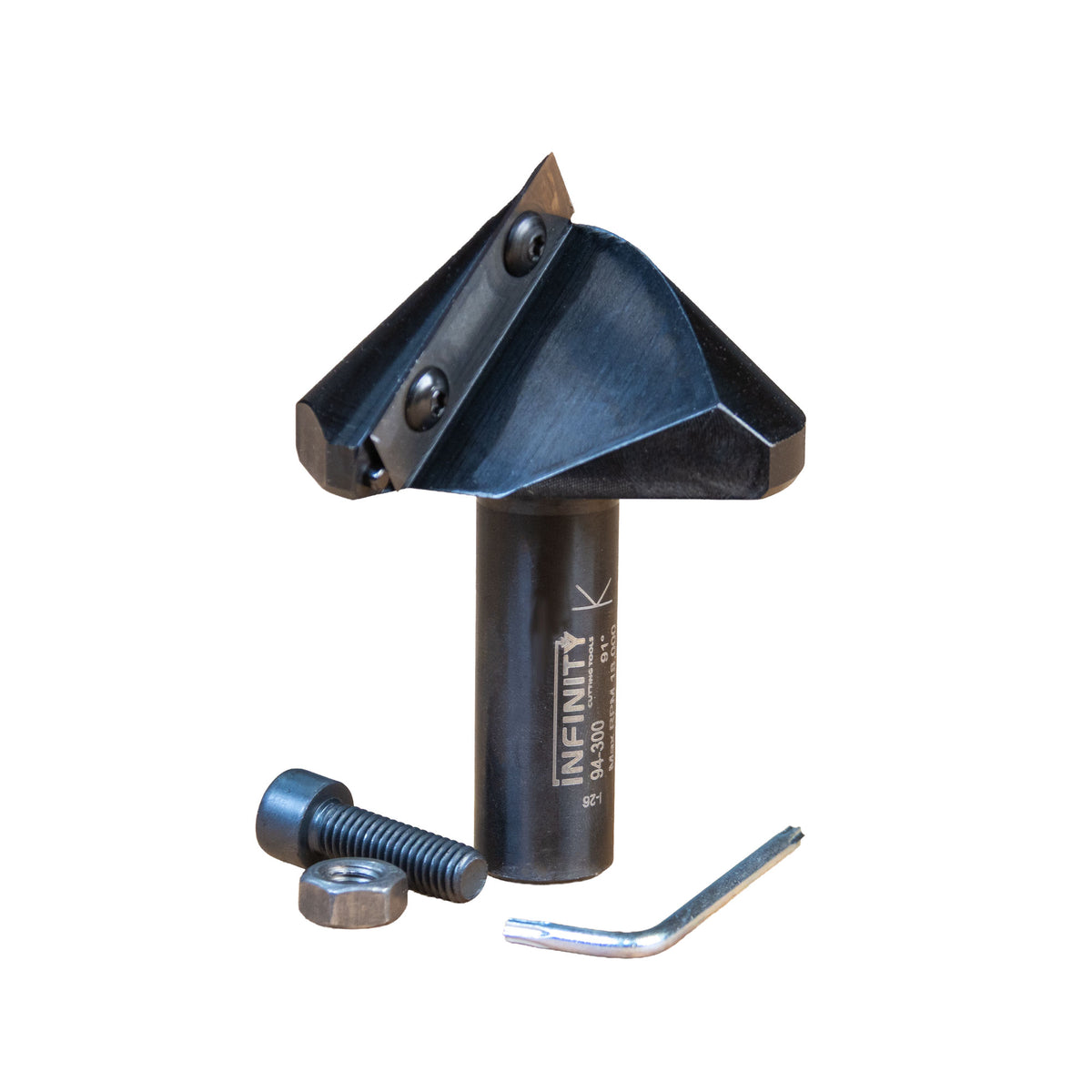

A major advantage of insert tooling is the ability to rotate the carbide knife when an edge becomes worn, giving you a fresh cutting edge without replacing the entire router bit. The secure locking screw system holds the insert firmly in position to maintain cutting accuracy during operation.
The 94-300 is an excellent choice for miter folds, sign making, lettering, woodworking, plastics, composites, laminates, melamine, MDF/HDF, veneered plywood, and other CNC routing applications. For production environments or demanding shop use, replaceable carbide insert tooling provides an economical, high-performance solution.
Specifications:
- Bit Diameter: 2-5/8"
- Cutting Height: 1-5/16"
- Overall Length: 3-7/8"
- Shank 3/4"
- Cutting Angle: 91°
- Knife Angle: 45.5°
- Number of Knives: 1 with 2 cutting edges
- Bit Type: Insert Miter Fold CNC Router Bit
- Maximum RPM: 18,000
- Replacement Knife: 48 x 12 x 1.5mm Insert Knife
- Replacement Knife: 94-300.CIK.1 (1)
- Compatible Machines: CNC Routers
